Specifications

Categories > Machining Center, Vertical, Bridge Type
Ask for quotation
Stock ref. # 1003

Manufacturer KAO MING

Model 3000SD

Year 1996

Axis_Travels(X;Y;Z) 118" x 55" x 27.5"

Capacity 5.5 Ton

RPM 5000

HP 25

ATC 30

Control FANUC OMC

Price SOLD!

Other specifications

Kao Ming model 3000SD Dbl. Column w/Control: Fanuc OMC

NEW 1996

Table Size..............................: 55" x 118"

Table Load..............................: 11,000 lbs.

X Travel................................: 118"

Y Travel................................: 55"

Z Travel................................: 27.5"

Max. Table to Spindle Face (extended opt: 44"

Spindle Speed...........................: to 5000 RPM

Spindle Taper...........................: CAT #50

Distance Between Columns................: 59"

Spindle Motor...........................: 25 HP

No. of Tools............................: 30 ATC

Equipped With:

Fanuc OMC Control

Coolant Through Spindle

High Speed Buffer

Front & Rear Chip Conveyors

Splash Guarding

Fanuc AC Servo Drives

Riser Table

*Note: Extended Column Height Built In Casting (No Risers)

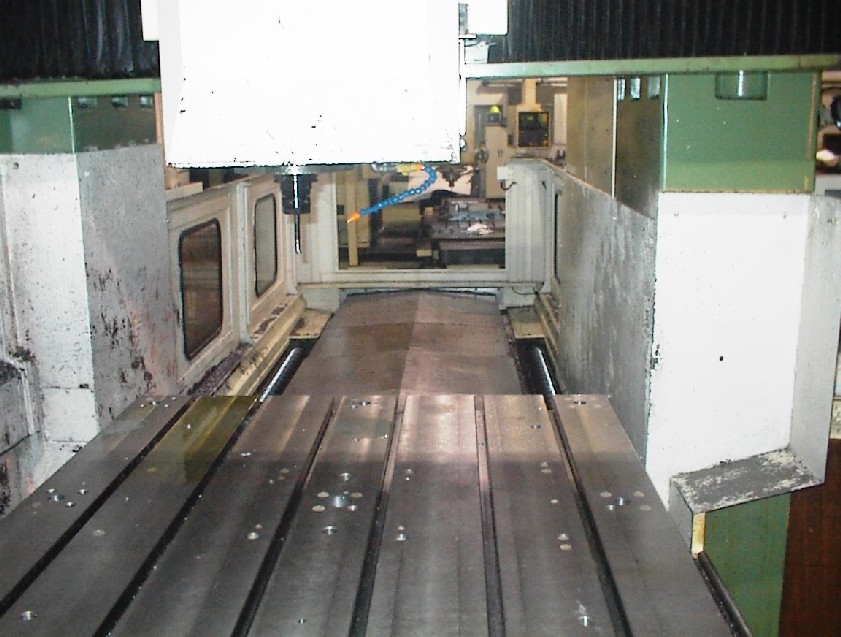

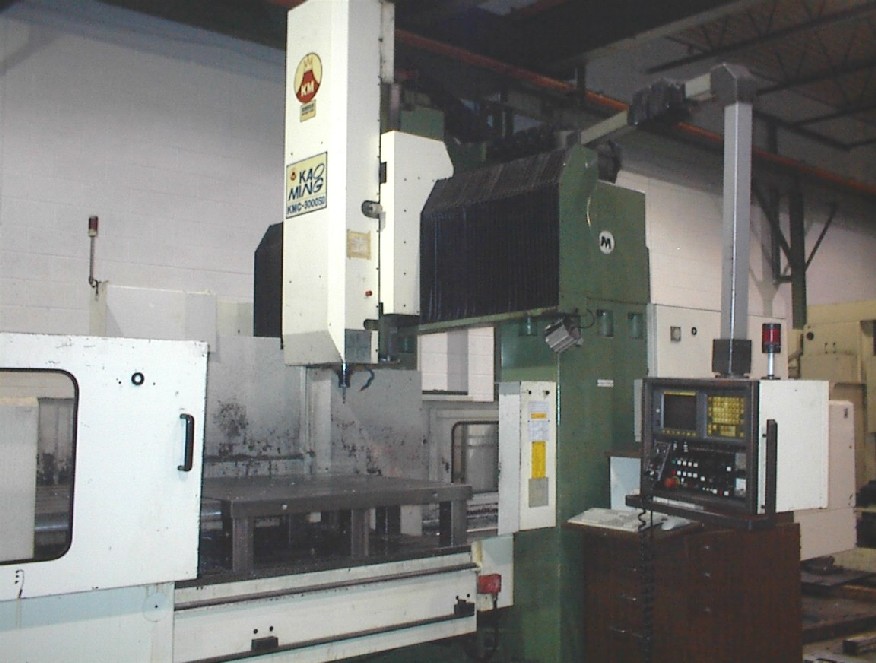

Photos
