Specifications

Categories > Lathes, CNC
Ask for quotation
Stock ref. # 1056

Manufacturer WEINGARTNER

Model ROTOMILL

Year 2002

Swing 39"

Between Centers 276"

Capacity *

Motor 135 HP

RPM *

Control SIEMENS 840

Price SOLD!

Other specifications

Weingartner RotoMill 5 axis mill/ turn center – all 5 axes are contouring (programmable feedrate)

MODEL: MPMC 100-700

YEAR: 2002

Work Envelope – 7000 x 800 x 800mm (276 x 31.5 x 31.5in)

C axis - 360 degree of rotation, 7250Nm torque (5347 lb/ft)

B axis (spindle) - 360 degree + 2.5degree increments on hirth coupling (clamp increment)

X, Y, Z are linear – designated according to lathe configuration (Z is long axis)

Tailstock is servo driven and programmable (W axis)

Tailstock quill is programmable

40 position tool changer (single disk)

Capto C8 milling spindle connection

Milling Spindle – 75 to 3000 RPM, 2 gear ranges (4:1 , 1:10), 764 Nm Torque (563 lb/ft)

Lathe Spindle As lathe spindle: 100Kw (135HP), 167 to 1550 RPM, 2 gear ranges

As “C” Axis: 20 RPM, 7250 Nm Torque ( 5347 lb/ft)

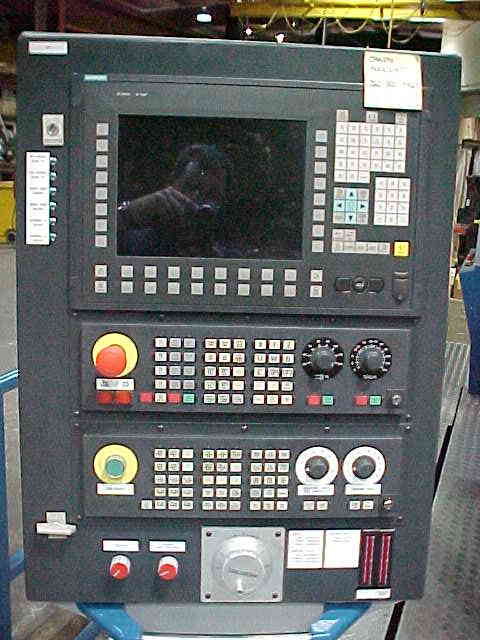

Siemens 840 CNC control

Vibration monitoring system to detect broken tools

Machine Diagnostics system for remote troubleshooting

Machine weight – 85,000Kg (96Tons)

HOURS OF OPERATION: less than 500 hours use.

Photos
