Specifications

Categories > Boring Mills, Vertical
Ask for quotation
Stock ref. # 1087

Manufacturer TOSHIBA

Model 60/80S

Year 1977

Table Dia. 236"

Swing 315"

Under Rail 183"

Capacity 120 TON

RPM 32

Motor 125 HP

Includes *

Price SOLD!

Other specifications

20' TOSHIBA MODEL 60/80S LARGE CAPACITY VERTICAL BORING MILL

YEAR: 1977

Table diameter 19'8"/6000 mm

Max. turning diameter 26'3"/8000 mm

Max. table weight capacity 120,000 kg/265,000 lbs

Table speed (3 ranges) .32-4.2, .32-11.7, .32-32.0 RPM

Max. height under saddle 15'10" /5000 mm

Max. height under rail 15'3" /4800 mm

Max. height under ram 15'7.5"/4900 mm

Feed range .020 - 25 IPM

Rapid60 IPM

Vertical travel of ram heads (2) 94.5"/2400 mm

Ram swivel 30 deg.

Horizontal travel of ram heads 168"/4000 mm

Max. turning height 14'9"

Min. diameter bore ram mill enter 19'7"

Cross rail travel 11'5"

Motor Specifications

120 HP main table drive motor

60 HP elevating rail motor

Equipped With

(2) swivel ram heads

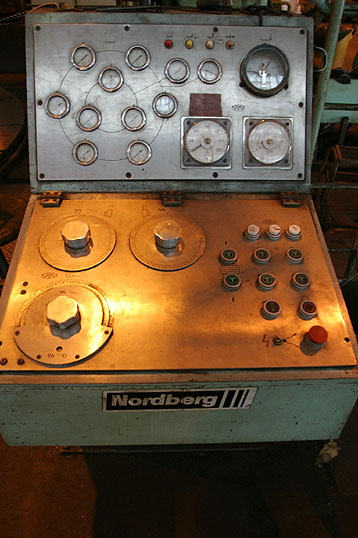

(2) pendant controls (floor operation) & floor controls

19'8" diameter T-slotted table

Independent chuck jaws

Thread grooving - .25-6 TPI by gears, right ram

Electric tracer attachment

Taper turning 0-60 deg.

Digital readouts

Inch/metric Lebus grooving Manual & prints

Dimensions 49'W x 26' x 35'4"H Appx. weight 218 tons
