Specifications

Categories > Machining Center, Vertical, Bridge Type
Ask for quotation
Stock ref. # 1127

Manufacturer KAO MING

Model KMC-3000SX

Year 1991

Axis_Travels(X;Y;Z) 126" x 60" x 30"

Capacity *

RPM 4000

HP 25 HP

ATC 30

Control MITSUBISHI

Price SOLD!

Other specifications

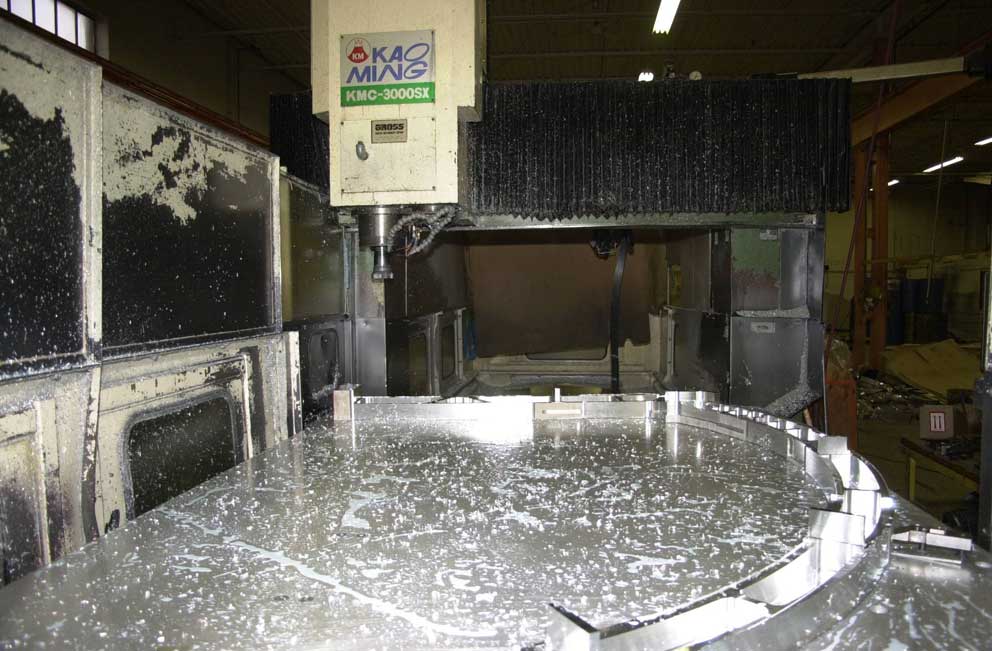

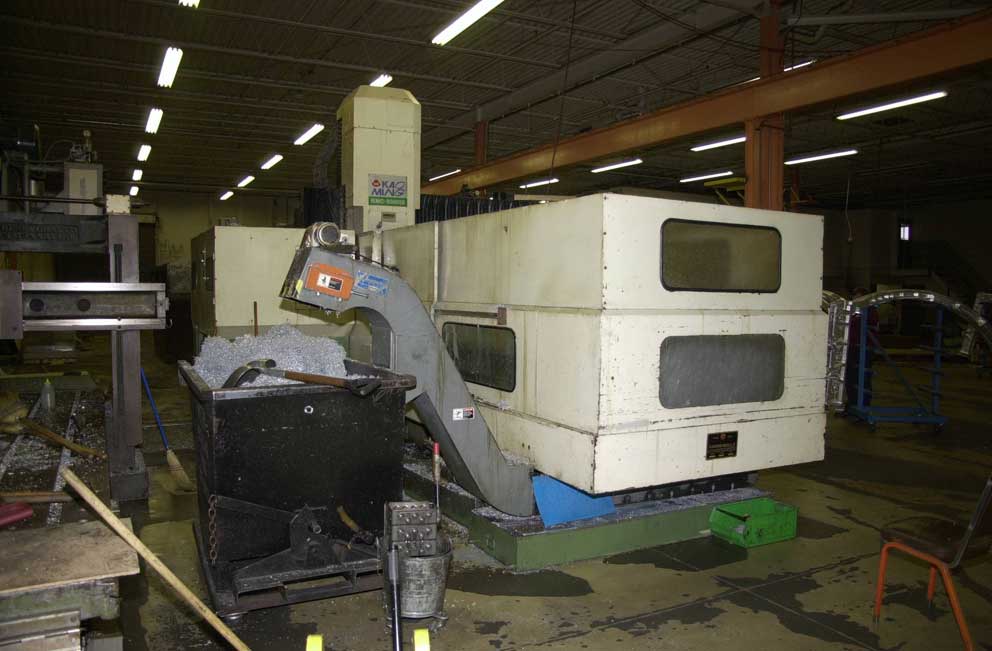

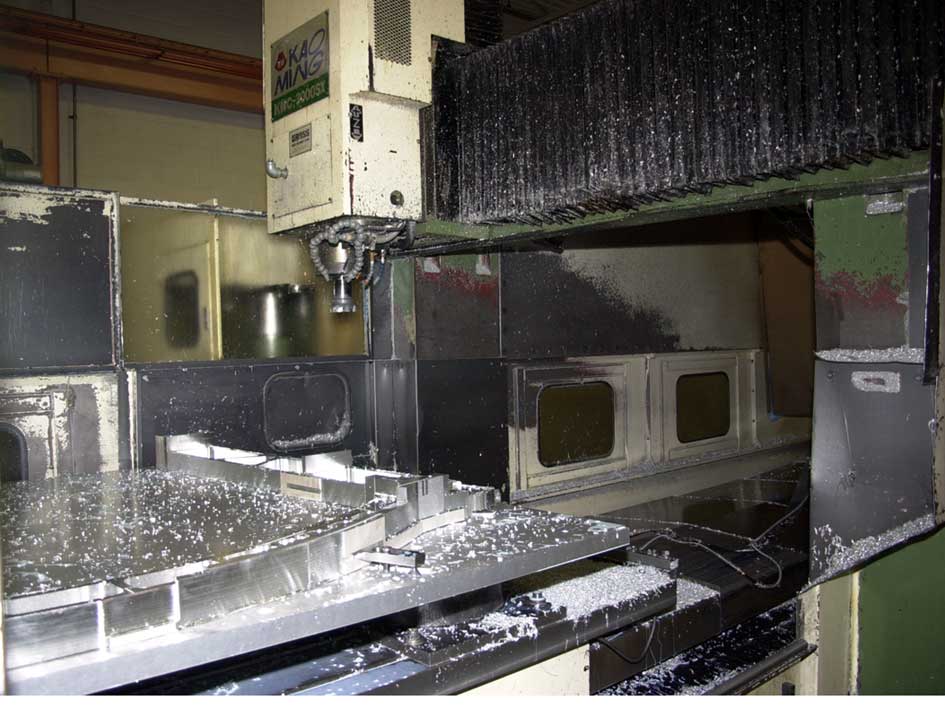

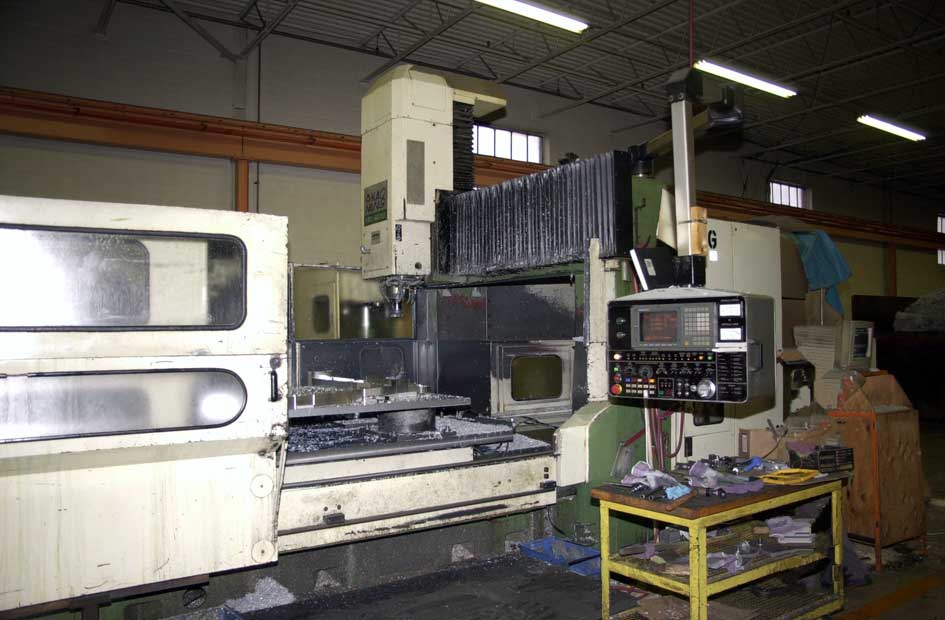

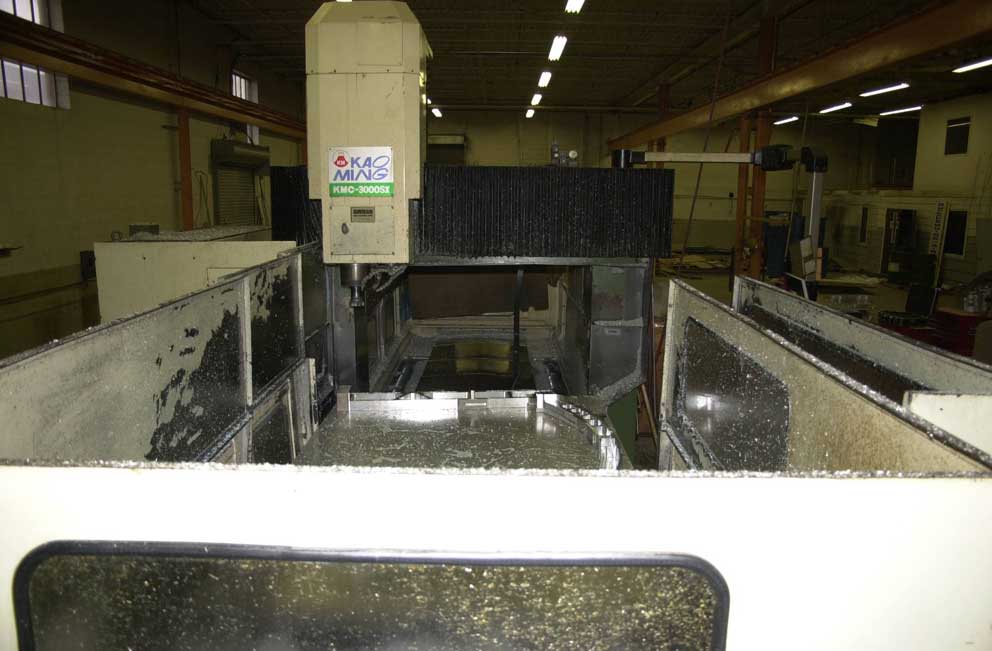

Kao Ming KMC-3000S Bridge Type CNC Vertical Machining Center

YEAR: 1991

S/N: 30011

Longitudinal Travel (X-axis)………………………………………… 126"

Cross travel (Y-axis)………………………………………………… 60"

Vertical travel (Z-axis)………………………………………………… 30"

Table Size…………………………………………………… 50" x 138"

Table load capacity…………………………………………

Distance between columns………………………………………………

Distance under spindle (Spindle nose to table)…………………………………………… 35"

Spindle taper………………………………………………………… CAT-50

Spindle speeds……………………………………………… 0 – 4,000 rpm

Motor……………………………………………………………… 25 hp

Dimensions (approx.)……………………… 324"(27')L x 130"(10.8') W x 118" H (min)

Equipped with:

MITSUBISHI MELDAS 300 SERIES CNC control

RS-232 port

30 Station ATC

Chip Conveyor

Enclosure

Manuals

Photos
