Specifications

Categories > Grinders, Surface, Rotary (Vertical Spindle)
Ask for quotation
Stock ref. # 1149

Manufacturer ELB

Model SFR150 SP CNC

Year 1984/98

Grinder Cap. 59"

Under Wheel *

Motor *

Includes FANUC 18MB

Price SOLD!

Other specifications

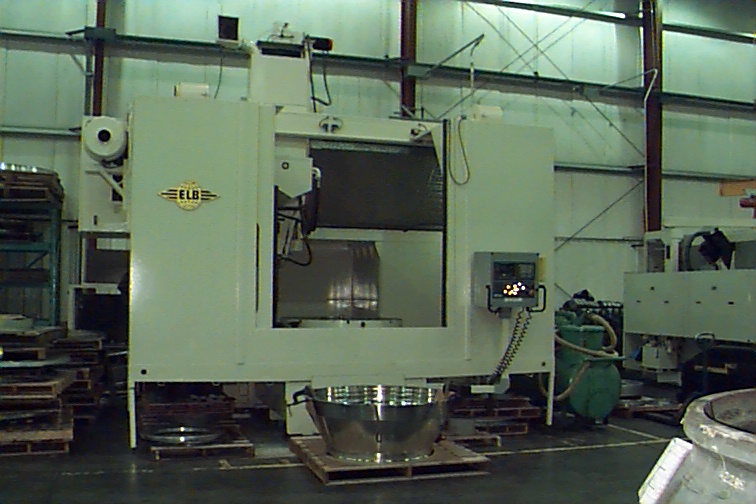

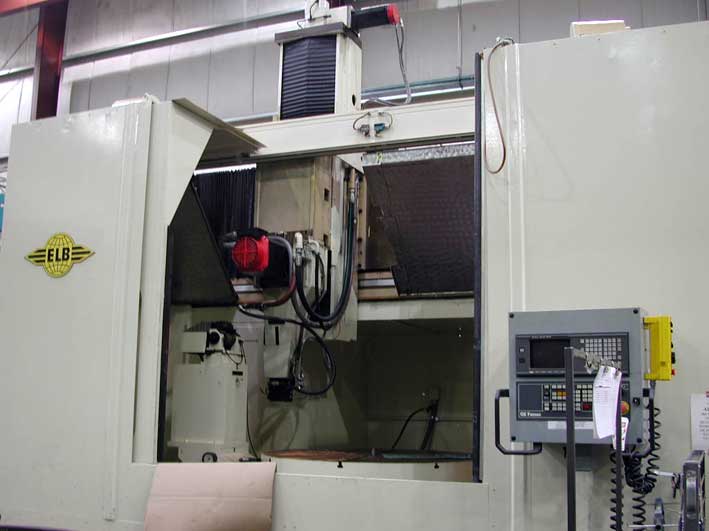

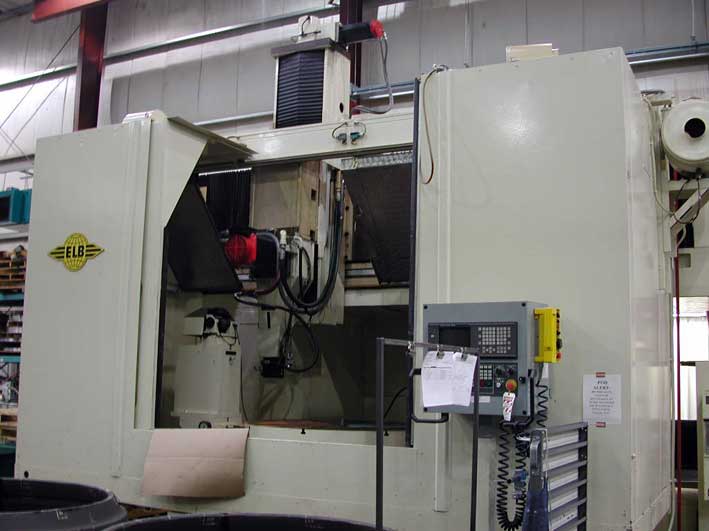

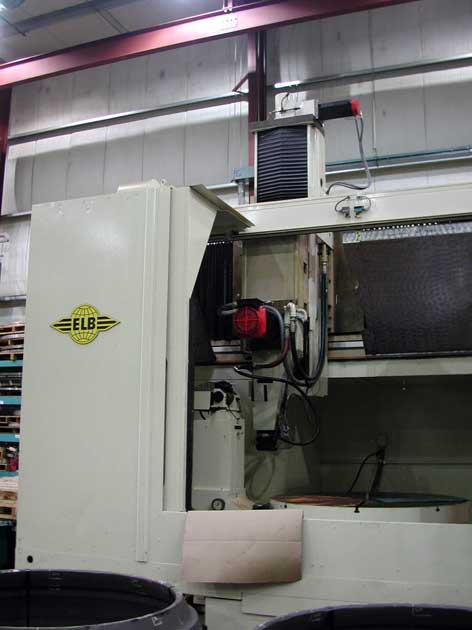

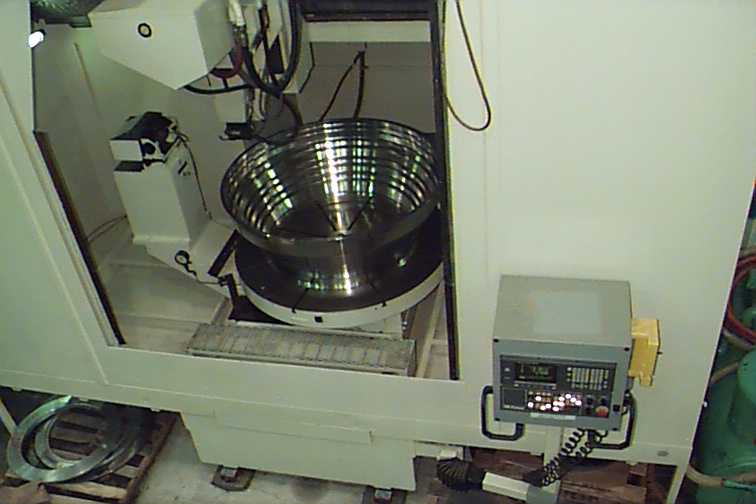

ELB SFR150 SP 4 AXIS CNC CREEP FEED/SLOT GRINDER

MODEL: SFR150 SP CNC

YEAR BUILT: 1984

YEAR RETROFIT: 1998

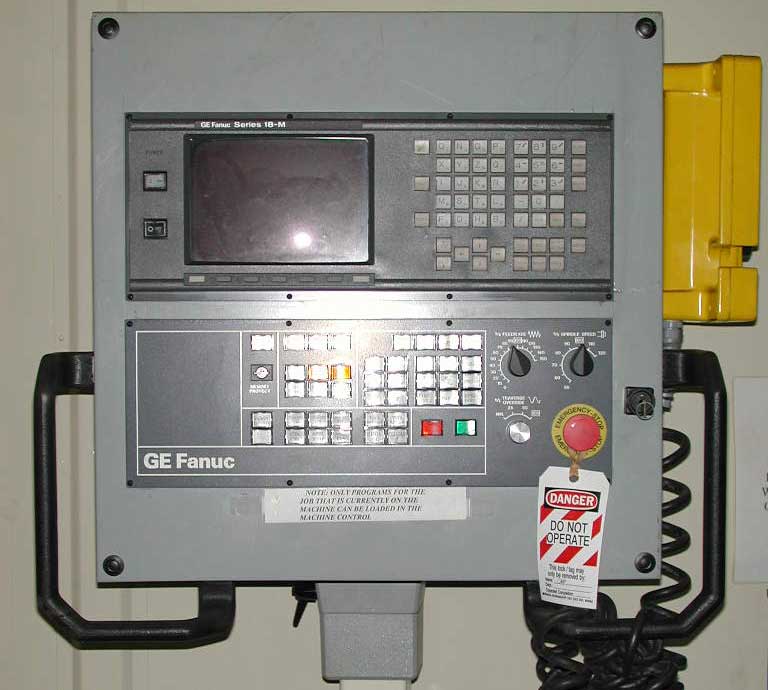

CONTROL: FANUC 18MB

4 AXIS: X,Y,Z,B

FANUC A.C. SERVOR MOTORS

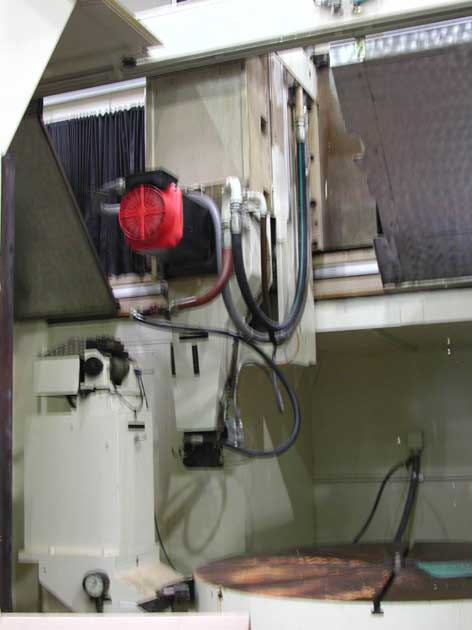

00-12,000 RPM SPINDLE, FANUC MOTOR AND A15 DRIVE (15 H.P.)

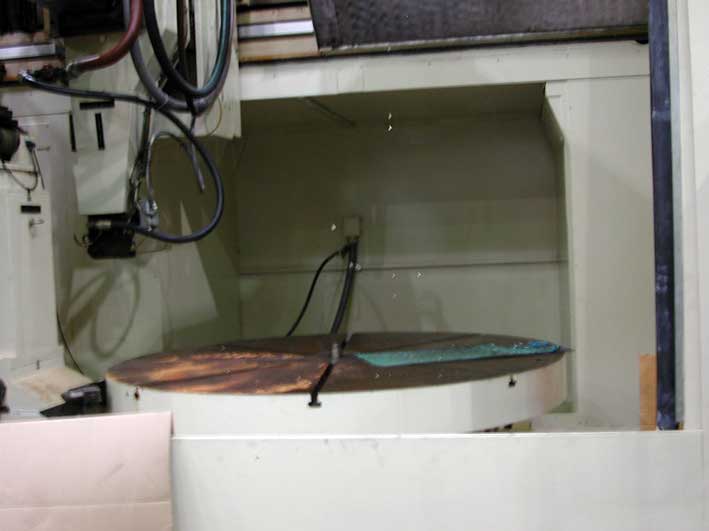

ROTARY TABLE CLAMPING

OIL CHILLER AND FILTER UNIT

WHEEL DRESSER

HEIDENHAIN GLASS SCALE FEEDBACK ON LINEAR AXIS

HEIDENHAIN ROTARY ENCODER ON TABLE

APPROXIMATE MACHINING DIMENSIONS:

WIDTH: 84" DIAMETER, 57" TRAVEL

HEIGHT: 31", 30" TRAVEL

DEPTH: 20" TRAVEL

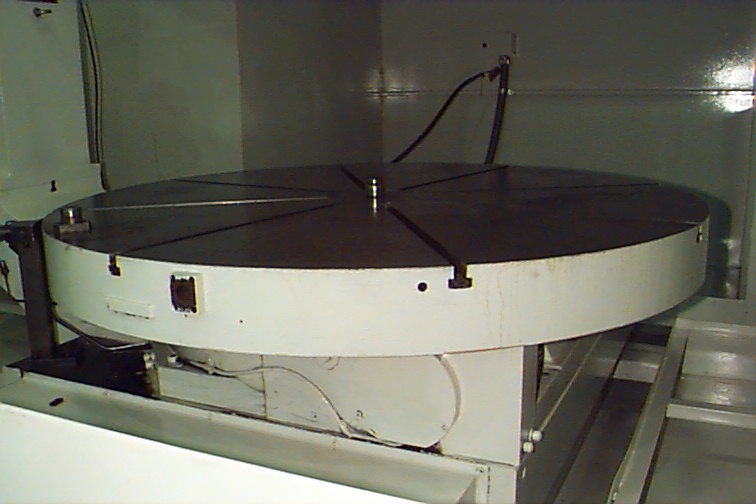

ROTARY: 59" DIA. 360,000 DEGREES

EQUIPPED WITH:

FULLY ENCLOSED GUARDING

PNEUMATIC OPERATING DOORS

COOLANT: 190 PSI, 50 GPM

APPROXIMATE FLOOR DIMENSIONS: 20' WIDE x 24.5' DEEP x 17' HEIGHT

POWER REQUIREMENTS: 480 VOLTS/3 PHASE/150 AMPS FOR CONTROL, COOLANT FILTER, AND CHILLER ASSEMBLY.

*** THIS MACHINE WAS DESIGNED AND BUILT FOR PRATT AND WHITNEY TO GRIND I.D. SLOTS IN LOW PRESSURE TURBINE CASES ***
