Specifications

Categories > Machining Center, Vertical, Bridge Type
Ask for quotation
Stock ref. # 1232

Manufacturer KAO MING

Model KMC-2000SD

Year 2003

Axis_Travels(X;Y;Z) 87" x 55" x 27"

Capacity *

RPM 5200

HP 35

ATC 30

Control FANUC

Price SOLD!

Other specifications

Kao Ming KMC 2000 SD Double Column Machining Center

New: 2003

Control: Fanuc 18i CNC

Specifications:

Travels:

X-axis ................... 87.8"

Y-axis.................... 55.11"

Z-axis.................... 27.55"

Distance between columns.. 59.05"

Spindle Taper............. CAT 50

Spindle Speeds............ 5200 RPM

Spindle Motor............. 35 HP

No. of tool positions..... 30 ATC

Equipped with:

Turbo Systems microfine chip conveyor

All Available Tool holders (@ 20 - 30)

Materials cut:

Aluminum & plastic, with the exception of a few steel parts.

Hours of use: Under one shift.

Further description:

1. KMC Double-Column type machining center series is square guideways

construction on 3-axes.

2. High precision extremely rigid double-column construction with no table

overhang.

3. Y-axis 70mm step-design for superior stability and machining accuracy.

Inner cooled ballscrew

Axis safeway protection

External axis position feedback

Integral ballscrew mounting brackets

Y-Axis step design

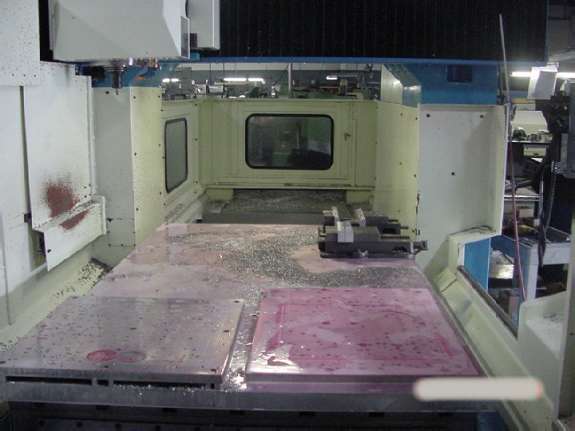

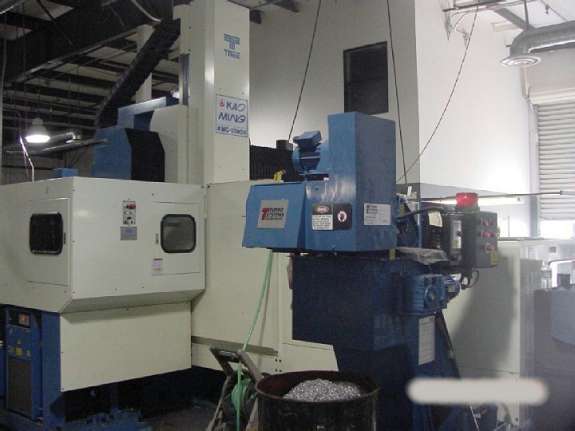

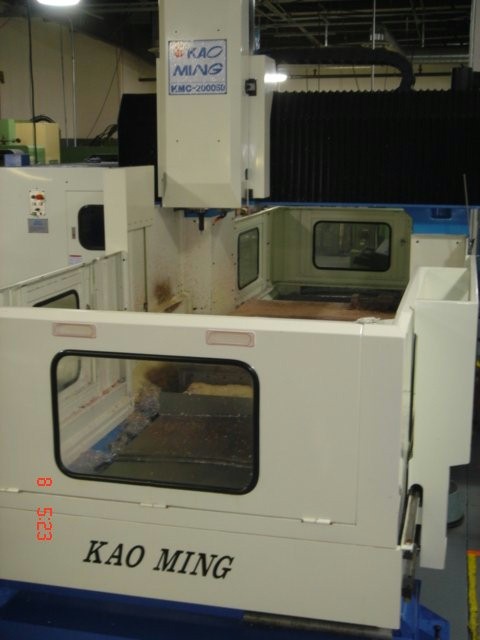

Photos
