Specifications

Categories > Boring Mills, Horizontal, Floor Type
Ask for quotation
Stock ref. # 1273

Manufacturer SKODA

Model WD160B

Year 1974

Spindle Dia. 6.3"

X-Axis 394"

Y-Axis 118"

Motor 54 HP

RPM 800

Includes *

Price SOLD!

Other specifications

6.29" (160 MM) SKODA WD-160B FLOOR TYPE HORIZONTAL BORING MILL

MODEL: WD-160B

YEAR: 1974 (INSTALLED IN 1975)

SERIAL NUMBER: OB20912

COLUMN HORIZONTAL TRAVEL(X-AXIS): 10000 MM

HEADSTOCK VERTICAL TRAVEL(Y-AXIS): 3000 MM

SPINDLE DIA.: 160 MM

SPINDLE TAPER: ISO # 50

SPINDLE MOTOR: 53.6 HP (40 KW)

SPINDLE SPEEDS: 2-800 RPM

MAX. DEPTH OF DRILLING BY MEANS OF SPINDLE: 63" (1600 MM)

MAX. RAM EXTENSION: 49" (1250 MM)

RAM SIZE: 18" x 18" (450MM x 450MM)

EQUIPPED WITH:

- 78.8" x 78.8" (2000x2000MM) SKODA E-20 INFEEDING ROTARY TABLE

MODEL: E-20

YEAR: 1980

S/N: OB22233

TABLE LOAD CAPACITY: 20,000 KG

INFEED: 47.2" (1200MM)

- 3 AXIS ANILAM D.R.O.

- (2) RIGHT ANGLE HEADS

- FLOOR PLATES: (2) PIECES OF 74" WIDTH x 252" LONG, 16" THICK

(3) PIECES OF 24" WIDTH x 192" LONG

INSPECT UNDER POWER!

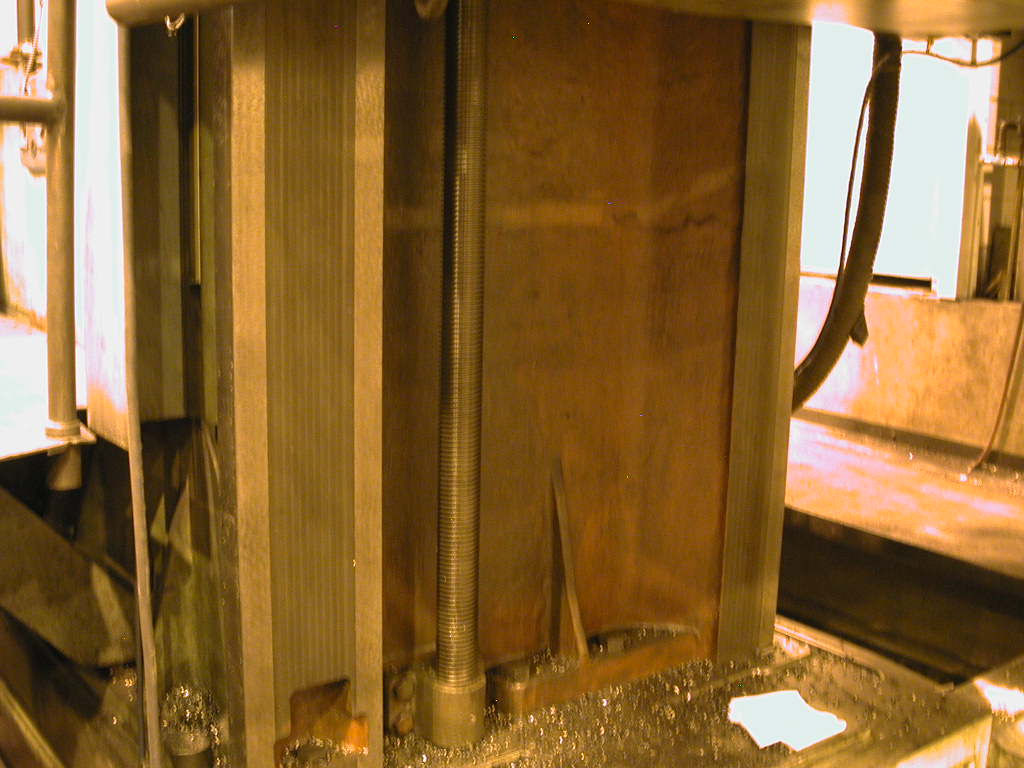

Photos
