Specifications

Categories > Rolls, Plate Bending
Ask for quotation
Stock ref. # 1293

Manufacturer IMCAR

Model SIHR 12/5 STD

Year 1997

Type DOUBLE PINCH

Capacity 0.50" x 10'

Motor 15 HP

Includes *

Price SOLD!

Other specifications

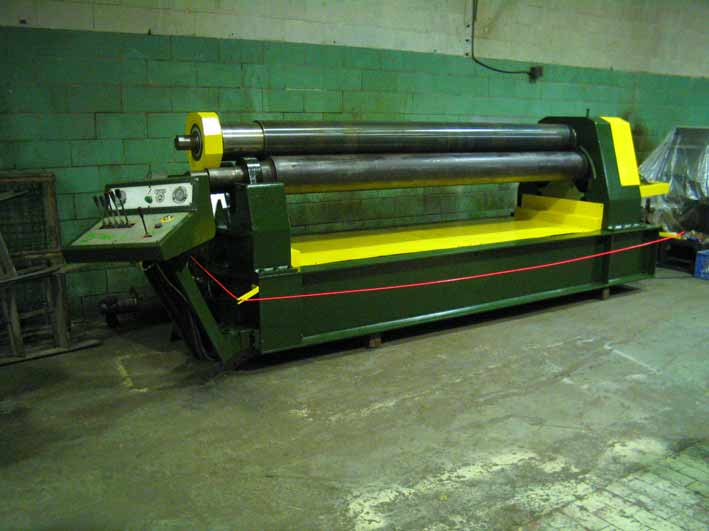

Imcar 1/2" x 120" Plate Rolls

1997 Imcar Hydraulic, 3-Roll Double Pinch (Universal) Plate Bending Rolls

Model SIHR 12/5 STD, Serial Number B-2292

Standard Capacity 1/2" Mild Steel

Prebend Capacity 3/8" with diameter 3 times top roll diameter

Roll Length 120"

Top Roll Diameter 11"

Bottom Rolls Diameter 10.23"

Hydraulic Motor 15 H.P.

Rolling Speeds 5.4 FPM (Maximum)

Weight Approximately 19,600 Lbs.

Dimensions 193"L x 56"W x 65"H

Equipped With: Hydraulic Drop End

Operator Console

Hydraulic Driven Bottom Rolls

Chain Driven Top Roll (From Bottom Rolls w/ clutch for tension adjustments)

Degree Travel Gauge on Bottom Rolls

Cone Rolling (with optional attachment, not included)

New Top Roll

New Paint

New Safety Stop Wire

Can Else Be Used For Rolling Angles, Channels, Tube & Bars, With Optional Profile Tooling That Will Attach To The Roll Ends (Optional Tooling Not Included)

Condition Excellent

Photos
