Specifications

Categories > Punches, Turret, CNC
Ask for quotation
Stock ref. # 1316

Manufacturer AMADA

Model VIPROS

Year 2000

Tonnage 22

X-Axis 50"

Y-Axis 50"

Control FANUC

Price SOLD!

Other specifications

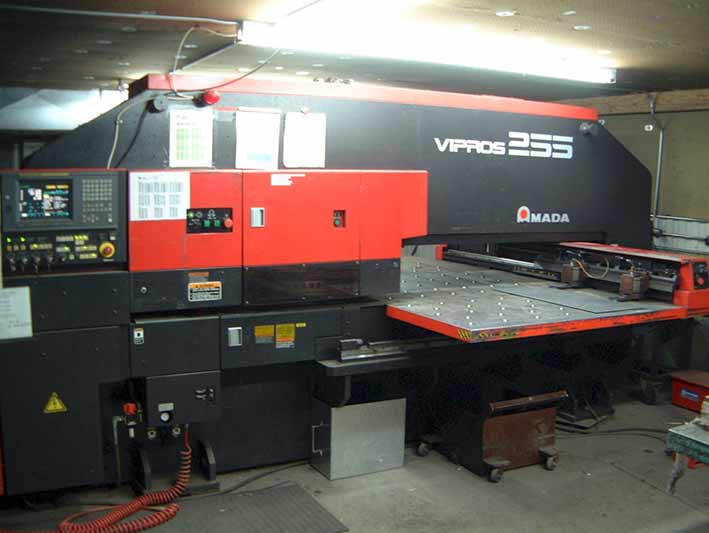

AMADA VIPROS 255 CNC TURRET PUNCH, 2000

MODEL: VIPROS 255

YEAR: 2000

TONNAGE ................................ 22 TONS

TURRET STATIONS ........................ 31

TOOL CAP. .............................. 31 w/3 A/I

INTERNAL STATION TO STATION TURRET

TOOL MAG. ROTATION SPEED, RPM ........ 60

MAX. HOLE DIA. ......................... 3.5"

NO. OF STATION ......................... 3

ROTATION SPEED ......................... 60 RPM

MAX. HOLE DIA. ......................... 2"

SPM ACCURACY ON 1" CENTERS ............. 340 @.315"

RAM STROKE +/- .0027"

STROKES PER MINUTE, CONTOURS ........... 720 @ .118"

RAM STROKE .079" PITCH

MAX. PARTING SPEED, IPM ................ 3,229

(PERIMETER PUNCHING)

INDEXABLE FEED CLEARANCE ............... .787"

MAX. MATERIAL THICKNESS ................ .25"

MAX. DIMENSIONS ........................ 50" x 144" w/ONE REPO

MAX. DIMENSIONS ........................ 50" x 50" without REPO

MAX. WEIGHT ............................ 232 LBS.

THROAT DEPTH ........................... 50"

TABLE TRAVEL DIMENSIONS ................ 50" x 50"
