Specifications

Categories > Machining Center, Vertical, Bridge Type
Ask for quotation
Stock ref. # 1365

Manufacturer AWEA

Model 5 AXIS

Year 2003

Axis_Travels(X;Y;Z) 118" x 98" x 39"

Capacity *

RPM 6000

HP 35

ATC 20

Control SELCA

Price SOLD!

Other specifications

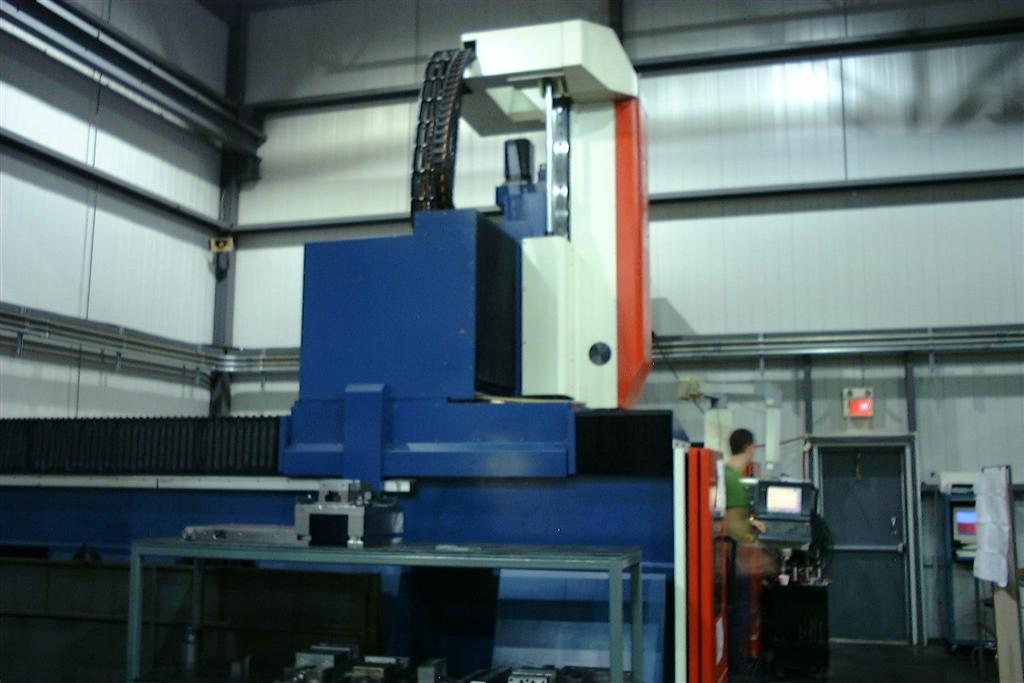

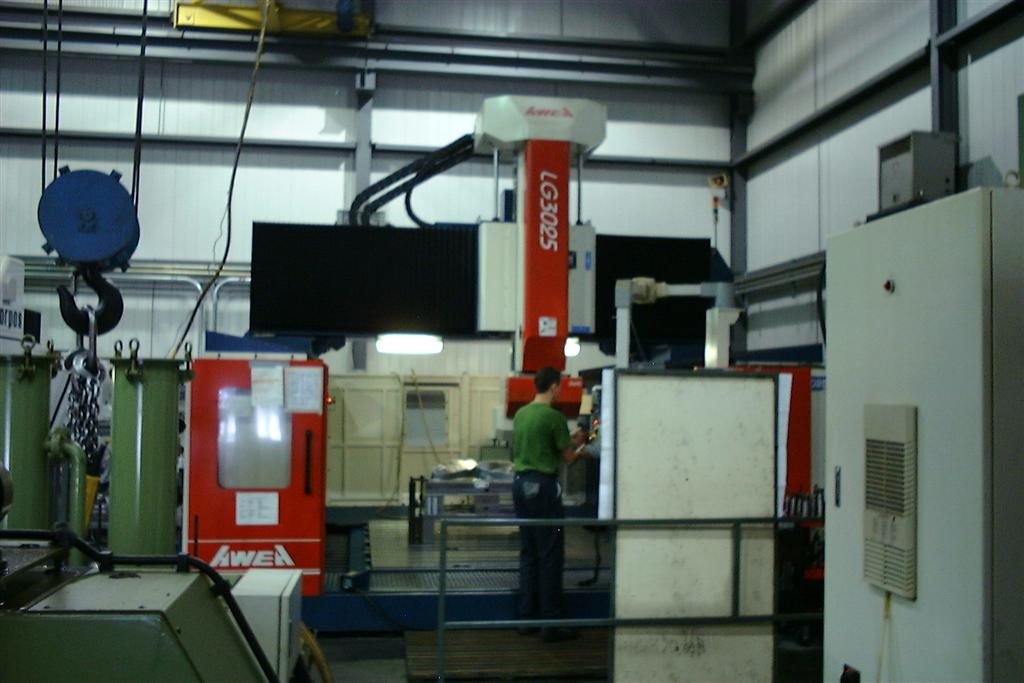

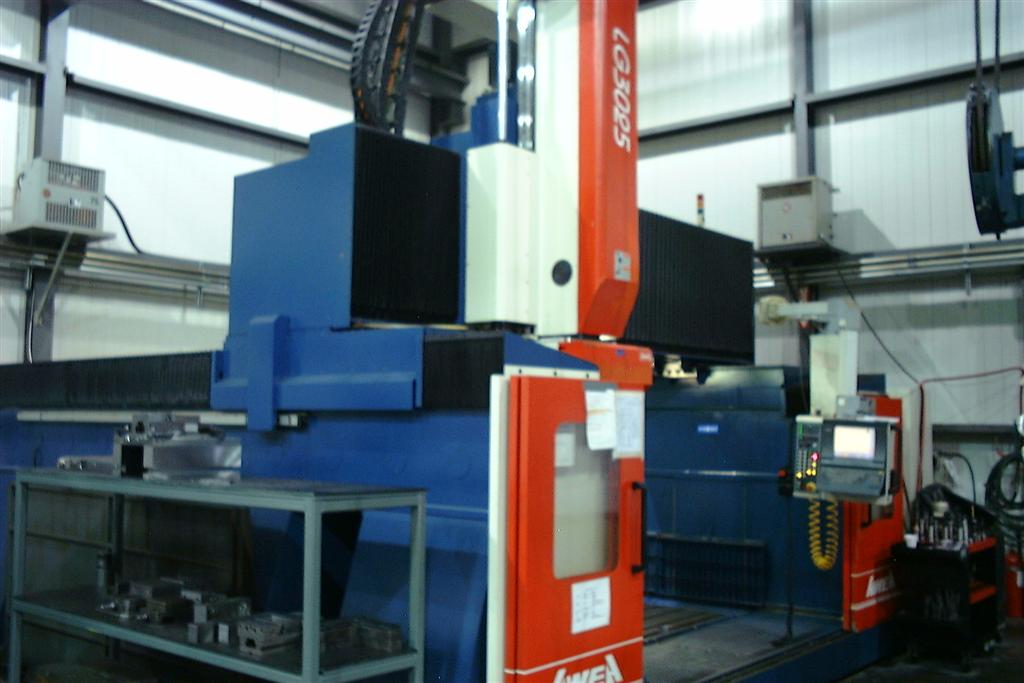

AWEA LG3025 - 5 AXIS GANTRY TYPE VERTICAL MACHINING CENTER, 2003

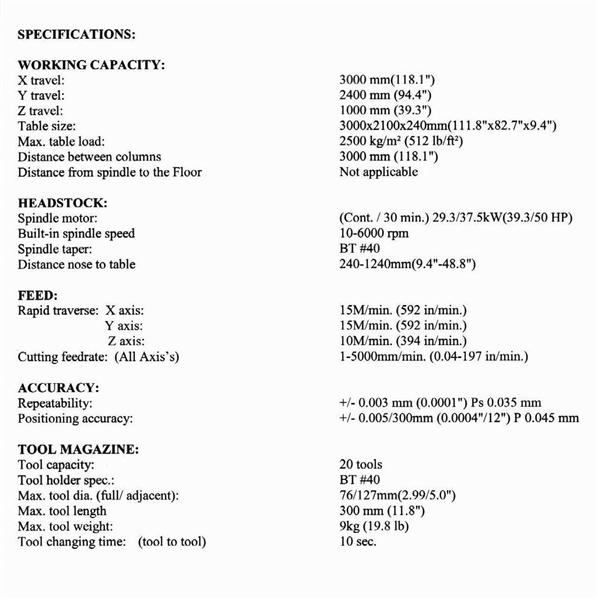

TRAVELS:

X AXIS: 3000 mm - 118.11"

Y AXIS: 2500 mm - 98.43"

Z AXIS: 1000 mm - 39.37"

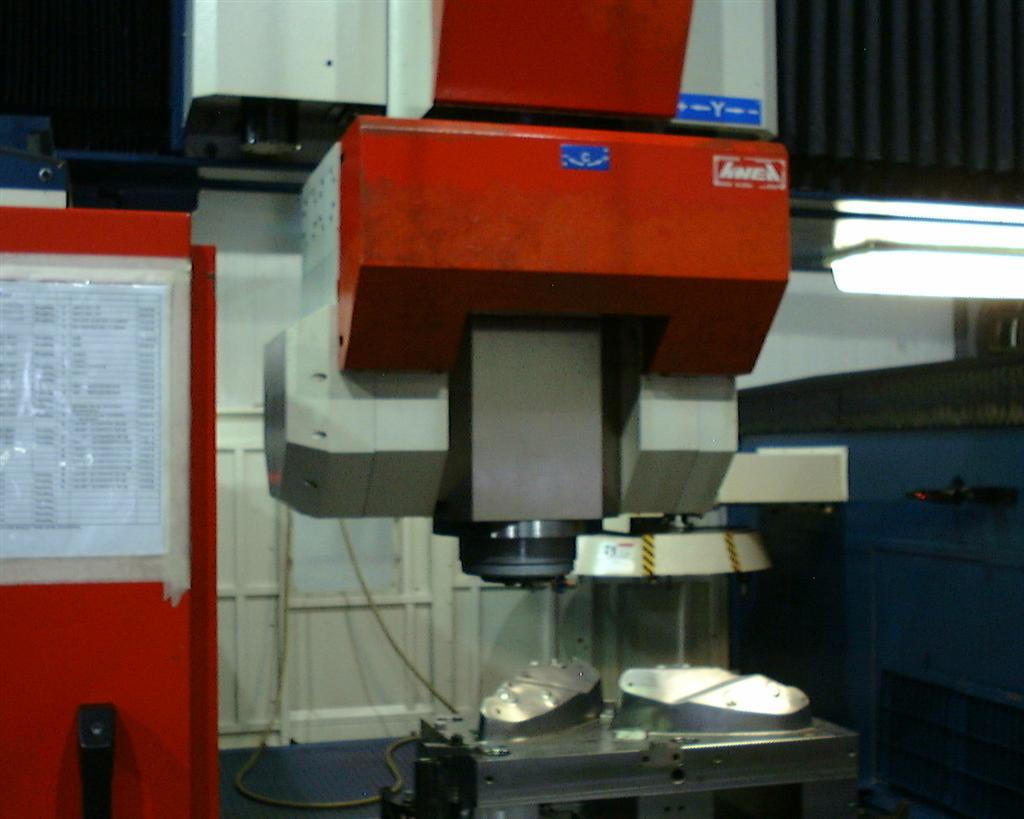

HEAD INDEXING RANGE:

A AXIS: ą95°

C AXIS: ą185°

INDEXING RATE ON A & C AXIS: 10 RPM

POSITIONNING ACCURACY: ą 20 ARC SEC.

DISTANCE BETWEEN COLUMN: 3000 mm - 118.11"

TABLE SIZE: 3000 x 2100 mm - 118" x 82.7"

SPINDLE MOTOR: 39/50 HP

SPINDLE SPEED: 6000 RPM

SPINDLE TAPER: BT#40 TAPER

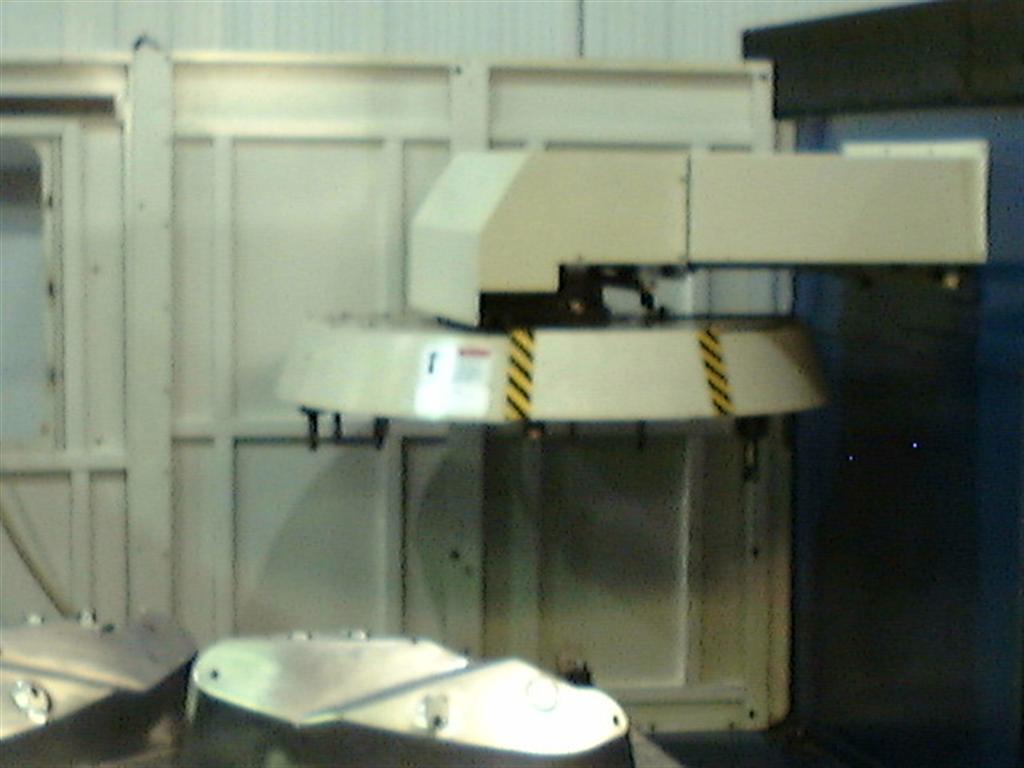

TOOL CHANGER: 20 ATC

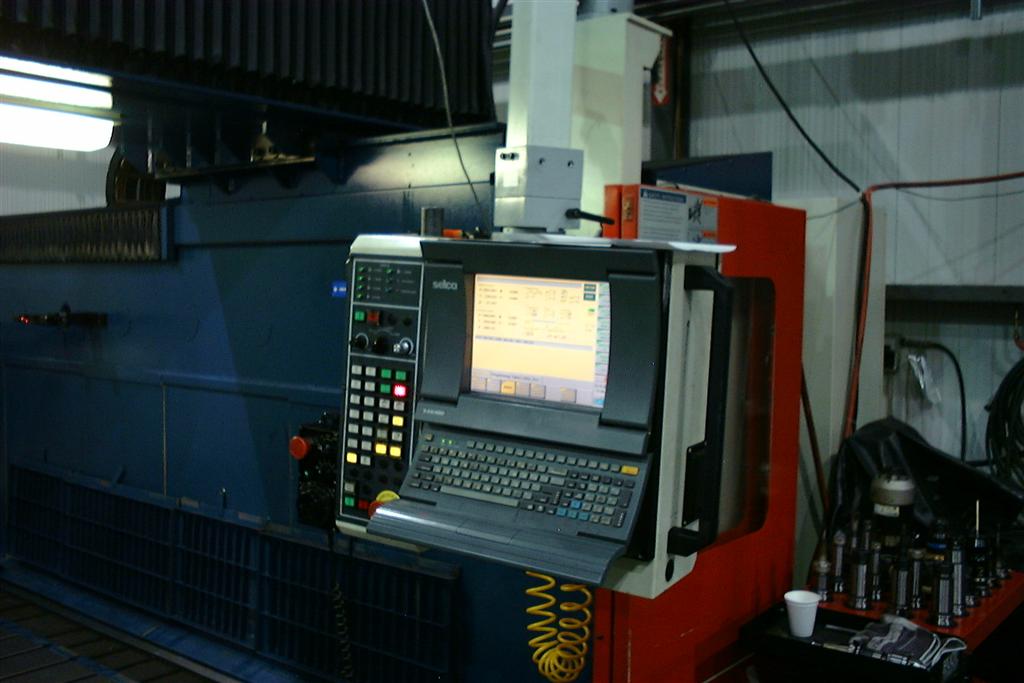

SELCA 4045P CNC CONTROL

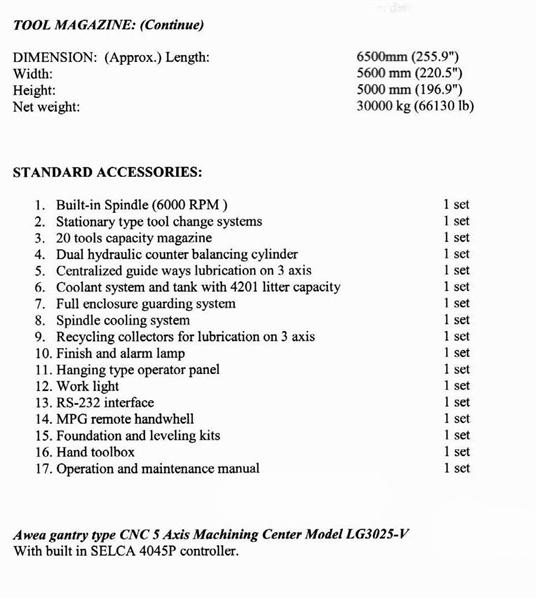

OVERALL SIZE:

LENGTH: 6500 mm - 256"

WIDTH: 5600 mm - 220.5"

HEIGHT: 5000 mm - 197"

NET WEIGHT: 30000 KG - 66130 LBS

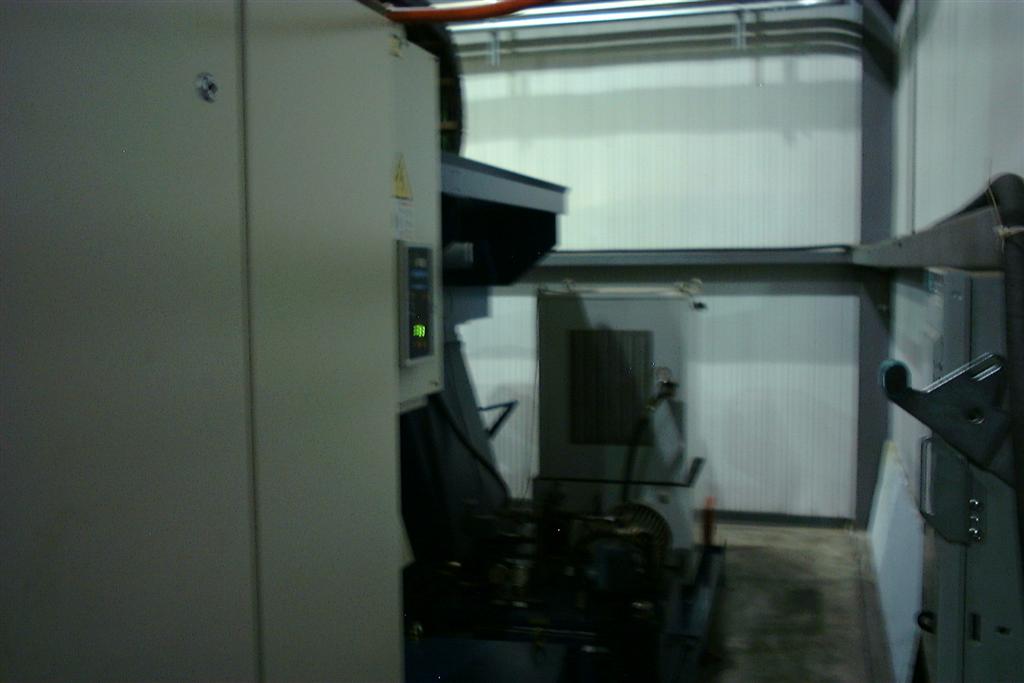

Photos
