Specifications
| Ask for quotation | |
| Stock ref. # 1384 |
|
|
Other specifications

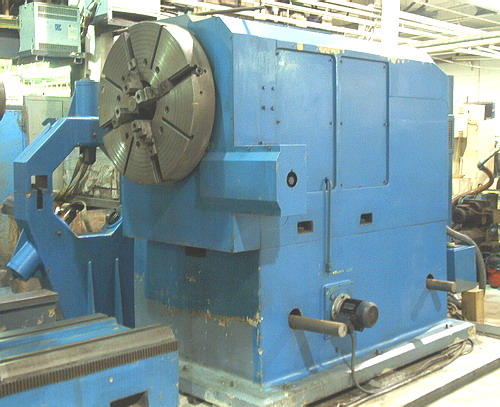

78.7"/96" x 157.5" TACCHI FTD/C 122 x 4000 HEAVY DUTY LATHE/GRINDER, 1993 S/N 6733 Model FTD/C122, S/N 6733 New 1993 78.7" swing x 157.5" centers Approx. 96" swing in the GAP Heidenhain DRO Control, 460V, 75 KW Standard lathe slide, 1-300 RPM 460V 75 KW Grinding Slide W/overhead wheel dresser 36" 4-jaw chuck, Steady Rest, 6" Hole thru spindle Standard lathe slide Full length chip conveyor. New 1993 1-300 RPM Grinding slide w/overhead wheel dresser (1) 36" 4 jaw chuck and (1) 67" 4 jaw chuck 6" hole thru spindle Full length chip conveyor Coolant filtration unit 4 sided steel post HEADSTOCK Gear range speeds 1 to 300 RPM Belts range speeds 1 to 200 RPM Constant power range 11 to 300 RPM Number of speed ranges 3 speed ranges Driving power/Main motor DC 44 Kw Maximum torque 29.400 NM Spindle nose DIN 55021 GR.20" Spindle bore 150 mm Center height 1200 mm Swing over bed 2000 mm Swing over saddle 1500 mm Center distance 4000 mm Maximum weight of component on chuck,without steady rest: 18000 Kg Maximum weight of component on chuck off center 300mm: 3000 Kg BED Width of saddle bed 900 mm Width of tailstock bed 700 mm WORKING FEEDS Steplessly variable longitudinal feeds 0,5 to 500 mm/min Steplessly variable cross feeds 0,25 to 250 mm/min Steplessly variable hydraulic top slide 50 to 1000 mm/min RAPID TRAVERSES Longitudinal rapid traverse 3000 mm/min Cross rapid traverse 1500 mm/min Hydraulic top slide traverse 1000 mm/min THREADING By decade electrical axis, pitch 99,999 TAILSTOCK Quill diameter 260 mm Quill stroke 200 mm Internal taper Metric 80 TURRET Maximum tool section 60 mm Number of tools 4 tools INSPECT IN CANADA!
Photos
|
