Specifications
| Ask for quotation | |
| Stock ref. # 1410 |
|
|
Other specifications

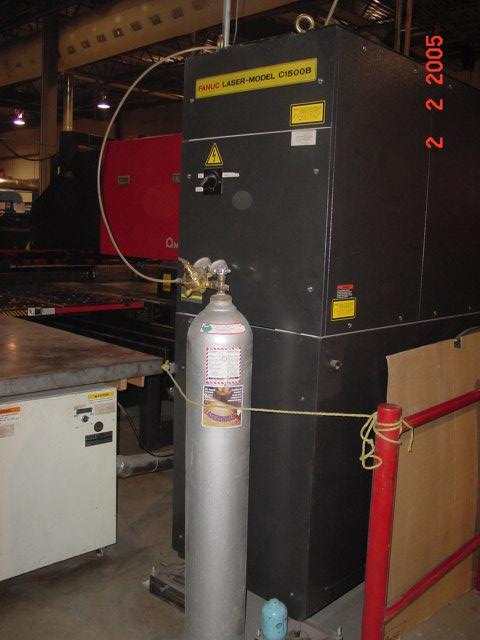

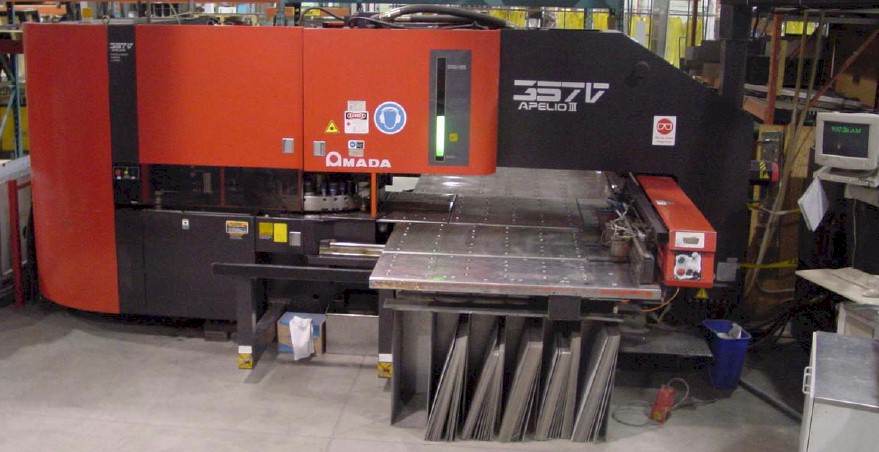

Amada Apelio III no.357V combo cnc turret punch laser, Fanuc, 1500 Watt ,33 ton, 1996 WITH 58 STATIONS AND 2 AUTO-INDEX STATION Model AP3357V FANUC F16LCB (32BITS) Laser: FanucC1500 (1500W) TRAVELS: X: 72 " Y: 50 " MAXIMUM SIZE OF SHEET IN MACHINING: 144 " x 60 " MAXIMUM WEIGHT OF SHEET: 220 LBS TABLE SPEED: 1968" PER MINUTE MAXIMUM LASER CUTTING SPEED: 590" PER MINUTE Z AXIS SPEED: 472" /minutes POSITIONNING PRECISION: 0.0012" / 39.37" CAPACITY OF REPOSITIONNING: 0.0004 " SCRAP OPENING HOLE: 13.78 " x 17.7 " PRESS CAPACITY: 33 TON MAXIMUM DEPTH: 1.575 " MAXIMUM SPEED OF THE TURRET: 30 RPM COOLING UNIT: Model HCV10000 PRNF DUST COLLECTOR MACHINE: Torritmodel SDF Maximum capacity of sheet thickness 0.250" Carbon Steel 0.187 " Stainless cut 0.250 " Stainless cut assisted with high pressure gaz 0.125 " Stainless(punch) 0.187 " Aluminium (punch) Specification of turret: -36 stations A (1/2 " ) -12 stations B (1 " 1/4) -4 stations C ( 2 " ) -2 stations D (3 " 1/2) -2 stations E (4 " 1/2) Softwares: -2Dcad/camversion 2.08 (2 key licence) -Ap100 (1 key licence) HERE IS THE MAINTENANCE DONE IN THE LAST 5 YEARS: -Replacement of optics laser DATE: 2004-04-14 (27603 H) -Replacement of fans of the Power Supply DATE: 2003-07-26 (+/-25000H) -Replacement of turbo Blower DATE: 2002-07-29 (+/-22000H) -Replacement "Y" AXIS DATE: 2002-02-27 (+/-20 000H) -Replacement "X" AXIS DATE 2001-11-30 (+/-18500H) -Replacement of vacuum pump DATE: 2001-03-09 (15421.9 H) -Replacement of turbo Blower DATE: 2000-01-13 (+/-12000H)
Photos
|
