Specifications

Categories > Flame Cutting CNC
Ask for quotation
Stock ref. # 1478

Manufacturer PEDDINGHAUS

Model ABCM 1250

Year 2000

Cutting Width 50"

Cutting Length 82'

Oxy Torches *

Plasma Torches *

Control FAGOR 8040TC

Price SOLD!

Other specifications

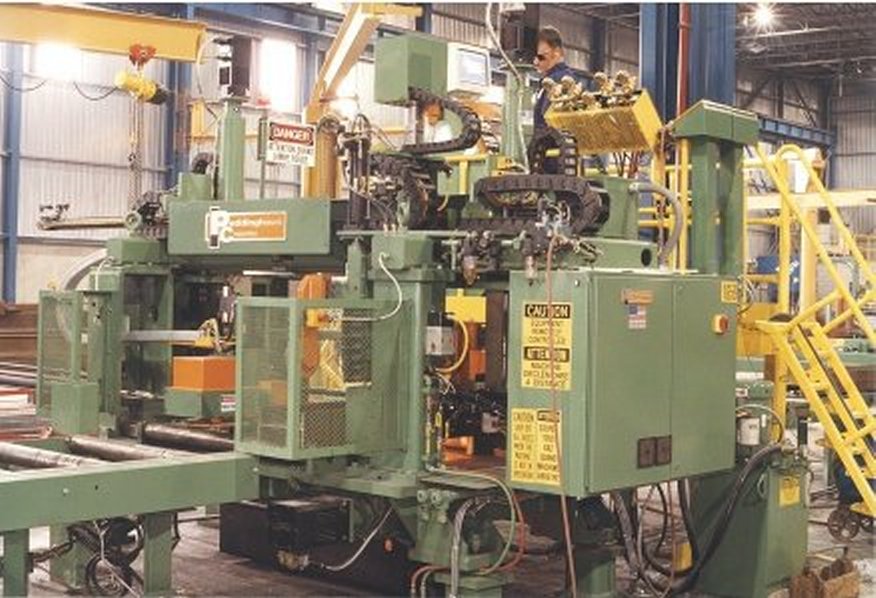

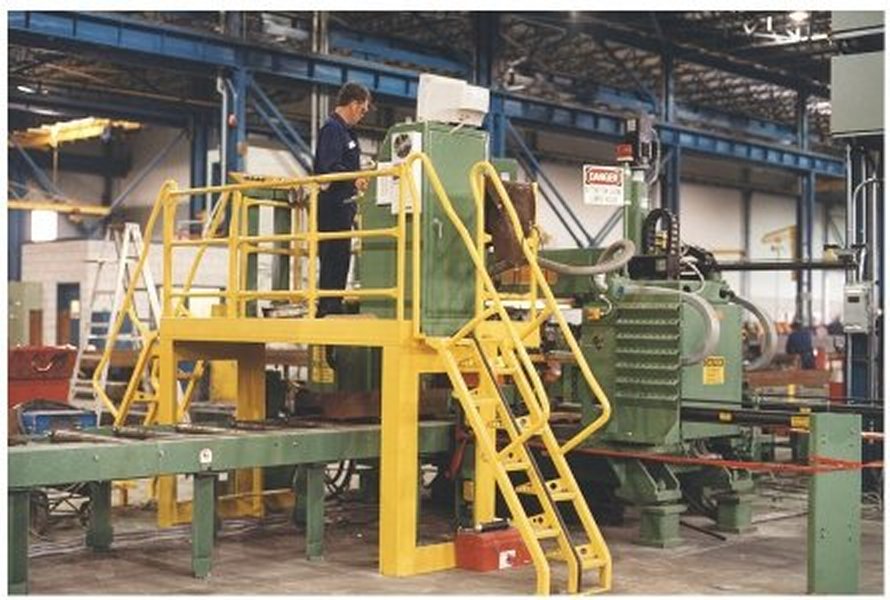

Peddinghaus ABCM 1250 structural burning system - Peddinghaus coping machine ABCM-1250

Year: 2000

Capacity: 1250 mm x 610 mm (50" x 24")

Maximum Beam Size 50" 1,250 mm

Min. W/ Simultaneous Copes 3" 75 mm

Min. W/ Single Copes 3" 75 mm

Blocks, Maximum Length Unlimited

Flange Thinning

Maximum Length Unlimited

Minimum Width Web Thickness

Number of Torches 3

Web Prep Yes

Probing Yes

Automatic Web Torches Adjustment Yes

FAGOR CNC CONTROL PLC-64 Series 06-209 0995

VOLTAGE: 460V - 20 AMPS

HOURS:2,594

EQUIPPED WITH: 17' INTERIOR CONVEYOR

65' EXTERIOR & TRANSFER CONVEYOR

The average for performing one block cope manually is twenty minutes - the ABCM 1250 performs two in 1.5 minutes. Split tees, interior cut-outs, castellations, flange miters in minutes - not hours: with no grinding!

Photos
