Specifications

Categories > Mill, Planer - Plano Millers - Gantry - Manual/CNC
Ask for quotation
Stock ref. # 1479

Manufacturer AWEA

Model LG4030V

Year 2005

Capacity 28 Ton

Table Size 110" x 157"

Motor 30 HP

Includes SELCA

Price SOLD!

Other specifications

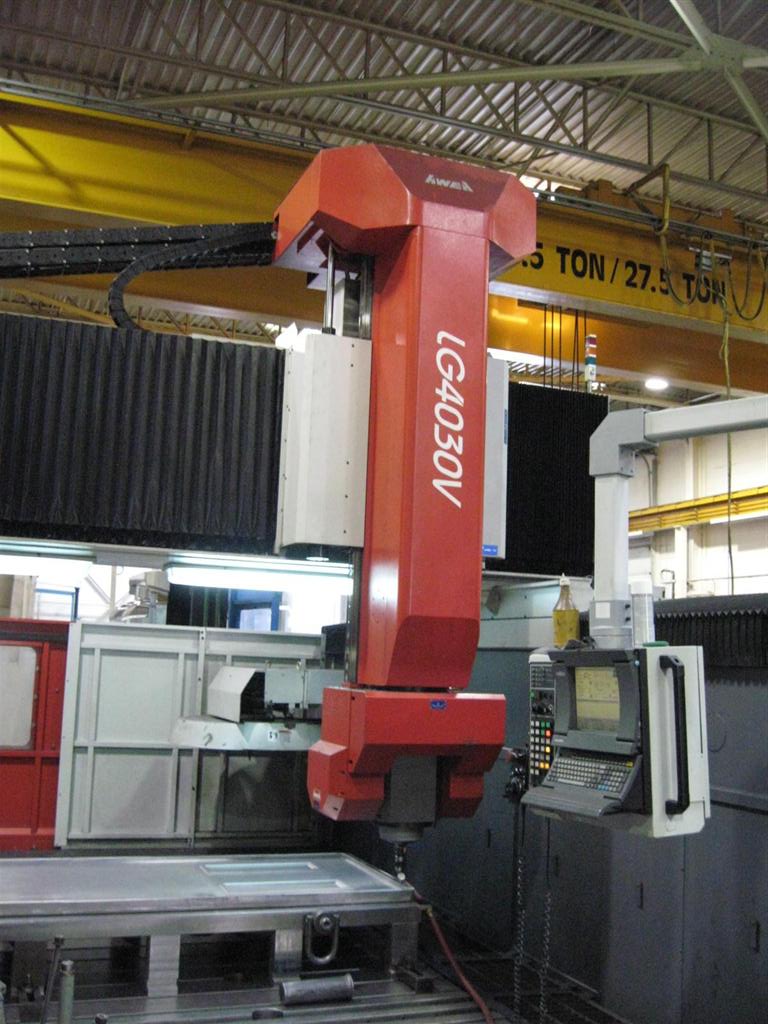

AWEA LG 4030-V GANTRY TYPE 5-AXIS(3+2) MACHINING CENTER, 2005

MODEL: LG 4030-V

YEAR: 2005

1. Mechanical technical data:

1.1 Working Range:

X axial travel ( Table movement ) mm/in. 4000 / 157.5

Y axial travel ( Carriage movement ) mm/in. 3000 / 118.0

Z axial travel ( Head stock movement ) mm/in. 1000 / 39.4

Distance between columns mm/in. 3600 / 141.7

Distance between table and vertical spindle nose mm/in. 200-1200 / 7.87 – 47.3

Distance from spindle gauge line to pivot point mm/min. 260 / 10.236

1.2 Table:

Clamping area mm/in. 4000 x 2800 / 157.4 x 110.2

Clamping slots table load 2500 kg/m² / 512 lb/ft²

1.3 Spindle head:

Spindle power (cont./30 min.) kW(HP) 15/22 ( 20/30 )

Spindle speed (in vertical direction) rpm 10 – 6000

Spindle bearing diameter mm/in. 75 / 2.95

Max. torque at spindle 100% duty Nm/ft-lb 95/70(S1), 167/123(S2)

Spindle taper #40

Tool clamping force N / lb 11000/22000

1.4 Feed rate:

Rapid feed rate of X & Y axes (m/min.)/(in/min) 15/590.5

Rapid feed rate of Z axis (m/min.)/(in/min) 10/394

Cutting feed rate of each axis (m/min.)/(in/min)1-10000 /0.04-394

1.5 Tool magazine:

No. of tools 16

Max. tool diameter/adjacent pocket empty mm(in) 76 / 127 (2.99 / 5.0)

Max. tool length mm/in. 300 (11.8 )

Max. tool weight kg/lbs 9 (19.8 )

1.6 Machine accuracy: (ACC. to JIS standard)

Positioning accuracy in X & Y axes mm/in. (+/- 0.01/1000) / (+/- 0.0004/39.4)

Positioning accuracy in Z axis mm/in. (+/- 0.015/1000)/(+/- 0.0006/39.4)

Repeatability in all axes mm / in +/-0.005 / 0.0002

1.7 Coolant equipment:

Coolant tank liter 460 (121.5)

Coolant pump HP 1 - 1/2

1.8 Pneumatic requirement:

Air resource bar 2 Nm3/hr, at 6 bar

1.9 Hydraulic equipment:

Hydraulic tank

DAIKIN made component

liter 180 (system pressure 70 bar)

1.10 Electrical equipment:

Power requirement 220V,60Hz connected load approx. 70 KVA

1.11 Space requirement:

Machine length (Approx.) mm/in. 12760/502.4

Machine width (Approx.) mm/in. 8500/334.6

Machine height (Approx.) mm/in. 6600/259.8

Machine weight (Approx.) kg/lbs 53000/116800

EQUIPPED WITH: SELCA S4045PD CNC CONTROL

Photos
