Specifications

Categories > Brakes, Press, Hydraulic, CNC
Ask for quotation
Stock ref. # 1538

Manufacturer TRUMPF

Model TRUMABEND V85

Year 2001

Tonnage 95

Overall Length 81"

Between Housings 69"

Control DELEM

Includes *

Price SOLD!

Other specifications

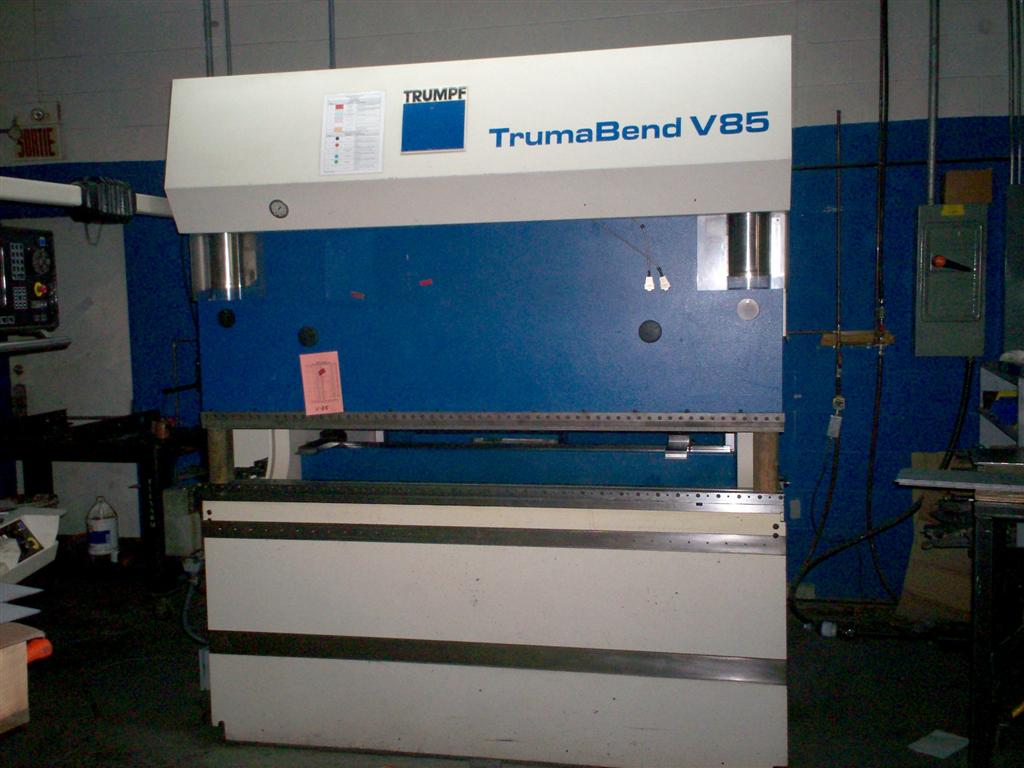

95 TON X 81" TRUMPF TRUMABEND V85 4 AXIS PRESS BRAKE, 2001

Hydraulics on time : 13771 Hours

Strokes count : 371249

Technical data :

Capacity: 95 Tons

Maximum Bending Length: 6'9"

Distance Between Housings: 5'9"

Stroke Length (Y-Axis): 8-1/2" Max.

Open Height: 15.15"

Throat: 16"

Speeds: 710 IPM - Advance

2 - 24 IPM - Pressing

1200 IPM - Return

Flush Floor Design

EQUIPPED WITH:

Delem DA65 CNC 8-Axis Control

4-Axis CNC Back Gauge (X,R,Z1,Z2)

X-Axis Travel of Back Gauge: 23.6"

R-Axis Travel of Back Gauge: 9.8"

Hydraulic Upper and Lower Die Clamping

V-Axis CNC Programmable Crowning

I-Axis CNC Programmable Die Shift

15 HP Main (Pump) Motor

Self-Contained Hydraulic Unit

Electrical Controls

Electric Foot Switch or Dual Palm Buttons Operation

BENDING CAPACITY (MILD STEEL):

6' x 1/4"

Approximate Overall Dimensions: 115" L-R x 85" F-B x 95" H

Approximate Weight: 18000 Lbs

Equipped With:

Hydraulic down-acting design, Electro-hydraulic ram drive with proportional valve system, Linear scale feedback of ram position, Deflection compensation, Self-centering upper tool holder, Hardened and ground lower tool holder, Programmable lower tool adjustment

Control : Delem CNC control

Photos
