Specifications

Categories > Boring Mills, Horizontal, Table Type, CNC
Ask for quotation
Stock ref. # 1563

Manufacturer TOS

Model WHQ 13.8

Year 2000

Spindle Dia. 5.12"

X-Axis 138"

Y-Axis 98"

Table Size 71" x 87"

RPM 2500

Motor 50 HP

Control HEIDENHAIN

Price SOLD!

Other specifications

5.12" TOS WHQ 13.8 CNC TABLE TYPE HORIZONTAL BORING MILL WITH ATC, 2000

YEAR: 2000

Spindle Diameter ...................... 5.12"

Spindle Taper ......................... #50

Cross Travel Of Table X-Axis ......... 138"

Vertical Travel Y-Axis ................ 98"

Spindle Travel Z-Axis ................. 31"

Saddle Travel W-Axis .................. 49"

Table Size (Built In Rotary) .......... 71" X 87"

Table Indexing ........................ 360,000 Degree

Spindle Speeds (Max) .................. 2500 RPM

Spindle Motor ......................... 50 HP

Table Weight Capacity ................. 12,000 KG

Weight 80,000lbs

EQUIPPED WITH:

- 60 AUTOMATIC TOOL CHANGER

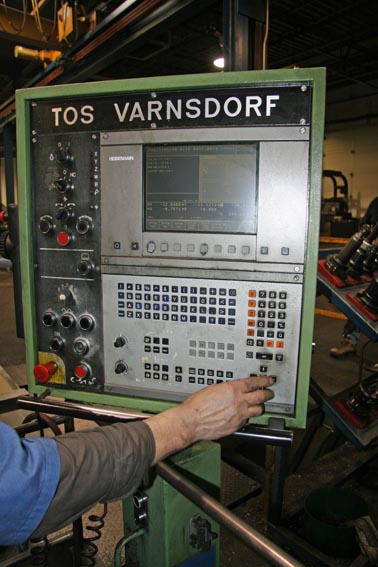

- HEIDENHAIN TNC-426P 4+2 AXES CNC CONTROL

- SPINDLE SUPPORT

- CHZ13C COOLANT SYSTEM

- TEMPERATURE COMPENSATION OF SPINDLE

- OC150ILA OIL COOLING CHILLER UNIT
