Specifications
| Ask for quotation | |
| Stock ref. # 1577 |
|
|
Other specifications

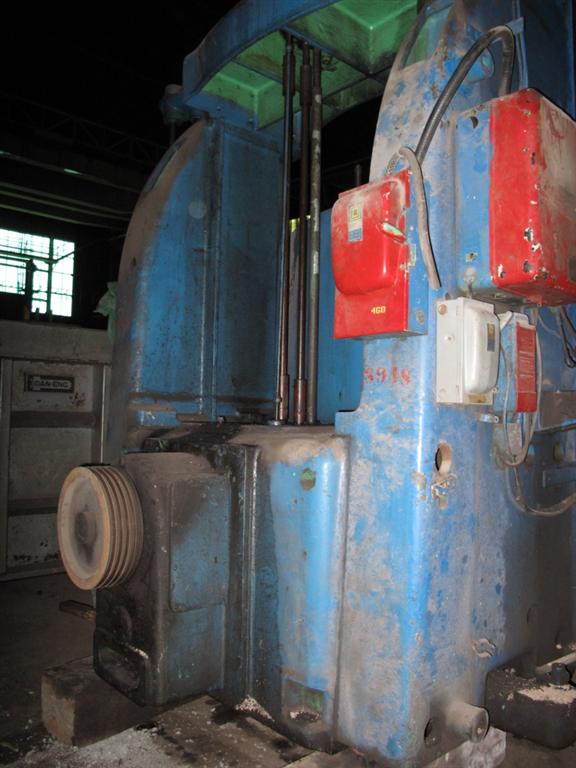

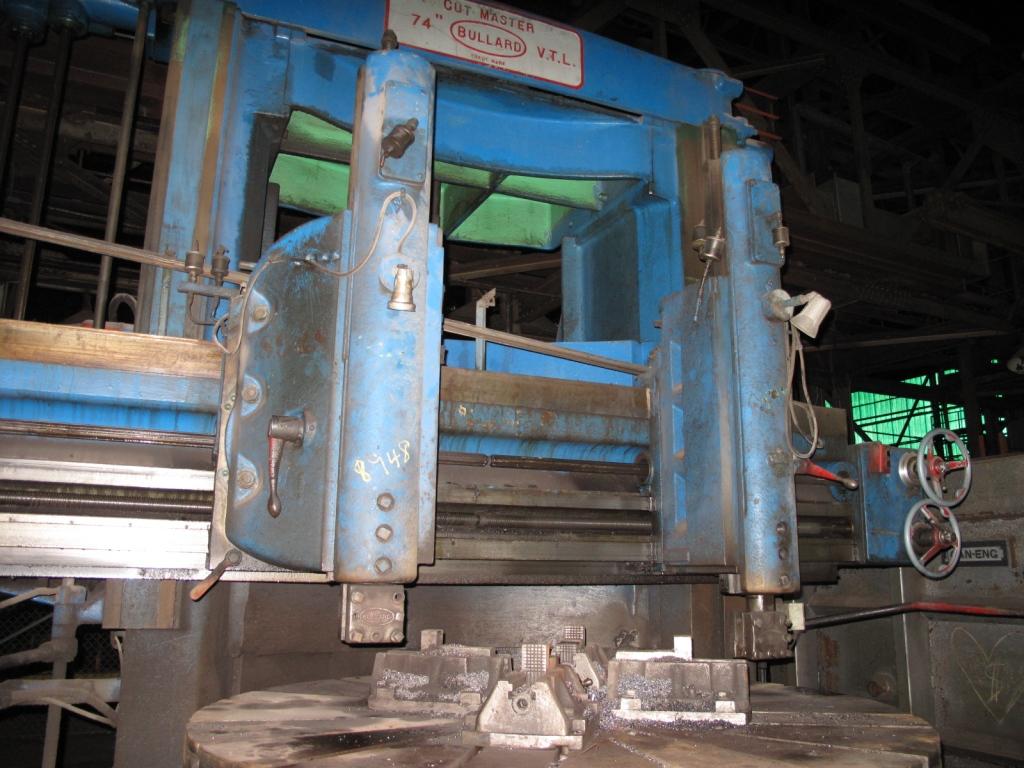

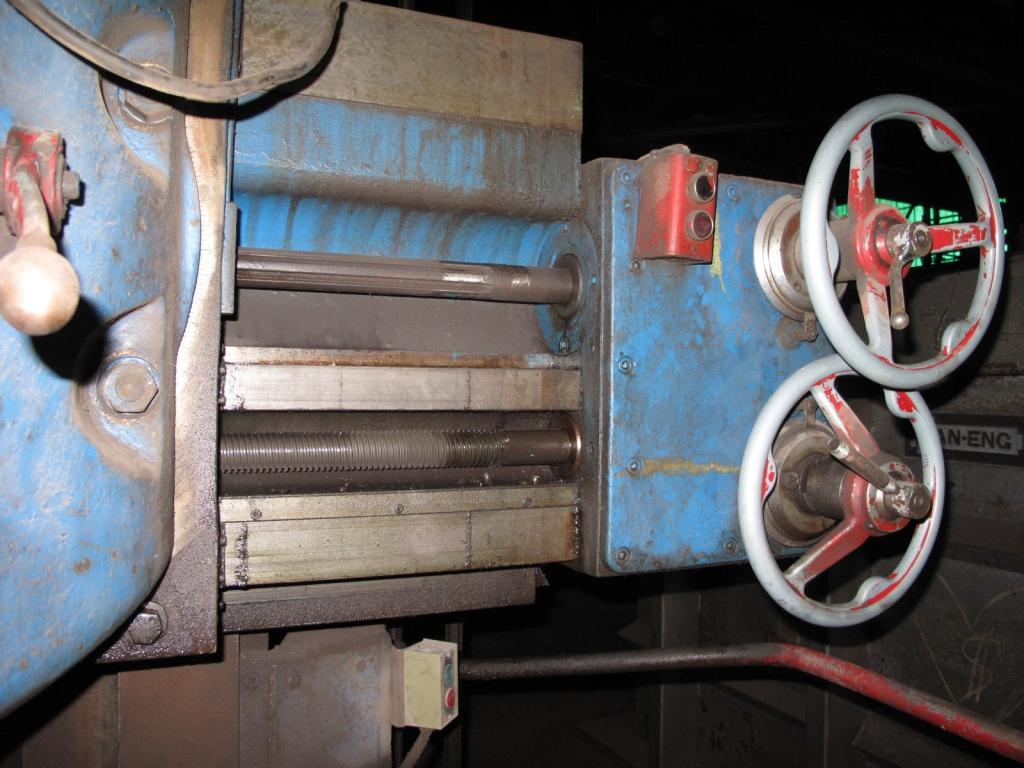

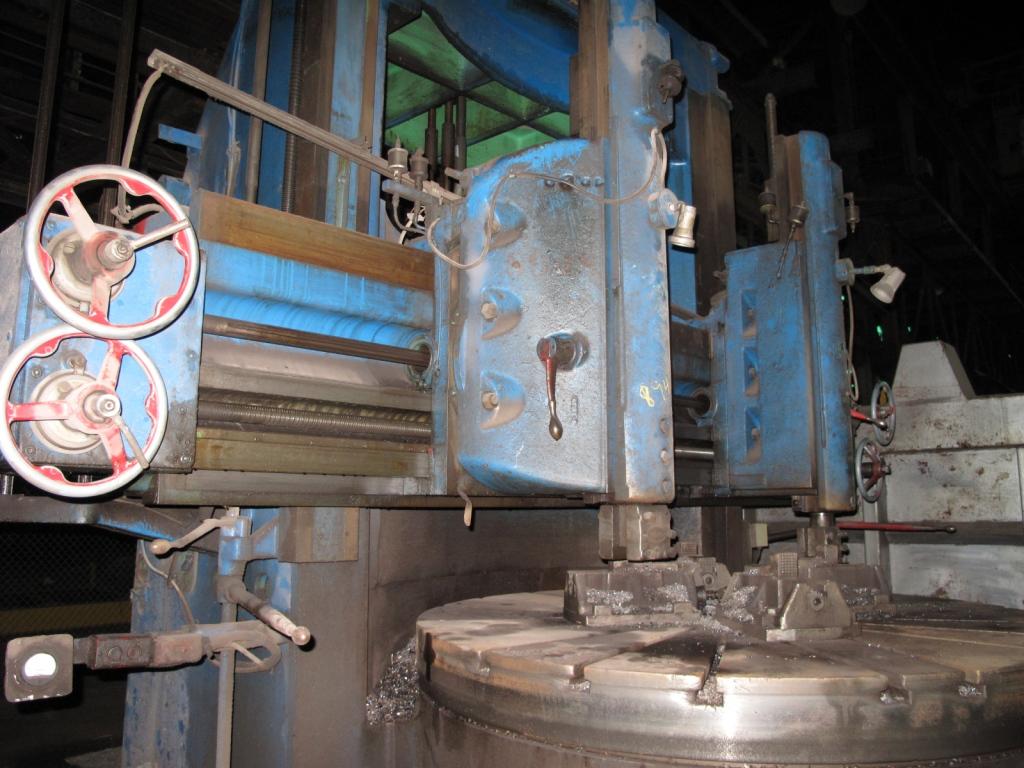

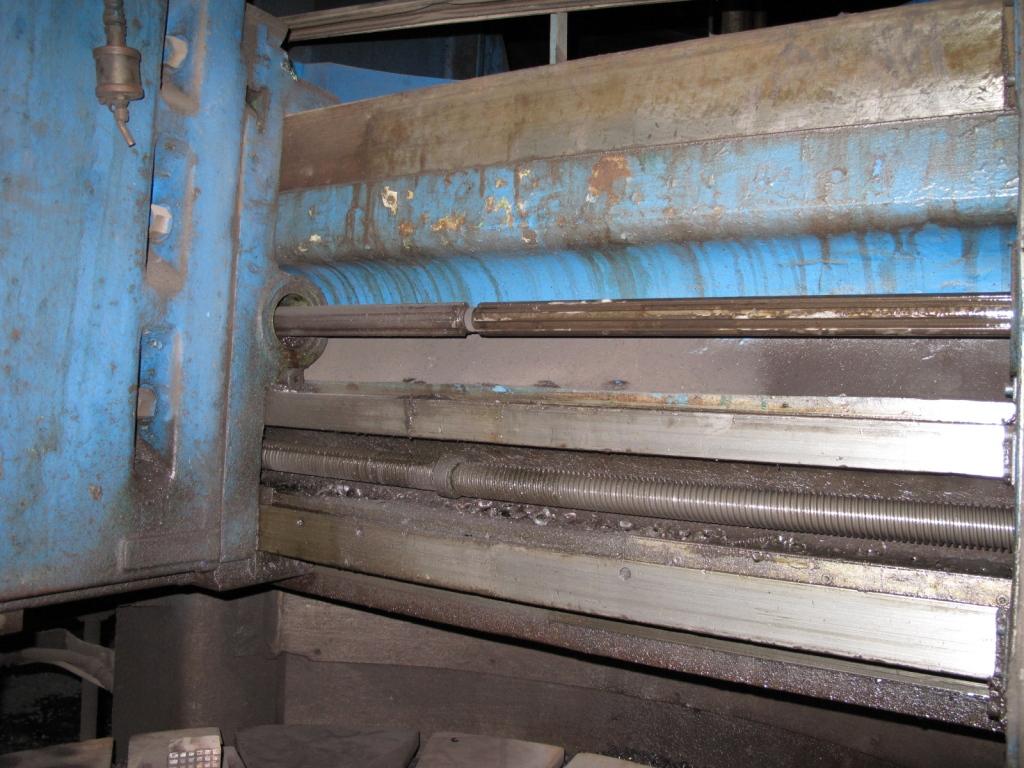

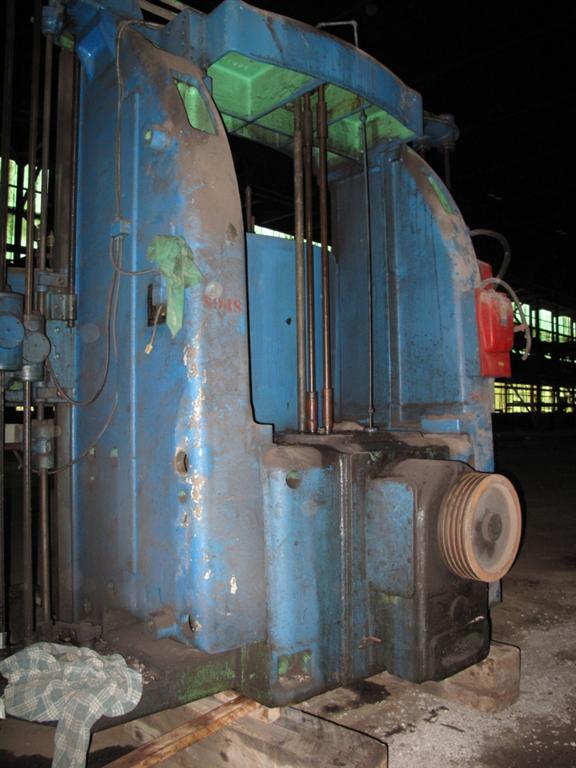

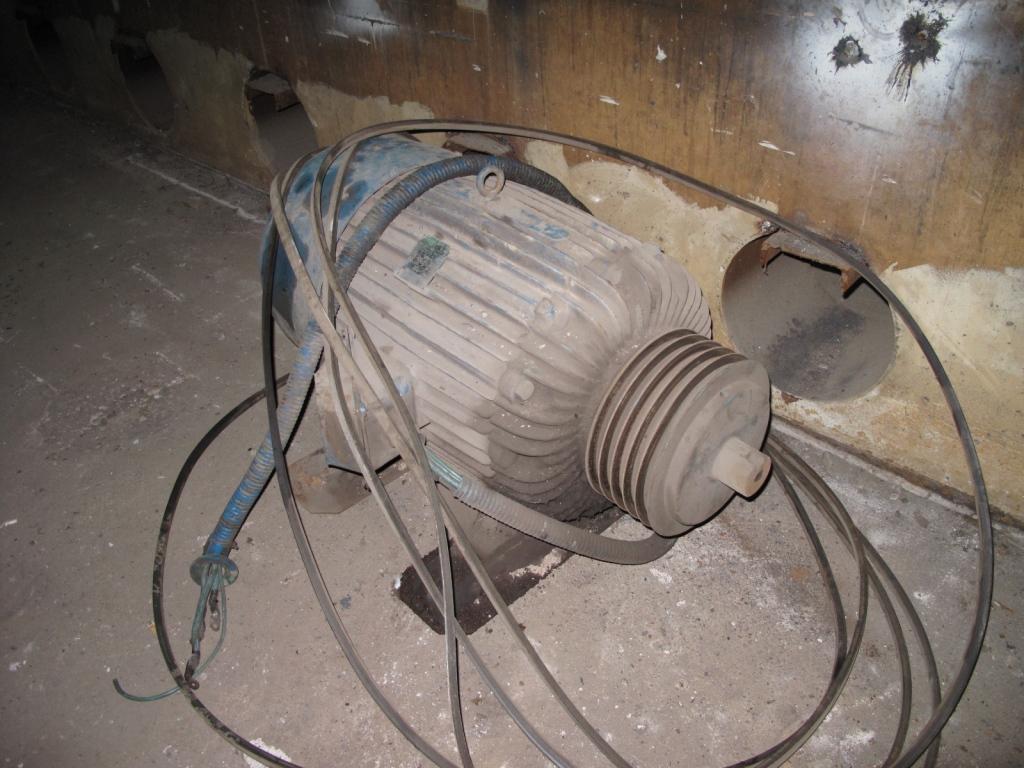

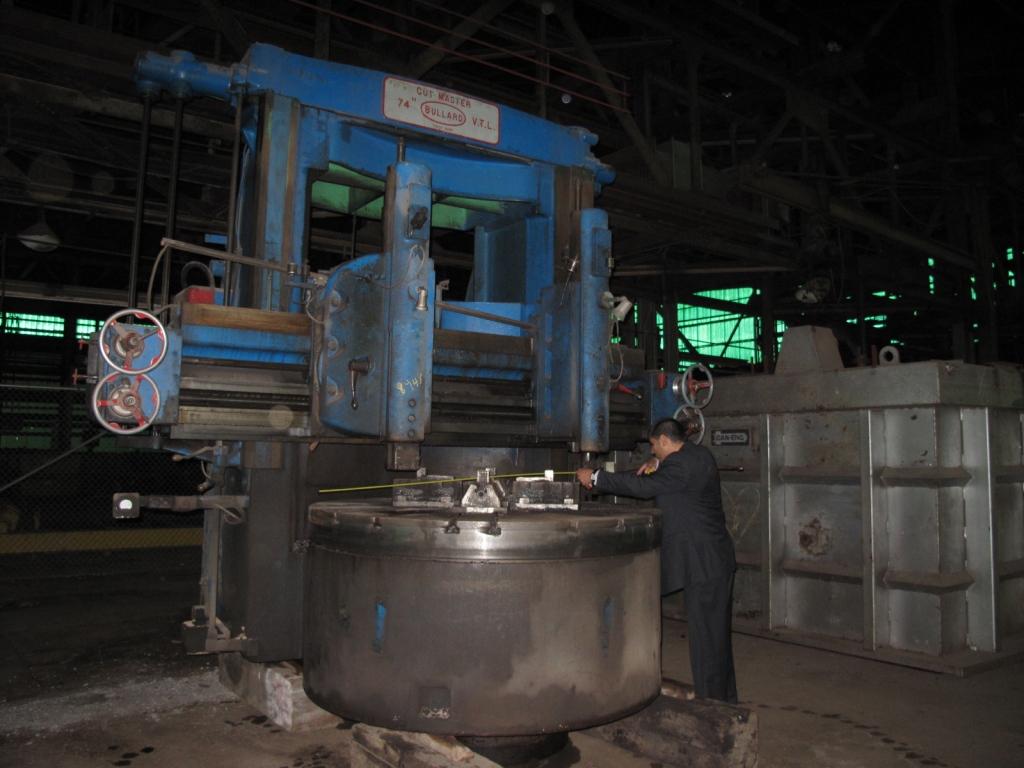

74" BULLARD CUTMASTER VERTICAL TURRET LATHE Serial No. 22457 Capacity: Maximum swing 82" Maximum height under rail 62" Table: 74" in. Diameter W/Radial and Parallel T-Slots Feeds: 16 in. Geometric ratio Independent feed works for each head Vertical and horizontal feed can be engaged simultaneously to give 45 degree resultant feed in any quadrant Same is true of rapid power traverse The same for all heads .0026 to .500 IPR Head RH & LH swiveling ram heads on cross rail Combinations: RH Swiveling Vertical Travel 30 1/2" Ram Head: Horizontal travel right of center 42 7/8" Horizontal travel left of center 7 1/2" Will face full machine capacity Will swivel right or left of center 30 deg Screw feed & Rapid power traverse in all directions Toolpost hole 3 3/8" LH Swiveling Vertical travel 30 1/2" Ram Head: Horizontal travel left of center 46 7/8" Horizontal travel right of center 1 1/2" Will swivel right or left of center 30 deg Screw feed & rapid power traverse in all directions Toolpost hole 3 3/8" Table Speeds: 20 from 2.4 to 90 RPM Electrics: 50 HP motor & electrical equipment 3/60/440 volt operation Speed Control: Mechanical floor shift unit Lubrication: Filtered oil circulated under pressure to all vital parts of the spindle and headstock. Individual reservoirs for all heads and feed works. Measuring Devices: Accurately graduated dials and scales for motions in all directions. Feed Control: Rate of feed is selected by two levers extending from the outer side of feed works. The engagement of the power feed is by means of levers extending thru the centers of the handwheels. These levers are also used to engage the power traverse. Hand feed is accomplished by means of the hammer handwheels. Equipped With: Faceplate jaws Approx Weight: 58,950 Lbs.
Photos
|
