Specifications

Categories > Boring Mills, Horizontal, Floor Type, CNC
Ask for quotation
Stock ref. # 1600

Manufacturer PAMA

Model SPEEDRAM 3

Year 2002

Spindle Dia. 6.3"

X-Axis 315"

Y-Axis 197"

RPM 3000

Motor 80 HP

Control SIEMENS 840C

Includes *

Price SOLD!

Other specifications

6.3" PAMA SPEEDRAM 3 CNC FLOOR RAM TYPE HORIZONTAL BORING MILL, 2002

YEAR: 2002

X Longitudinal mm 8000

Y Vertical mm 5000

Z RAM mm 1200

W Spindle mm 1000

SPINDLE

Spindle diam. mm 160

Spindle taper ISO 50

Spindle speed 6--3000 rpm

RAM dimensions mm. 400x440

Spindle motor power KW 60

FEEDS

Work feeds for all axes mm/min 0,5--6000

X-Y-Z Rapid mm/min 20000

W rapid feed mm/min 12000

MOTOR

Motor Principal Kw 105

Overall Dimensions mm 9000x4300x6800

EQUIPPED WITH:

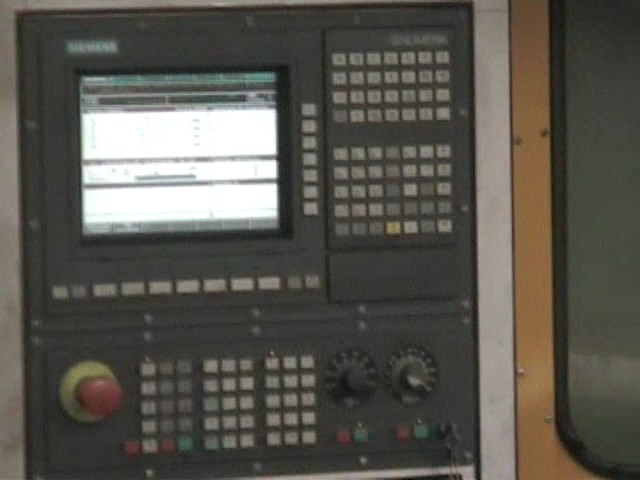

CNC SIEMENS SINUMERIK 840C

Mechanical Balancing system with adjustment device for bending frame

Internal & external refrigerant system

Head for automatic square TS 30-144

Independent worker's plateform

Chip conveyor

Hydraulic working

(6) FLOOR PLATES OF 3 X 1.5 METER

Photos
