Specifications

Categories > Boring Mills, Horizontal, Table Type, CNC
Ask for quotation
Stock ref. # 1726

Manufacturer TOSHIBA

Model BTD110R16

Year 2006

Spindle Dia. 4.3"

X-Axis 78.7"

Y-Axis 59"

Table Size 55" x 63"

RPM 3000

Motor 40 HP

Control TOSNUC 888

Price SOLD!

Other specifications

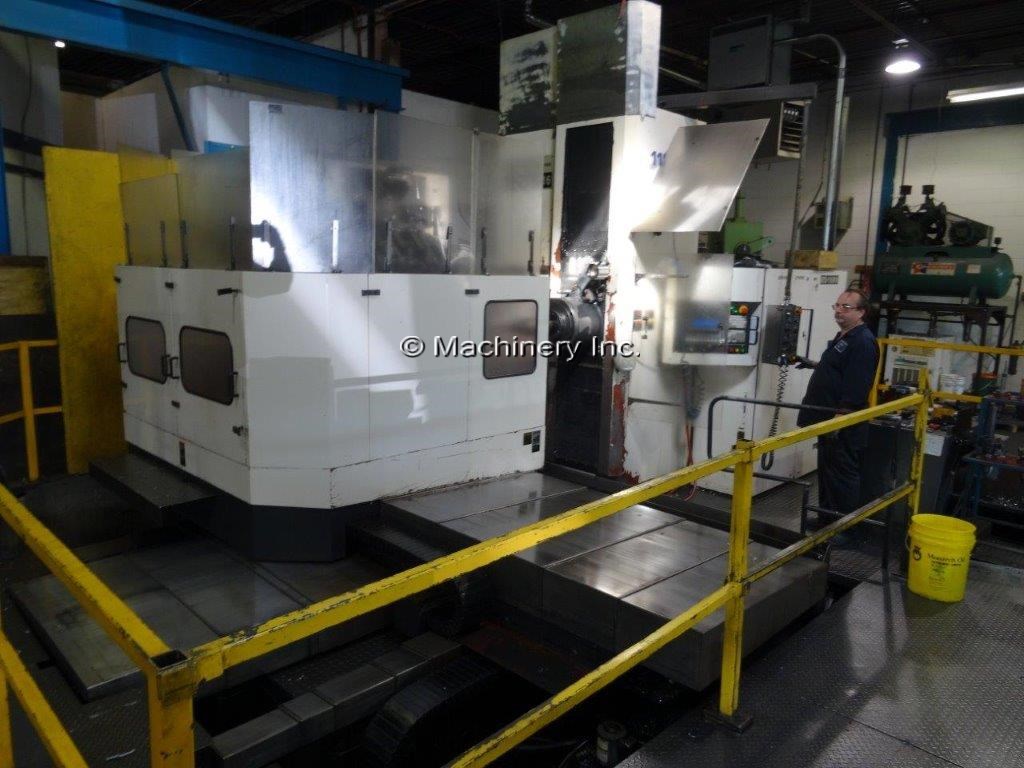

4.3" TOSHIBA BTD110R16 CNC TABLE HORIZONTAL BORING MILL, 2006

YEAR: 2006

Model: BTD110R16

Spindle Diameter .............. 4.3" 110 MM

Taper In Spindle .............. #50

Milling Spindle Diameter ...... 8.86" 225 MM

Vertical Head Travel .......... 59" 1500 MM

Cross Travel Of Table X-Axis . 78.7 2000 MM

Spindle Travel, Z-Axis ........ 19.7" 500 MM

Saddle Travel W-Axis ......... 57" 1450 MM

Table Size (Built In Rotary) .. 55" x 63"

Table Index ................... 0.001 Degree

Feed Rates .................... 1-157 IPM

Rapid Traverse ................ 394 IPM

Table Load Capacity ........... 13,860 LBS

Spindle Speeds ..... 2-3000 RPM

Equipped With:

Heidenhain feedback scales on all axis

Coolant Through Spindle

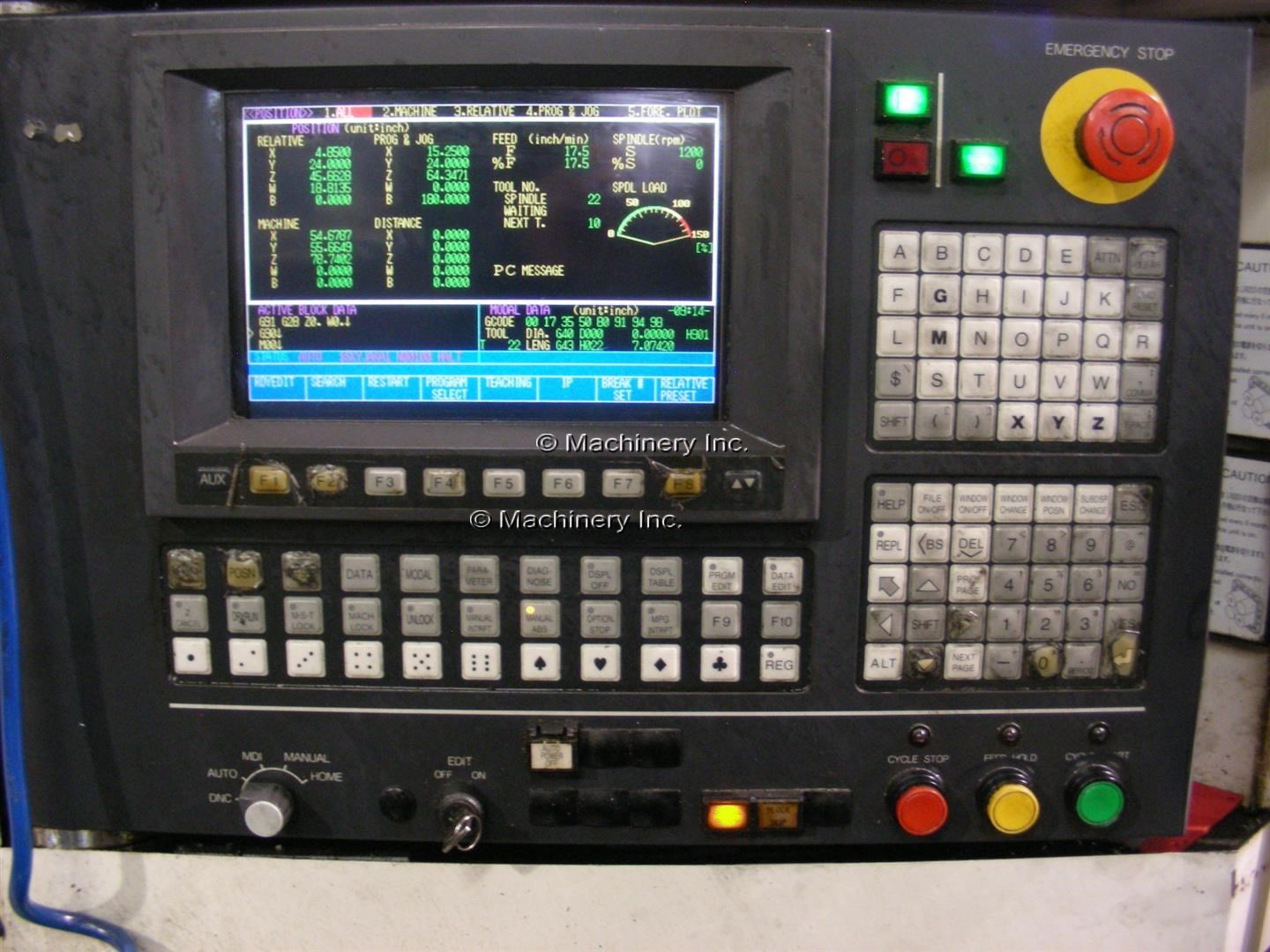

Tosnuc 888 CNC Control

55" X 63" Built-In B-Axis Rotary Table

38 Positon Automatic Tool Changer

Chip & Splash Enclosure Around Table

Chip Conveyor

40 HP Spindle Drive Motor 220/3/60

Floor Space: 187" X 232" X 156" High

Machine Weight: 56,100 lbs.

Photos
