Specifications

Categories > Mill, Planer - Plano Millers - Gantry - Manual/CNC
Ask for quotation
Stock ref. # 0174

Manufacturer Toshiba

Model MPC-4180B

Year 1998

Capacity 40 Ton

Table Size 122.4" x 315"

Motor 40 HP

Includes TOSNUC 888

Price SOLD!

Other specifications

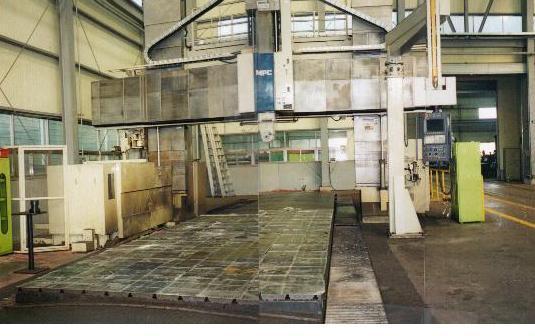

DOUBLE COLUMN MACHINING CENTER

MFG : TOSHIBA MACHINE CO., LTD. / JAPAN MANUFACTURED IN 1998 MODEL : MPC-4180B WITH TOSNUC 888

MAIN SPECIFICATION

DISTANCE BETWEEN COLUMN: 4100(161.4) MM(IN)

TABLE WORKING SURFACE: 3100 X 8000(122.4 X 314.9) MM(IN)

TABLE LOADING CAPACITY: 40000 (88000) KGS(LBS)

SPINDLE RAM: 380 X 380(15 X 15) MM(IN)

TYPE OF TOOL SHANK: MAS BT50

TYPE OF RETENTION KNOB: MAS P50T-1(45)

SPINDLE SPEED RANGE: 5-3000 RPM

TYPE OF SPINDLE TAPER HOLE: 7/24 TAPER NO. 50

ELECTRIC POWER SUPPLY: 220V, 60HZ

SPINDLE DRIVE MOTOR: AC 30KW / 22KW

X-AXIS TRAVEL(LONGITUDE MOVEMENT OF TABLE): 9000(354)

Y-AXIS TRAVEL(CROSSRAIL MOVEMENT OF SPINDLE HEAD): 4900(193)

Z-AXIS TRAVEL(VERTICAL MOVEMENT OF RAM): 900(35.4)

W-AXIS TRAVEL(VERTICAL MOVEMENT OF CROSSRAIL): 2300(90.6)

DISTANCE FROM TABLE TOP TO VERTICAL SPINDLE NOSE: 3150(124)

1. BASIC MACHINE WITH STANDARD ACCESSORIES INCLUDING : (1) AUTOMATIC POWER OFF DEVICE (2) WORK LIGHT (3) 3-COLORED OPERATOR CALL LAMP

2. SPECIAL ACCESSORIES - AUTOMATIC TOOL CHANGER (ATC) 60 POTS - AUTOMATIC ATTACHMENT INDEXING (AAI) - INSTALLATION PARTS FOR BASE MACHINE - CHIP CONVEYOR - COOLANT UNIT (1200 L) - MIST COOLANT UNIT - AIR BLOWING FUNCTION - HELICAL INTERPOLATION - SYNCHRONOUS TAPPING - PROGRAMMABLE DATA INPUT - FIXTURE OFFSET DATA INPUT3. ADDITIONAL SPECIFICATION - ANGLE HEAD 0.15N (A.ATC POSSIBLE) - SNOUT 190 (A.ATC POSSIBLE) - UNIVERSAL HEAD (MANUAL TOOL CHANGE) - ATTACHMENT STOCKER (3 STOCKERS)

ALMOST NEVER USED & INSPECTION AVAILABLE UNDER POWER

Machine Space :

7,960 mm (H) x 9,500 mm (W) x 21,600 mm (L)

(318" x 380" x 864")

WEIGHT.........235,400 LBS.

Photos
