Specifications

Categories > Grinders, Surface & Ways, CNC
Ask for quotation
Stock ref. # 1742

Manufacturer ROSA ERMANDO

Model LINEA STEEL 13.7

Year 2003

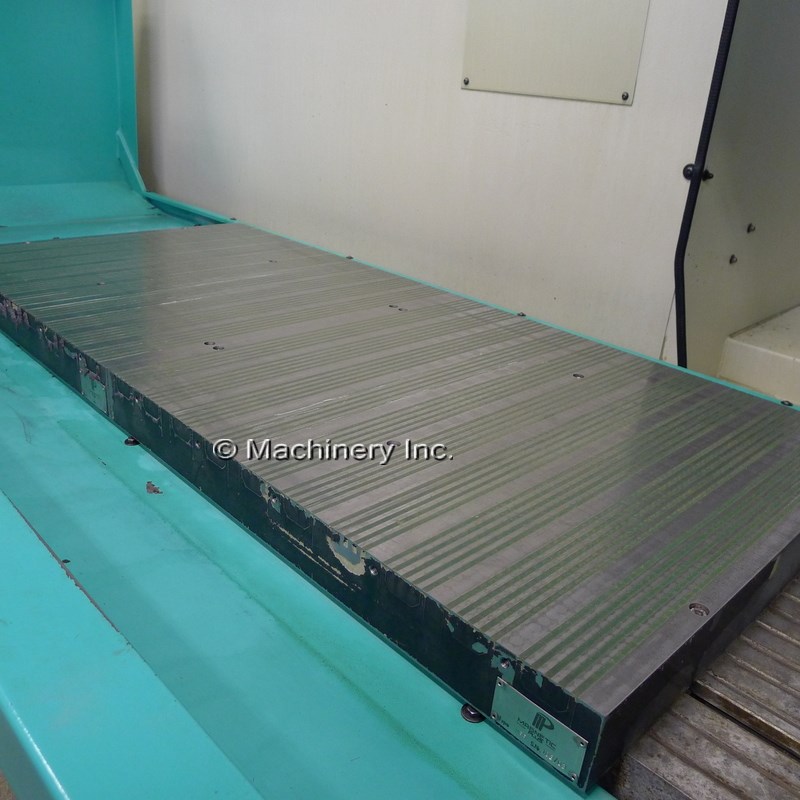

Table Size 19.6" x 55"

Capacity 1.7 Ton

X-Axis 65"

Y-Axis 25.6"

Price SOLD!

Other specifications

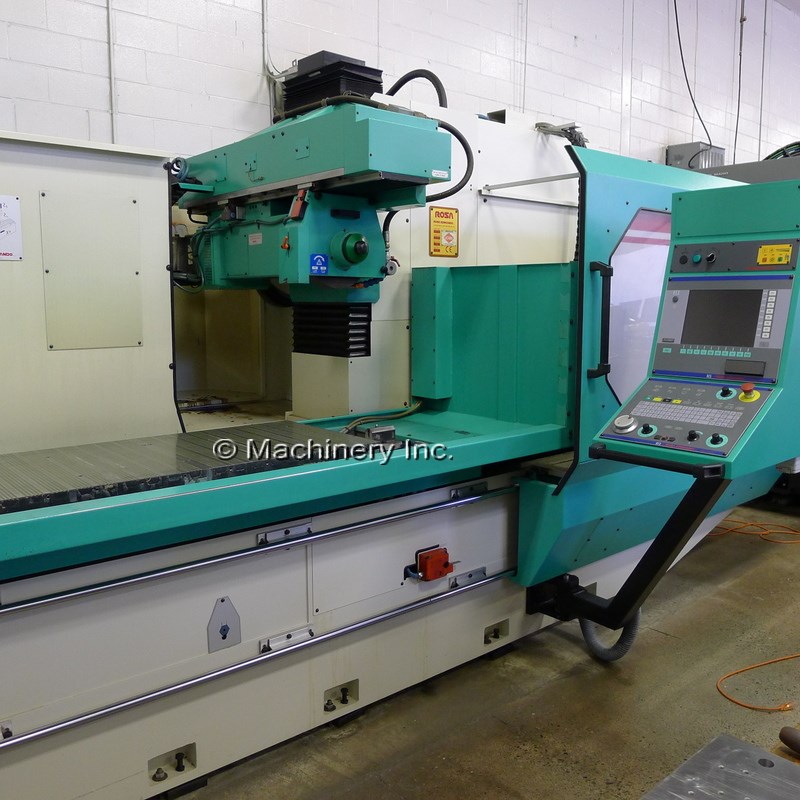

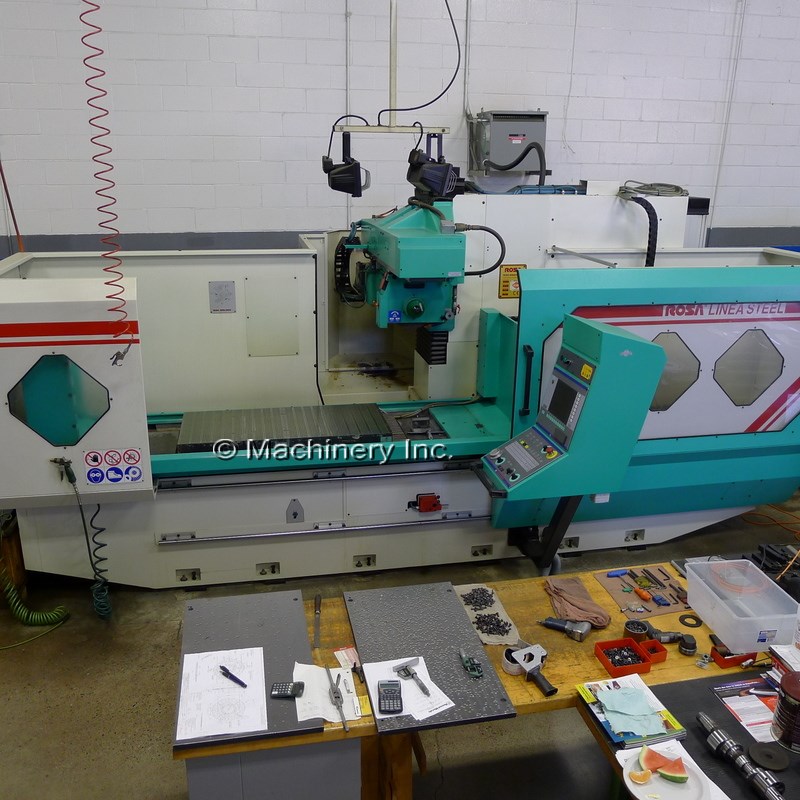

ROSA LINEA STEEL 13.7 CNC SURFACE GRINDER, 2003

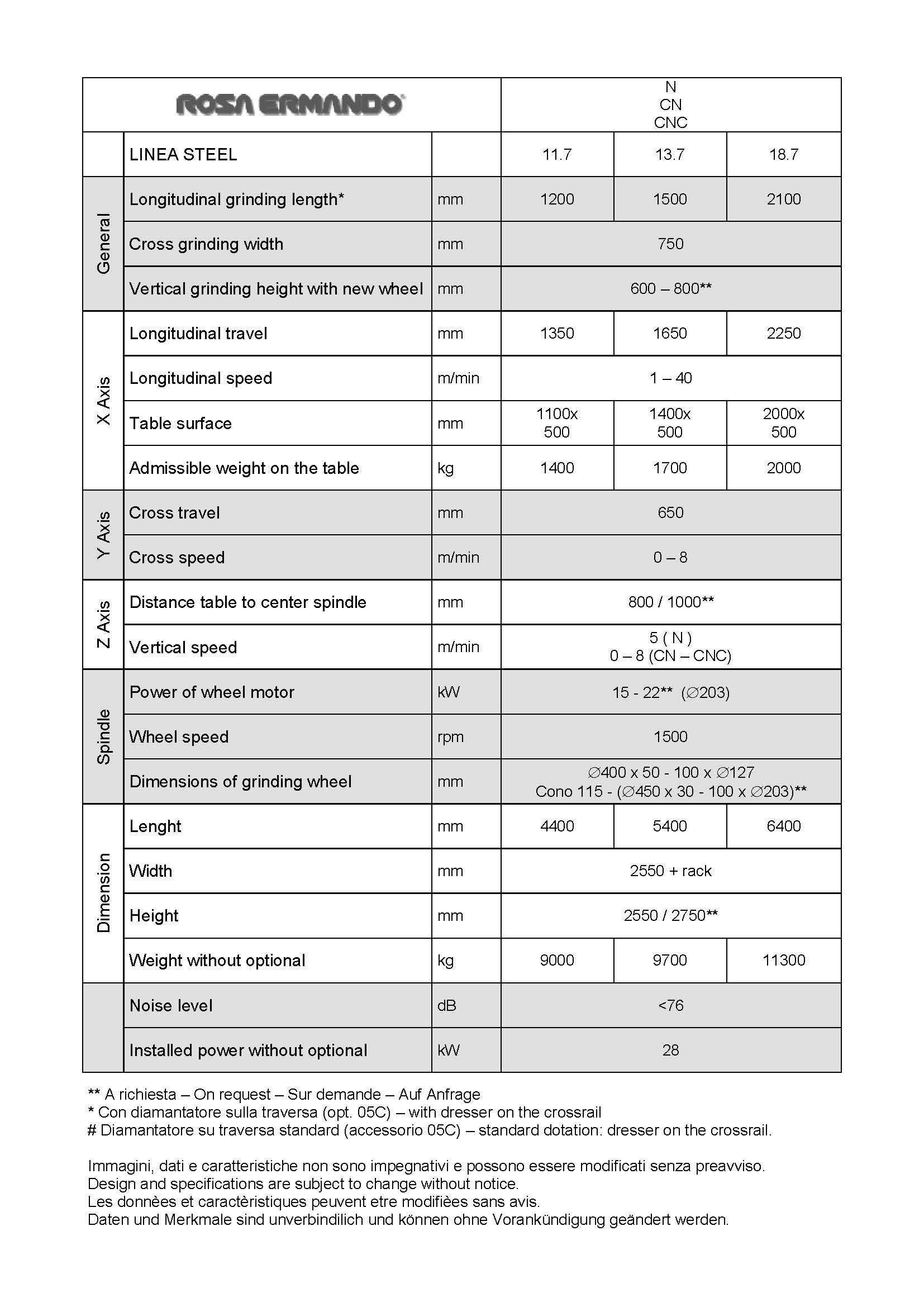

LINEA STEEL 11.7 13.7 18.7

General

Longitudinal grinding length* mm 1200 1500 2100

Cross grinding width mm 750

Vertical grinding height with new wheel mm 600 – 800**

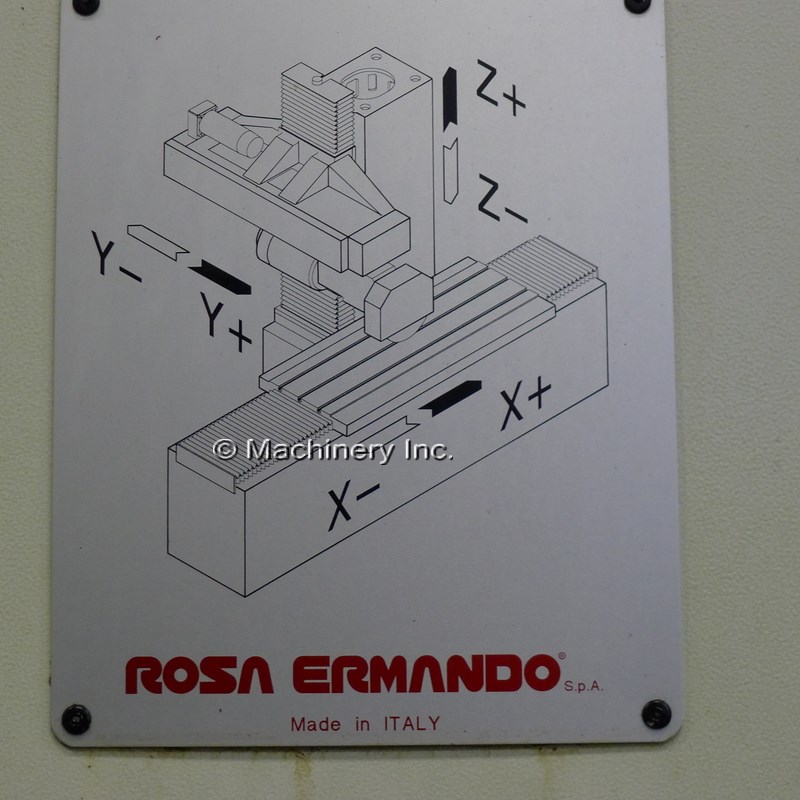

X Axis

Longitudinal travel mm 1350 1650 2250

Longitudinal speed m/min 1 – 40

Table surface mm

1100x

500

1400x

500

2000x

500

Admissible weight on the table kg 1400 1700 2000

Y Axis

Cross travel mm 650

Cross speed m/min 0 – 8

Z Axis

Distance table to center spindle mm 800 / 1000**

Vertical speed m/min 5 ( N )

0 – 8 (CN – CNC)

Spindle

Power of wheel motor kW 15 - 22** (203)

Wheel speed rpm 1500

Dimensions of grinding wheel mm

400 x 50 - 100 x 127

Cono 115 - (450 x 30 - 100 x 203)**

Dimension

Lenght mm 4400 5400 6400

Width mm 2550 + rack

Height mm 2550 / 2750**

Weight without optional kg 9000 9700 11300

Noise level dB <76

Installed power without optional kW 28

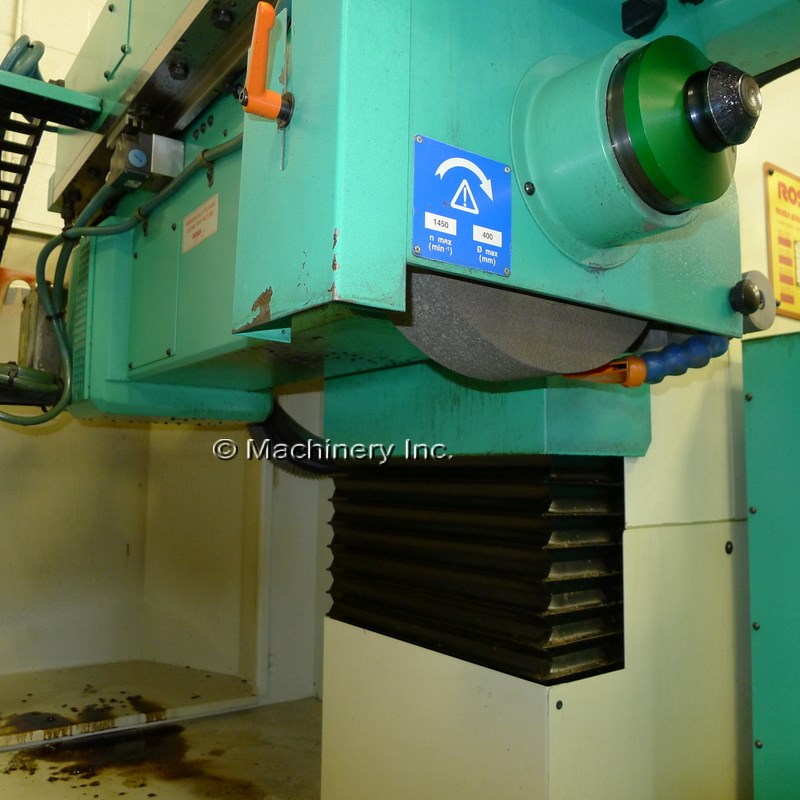

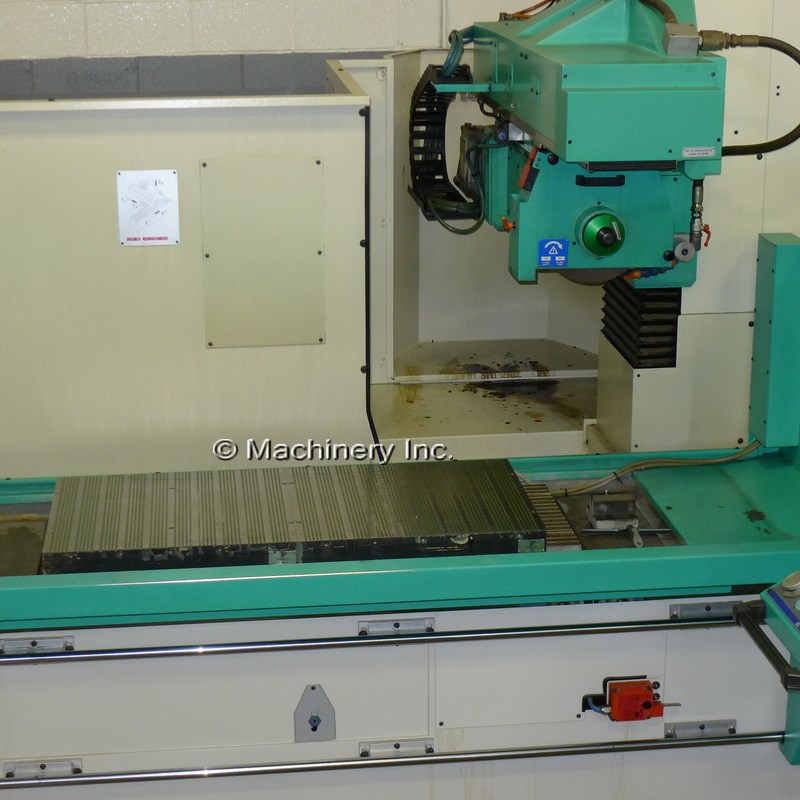

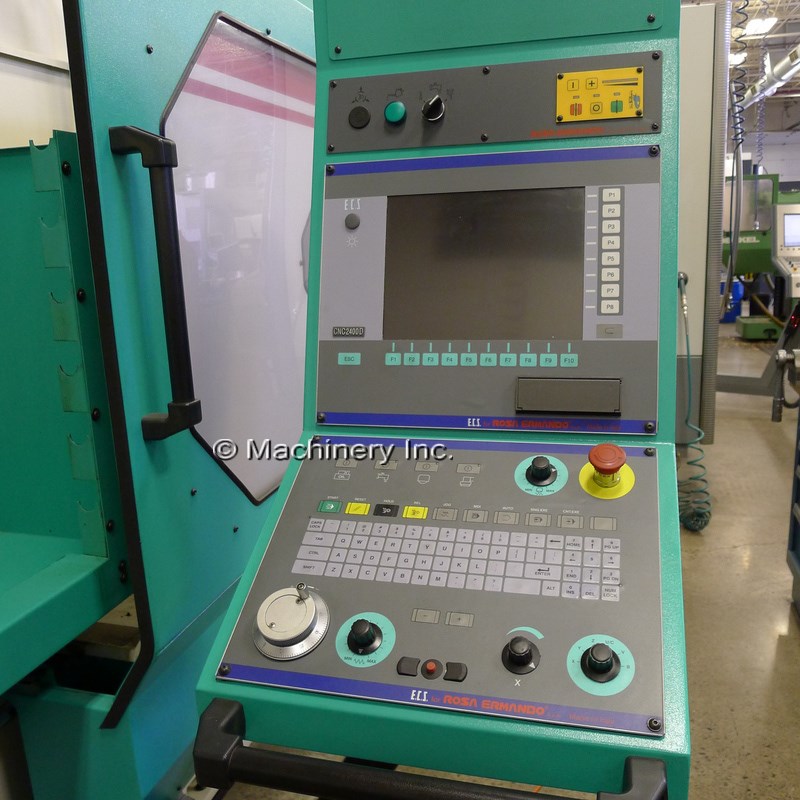

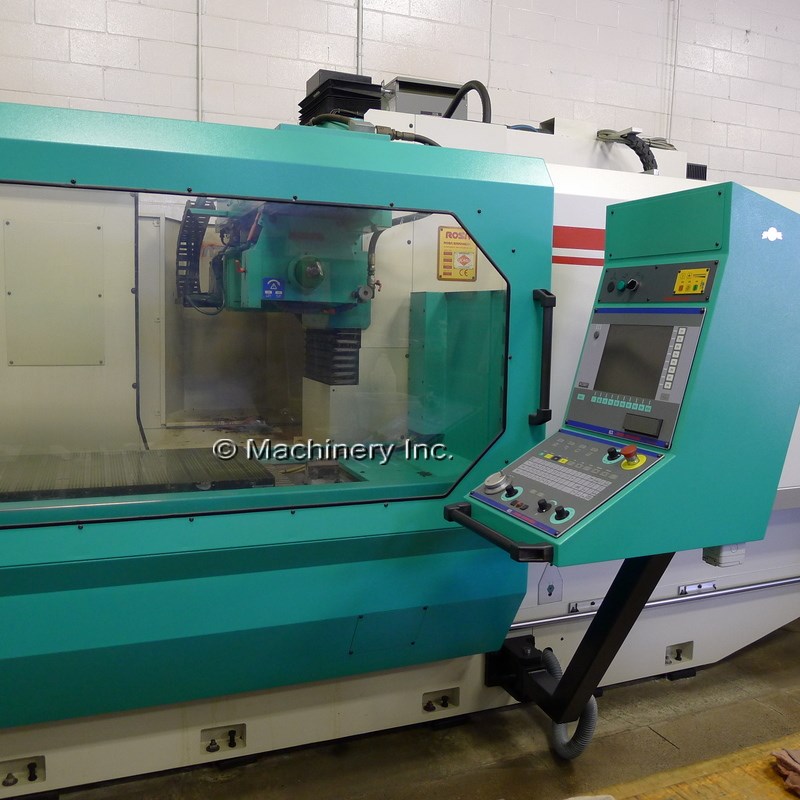

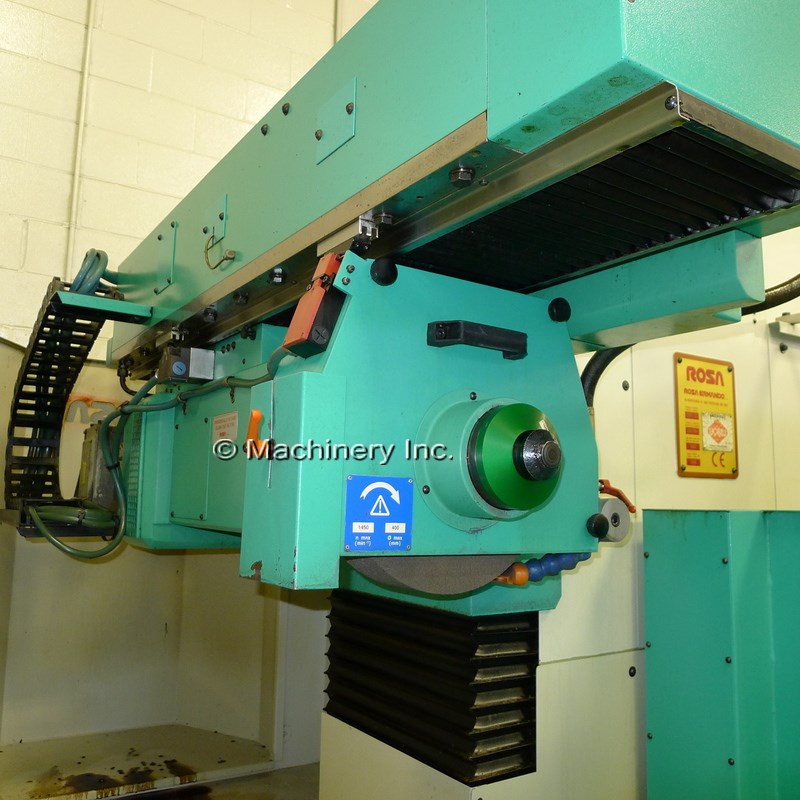

Photos
