Specifications

 Categories > Machining Center, Horizontal

Ask for quotation
  Stock ref. # 1764

  Manufacturer MAZAK
  Model INTEGREX E1060V8-II
  Year 2010
  Axis_Travels(X;Y;Z) 73" x 41" x 52"
  RPM 10000
  HP 50
  Pallet 2
  ATC 120
  Control MATRIX
  Price SOLD!



Other specifications



                  MAZAK INTEGREX E1060V/8-II 5-AXIS CNC MULTI AXIS

                  VERTICAL/HORIZONTAL/MILLING/TURNING CENTER



                  YEAR: 2010

                  AXIS TRAVEL X – AXIS 73.82”

                  Y – AXIS 41.73”

                  Z – AXIS 52.95”

                  B – AXIS FULL CONTOURING 150 DEGREE (-30 DEG. TO 120 DEG.)

                  C – AXIS 360 DEGREE (.0001 DEG. INCREMENT)

                  PALLETS 2 39.4” DIAMETER ROUND TAPPED

                  WORK PIECE DIMENSIONS 49.21” X 49.21”

                  WEIGHT 4784 POUNDS

                  MILLING SPINDLE SPEED 10,000 RPM / 2 WINDINGS

                  TAPER CAT 50 BIG PLUS

                  HORSEPOWER 50 INT. / 40 CONT.

                  TURNING SPINDLE SPEED 500 RPM

                  HORSEPOWER 50 INT. / 40 CONT.

                  TOOL CHANGER CAPACITY 120

                  TOOL DIAMETER 5.31” / 10.24”

                  TOOL LENGTH 19.69”

                  TOOL WEIGHT 66 POUNDS

                  RAPID TRAVERSE X, Y, Z AXIS 1653 IPM

                  B AXIS 30 RPM

                  C AXIS 18 RPM

                  MACHINE WEIGHT 83,800 POUNDS



                  EQUIPPED WITH:

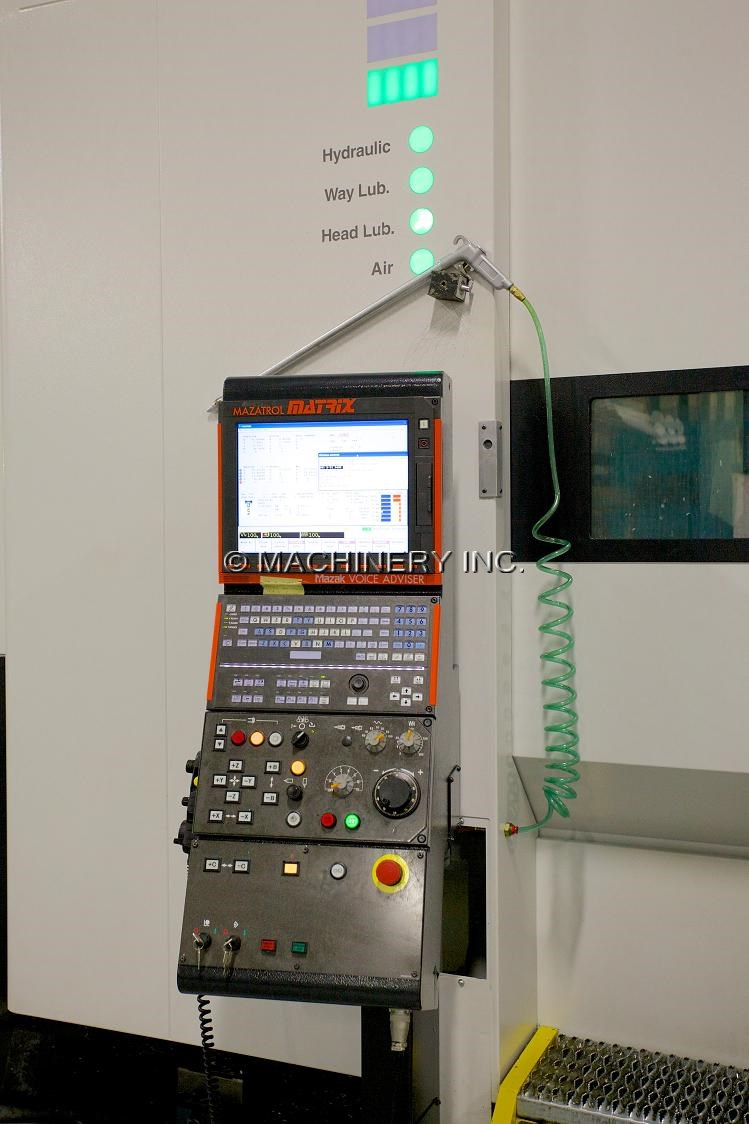

                  MAZATROL MATRIX CNC CONVERSATIONAL CONTROL W / 15” DISPLAY

                  E-TOWER

                  1000 PSI HIGH PRESSURE COOLANT THROUGH SPINDLE W / MAZAK SUPERFLOW V8M

                  MANUAL PULSE GENERATOR (DETACHABLE)

                  TWO PALLET CHANGER

                  TOOL EYE AUTOMATIC

                  CONSEP CHIP CONVEYOR SYSTEM

                  COOLANT WASHDOWN AT OPERATOR AND PALLET LOAD STATIONS

                  HEIDENHEIN LINEAR SCALES X, Y, Z

                  SPINDLE AIR BLOW

                  POWER INDEXING AT WORK LOAD STATION

                  RENISHAW NC4 LASER TOOL MEASUREMENT

                  RENISHAW H/V OMP60 PROBE

                  HYDRAULIC PRESSURE INTERLOCK

                  AUTO POWER ON/OFF/WARM-UP

                  8MB PROGRAM STORAGE

                  PREP FOR LAN AND MODEM

                  MILL SPINDLE SYNCHRONOUS TAPPING

                  BACKGROUND TOOL PATH CHECK

                  TOOL BREAKAGE DETECTION

                  ADAPTIVE FEEDRATE CONTROL

                  TOOL LIFE MONITORING

                  RENISHAW ADVANCED PROBE MACROS / INSPECTION PLUS

                  3D COORDINATE ROTATION G68.2

                  EIA SIMULTANEOUS 5-AXIS

                  TOOL TIP POINT CONTROL 5-AXIS

                  SIMULTANEOUS 5-AXIS TOOL RADIUS COMP.

                  G00 SLOPE CONSTANT

                  2D SOFTWARE SHAPE CONTINUOUS

                  SHAPE CONTINUOUS ROTARY AXIS

                  INCH / METRIC CONVERSION

                  CYLINDRICAL G07

                  POLAR COORDINATE G12

                  MAZACC-3D HIGH SPEED SOFTWARE PACKAGE

                  HIGH SMOOTHING CONTROL

                  ADDITIONAL EIA / ISO FUNCTION

                  ALL AVAILABLE MANUALS



                  MACHINE HAS BEEN REGULARLY MAINTAINED AND IS CURRENTLY UNDER POWER
