Specifications

Categories > Machining Center, Vertical
Ask for quotation
Stock ref. # 1836

Manufacturer AWEA

Model BM-1300

Year 2004

Axis_Travels(X;Y;Z) 51" x 31.5" x 27.5"

RPM 6000

HP 20

ATC 24

Control FANUC 18iMB

Price SOLD!

Other specifications

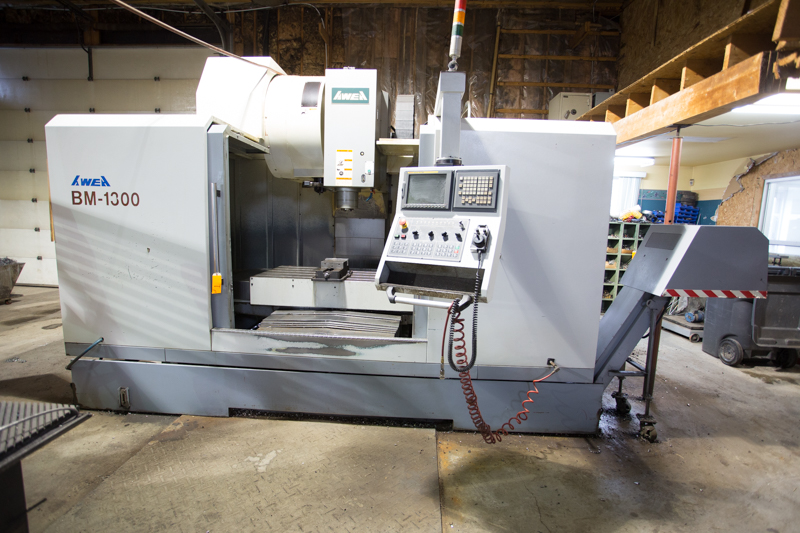

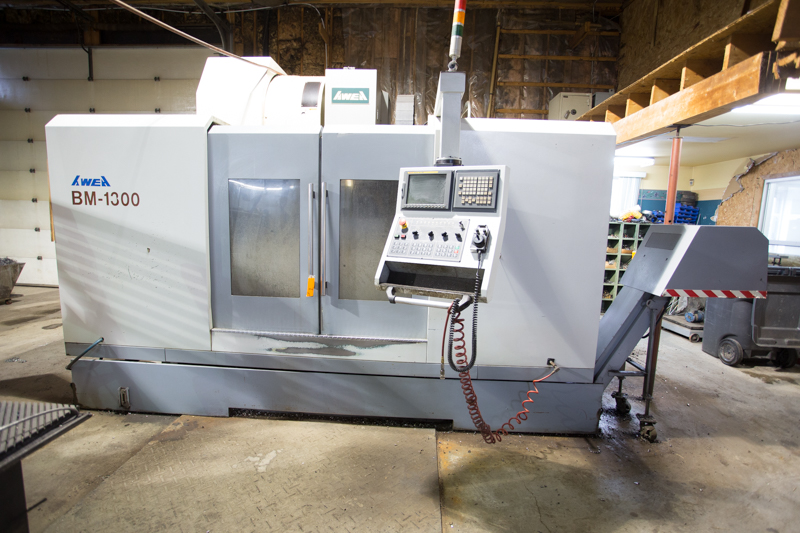

AWEA BM-1300 CNC VERTICAL MACHINING CENTER, 2004

MANUFACTURER: AWEA

MODEL: BM-1300

YEAR: 2004/OCTOBER

X Travel (Left & Right) 51.2"

Y Travel (In & Out) 31.5"

Z Travel (Up & Down) 27.5"

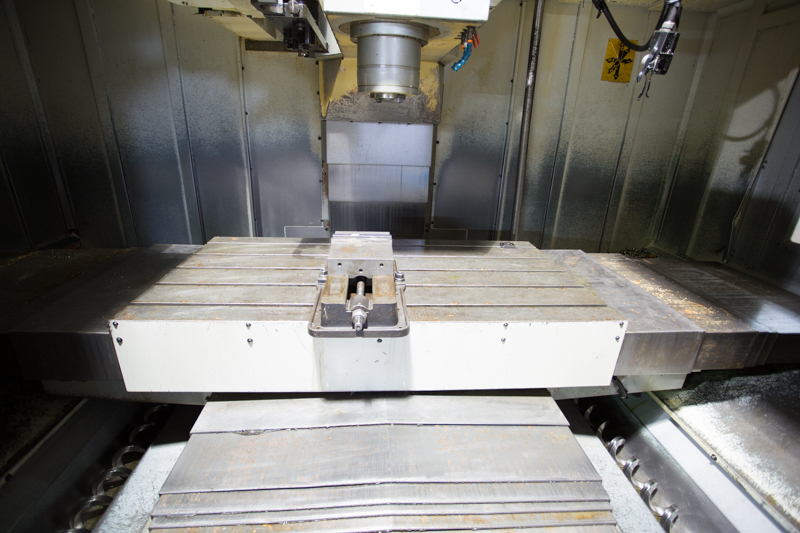

Table Size (L x W) 59 x 31.5"

T Slot (Width x No.) mm(in) 5 x 18 (0.7")

Max. Table Load (lbs) 2645 lbs

Spindle Speed rpm 65-6000

Spindle Motor HP 15 / 20

Spindle Taper # ISO #50

Dist, From Spindle Nose To Table 5.9" - 33.5"

Dist, From Spindle Center To Colum 32.2"

X, Y Rapid Feedrate 590.5" IPM

Z Rapid Feedrate 472.5" IPM

Cutting Feedrate (Max) 1-315" IPM

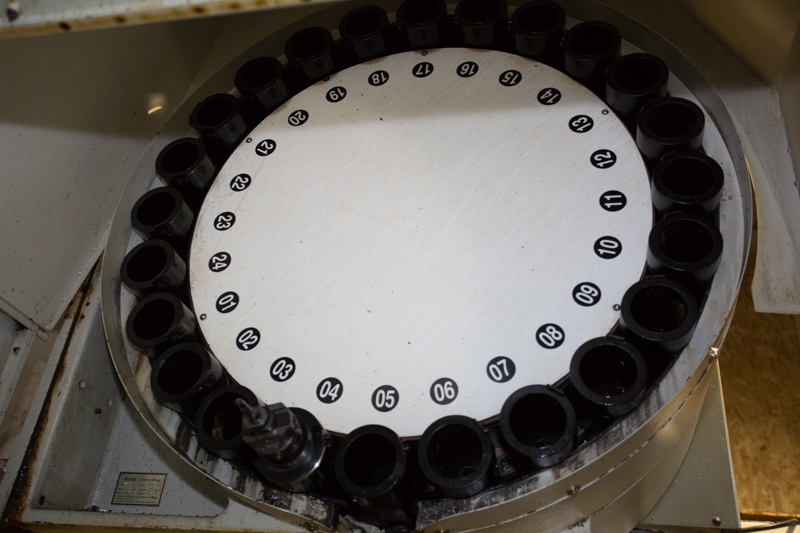

Tool Magazin Capacity (Drum Type) Pcs 20

Max. Tool Diameter (Full / Adjacent) in 5" / 8.4"

Max. Tool Length in 13.8"

Max. Tool Weight lb 33

Air Pressure Requirement kg(lb)/cm2 6

Total Power Requirement kVA 40

Machine Weight kg 11000 (24,200)

Machine Length mm(in) 3780 (148.8")

Machine Width mm(in) 3010 (118.5")

Machine Height mm(in) 2700 (106.3")

EQUIPPED WITH:

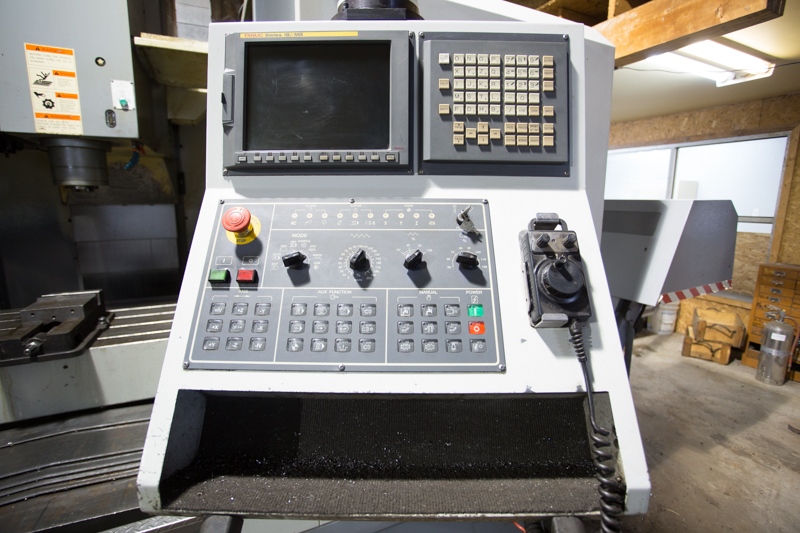

-FANUC 18iMB CNC CONTROL

-CTS (COOLANT THROUGH SPINDLE)

-ETHERNET

-DATA SERVER (128MB)

-1GB Hard Drive

-32MB CPU Card DRAM

-AI NANO CONTOUR CONTROL

-4th AXIS PREWIRE

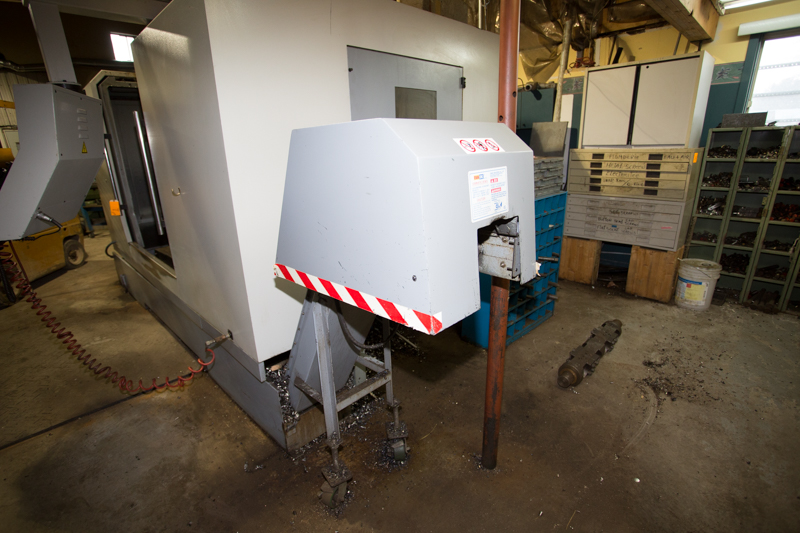

-CHIP CONVEYOR

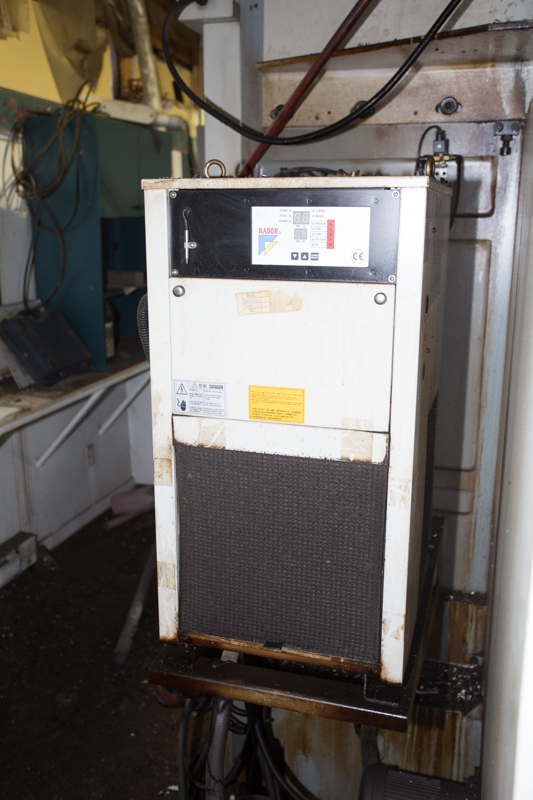

-CHILLER

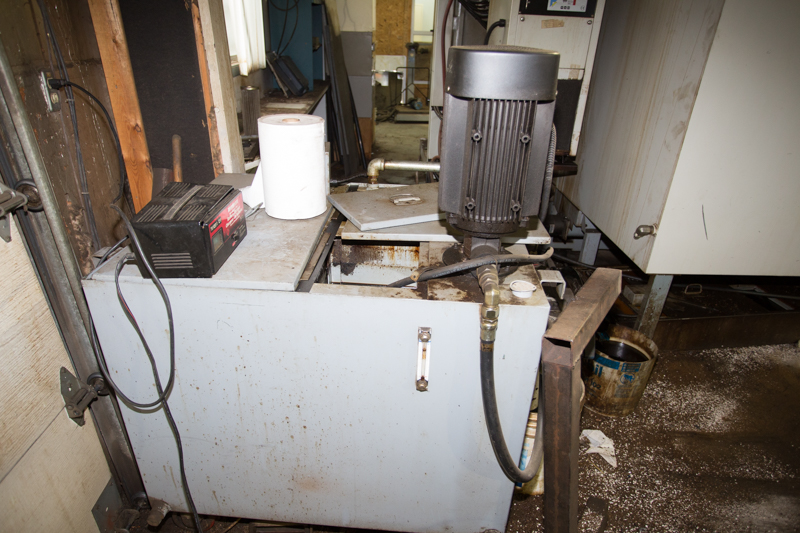

-COOLANT TANK & PUMP

-GEAR BOX

-BOX WAYS

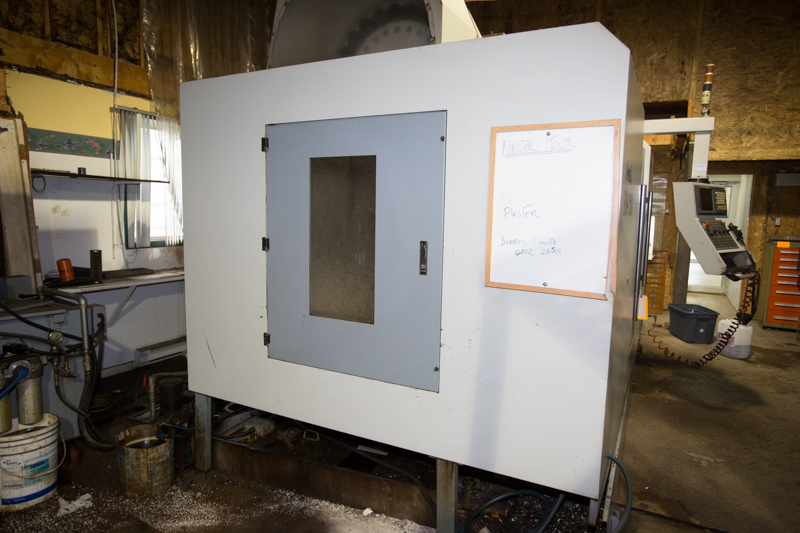

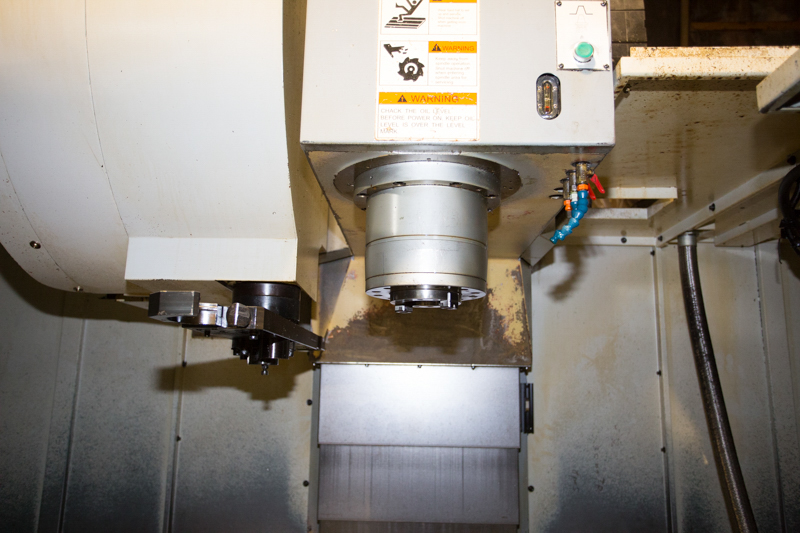

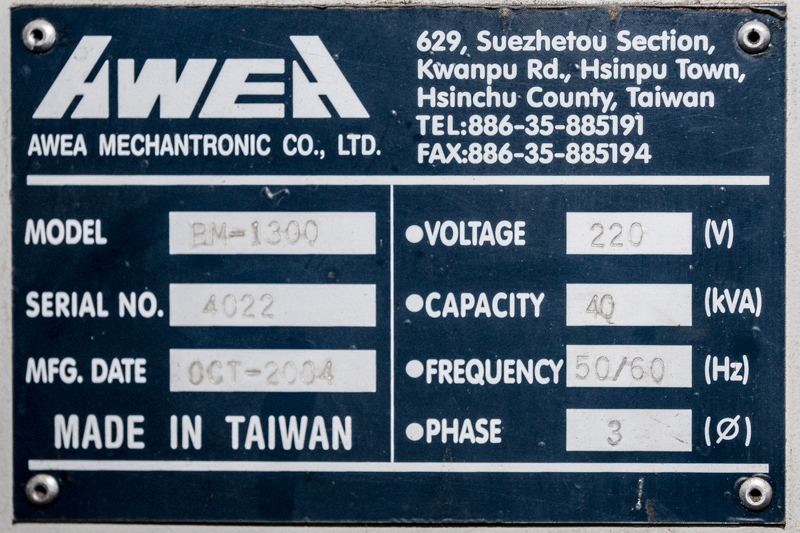

Photos
