Specifications

Categories > Boring Mills, Vertical, CNC
Ask for quotation
Stock ref. # 2010

Manufacturer TOSHIBA

Model TUE-20

Year 2007

Table Dia. 78.7"

Swing 94"

Under Rail 61"

Capacity *

RPM 240

Motor 60 HP

Control FANUC 0ITD

Price SOLD!

Other specifications

Toshiba TUE-20 CNC Vertical Boring Mill, 2007

Manufacturer: TOSHIBA

Model: TUE-20

Year: 2007

Specifications:

Table Diameter: 78.74"

Maximum Swing: 94.49"

Maximum Height From Table Top to Ram: 67.72”

Maximum Cutting Height: 61.02"

Maximum Cutting Diameter: 94.49"

Maximum Cutting Force of Ram: 24500

Maximum Table Load: 33,070 lbs

Horizontal Travel of Rail Head X-Axis: 1.97" ~ 53.15"

Vertical Travel of Ram Z-Axis: 35.43"

Vertical Travel of Ram Not NC Axis: 39.38"

Table Speed, 2 Ranges: 2 ~ 240 RPM

Maximum Torque: 31396 ft/lbs

Rapid Traverse X/Z: 590/472 IPM

Ram Section: 9.84" X 9.84"

Tool Shank: 7/24 Taper JIS 50 Taper

Table Drive Motor: 60/50 HP

Spindle Drive Motor: 24.8 HP

Power Sources Power Capacity: 80 KVA

Machine Dimensions: 216" x 216" x 168"

Machine Weight: 47,840 lbs

Equipped With:

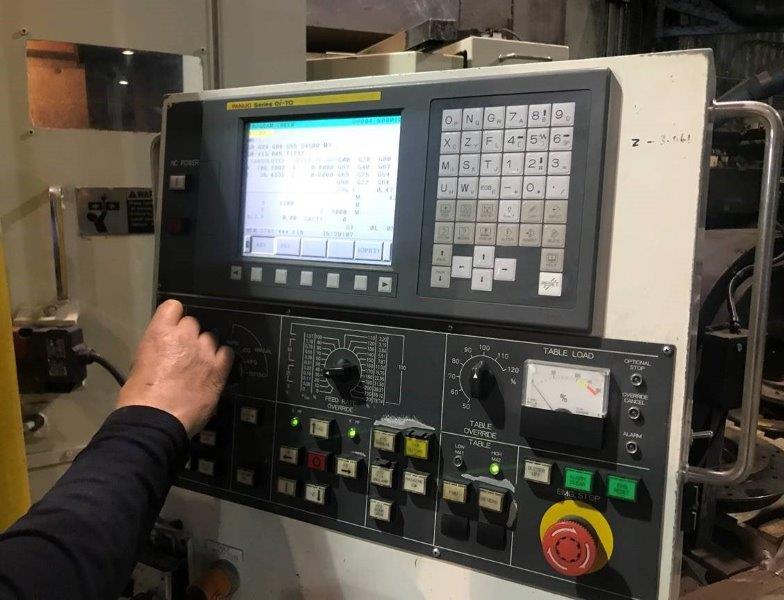

FANUC 0ITD CNC Control

78" Face Plate With 4-Jaws

Chip Conveyor

Coolant System

Miscellaneous Tool Blocks

Photos
