Specifications
| Ask for quotation | |
| Stock ref. # 2016 |
|
|
Other specifications

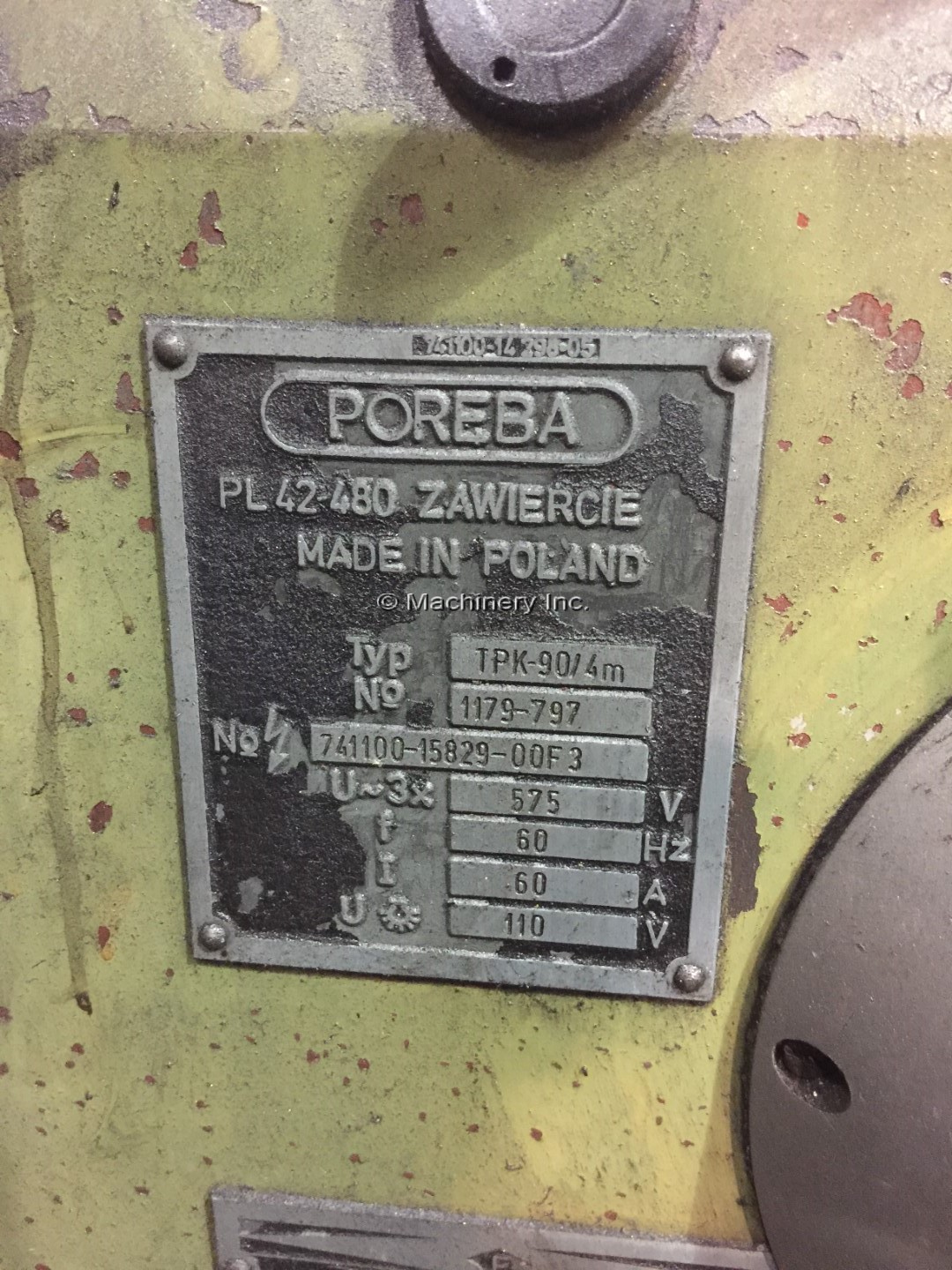

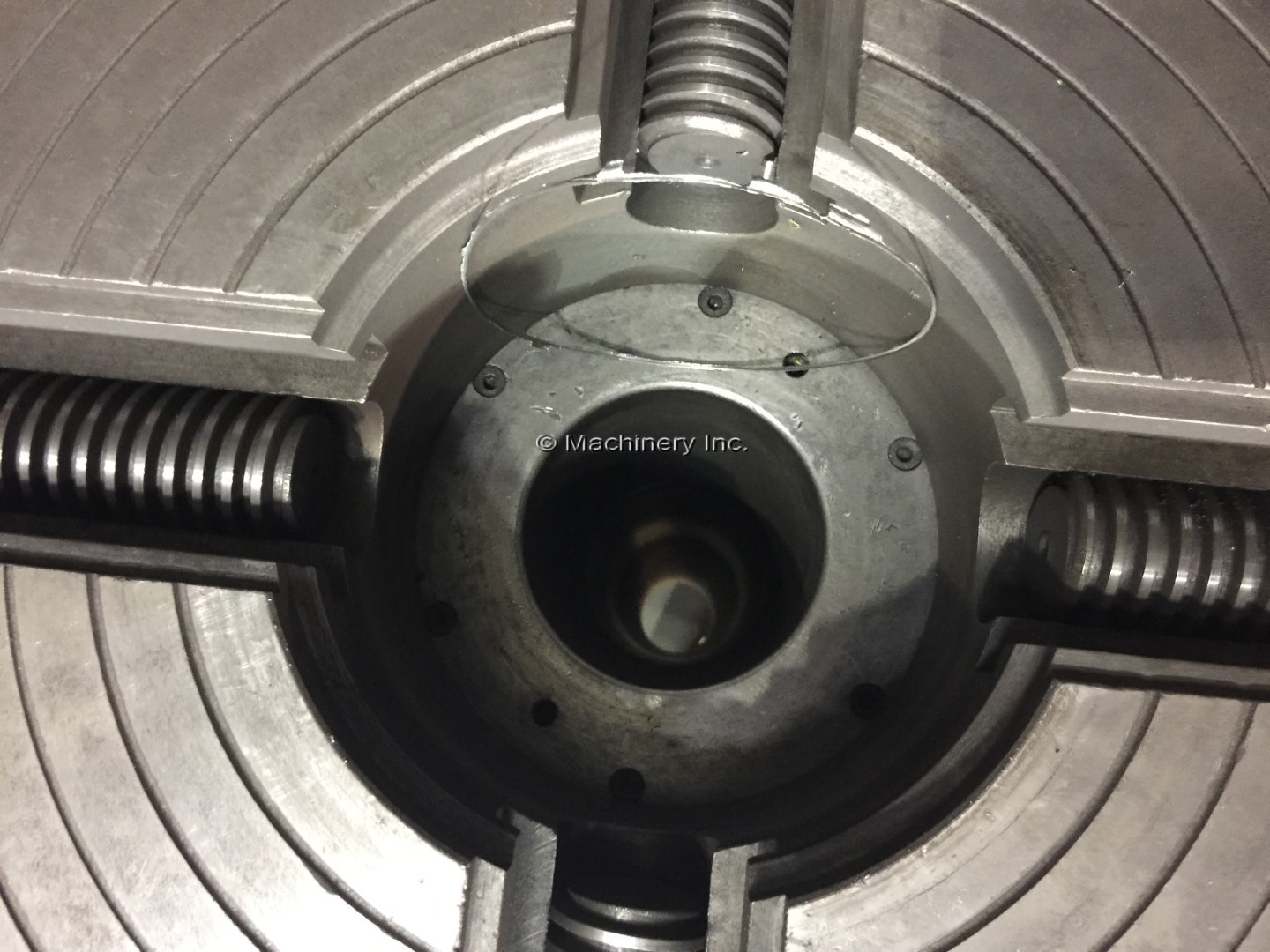

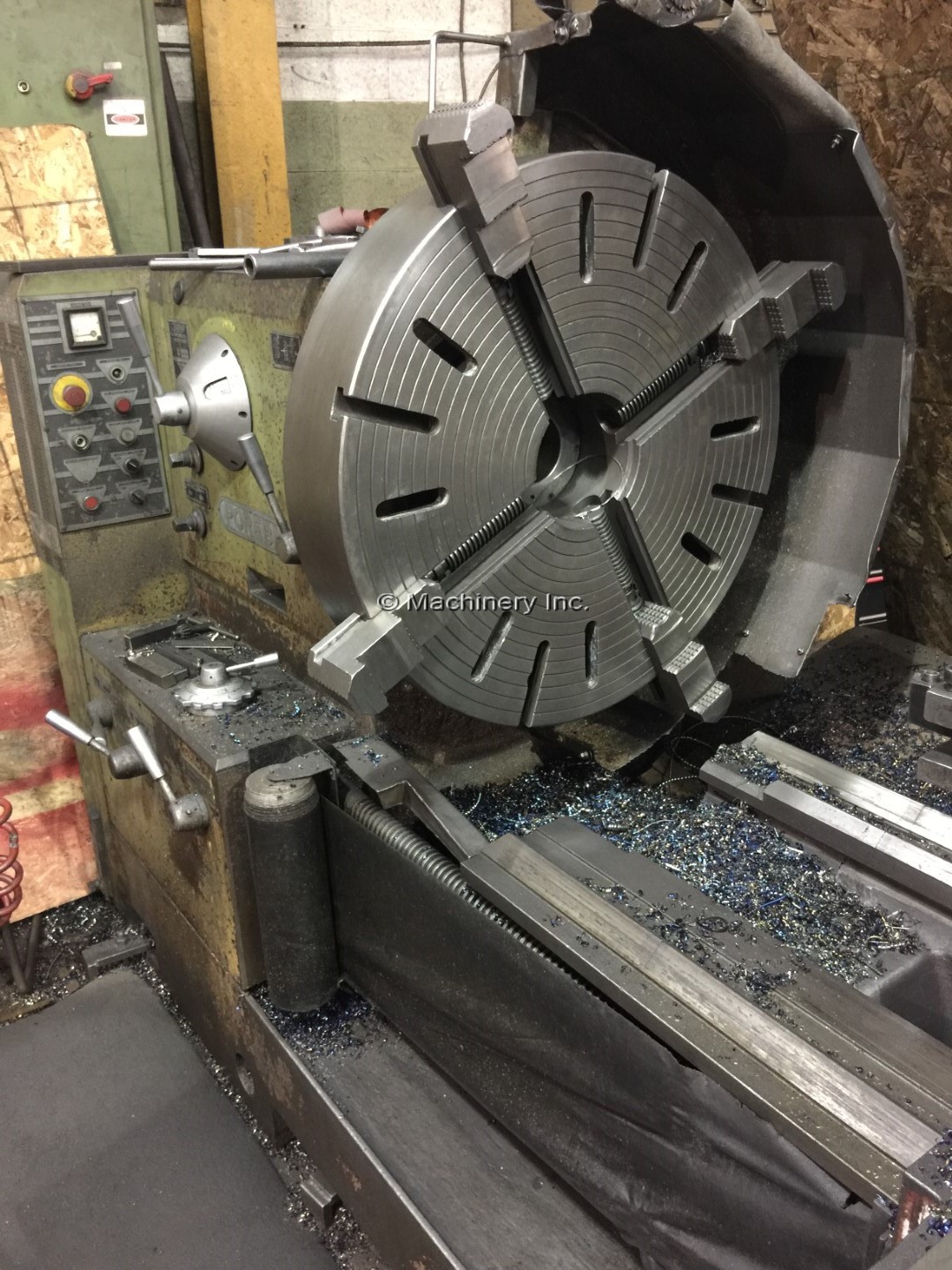

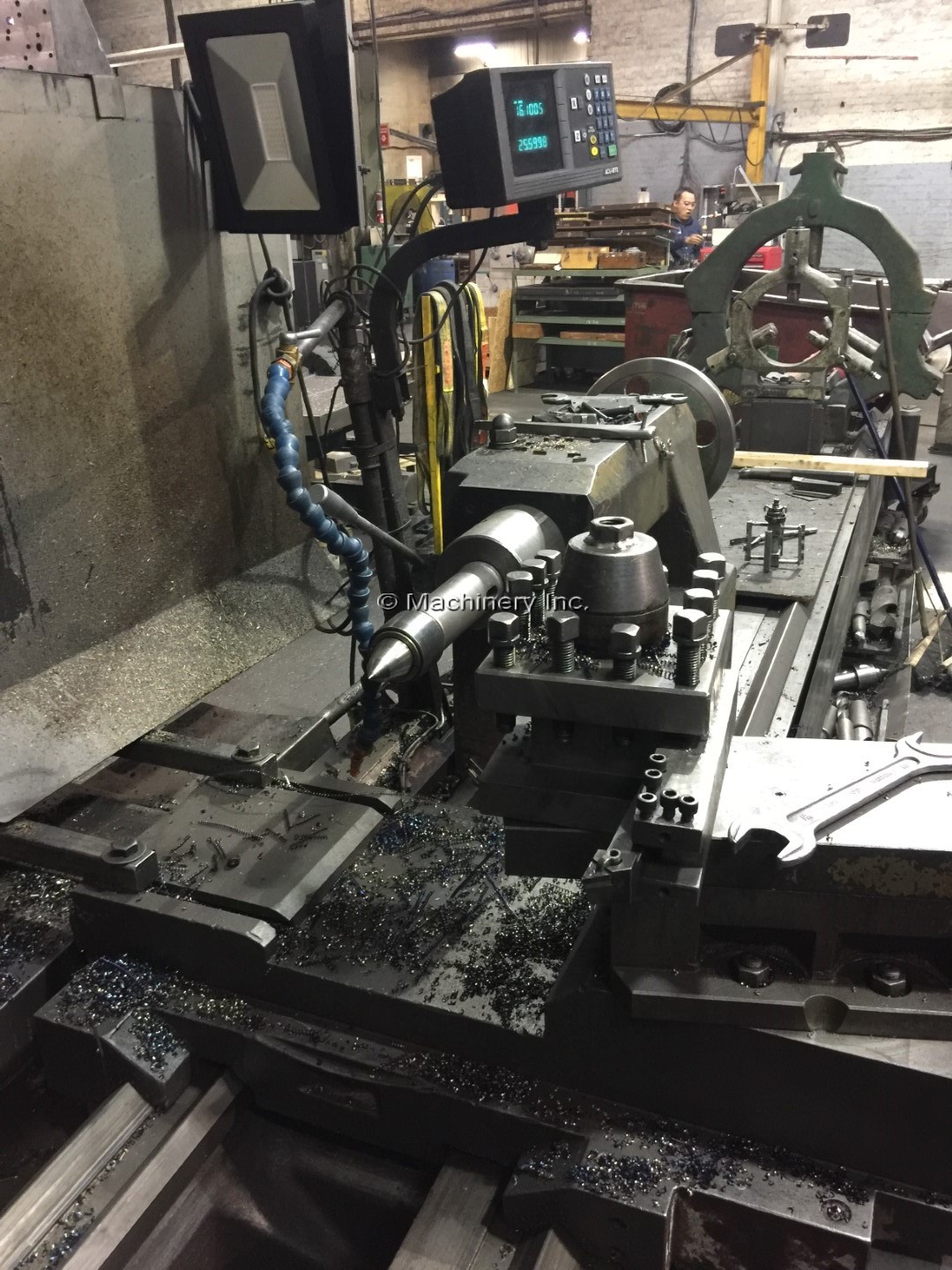

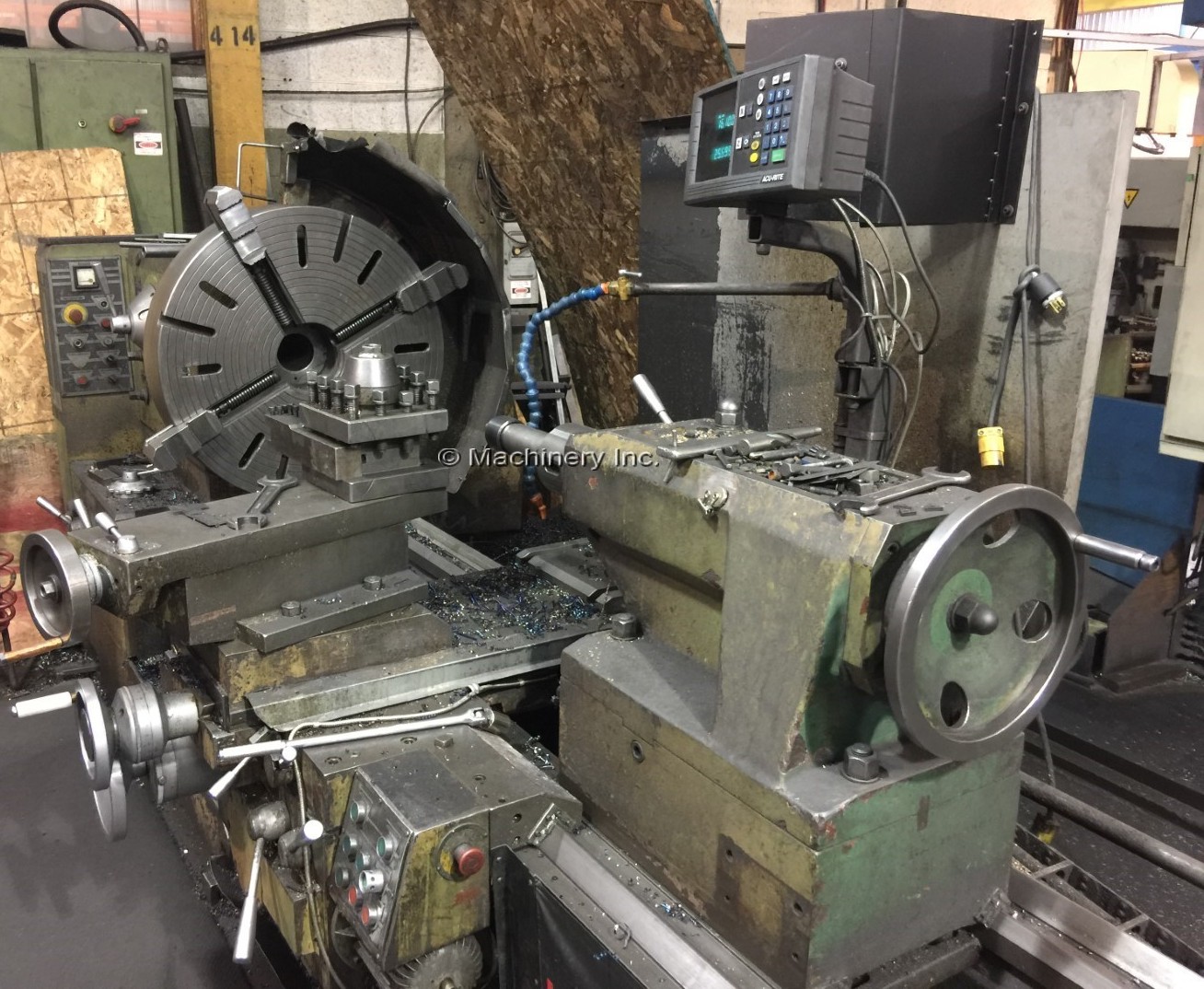

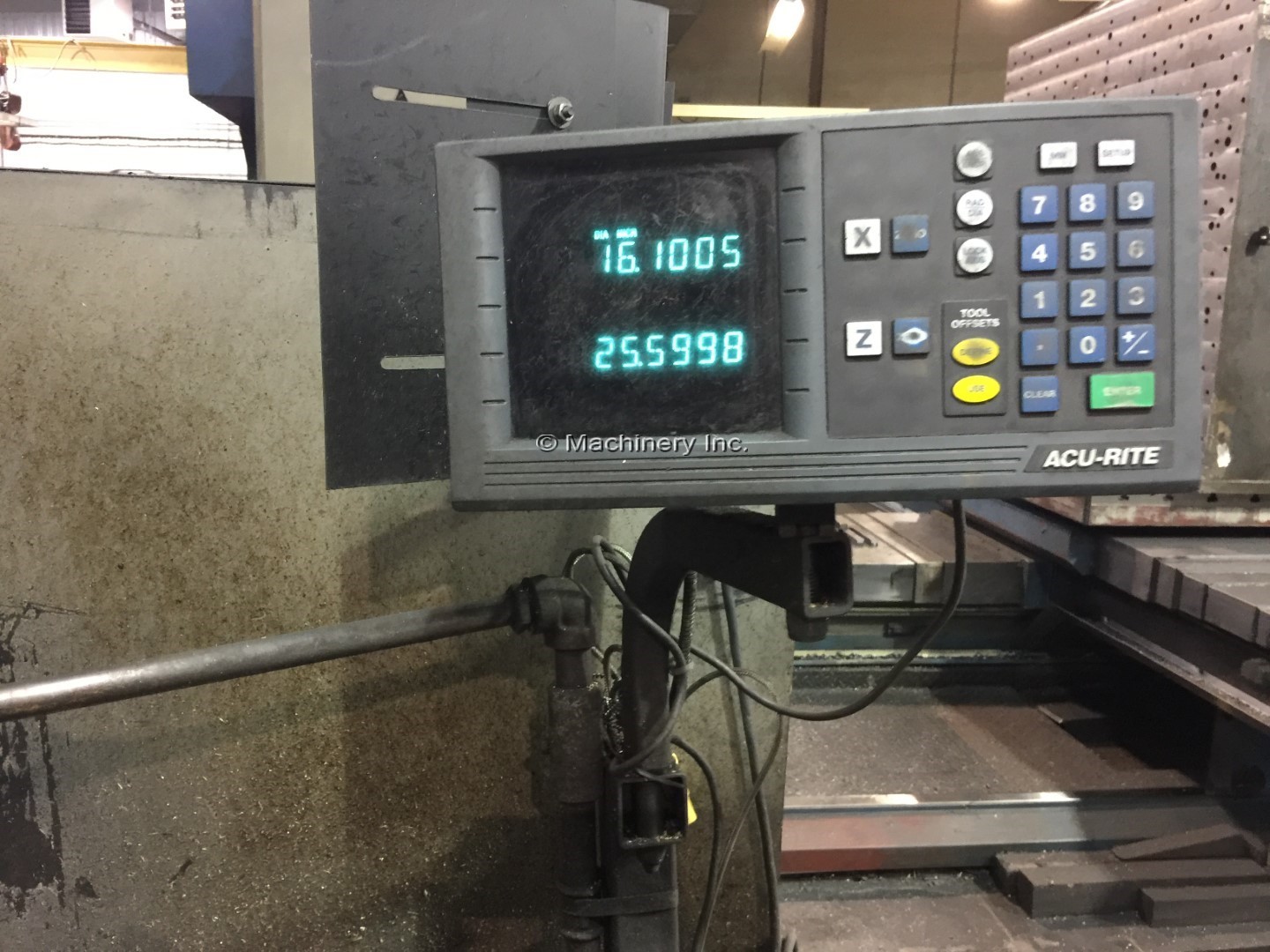

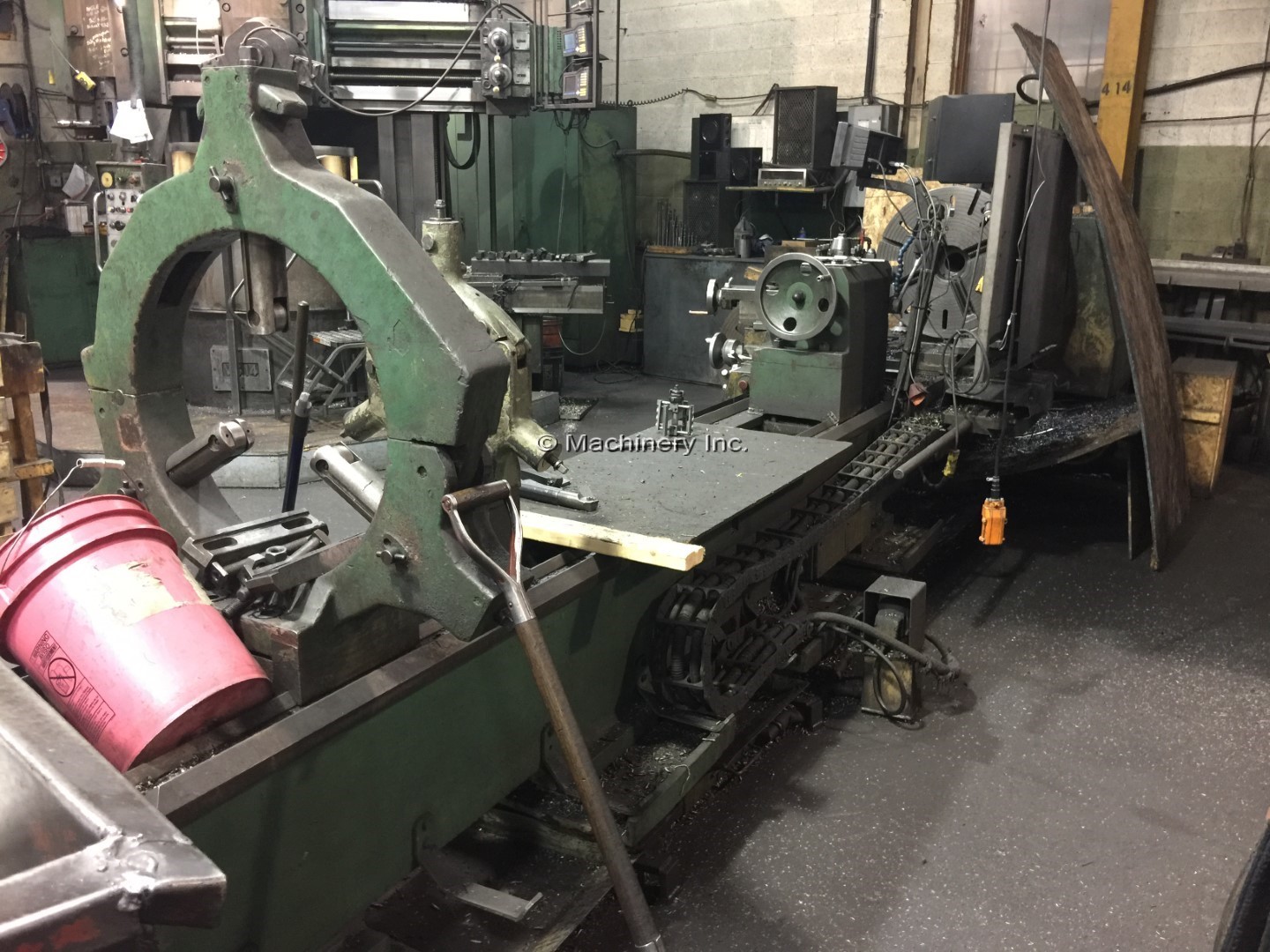

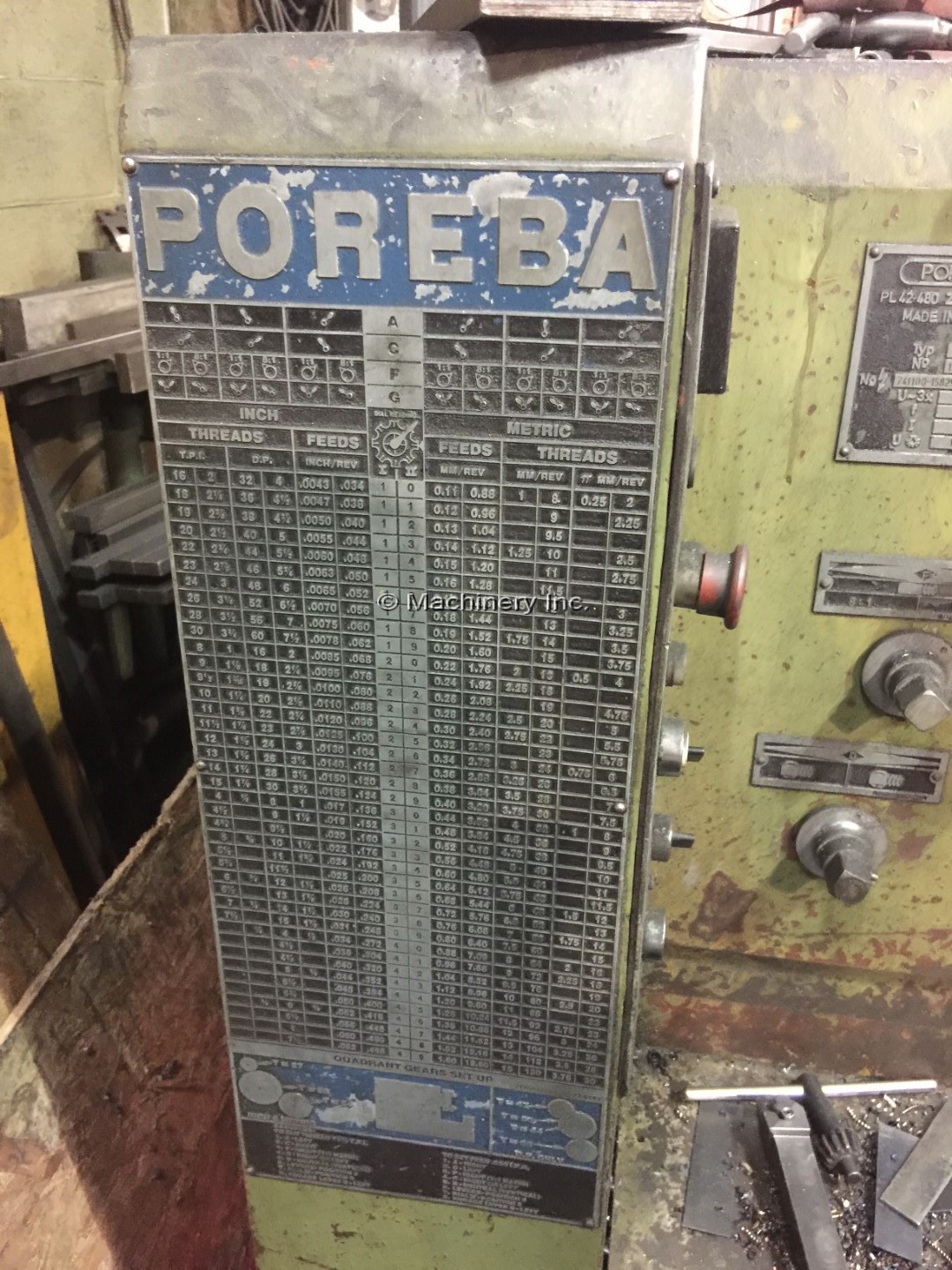

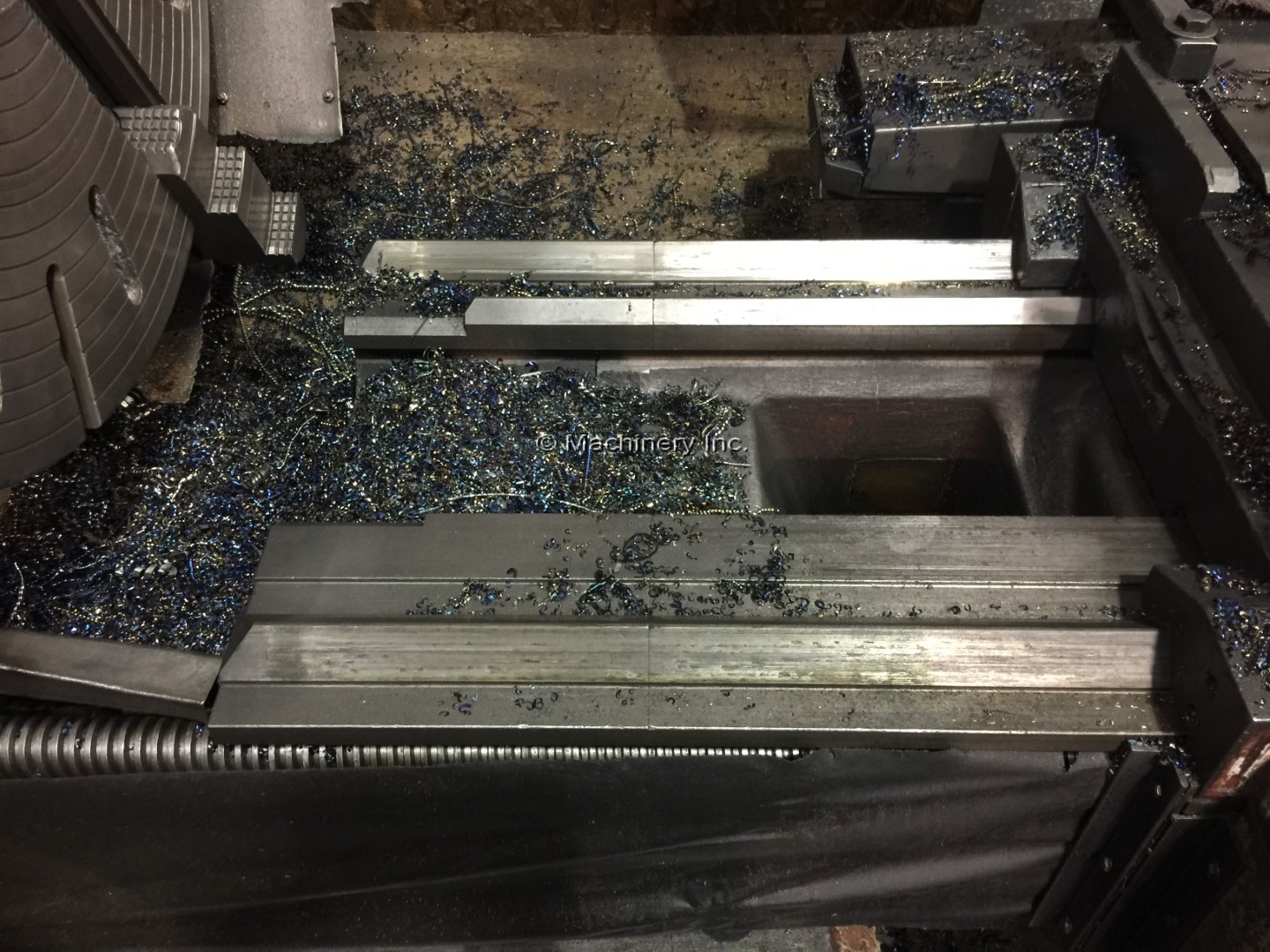

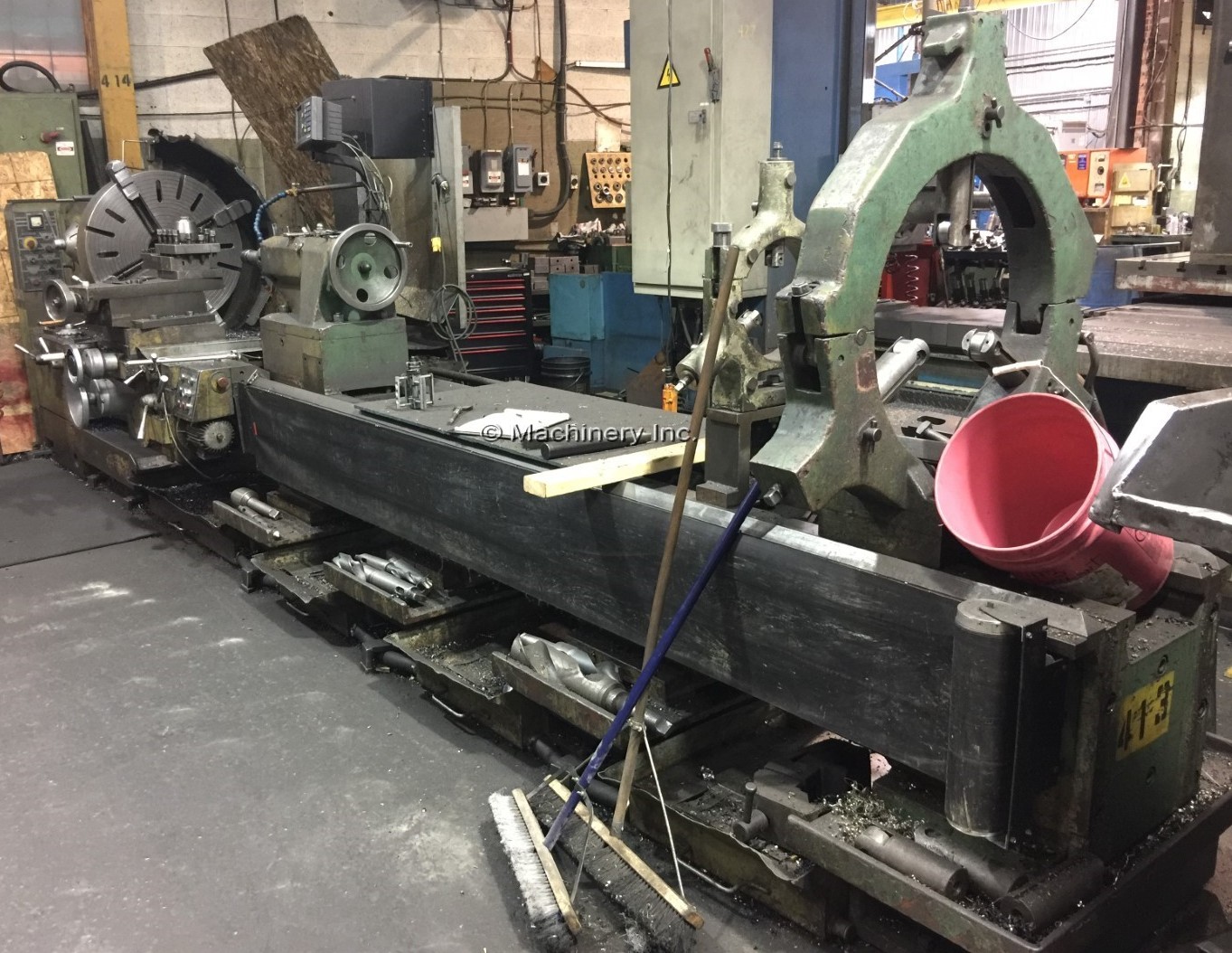

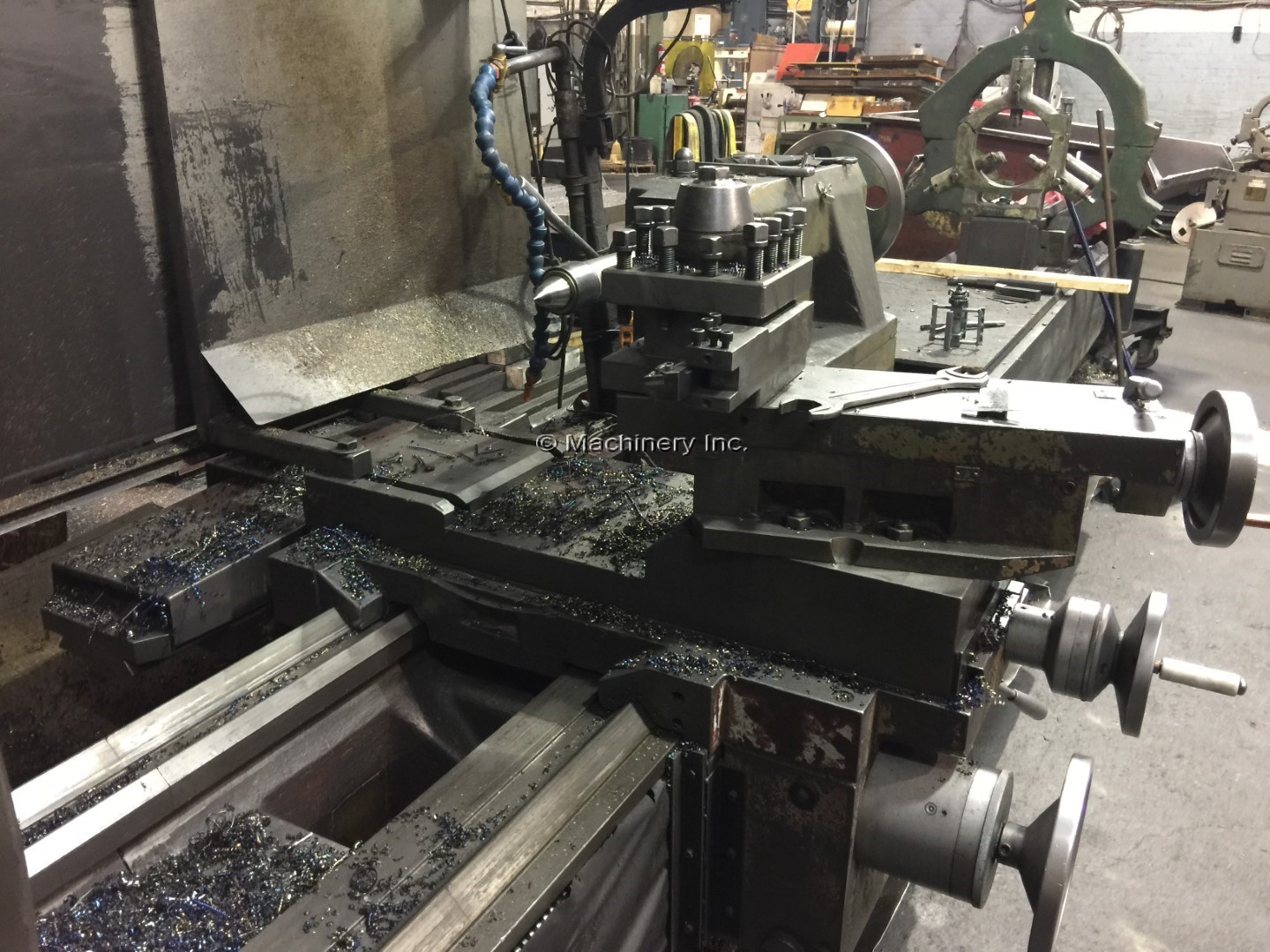

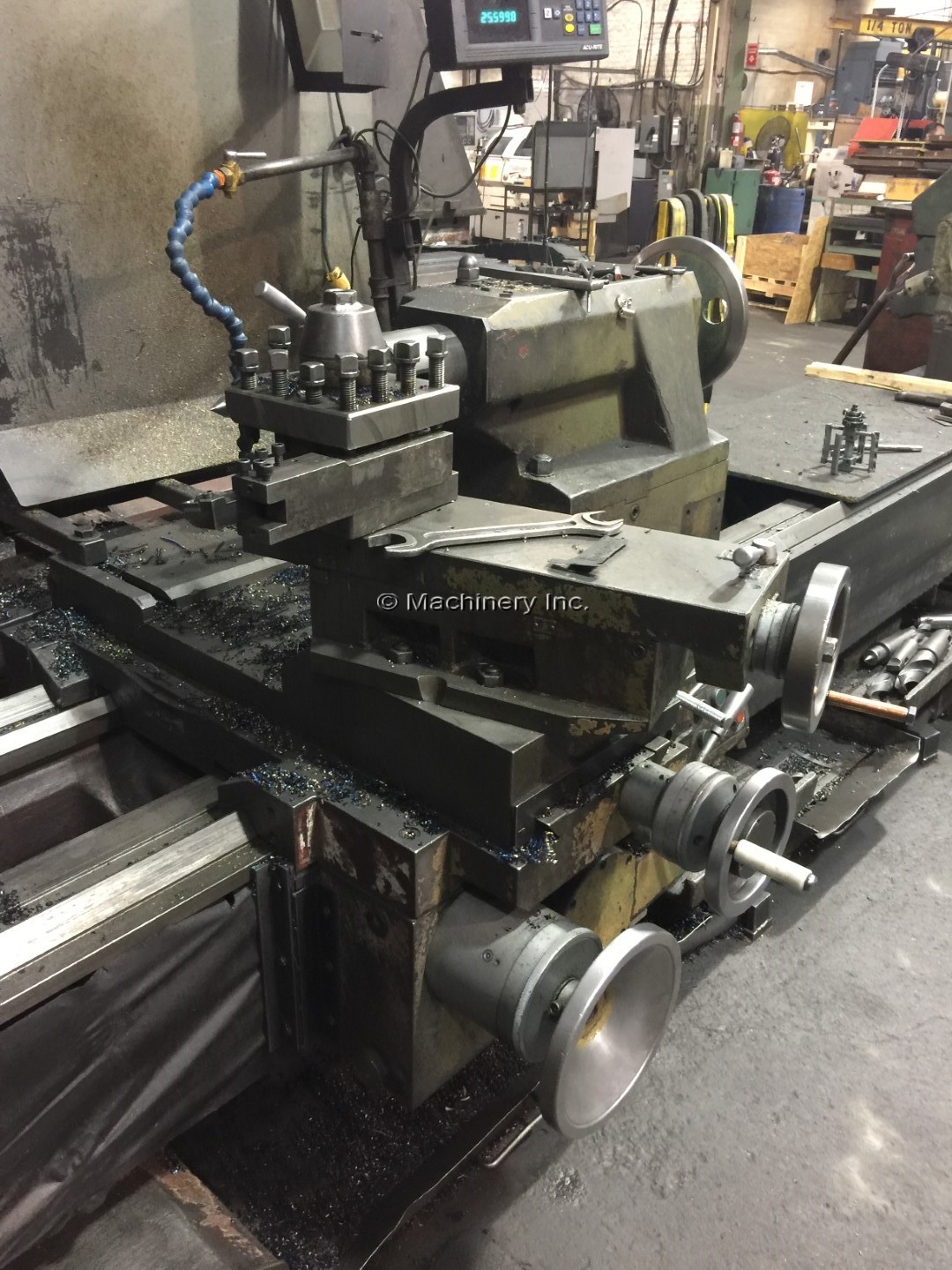

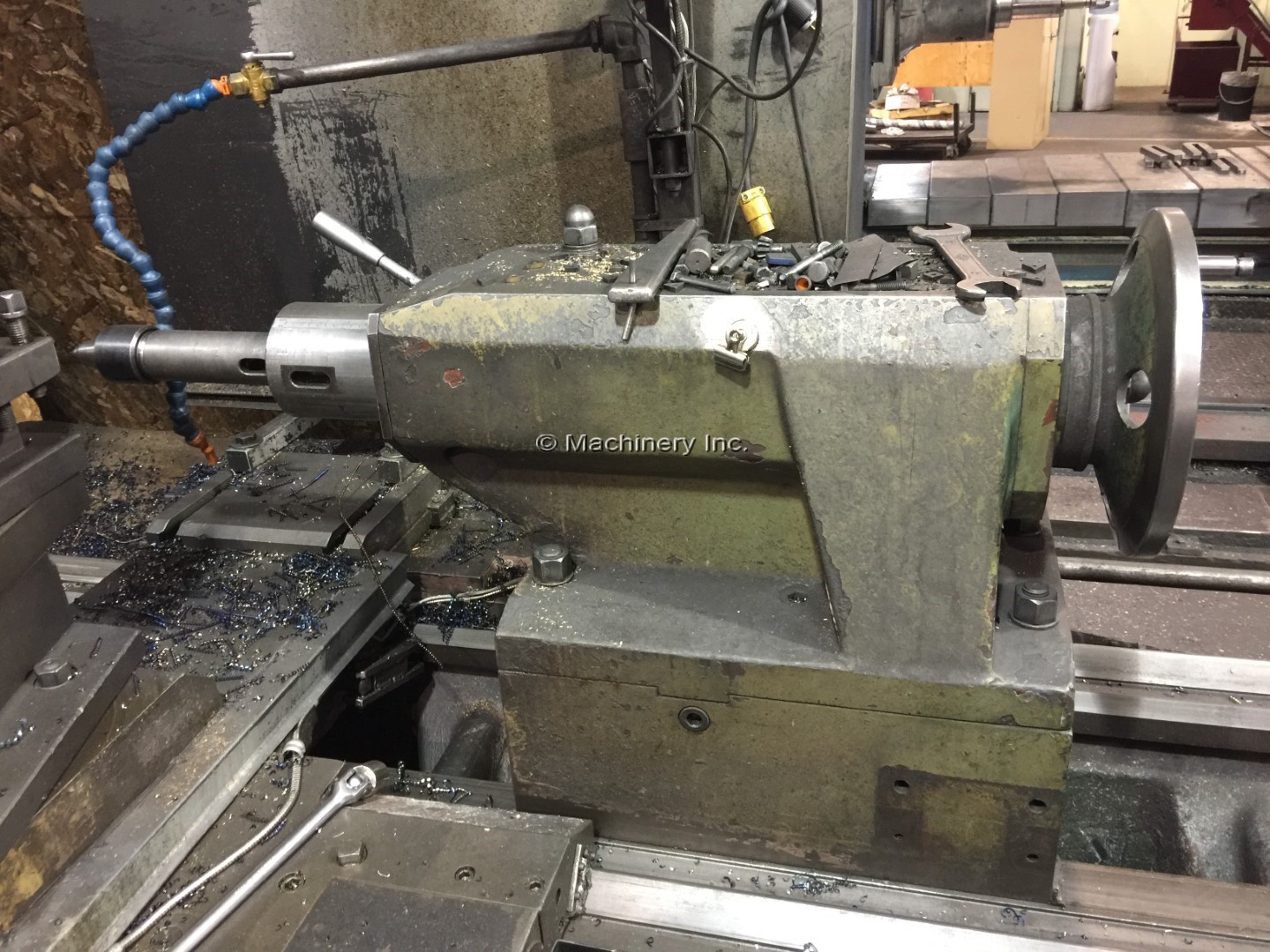

POREBA TPK 90/4M GAP BED LATHE WITH THREADING AND TAPER ATTACHMENT, 1981 MANUFACTURER: POREBA MODEL: TPK 90/4M YEAR: 1980's SERIAL: 1179-797 SWING: 36" SWING OVER CROSS SLIDE: 24.8" SWING IN GAP: 47" DISTANCE BETWEEN CENTERS: 157" MOTOR: 30 HP SPINDLE SPEED: 800 RPM THREADS (56) .......................... 1/4" TO 30 TPI METRIC PITCHES (62) ................... 1 TO 120 MM/REV. LONGITUDINAL FEED RANGE(70) ........... .0043 TO .500 IPR CROSS FEED RANGE (70) ................. .0021 TO .248 IPR TOP SLIDE FEED (70) ................... .0011 TO .125 IPR CENTERS - HEAD & TAILSTOCK ............ #6 MT EQUIPPED WITH: - BED WIDTH: 23" - 5" DIA. QUILL - 31" 4 JAW CHUCK - INCH/METRIC THREADING - TAPER ATTACHMENT - 2 AXIS ACU-RITE DRO - 2 STEADY RESTS - 11" AND 24" OVERALL DIMENSIONS: - LENGTH: 255.9" - 21.3' - WIDTH: 70" - HEIGHT: 56.4" APPROX WEIGHT: 17,600 LBS
