Specifications

Categories > Machining Center, Vertical
Ask for quotation
Stock ref. # 2058

Manufacturer DMG

Model DMU 85 MONOBLOCK

Year 2012

Axis_Travels(X;Y;Z) 33" x 33" x 25"

RPM 18000

HP *

ATC 60

Control HEIDENHAIN iTNC 530

Price SOLD!

Other specifications

USED DMG DMU 85 MONOBLOCK, 18000 RPM, HSK 63, 2012

MANUFACTURER: DECKEL MAHO

MODEL: DMU 85

YEAR: 2012

TRAVELS:

X-Axis travel: 33.46"

Y-Axis travel: 33.46"

Z-Axis travel: 25.59"

Rapid rate (X/Y/Z): 1181 IPM

Rapid rate (A/B): 35/30 IPM

Table size: 39.37" L

Table size: 29.53" W

Max swivel angle: -120/+120 °

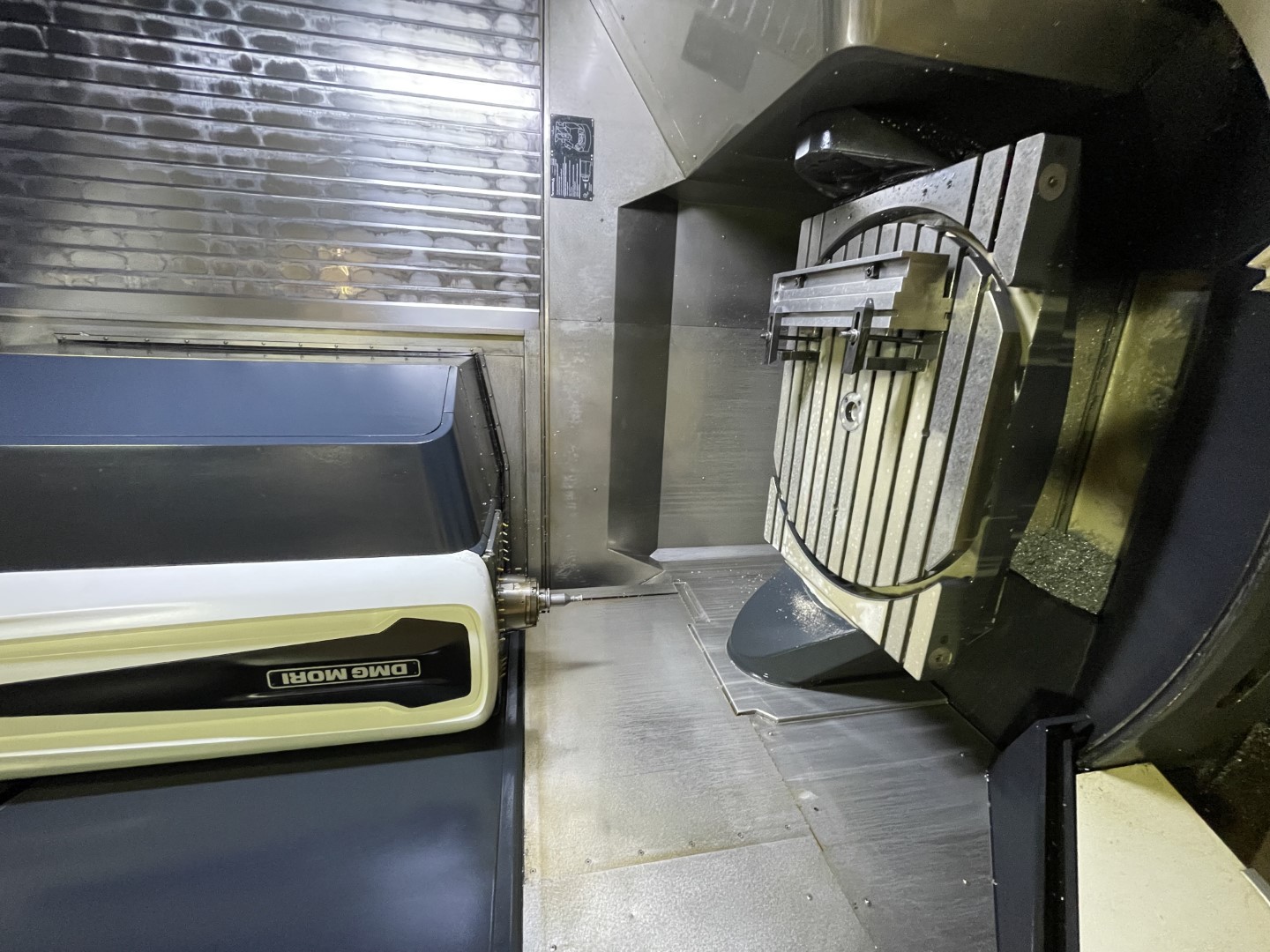

ROTARY TABLE DIA.: 33.46"

Spindle speed: 18000 RPM

Spindle Motor:

Spindle taper: HSK 63

Tool changer type: 60 ATC

EQUIPPED WITH:

Heidenhain iTNC 530 Control

18,000 rpm HSK 63 spindle

60 tool magazine

Probe

Blum Laser

3D quickset

Machine Protection Control software (MPC)

580 psi coolant thru spindle with 600 liter coolant tank with paper band filtration Wash gun Mist collector Air thru spindle Set up hand wheel

Approx. Machine Dimensions 124" x 174" x 127"

Machine Weight 30200 LBS
