Specifications
| Ask for quotation | |
| Stock ref. # 2065 |
|
|
Other specifications
Matsuura MAM 72-100H (2-Pallet) 5-Axis CNC Horizontal Machining Center, 2011 Matsuura High Torque CAT50 10,000 RPM spindle (Max 700Nm / 40/30HP) Coolant Thru Spindle – High Pressure 300 PSI Turbo Micro-Fine II Chip Evacuation System – Includes: Lift-up and Scrapper Type Conveyor High Speed Machining Package Chip Blaster JV40 High Pressure Pumping System Specifications: X-axis 41.33" Y-axis 36.22" Z-axis 37.79" A-axis -120 to +30 dee C-axis Table rotation axis 360 deg Pallet Surface to Spindle Center -10.63 – 25.59” Pallet Center to Spindle Gauge Line 5.9” – 43.7” Pallet Center to X-Zero Position 22.63” Pallet No. of Pallets 2 / Rotary Type Pallet Weight 616 lbs Pallet Work Surface 24.8” x 24.8” Max Work Envelope Dia. 39.37” x H 30.31” Distance from Floor to Pallet Surface 60.82” Index Increment A/C 0.001 / 0.001 Deg Spindle Spindle Speed 10,000 RPM Spindle Diameter 3.9” Spindle Motor 40/30 HP Cutting and Feed Rate X Y Z 2362 / 2362 / 1968 IPM ATC 60 Stations Taper CAT-50 Max Tool Weight 44.1 lbs Max Tool Dia 4.33” / 12.59” Equipped With: Fanuc G-Tech 30i Spindle oil cooler Linear scale feedback for X, Y & Z axis Direct Drive system for A & C axes with Inductosyn scales, dynamic brake system Automatic grease lubrication unit Removable manual pulse generator Dual internal screw conveyors (left/right) Chip flush system Turbo Microscraper-S00 drag type lift-up chip conveyor MIMS (Matsuura Intelligent Meister System) Intelligent Protection System AD-TAP Synchronized tapping function IPC function (intelligent precision contouring) Thermal compensation function In-Process Measurement & Tool Breakage Detection (Blum Laser sensor) Handy-man II Software Package Including: - Interactive programrning & graphic display - Background Editing - Expanded Directory Displays - Detailed alarm screen Five axes related functions: - Tool center point control for 5 axes cutting - 3-dimensional cutter compensation - Inverse time feed - Measurement Functions via touch probe - Tool Length Management & measurement - Graphical recovery operations for ATC & ApC - Nikken Touch Probe with Indicator Lamp - Tilted working plane command - Work setting error compensation - Tool posture control - Optimum torque acceleration/deceleration Fanuc Package including: - 2Mb control memory - Tool offset pairs 999-pairs - Program restart _ Coordinate system rotation - lool life management - No. of registerecl programs (1000 pcs.) - optional block skip 9 - High-speed skip - Additional work coordinate system (300 sets)

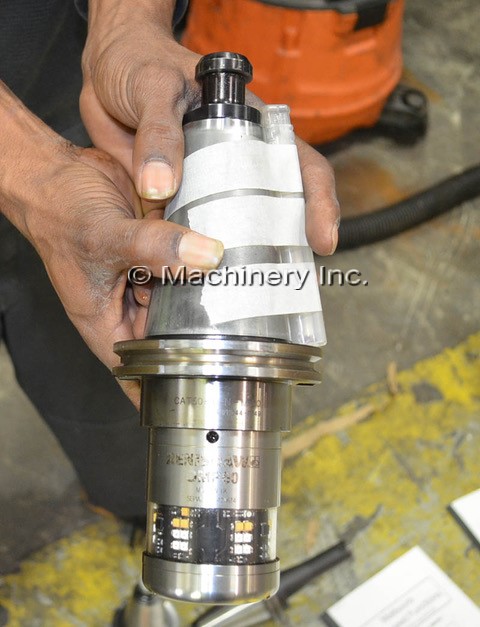

Photos
|
