Specifications

Categories > Machining Center, Vertical
Ask for quotation
Stock ref. # 2115

Manufacturer DMG

Model DMU 50 EVO LINEAR

Year 2007

Axis_Travels(X;Y;Z) 19.7" x 17.7" x 15.7"

RPM 18000

HP 46.9

ATC 30 ATC

Control Heidenhain iTNC 530

Price CALL US!

Other specifications

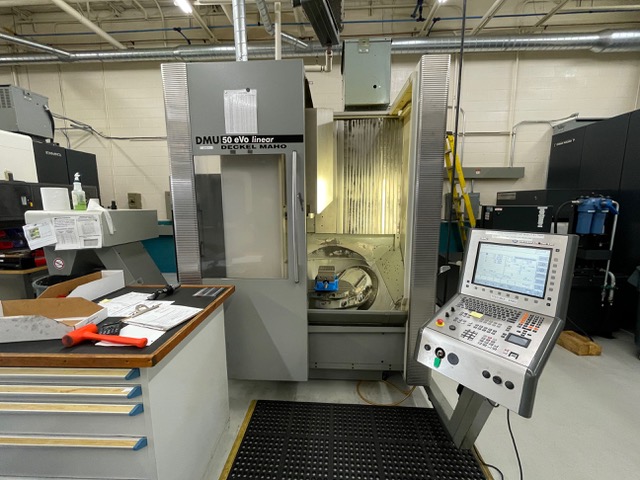

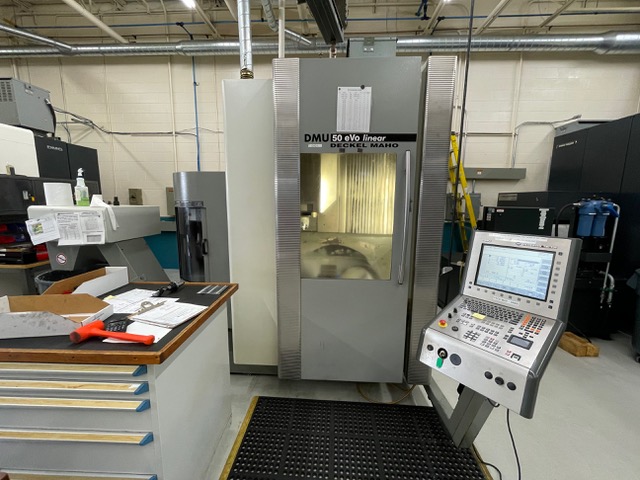

DECKEL MAHO DMU 50 eVolution linear CNC 5-axis Vertical Machining Centre

Immaculate condition

Linear motor

18,000 rpm / CAT-40 spindle

5-Axis Simultaneous 5-axis VMC

VERY LOW HOURS (9660 cutting hrs)

Year of Mfg. 2007

DMG MORI / DECKEL MAHO DMU 50 eVo linear

Specifications:

Table / pallet size:........................ 24.8" x 19.7" (630 mm x 500 mm)

Max table/pallet load....................... 440 lbs

Traverse path X (longitudinal).............. 19.7" (500 mm)

Traverse path Y (across).................... 17.7" (450 mm)

Traverse path Z (vertical).................. 15.7" (400 mm)

Traverse path B (tilting)................... -5/+110 Degree

Traverse path C (rotary).................... +/-360,0000 Degree (Continuous)

AC-motor spindle (40/100% DC)............... 46.9/33.5 hp (35/25 kW)

Spindle speed............................... 20-18,000 rpm

Rapid traverse.............................. 1000

Spindle torque (40/100% DC)................. 95.9/64.1 ft lbs (130/87 Nm)

Spindle bearing diameter (f................. 3.15"/2.17"

Spindle taper............................... SK 40

Automatic Tool Changer...................... 30 Tools

Equipped with:

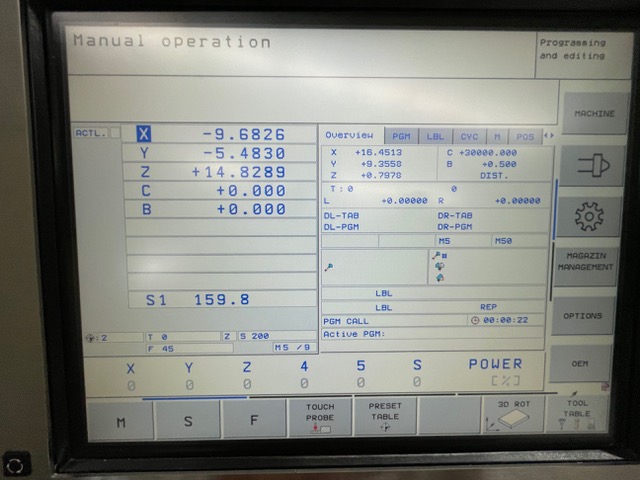

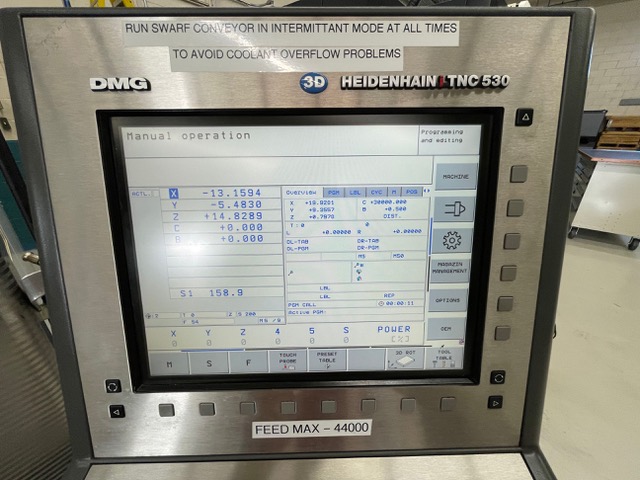

Heidenhain iTNC530 CNC 3D Control

MPG Electronic Handwheel

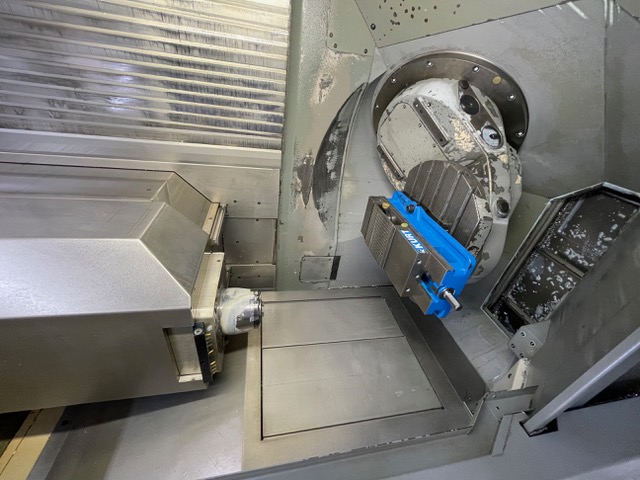

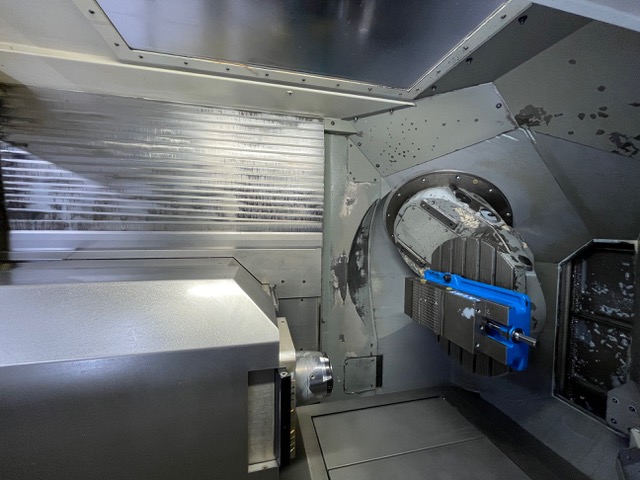

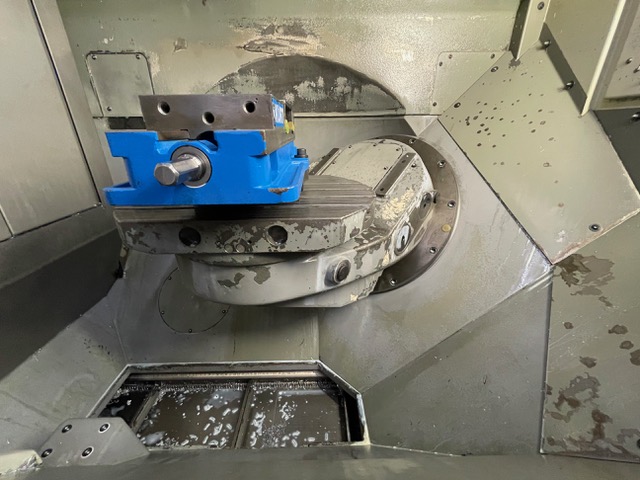

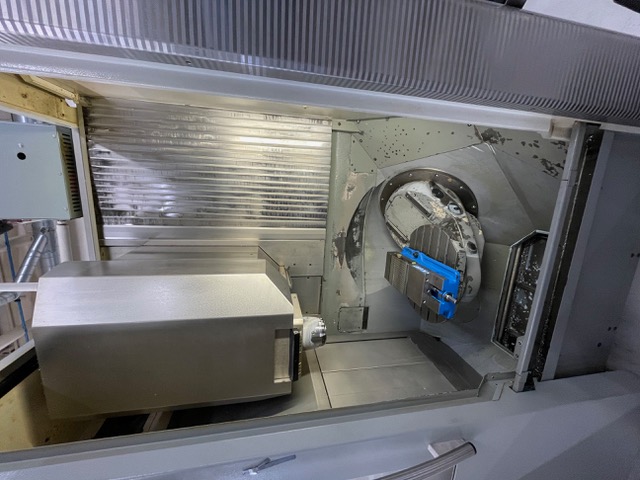

NC rotary table with swivel

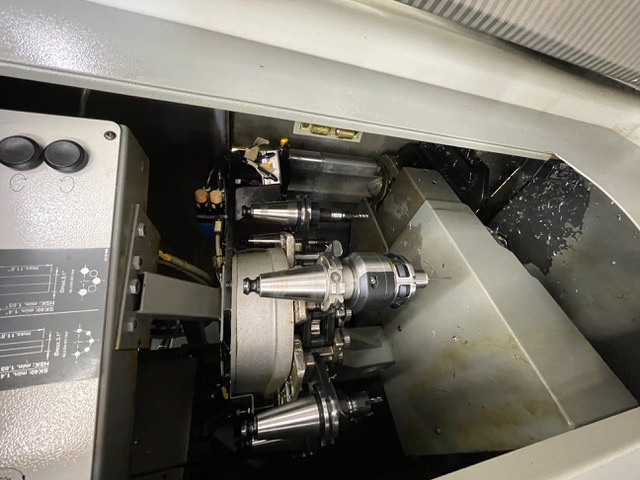

30 magazine ATC

3 D touch probe infrared Heidenhain TS 640

Lift up chip conveyor

Flushing gun for chip flushing

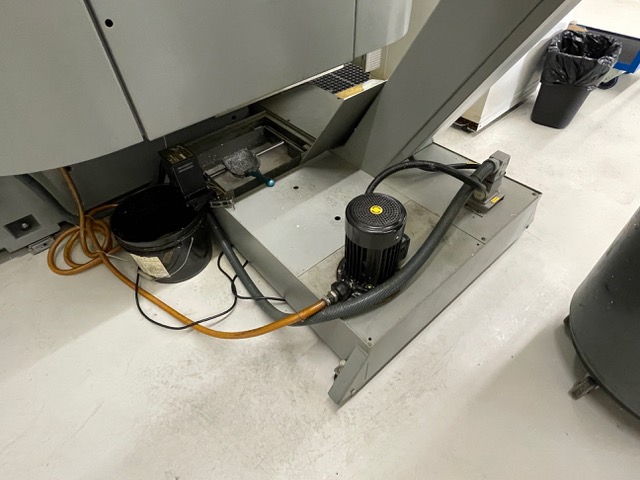

Coolant unit

4 pcs. Height-adjustable machine shoes

Operator Manuals
