Specifications

Categories > EDM'S - (ELECTRICAL DISCHARGE MACHINES)
Ask for quotation
Stock ref. # 2121

Manufacturer FANUC

Model ROBOCUT α-C400iB

Type WIRE

Year 2017

X-Axis 15.7"

Y-Axis 11.8"

Z-Axis 10"

Price SOLD!

Other specifications

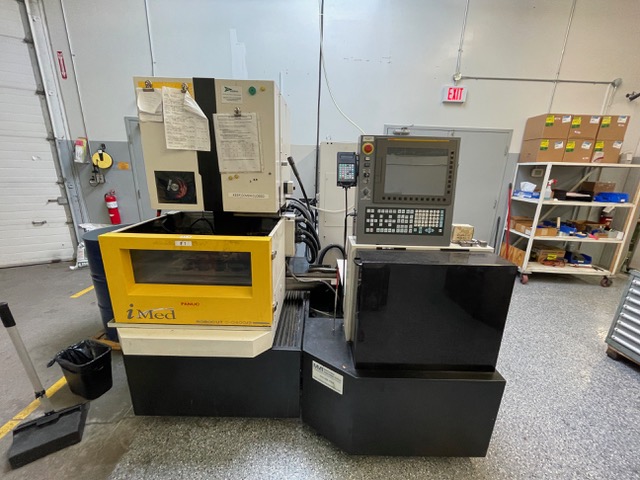

FANUC ROBOCUT α-C400iB CNC EDM Wire Cutting Machine, 2017-10

Year: 2017-10

Cycle start……. 13,124 hrs

Cutting……….... 12,537 hrs

Standard specifications:

Maximum workpiece dimensions [mm]........... 730 x 630 x 250

Maximum workpiece weight [kg]............... 500

XY axis table travel [mm]................... 400 × 300

Z axis travel [mm].......................... 255

UV axis travel [mm]......................... 120 × 120

Maximum taper angle [ ° / mm]............... ± 30° / 80

Minimum step increment of the drives [mm]... 0,0001

Wire diameter [mm].......................... Ų 0.10 ~ Ų 0.30

Maximum wire weight [kg].................... 16

Footprint (W/D) [mm]........................ 1990 × 2200

Machine weight (approx.) [kg]............... 1800

Controller.................................. FANUC 31i-WB

Part program storage size................... 4 MB

Machine Dimensions LxDxH................1990 x 2120 x 1960

Photos
