Specifications

Categories > Boring Mills, Horizontal, Table Type, CNC
Ask for quotation
Stock ref. # 2123

Manufacturer TOSHIBA

Model BTD-11B

Year 1988

Spindle Dia. 4.3"

X-Axis 78"

Y-Axis 59"

Table Size 55" x 63"

RPM 1600

Motor *

Control TOSNUC 3

Price CALL US!

Other specifications

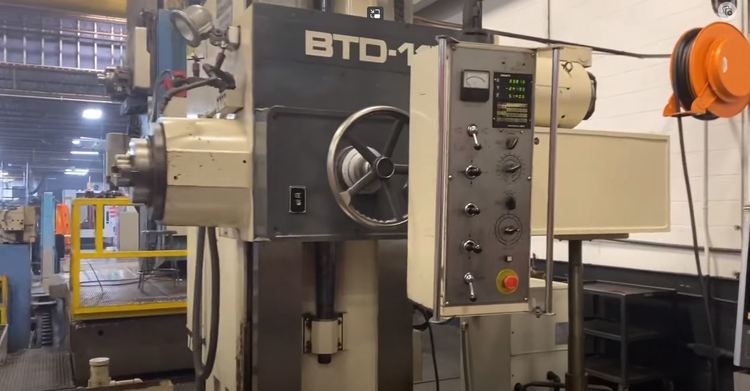

4.3" Toshiba BTD11B CNC Table Type Horizontal Boring Mill, 1988

FEATURES:

Tosnuc 3 CNC Control

55" x 63" Built In 4th Axis Rotary Table

SPECIFICATION:

Spindle Diameter ...................... 4.33"

X-Axis Travel ......................... 78"

Y-Axis Travel ......................... 59"

Z-Axis Travel ......................... 51"

W-Axis Travel ......................... 25"

Spindle Speed ......................... 1,600 RPM

Table Dimensions ...................... 55" x 63"

Table Weight Capacity ................. 13,890 Lbs

Spindle Taper ......................... CAT 50

EQUIPPED WITH:

Tosnuc 3 CNC Control

55" x 63" Built In 4th Axis Rotary Table

Shot Pins 0°/90°/180°/270°

2-Axis Positioning

Coolant Tank & Pump

Chip Auger

Lift Up Chip Conveyor

VOLTAGE: 200/220 VOLTS 3 PHASE.

EXCELLENT OPERATING CONDITION, WAS MAKING PARTS AT TIME OF VIDEO. CAN BE INSPECTED, NOT UNDER POWER

VIDEO AVAILABLE.

Photos
