Specifications

Categories > Machining Center, Vertical
Ask for quotation
Stock ref. # 2138

Manufacturer MATSUURA

Model MAM72-63V

Year 2007

Axis_Travels(X;Y;Z) 29" x 33" x 25"

RPM 12000

HP 30

ATC 40

Control FANUC (G-Tech 30i)

Price CALL US!

Other specifications

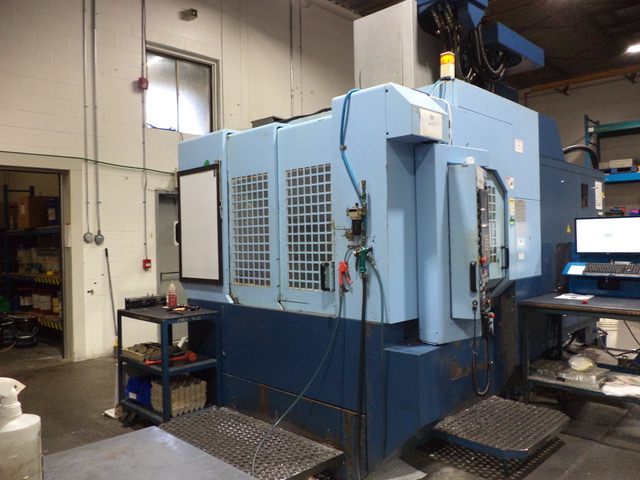

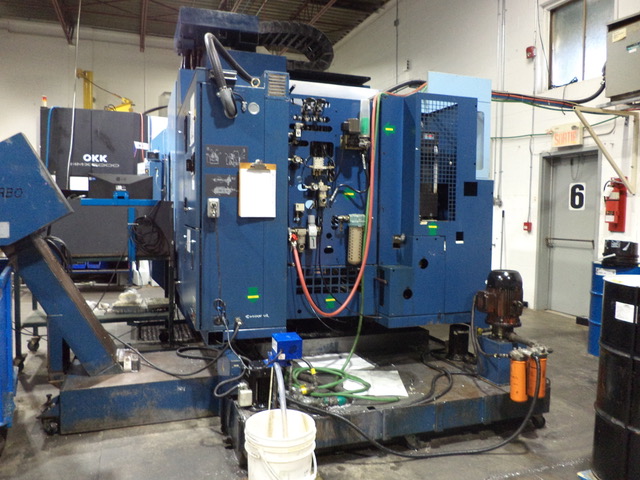

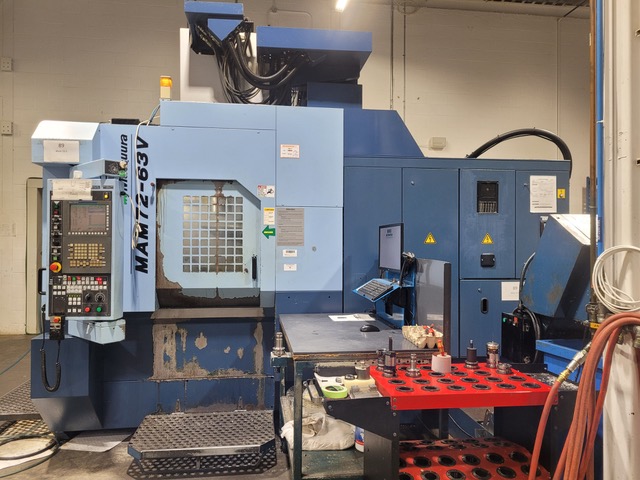

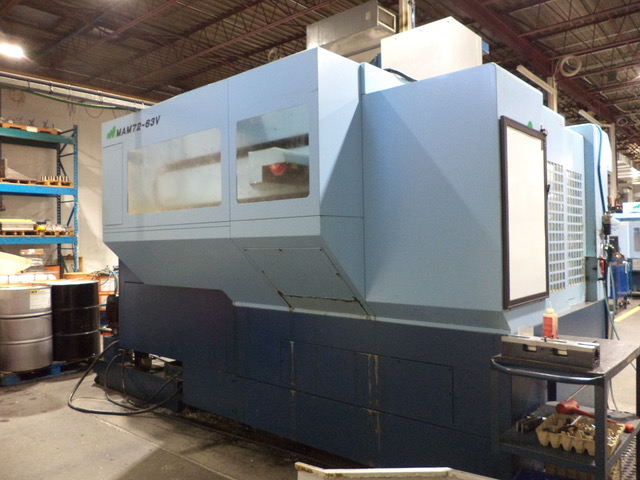

Used MATSUURA MAM 72-63V 5-axis Vertical Machining Center, 2007

Year of Mfg. 2007.01

Specifications:

X Axis Travel............... 29.92"

Y Axis Travel............... 33.26"

Z Axis Travel............... 25.98"

A Axis Travel............... 120 +/-Deg

C Axis Travel............... 360Deg

Rapid Rate X Axis........... 2,362 IPM

Rapid Rate Y Axis........... 2,362 IPM

Rapid Rate Z Axis........... 2,362 IPM

Table Size.................. 19.68" x 19.68

Max Table Load.............. 882 LBS

Spindle Motor............... 30 HP

Spindle Speed............... 12,000 RPM

Spindle Taper............... CAT-40

Tool Changer................ 40 ATC

Dimensions:

L x W x H................... 7200.0 × 3900.0 × 3200.0

Weight...................... 14500 kg

Equipped with:

Matsuura G-Tech 30i (FANUC)

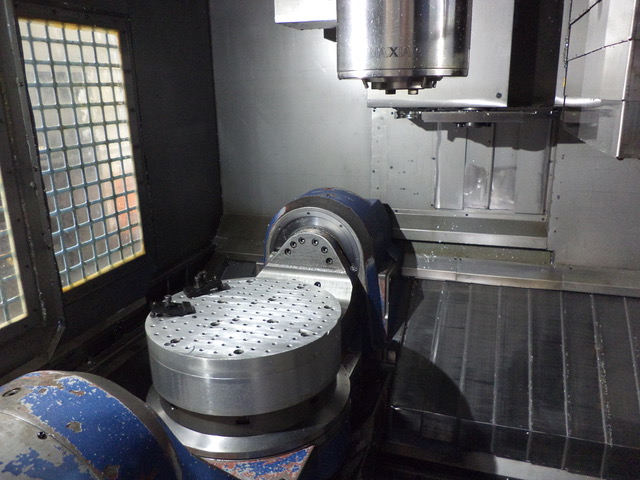

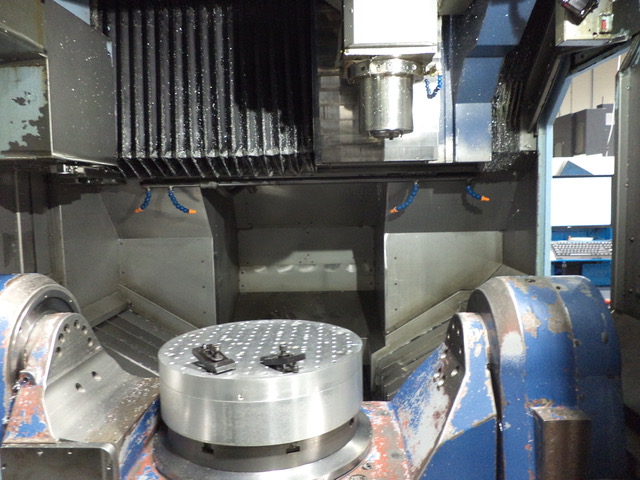

Full 5 Axis Simultaneous

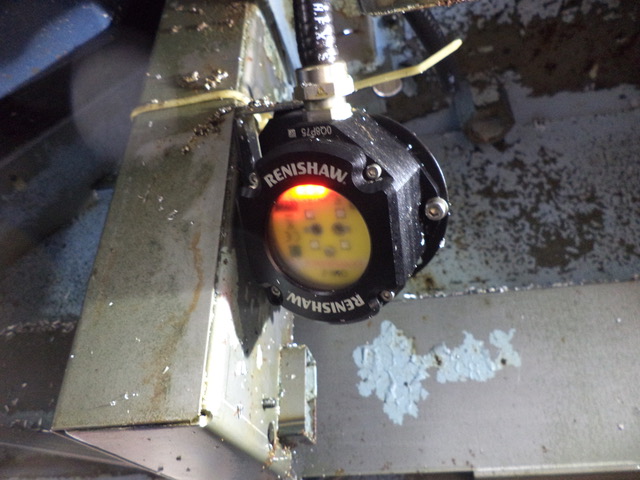

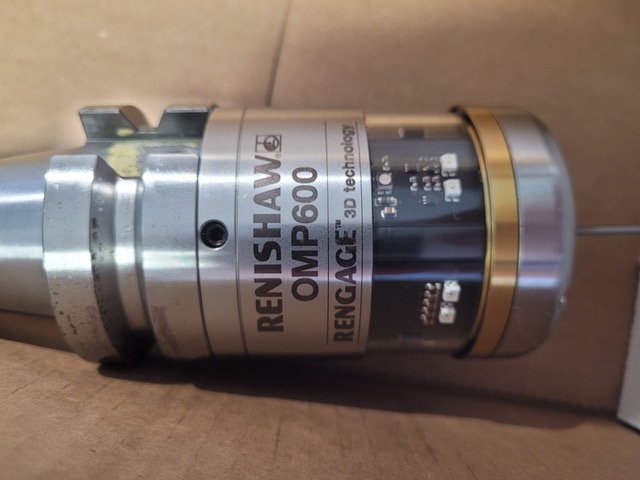

Renishawe Part Touch Probe

Chip Conveyor

Spindle speed 12,000 min-1 (grease lub.)

40 tool magazine (chain type)

Scale feedback (X/Y/Z)/Heidenhain

4th & 5th axis scales feedback

Coolant thru spindle / 300 PIS coolant pump

Thermal displacement compensation

Auto grease supply unit (X/Y/Z)

Microscraper 500 conveyor right hand side rear discharge

Rigid Tap

Data Serve

Photos
