Specifications

Categories > Machining Center, Vertical
Ask for quotation
Stock ref. # 2141

Manufacturer KOMATECH

Model KT-360D

Year 2018-11

Axis_Travels(X;Y;Z) 22" x 14" x 22"

RPM 15000

HP 10

ATC 14

Control *

Price CALL US!

Other specifications

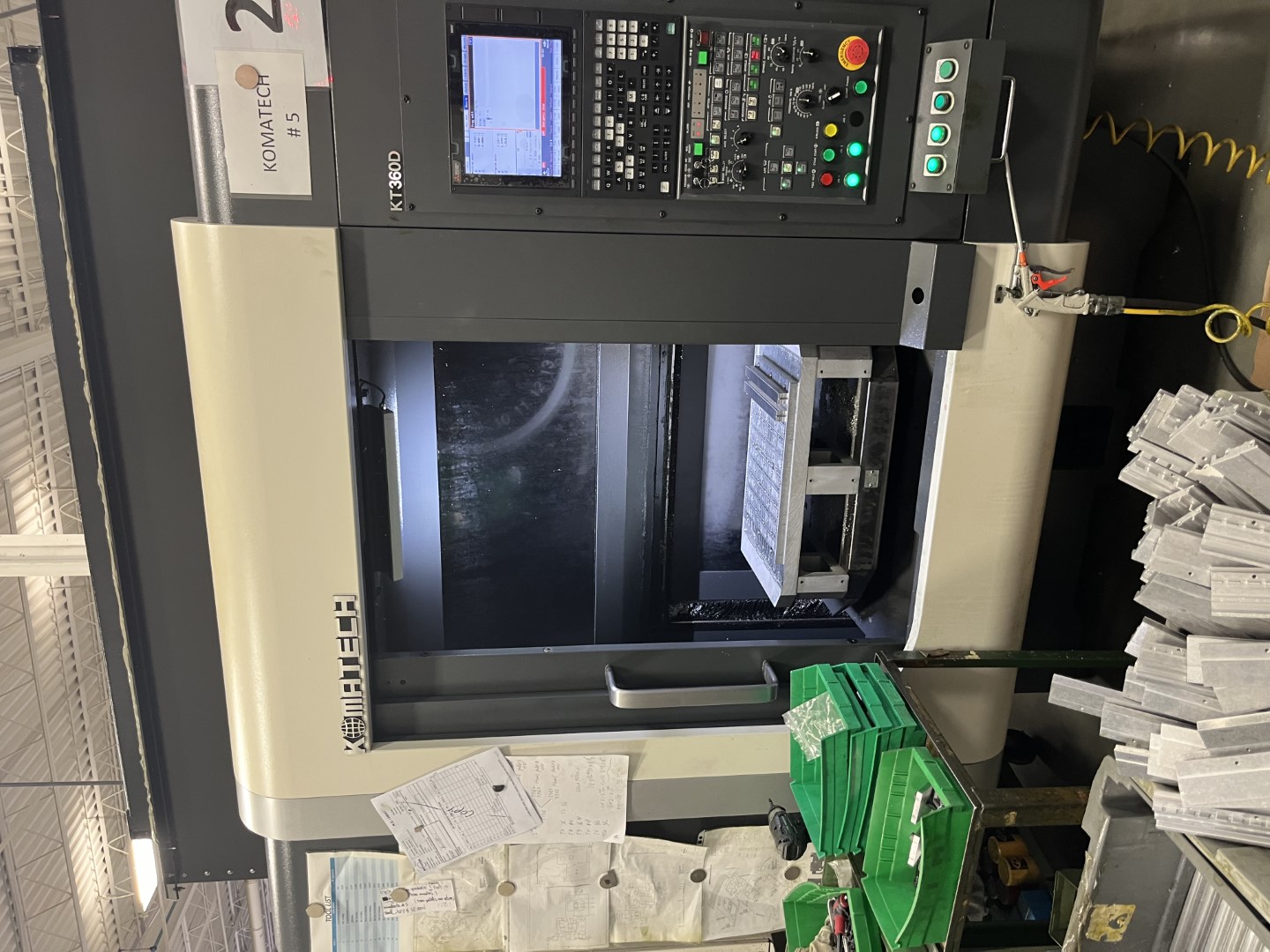

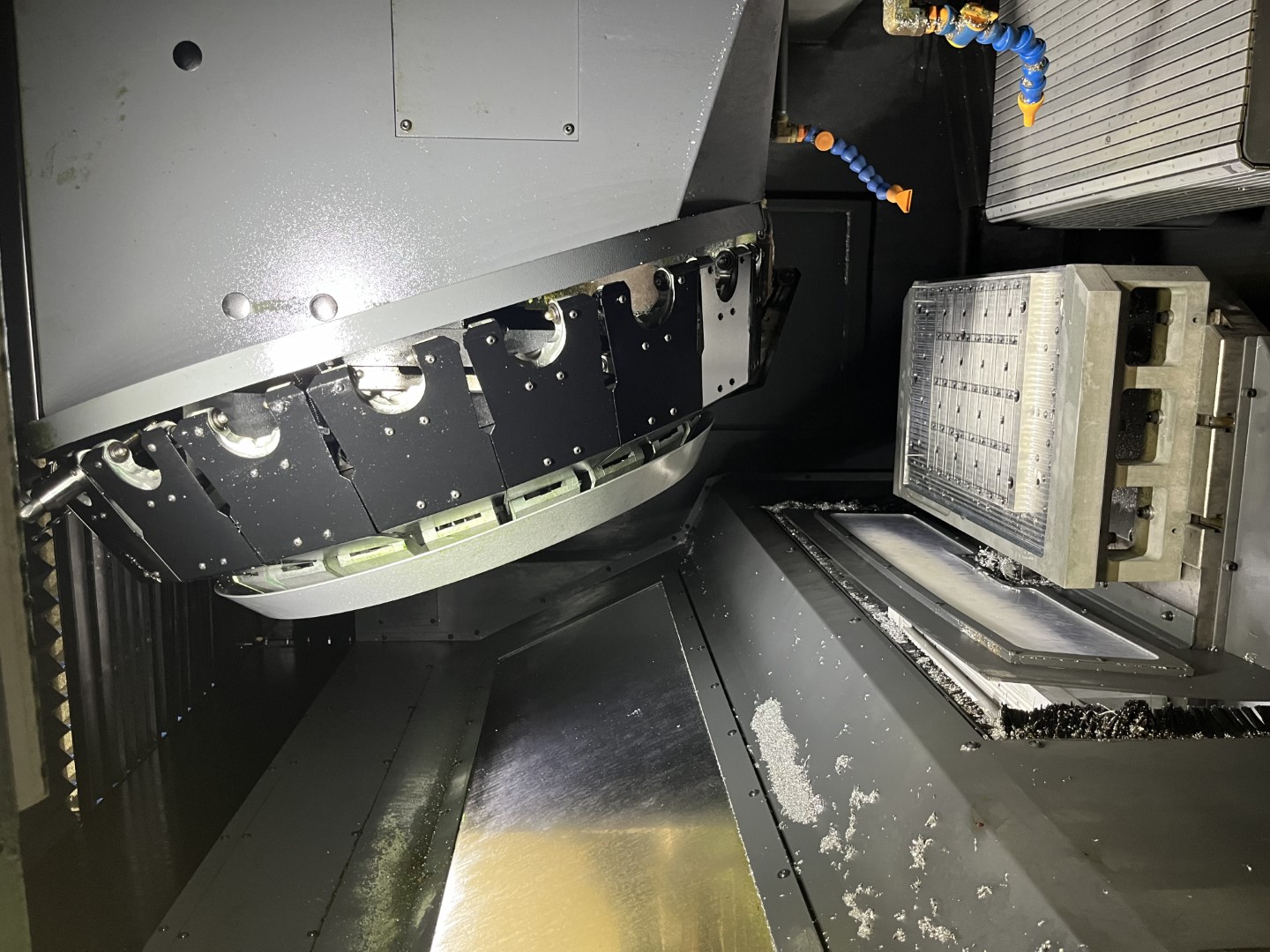

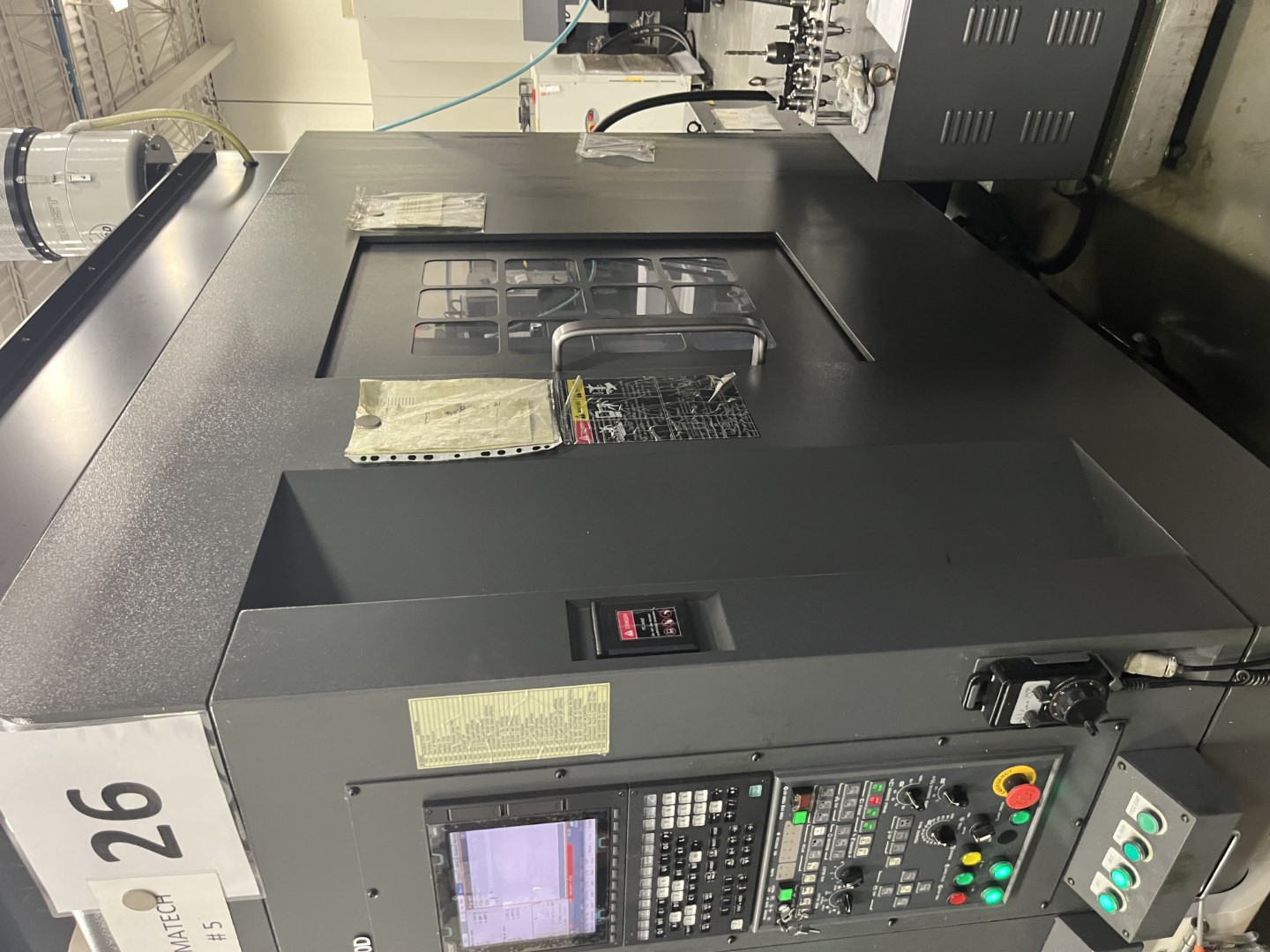

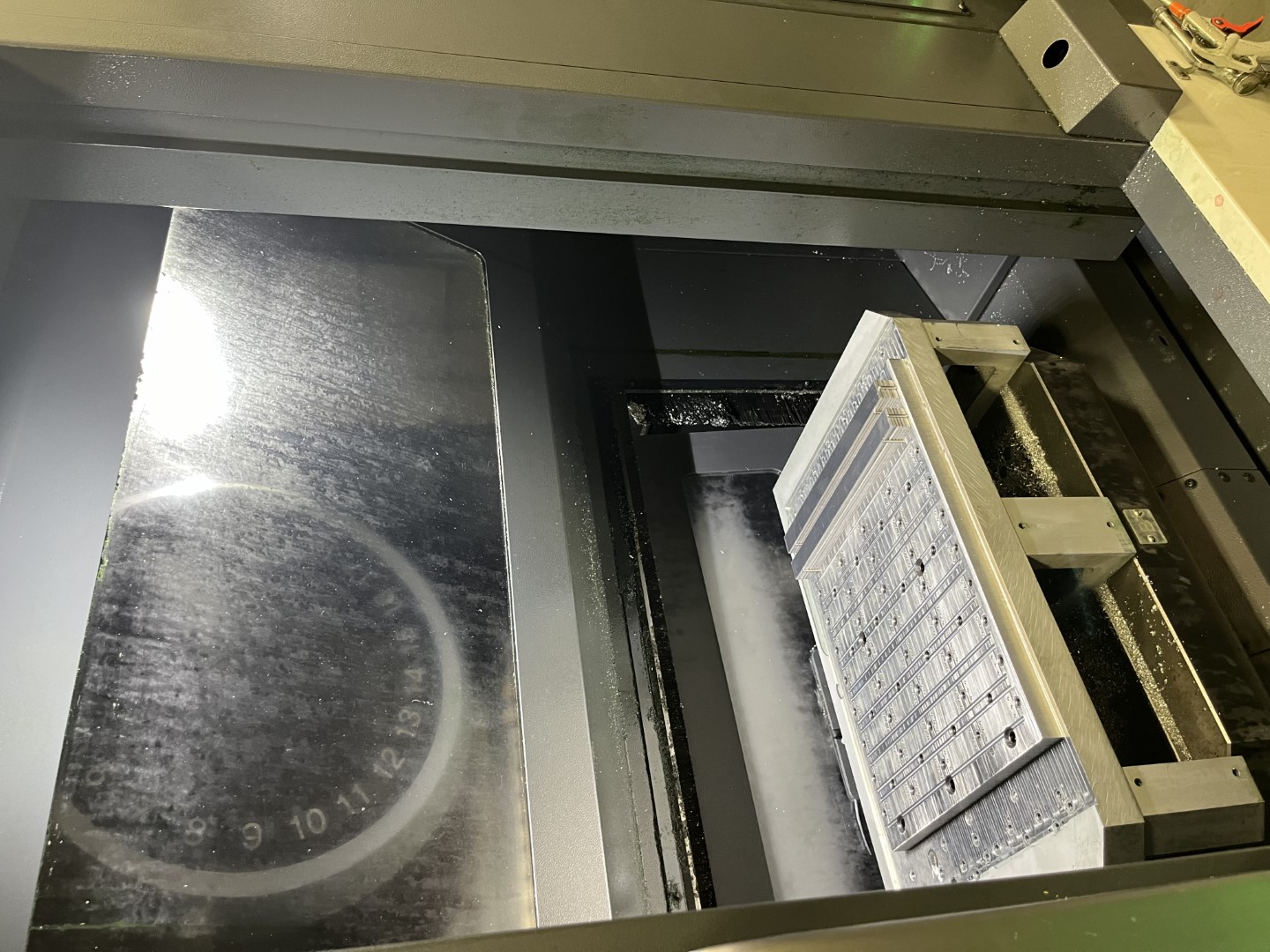

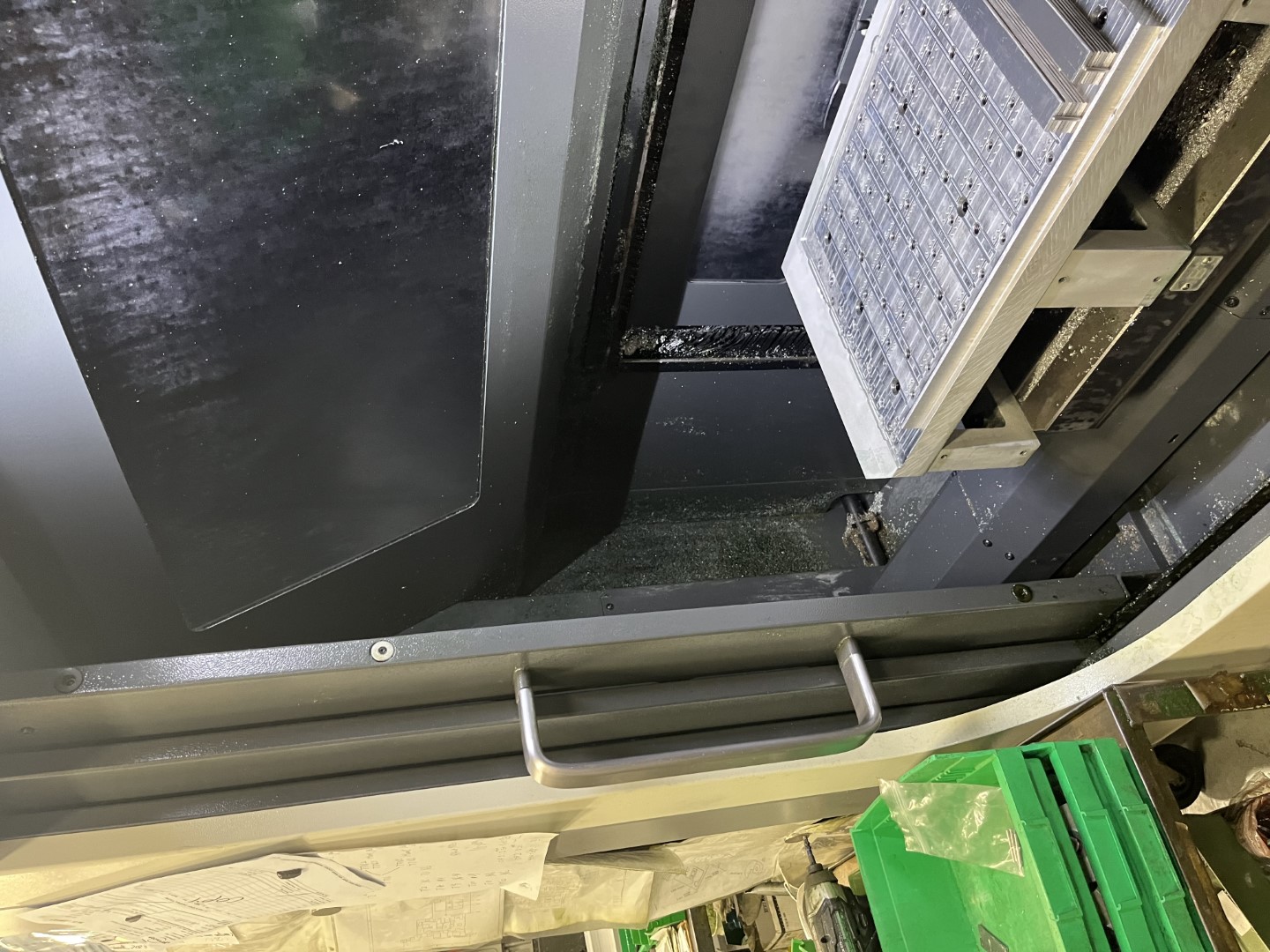

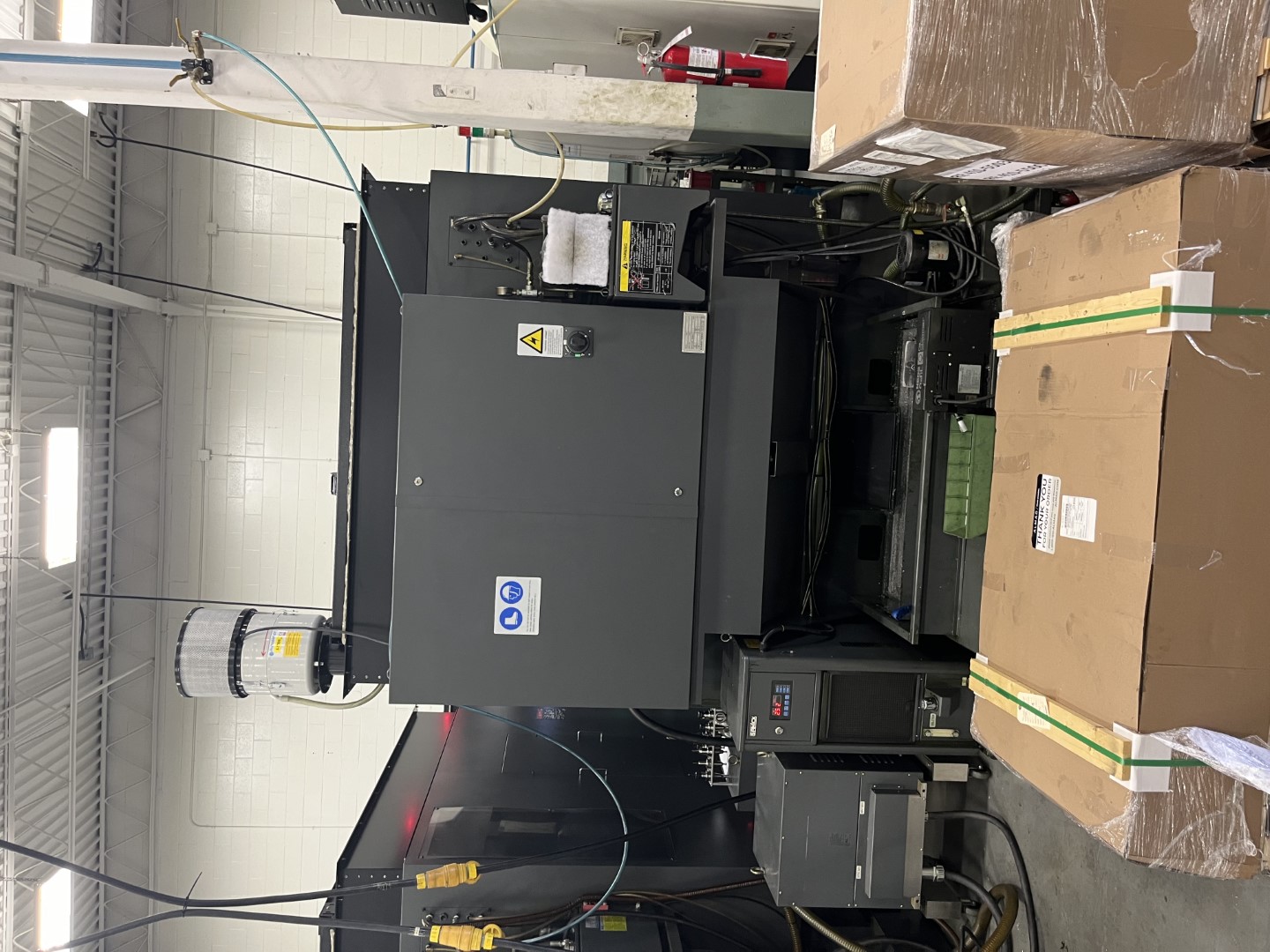

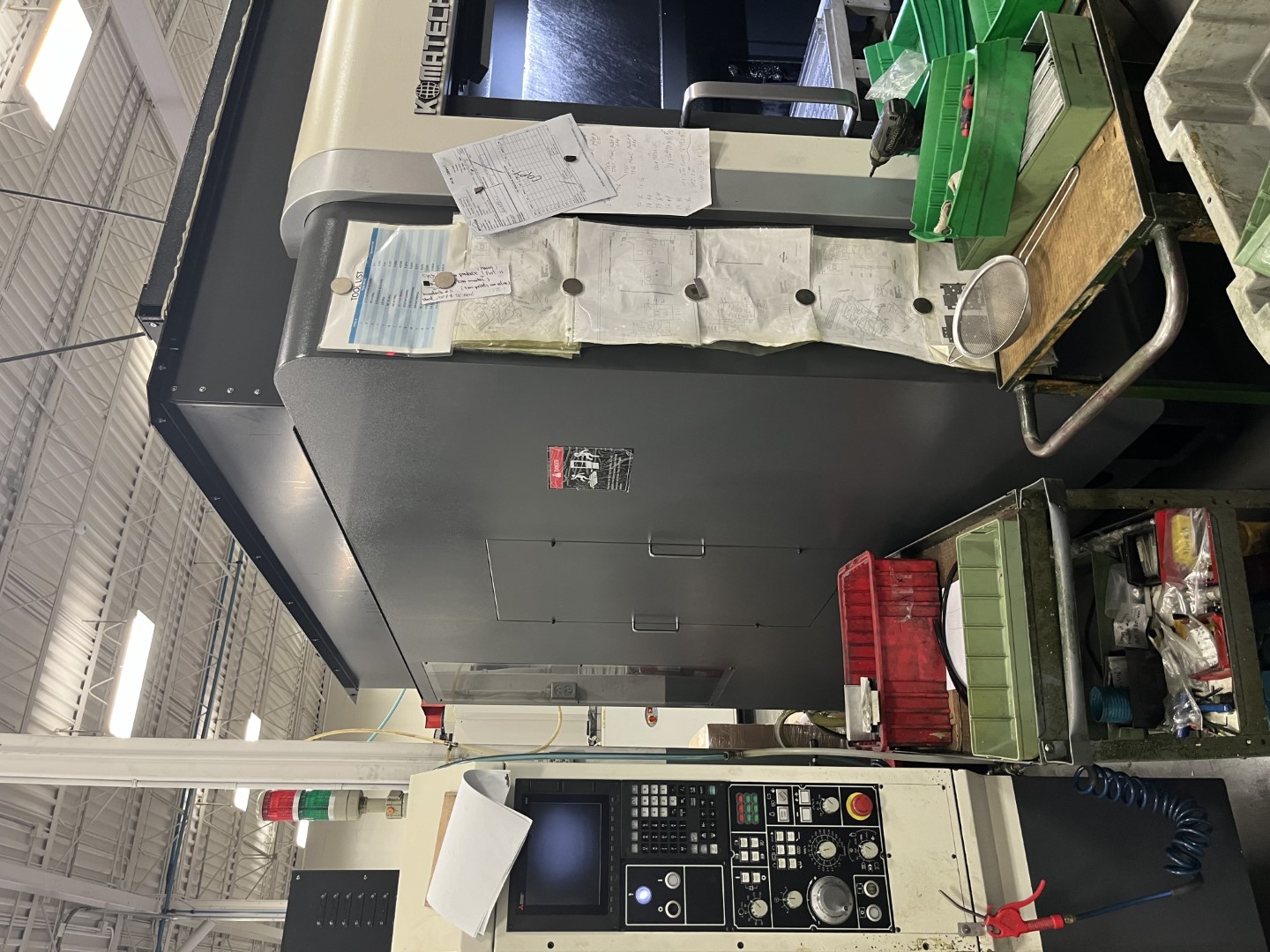

KOMATECH KT-360D Vertical tapping machining center with pallet change system

YEAR: 2018-11

Specifications:

Table Size 35.4 x 25.6''

Pallet Working Area 20'' x 14.2'' (2 pallets)

Travel X Axis 22''

Travel Y Axis 14''

Travel Z Axis 12''

Table Load 440 lbs (per pallet)

Spindle Speed 15000 rpm

Spindle Motor 10 hp

Spindle Taper BBT-30

Tools Capacity 14

Tool Change Time 1 sec.

Pallet Change Time 4.5 sec

Rapid Feeds X,Y,Z 1970,1970,2390 ipm

Cutting Feed Rate 600 ipm

Control Mitsubishi M80

Floor Space (WxD) 69’’ x 113’’

Equipped With:

Two Pallet Changer

Hydraulic Pallet Clamping

Direct Drive Spindle

Roller Linear Guide Ways

Spindle Cooler

Oil Skimmer

Air Jig System

(3) MACHINES AVAILABLE!

Photos
