Specifications

Categories > Boring Mills, Vertical, CNC
Ask for quotation
Stock ref. # 0240

Manufacturer DORRIES

Model VC-6500

Year 1981

Table Dia. 236"

Swing 272"

Under Rail 222"

Capacity 275 Ton

RPM 32

Motor 200 HP

Control FANUC 16-M

Price SOLD!

Other specifications

(2) DORRIES VC-6500 SPECIAL DESIGN HEAVY DUTY CNC VERTICAL MILL/TURN CENTER

NEW: 1981

PUT INTO PRODUCTION FROM 1983 TO 1990, VERY LITTLE USE

RECONDITIONED AND RETROFITTED SUMMER OF 2000

SPECIFICATIONS:

TABLE DIAMETER....................... 236"

SWING................................ 272"

MAXIMUM TABLE LOAD CAPACITY.......... 550,000 LBS

TABLE SPEEDS......................... 0.08 - 32 RPM

MAXIMUM HEIGHT UNDER TOOL............ 222"

RAM TRAVEL........................... 100"

CROSS SECTION OF RAM................. 13.77" X 13.77"

MAIN DRIVE MOTOR OUTPUT.............. 200 HP

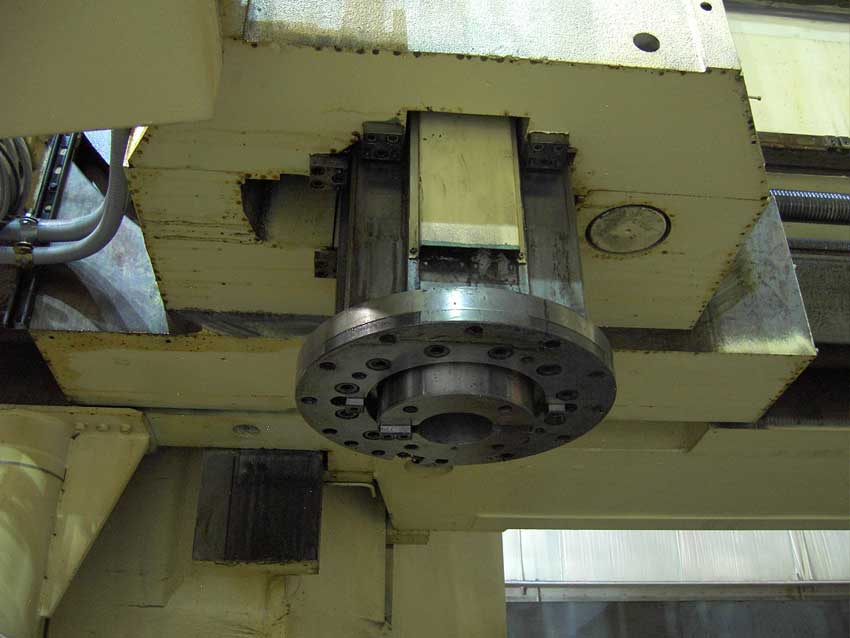

TOOL CONFIGURATION..................... 2 VERTICAL RAM HEADS, 1 W/ MILLING

1 SIDE HEAD W/ MILLING

LIVE MILLING SPINDLE MOTORS (X 2).... 50 HP EACH

MILLING SPINDLE SPEEDS............... 10 - 1,000 RPM

FEEDS................................ 19.68"/MIN

RAPID FEEDS.......................... 118"/MIN

MACHINE WEIGHT....................... 250,000 KG

EQUIPPED WITH:

FANUC 16-M 7 AXIS CNC

C AXIS ON TABLE

2 VERTICAL RAM HEADS

SIDE HEAD

LIVE MILLING SPINDLE ON 1 VERTICAL RAM AND SIDE HEADS

CHIP CONVEYOR

1 PIECE CAST IRON 6 METER DIAMETER TABLE (236")

SPECIAL DESIGN, EXTRA HEAVY CAPACITY

BALLSCREWS ON RAM AXIS. ACME THREAD ON CROSS SLIDE.

OVERALL DIMENSIONS:

59’ long pit to chip conv, 26’front to back, 36’with electric cabinets, 36’ high, pit 6’6” deep

Photos
