Specifications
| Ask for quotation | |
| Stock ref. # 0510 |
|
|
Other specifications

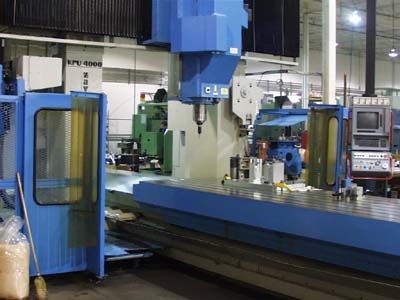

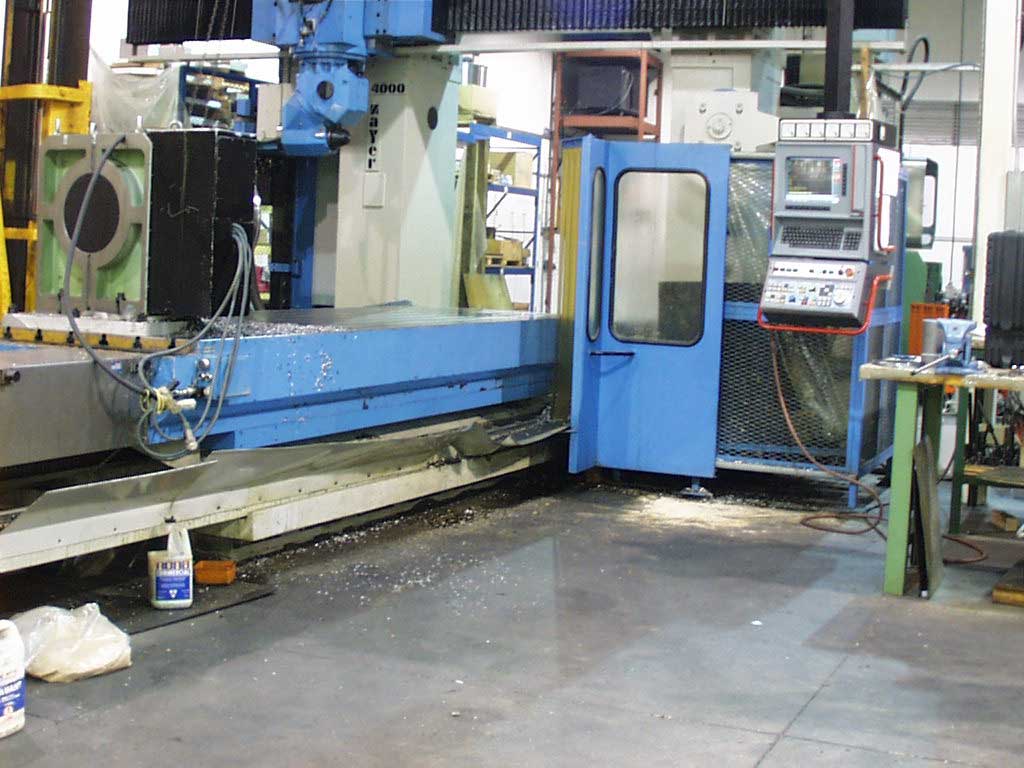

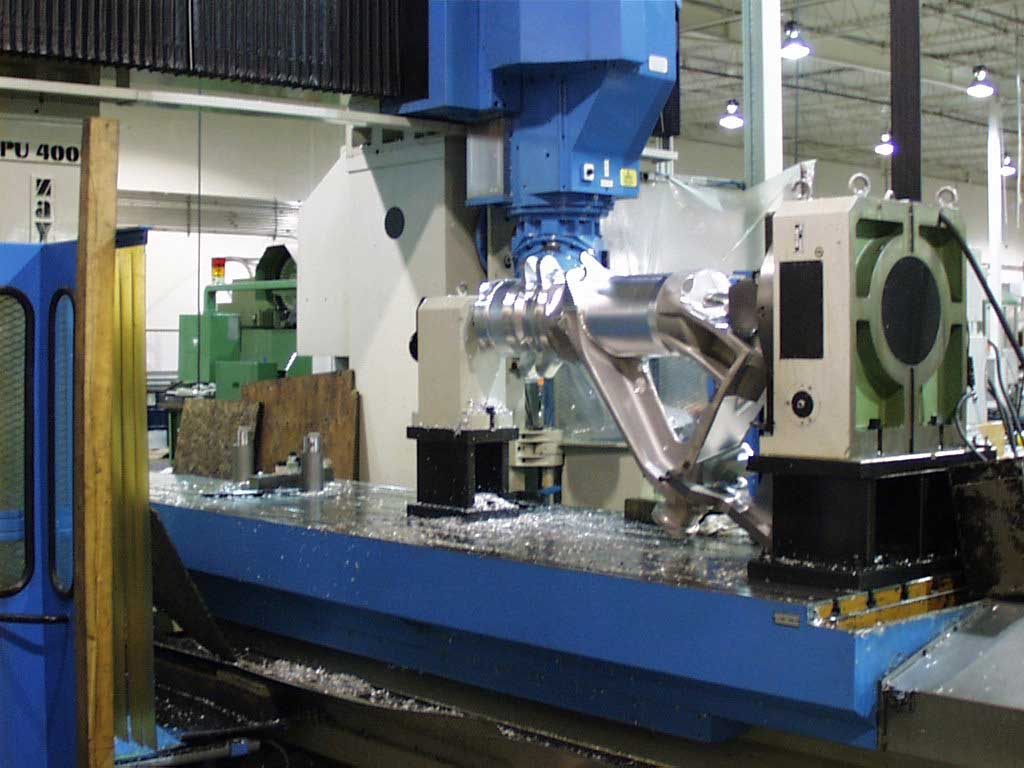

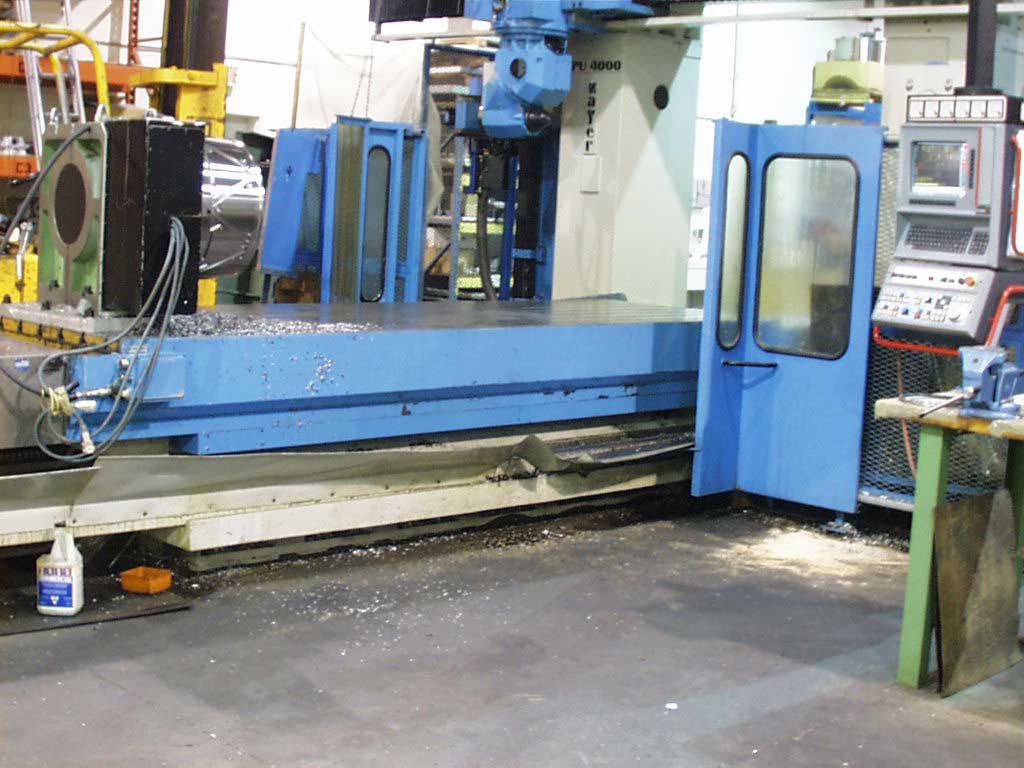

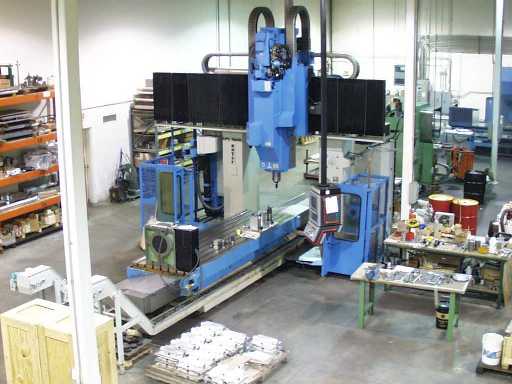

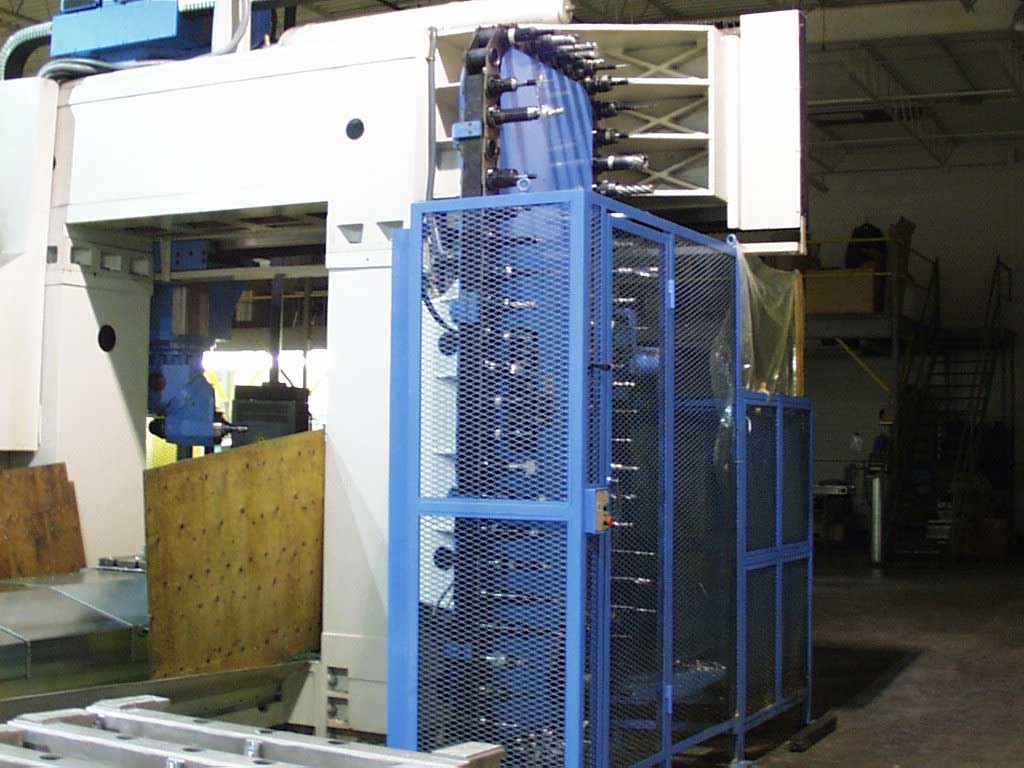

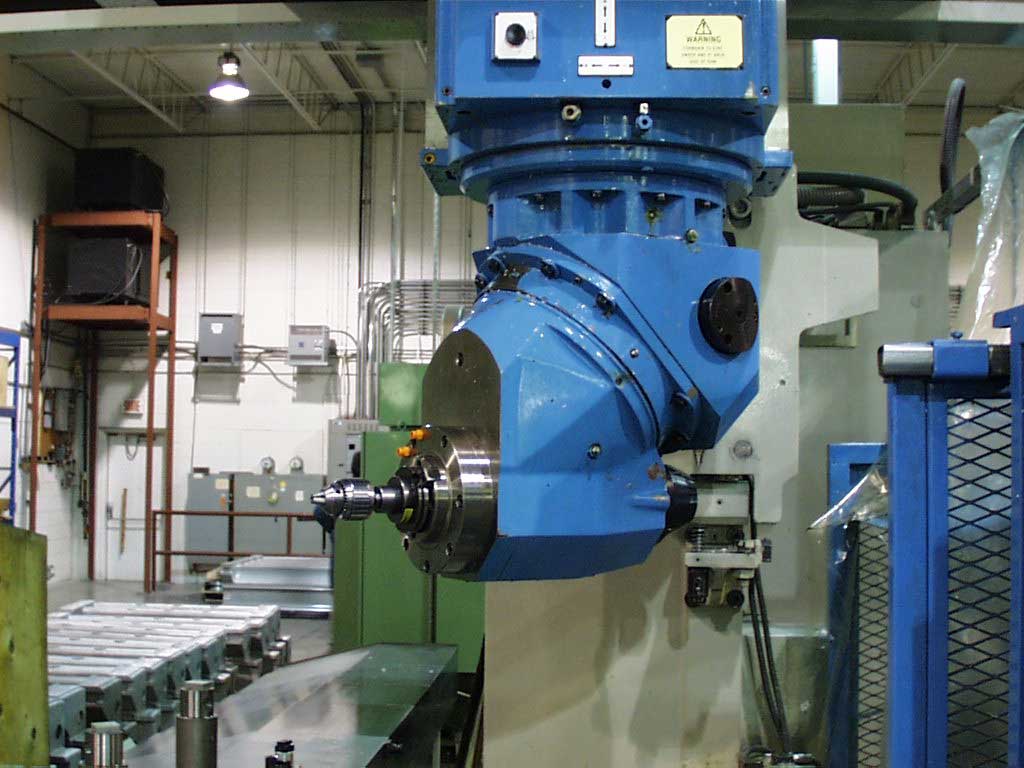

ZAYER BRIDGE-TYPE GANTRY MILL w/ FIDIA 20 QFD-B 5-Axis CNC CONTROL W/w/ 14" Color CRT, 320 MEGS OF Memory MODEL KPU-4000 NEW: 1995 SPECIFICATIONS Capacity Distance between column .................. 70.86" Max. Distance Under Spindle ... 63" Table working surface (W x L) ............ 47.24" x 157.50" Distance, table top to spindle end ....... 3.93" x 47.24" Table Load Capacity ...................... 22,050 LBS Travels Table travel (X) ......................... 145.66" Spindle head travel (Y) .................. 100.40" Ram vertical travel (Z) .................. 44.80" Feeds ......................... .25-196.8 IPM Rapid Traverse ................ 393.70 IPM Spindle Spindle nose taper ....................... CAT 50 Spindle speeds ........................... 35 to 3000 RPM Main drive motor (HP) .................... 50/40 Miscellaneous ATC tool storage capacity ................ 60 tools EQUIPPED WITH Crossrail slideways covers Bed slideway covers Cycle completion shut-off function Spindle speed meter Spindle load meter Automatic indexing head: Front part of head 2 positions (horizontal/vertical) Joint head-ram, 360 positions, 1° x 1° Automatic changing of head: Tool change in the ram and in the indexing head Splash Guards 24" 4th Axis Contouring Table w/ Tailstock Optional angel chamfering/corner R Scale feedback system Two (2) Lift-up Type Chip Conveyor Coolant system Rigid tapping Custom Macro Helical interpolation 3-D cutter compensation Polar coordinate system 48 work offsets 200 tool offsets Single direction positioning 320 M of memory Scaling Run hour & Parts number display Colour Graphic display (14" CRT) THE MACHINE IS IN GOOD OPERATING CONDITION AND CAN BE INSPECTED UNDER POWER IN MONTREAL
