Specifications

Categories > Machining Center, Horizontal
Ask for quotation
Stock ref. # 0052

Manufacturer Mazak

Model FH-4800

Year 1998

Axis_Travels(X;Y;Z) 22" x 22" x 20"

RPM 12000

HP 30

Pallet 2

ATC 40

Control Mazatrol Fusion 640

Price SOLD!

Other specifications

MAZAK PERFORMANCE SERIES-FH 4800

Year 1998

Control Type Mazatrol Fusion 640

Travel (X-axis): 560mm (22.05")

Travel (Y-axis): 560mm (22.05")

Travel (Z-axis): 510mm (20.08")

Pallet Size: 400 X 400mm (15.75" X 15.75")

Max. Workpiece Size: 24.01" diameter X 27.95" height

Rapid Traverse: 1968 IPM X,Y, and Z AXIS

Tool Shank: CAT #40

Tool Storage Capacity: 40

Main Spindle Motor: AC22kW {30HP} (10 min. rating)

Spindle Torque: 224 ft/lbs

Spindle Speed: 12000rpm

Table load capacity: 880 lbs.

Table Index: 1 degree std (Option: NC rotary)

Table Index Time: 1.2 sec per 90 degree

Pallet Change Time: 6.3 seconds

Coolant Through Spindle Yes

Full 4th Axis Yes

* * EXCELLENT CONDITION * *

POWER ON : 7669 HOURS

AUTO OPER. : 5378 HOURS

AUTO CUTTING: 4562 HOURS

TOTAL CUT : 3001 HOURS

TOTAL TIME : 7669 HOURS

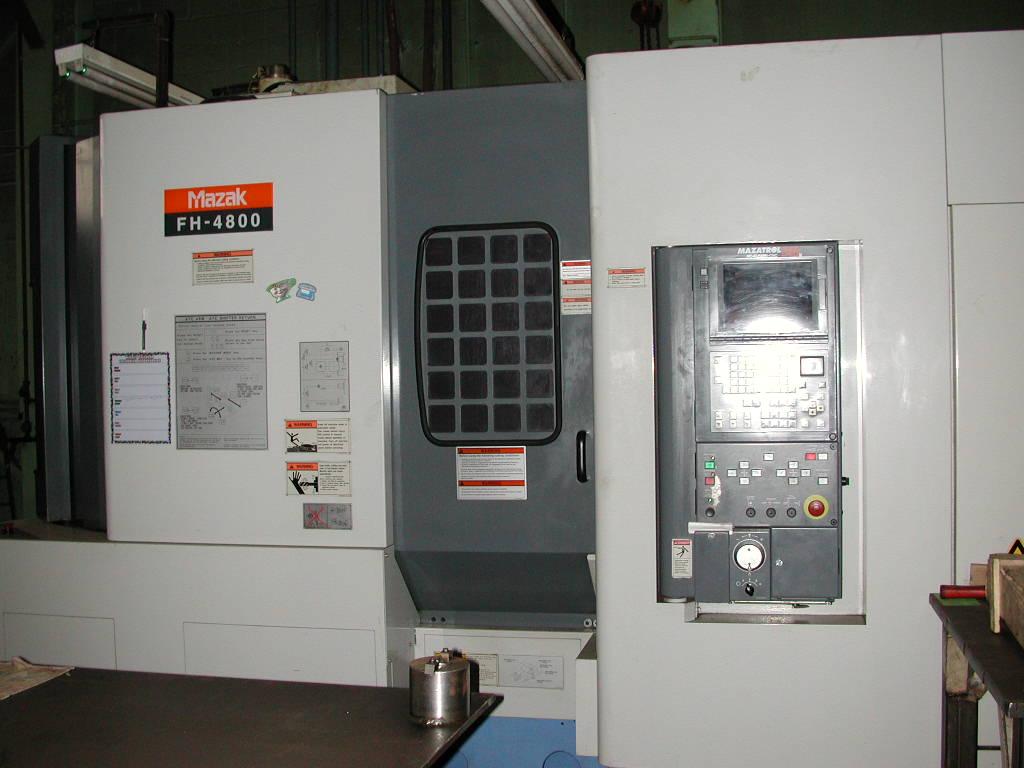

Photos
