Specifications

Categories > Machining Center, Vertical, Bridge Type
Ask for quotation
Stock ref. # 0541

Manufacturer SNK

Model MAC 4

Year 1996

Axis_Travels(X;Y;Z) 236" x 118" x 31"

Capacity 18 Ton

RPM 3000

HP 30

ATC 60

Control Fanuc 18M

Price SOLD!

Other specifications

SNK Model MAC 4 5-Face CNC Bridge-Type

CNC Bridge Type Vertical Machining Center

Age 1996

Model: MAC 4 Five Face w/ Integral Right Angle Head

Fanuc 18M CNC Controls

Pallet Shuttle

Travels: X-Axis, Table ....... 6000 236"

Y-Axis, Head ........ 3000 118"

Z-Axis, Ram Stroke .. 800 31.49"

W-Axis, Rail ........ 1000 39.37"

Distance Between Housings .... 2300 90.55"

Pallet Size ........... 2000 x 5500 78" x 216"

Pallet Weight Capacity ....... 15 Ton 36,000 lbs

Spindle Speeds ............... 10-3000 RPM

Equipped With:

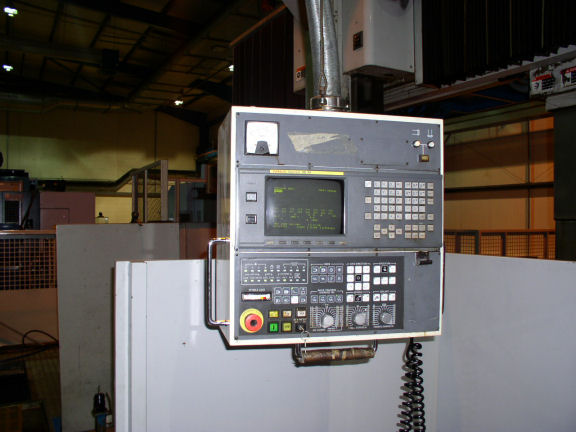

Fanuc 18M CNC Control

60 Station ATC

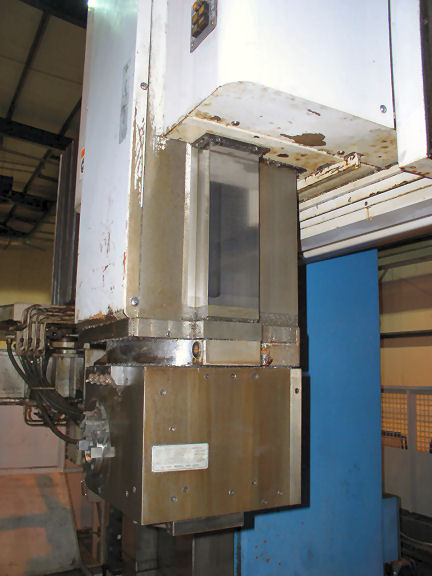

Right Angle Head w/5 Degree Indexing

Renishaw MP3 Spindle Probe

Renishaw MP4 Tool Measurement & Breakage Probe

Enclosure Guarding & Decking

Chip Conveyor

Coolant System

30 HP (22 KW) Spindle Drive Motor

Inspect Under Power In Plant!

Used only 8,700 Total Hours!

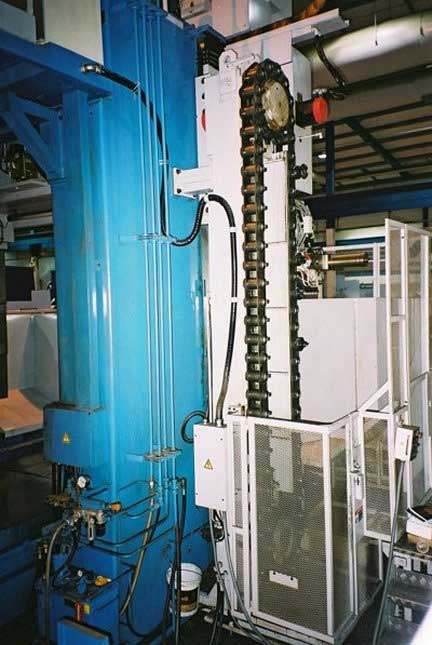

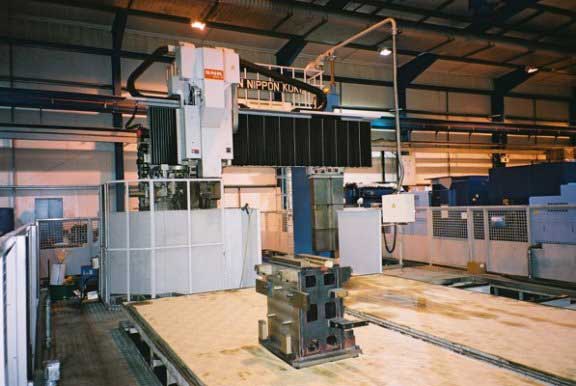

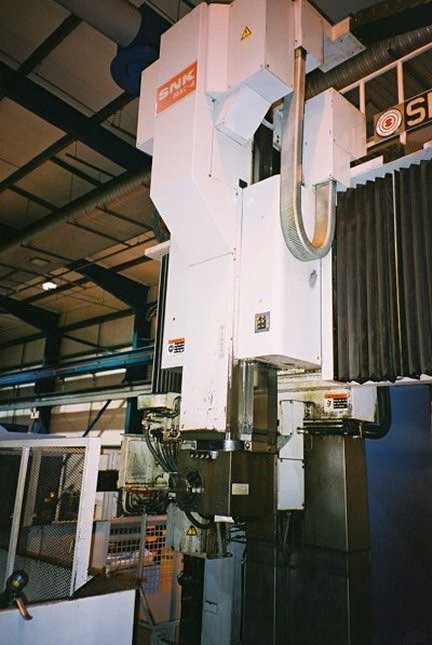

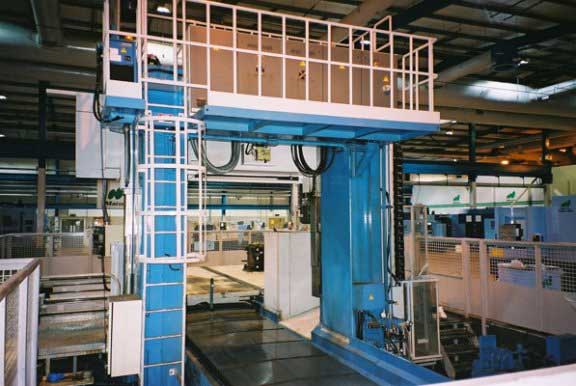

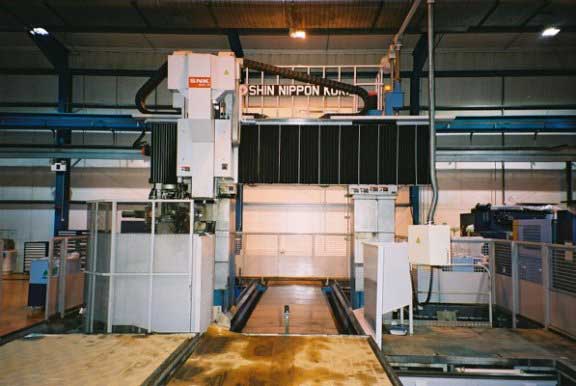

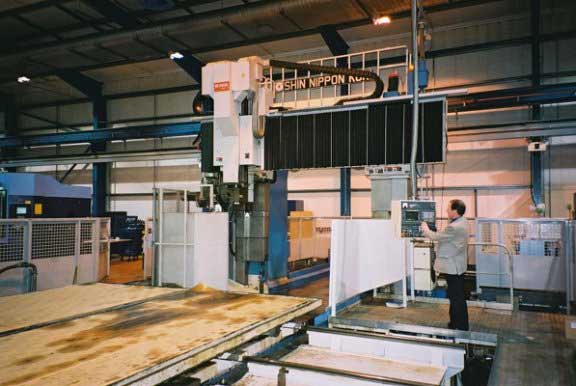

Photos
