Specifications

Categories > Lathes, CNC
Ask for quotation
Stock ref. # 0567

Manufacturer DAINICHI

Model M152 x 12M

Year 1991

Swing 60"

Between Centers 472"

Capacity 10 Ton

Motor 60 HP

RPM 500

Control Fanuc 15T

Price SOLD!

Other specifications

60" x 472" DAINICHI CNC Lathe With Milling

Model M152 x 12M

S/N: 24743

Age 1991

Swing Over Bed ................ 59.84"

Swing Over Carriage ........... 43.30"

Distance Between Centers ...... 472.44"

Spindle Speeds ................ 1-500 RPM

Spindle Bore Diameter ......... 3.5"

Spindle Nose Nose Diameter .... JIS A2-15

Spindle Drive Motor ........... 60/50 HP

Diameter of Front Bearing ..... 10.23"

Live Milling Speeds ........... 1600 RPM

X-Axis Travel ................. 29.52"

Cross Slide Width ............. 16.53"

Tailstock Quill Diameter ...... 11"

Equipped With:

Fanuc 15T CNC, 47" 4-Jaw Chuck,

8-Pos. Tool Post, Power Tailstock

(4) Live Tool Holders, (2) 31" 3-Roller

Type Steady Rests, (2) 24" 3-Roller Type

Steady Rests, (4) Large Roller Rests,

Hardened Ways w/ 3-Way Bed Configuration

Chip Conveyor

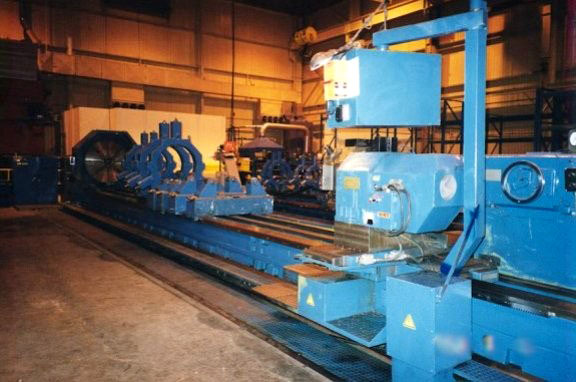

Photos
