Specifications

Categories > Boring Mills, Horizontal, Table Type
Ask for quotation
Stock ref. # 0654

Manufacturer GRAY

Model 660P

Year 1967

Spindle Dia. 6"

X-Axis 192"

Y-Axis 144"

Table Size 96"x194"

RPM 900

Motor 50 HP

Includes *

Price SOLD!

Other specifications

6" GRAY, TABLE/PLANER TYPE HORIZONTAL BORING MILL

MODEL: 660P, YEAR:1967

HARDEDENED COLUMN WAYS, 3 AXIS HEIDENHAIN DRO, POWER

DRAWBAR, OUTBOARD SUPPORT WITH FULL LENGTH VERTICAL

TRAVEL, PENDANT STATION, 50 HP SPINDLE DRIVE, 440 VOLTS

DIAMETER OF SPINDLE ......................... 6"

VERTICAL TRAVEL OF HEADSTOCK ................ 144"

SPINDLE TAPER ............................... NO 50

24 SPINDLE SPEEDS, RPM ...................... 4.5 TO 900

SPINDLE BAR TRAVEL .......................... 48"

COLUMN TRAVEL (IN & OUT) .................... 54"

TABLE SIZE .................................. 96"x194"

TABLE CROSS TRAVEL .......................... 192"

OUTBOARD SUPPORT/TAILSTOCK TRAVEL ........... 36"

DISTANCE BETWEEN SPINDLE & OUTBOARD SPINDLE . 101"x191"

FLOOR SPACE L-R x F-B x H ................... 20'x40'x20'

TABLE CAPACITY .............................. 120,000LBS

EQUIPPED WITH:

BORING BAR

MISC. TOOL HOLDERS

CHIP CONVEYOR

RIGHT ANGLE UNIVERSAL HEAD

CAN BE RETROFITTED WITH A CNC CONTROL

COMPLETE WITH WARRANTY

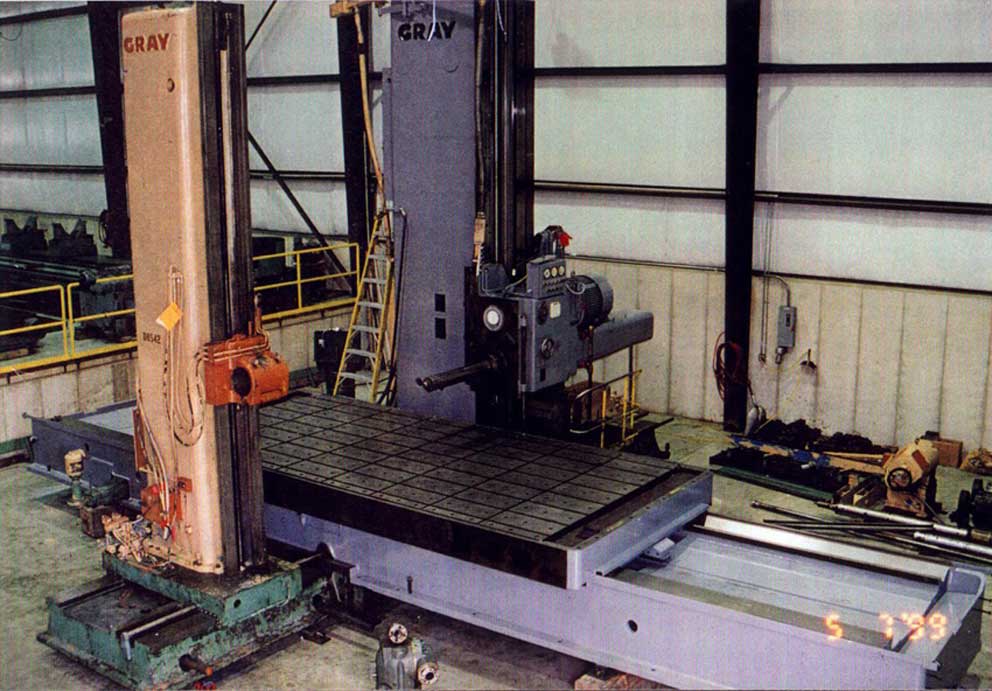

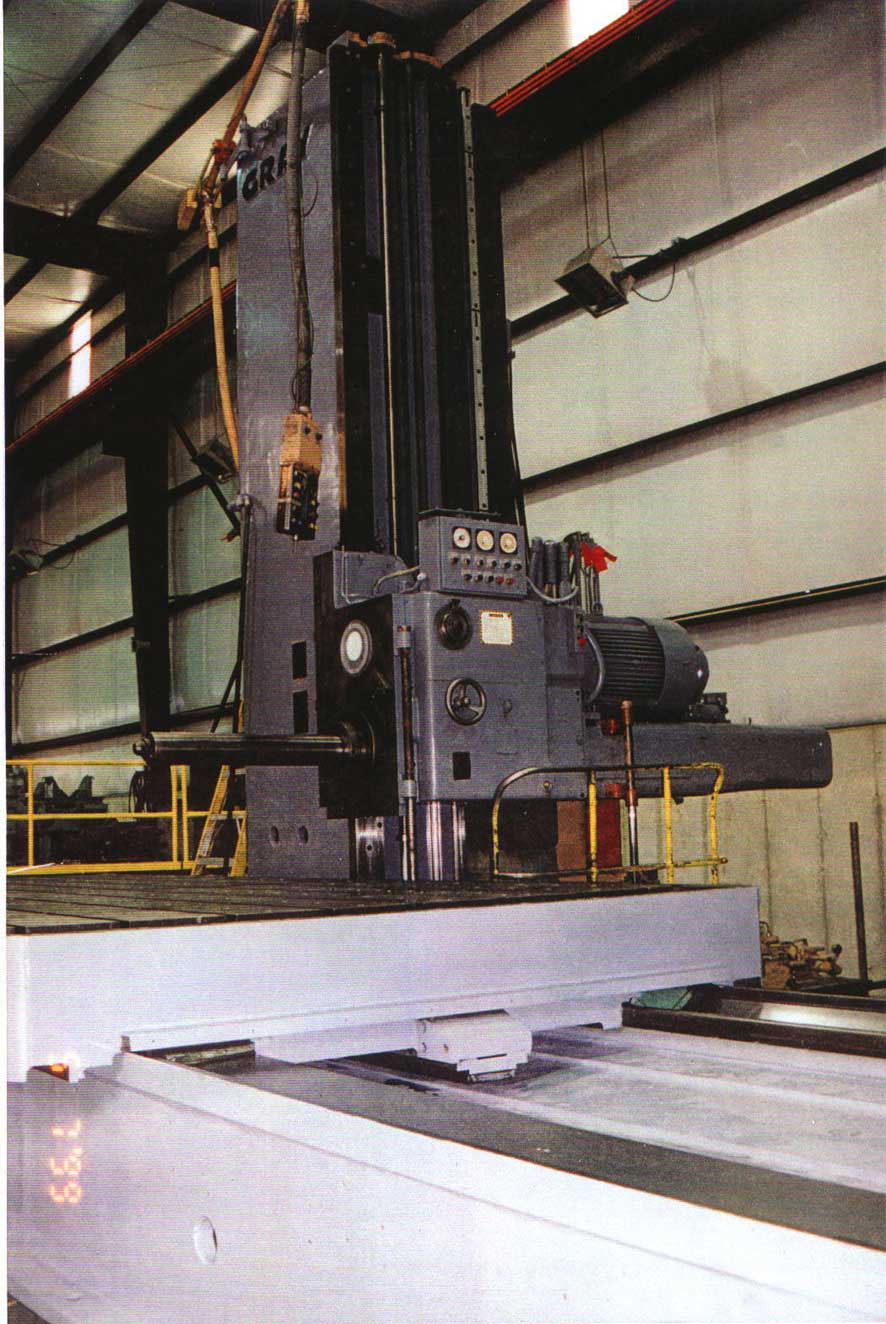

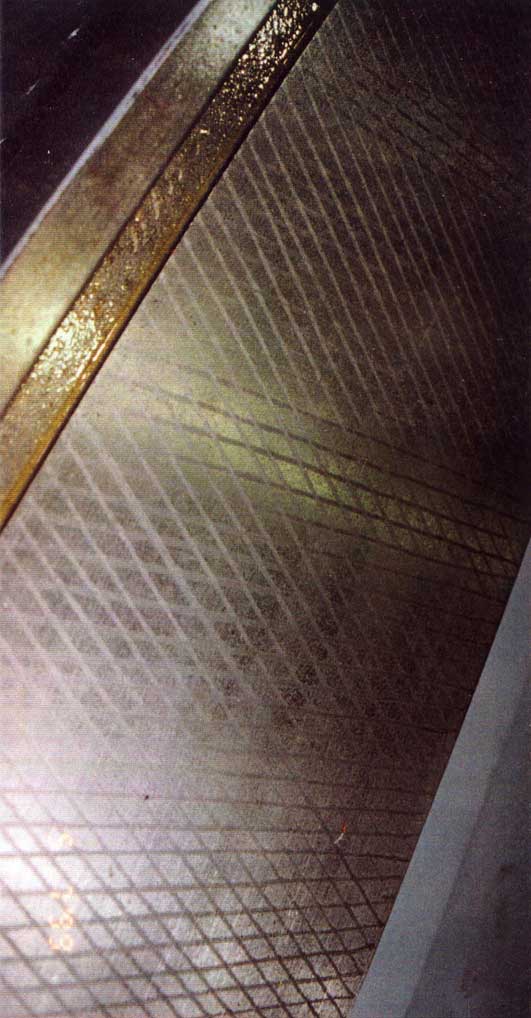

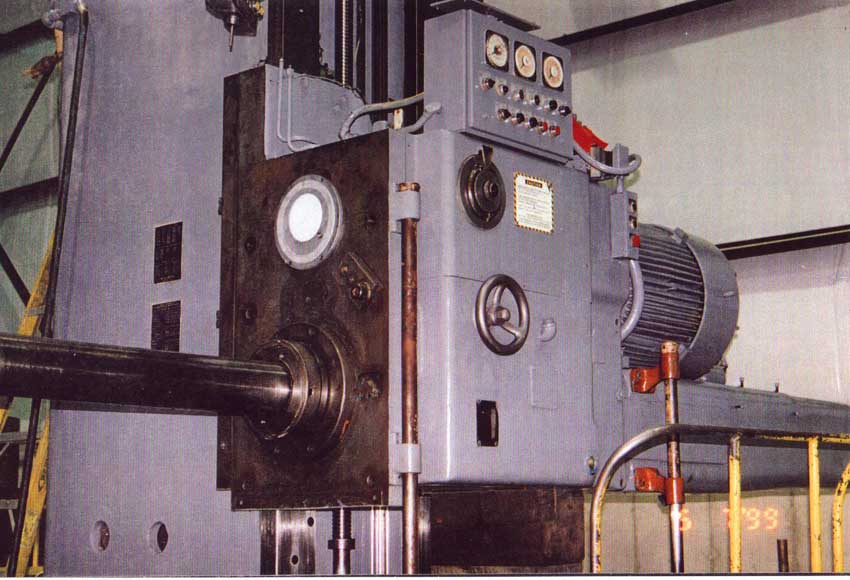

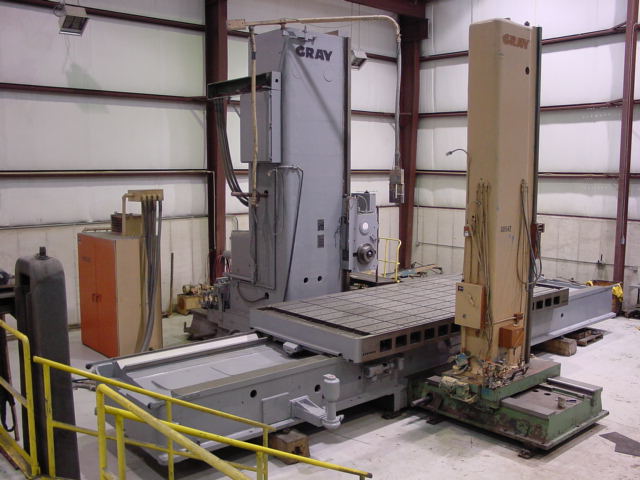

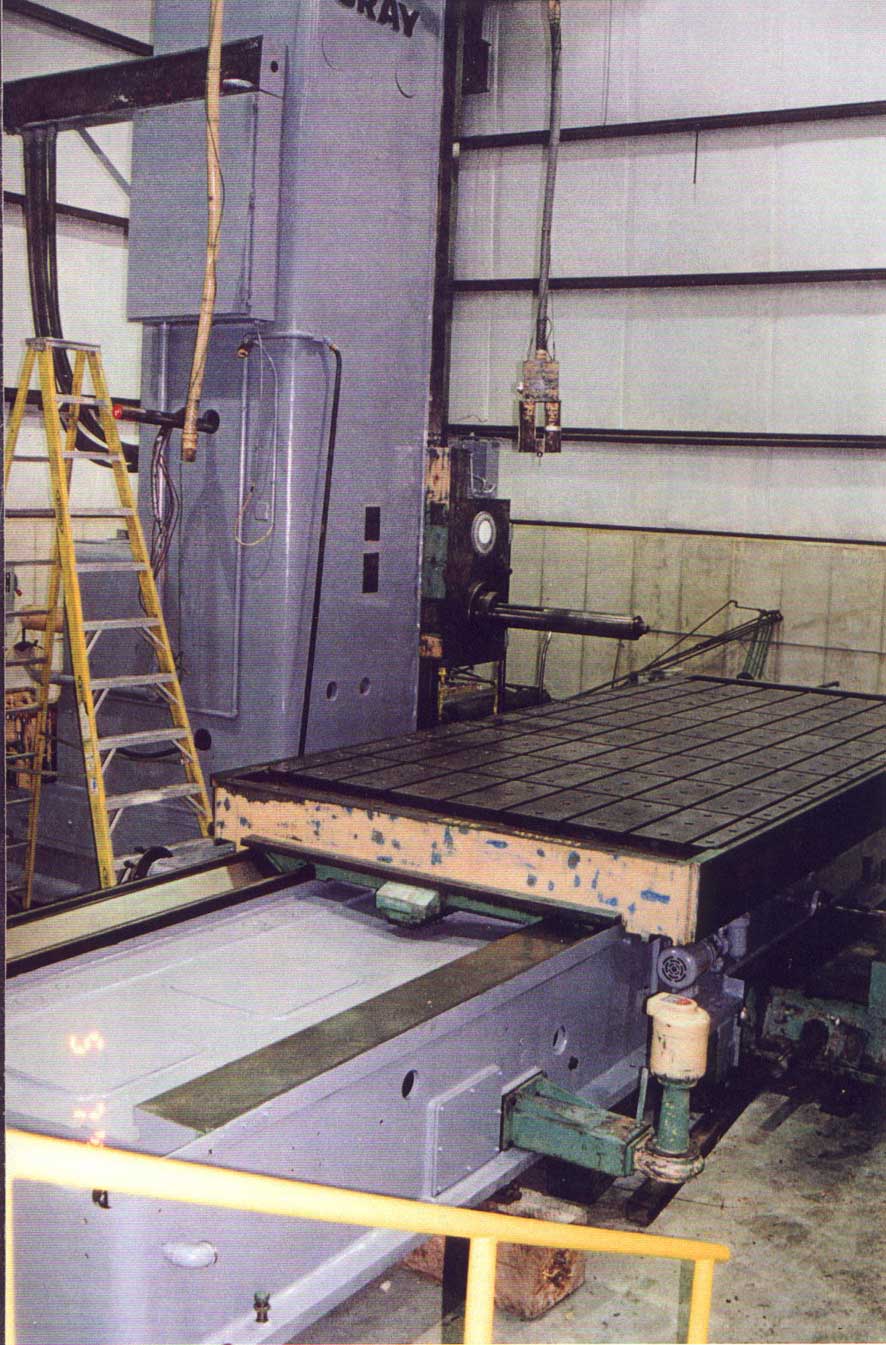

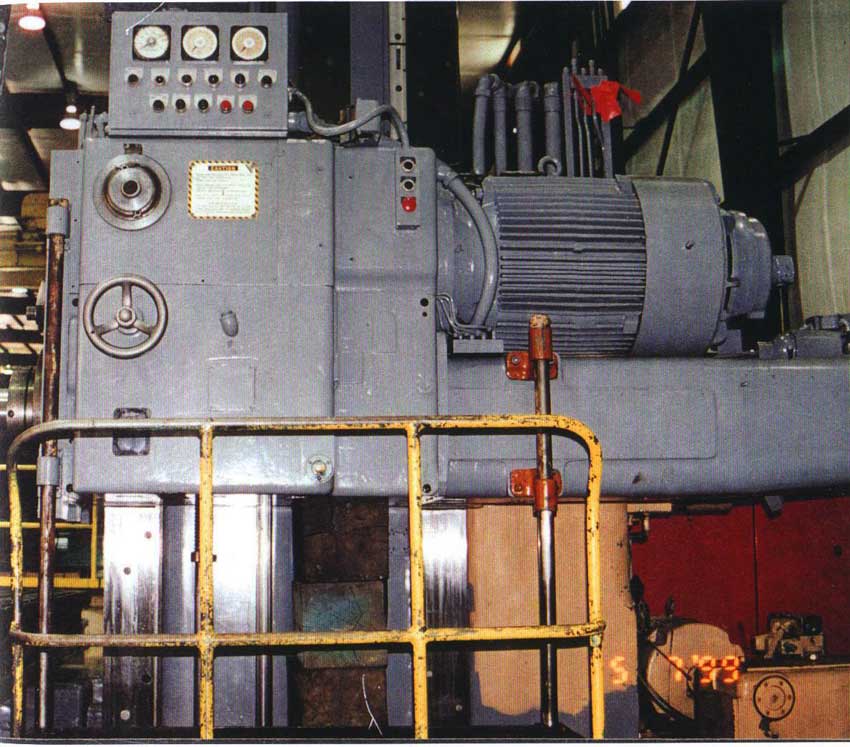

Photos
