Specifications

Categories > Machining Center, Vertical, Bridge Type
Ask for quotation
Stock ref. # 0655

Manufacturer JOBS

Model J243 - 5 AXIS

Year 1998

Axis_Travels(X;Y;Z) 177" x 106" x 49"

Capacity 20 Ton

RPM 16000

HP 52

ATC 16

Control SIEMENS 840D

Price SOLD!

Other specifications

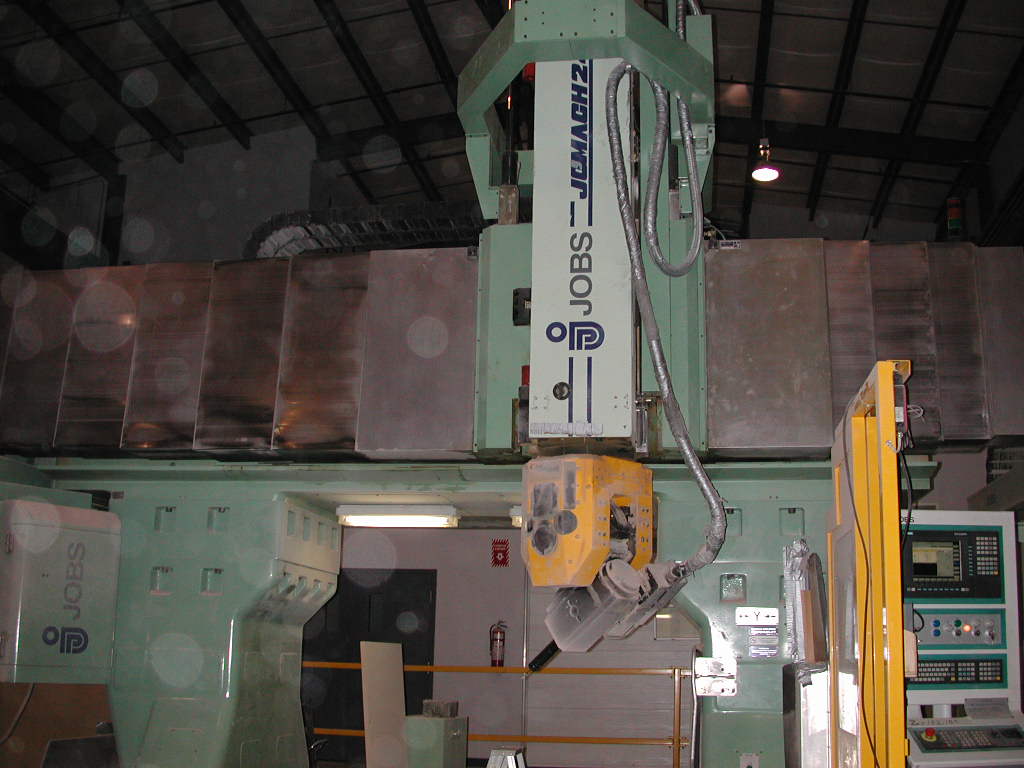

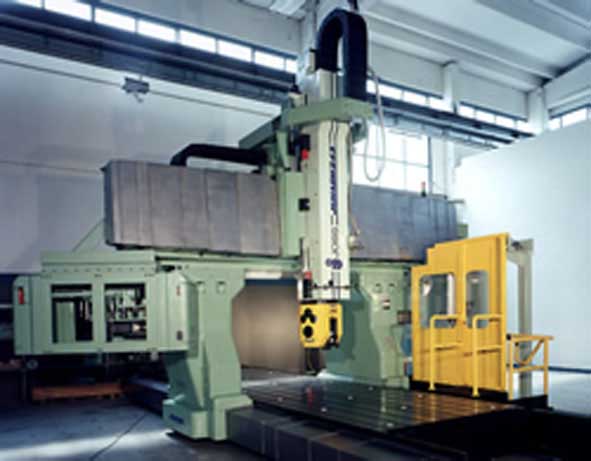

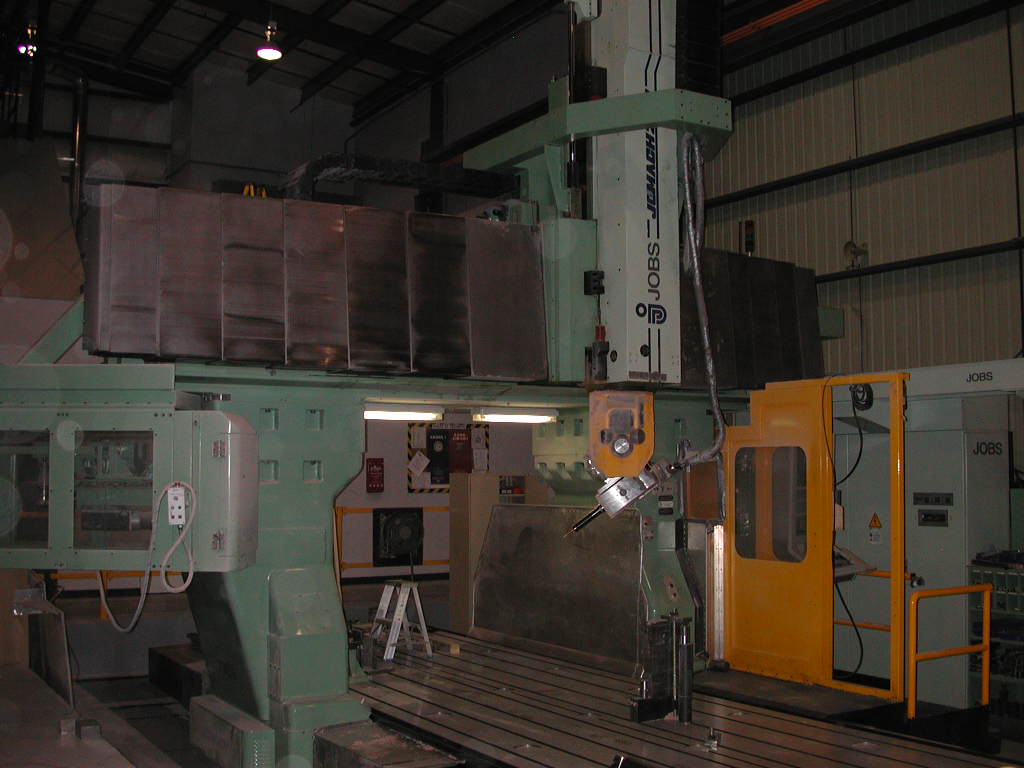

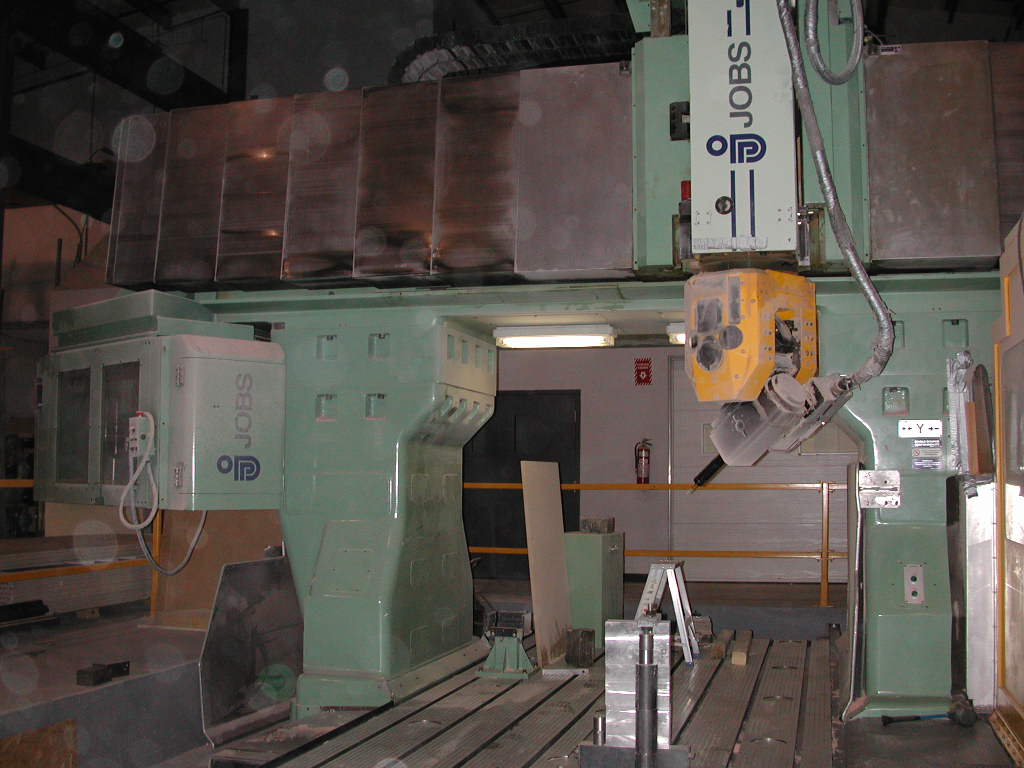

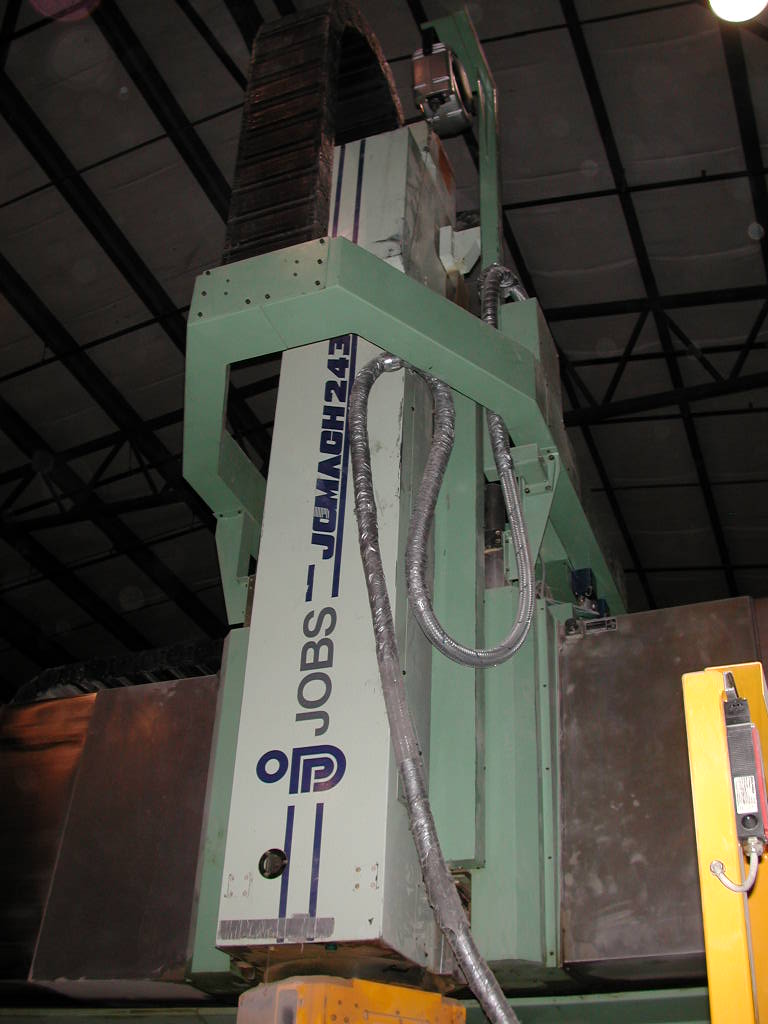

JOBS J243 5 AXIS GANTRY CNC VERTICAL MACHINING CENTER, 1998

Model: Jomach 243

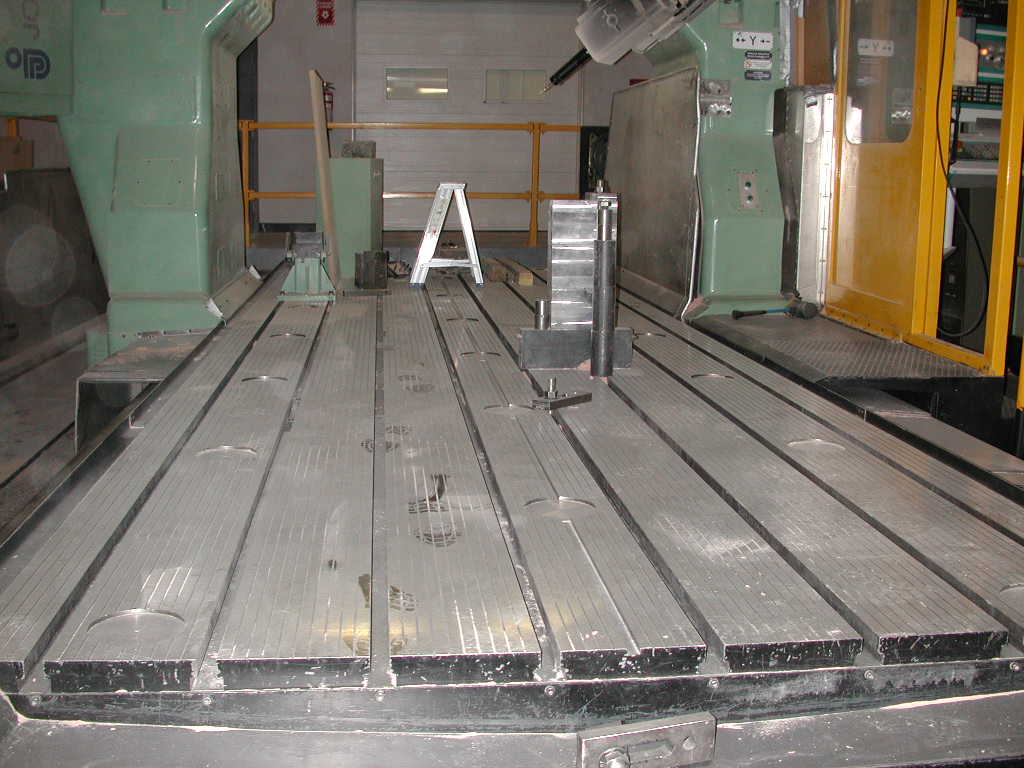

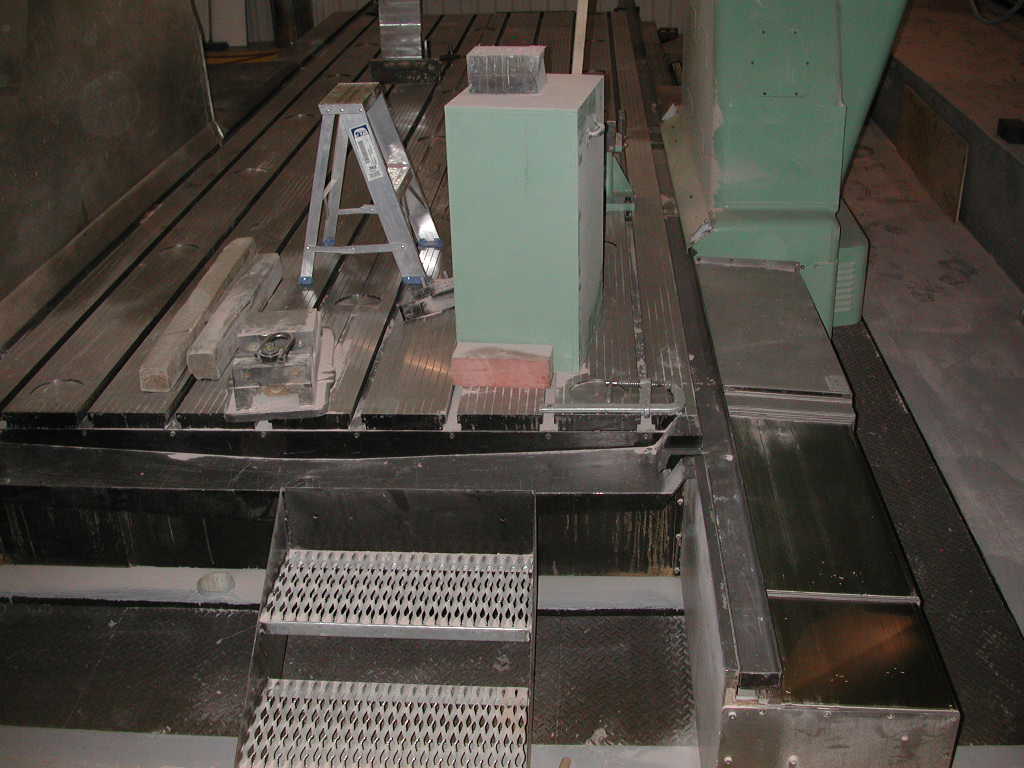

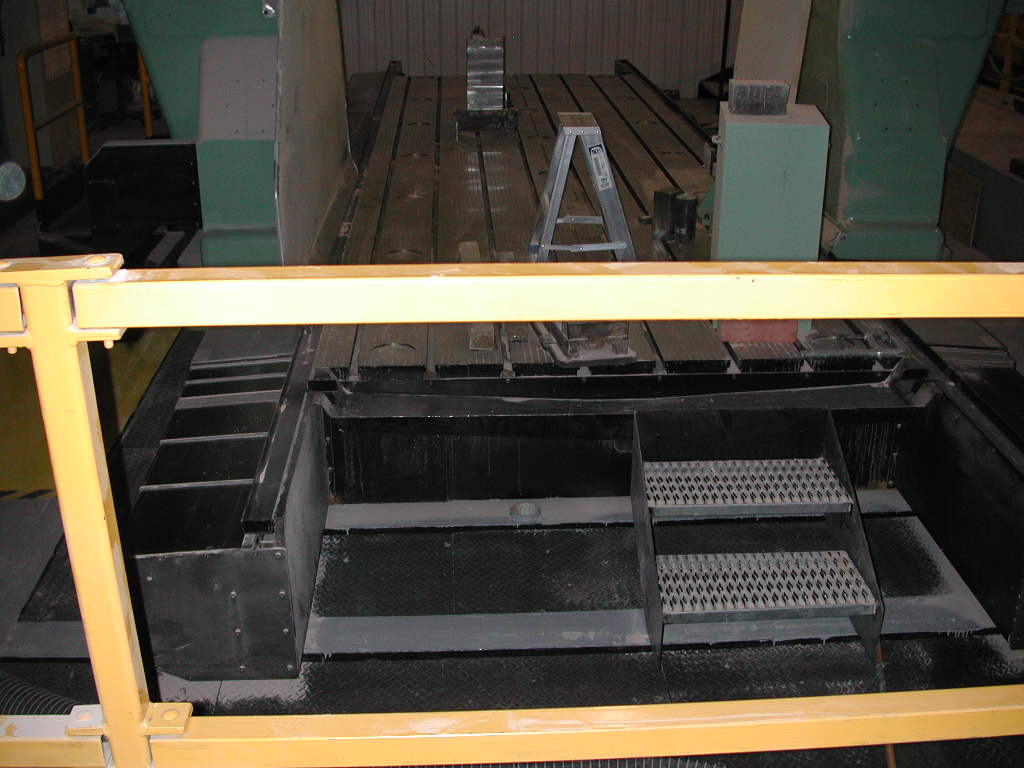

Table: 6500mm x 2032mm / 256" X 80"

Distance between column: 90"

TRAVELS:

X-4500mm / 177"

Y-2700mm / 106"

Z-1250 / 49"

STANDARD SPINDLE(52 HP):

-----------------

RPM: 50-4000

TAPER: ISO 50

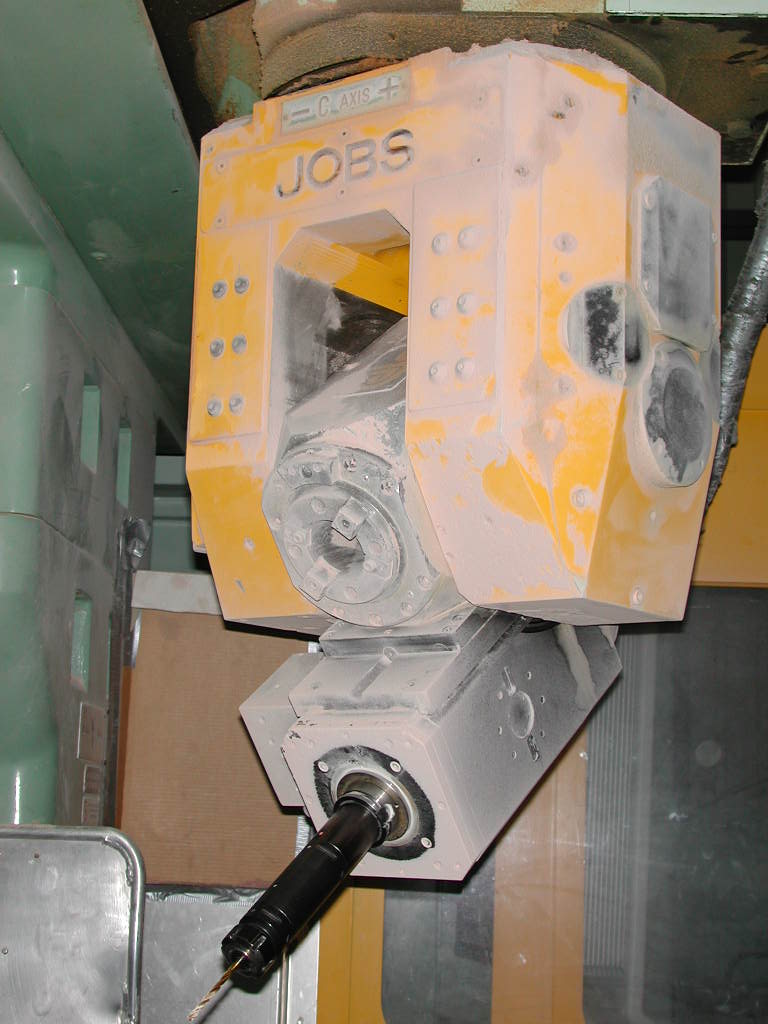

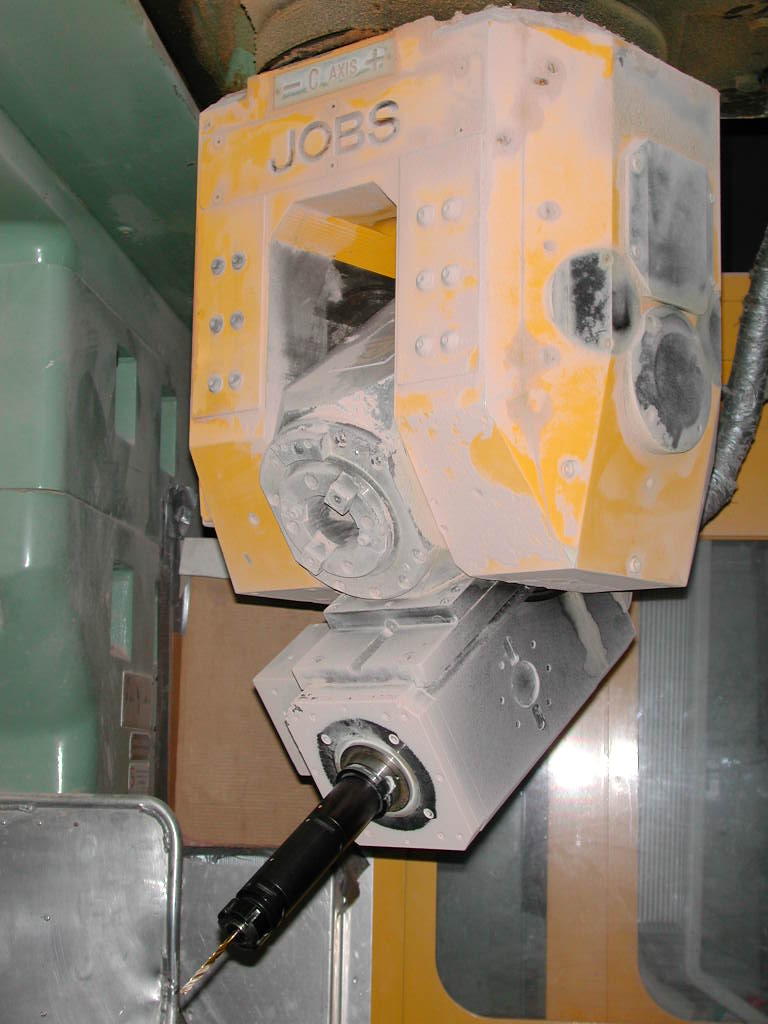

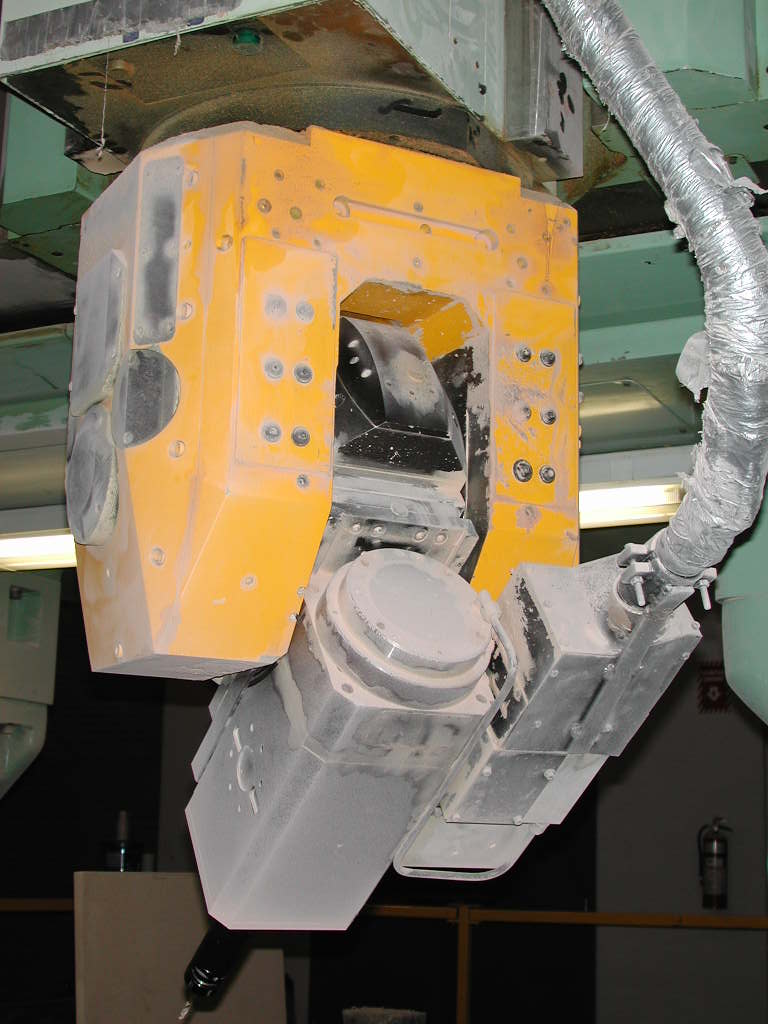

ELECTRO-SPINDLE(27 HP):

----------------

200-16000 RPM

TAPER: HSK-A63

AXIS OF ROTATION:

A:200 Deg. / 180 Deg.(with Electro-spindle)

C:360 Deg. / 180 Deg.(with Electro-spindle)

TABLE CAPACITY: 20 000 KG

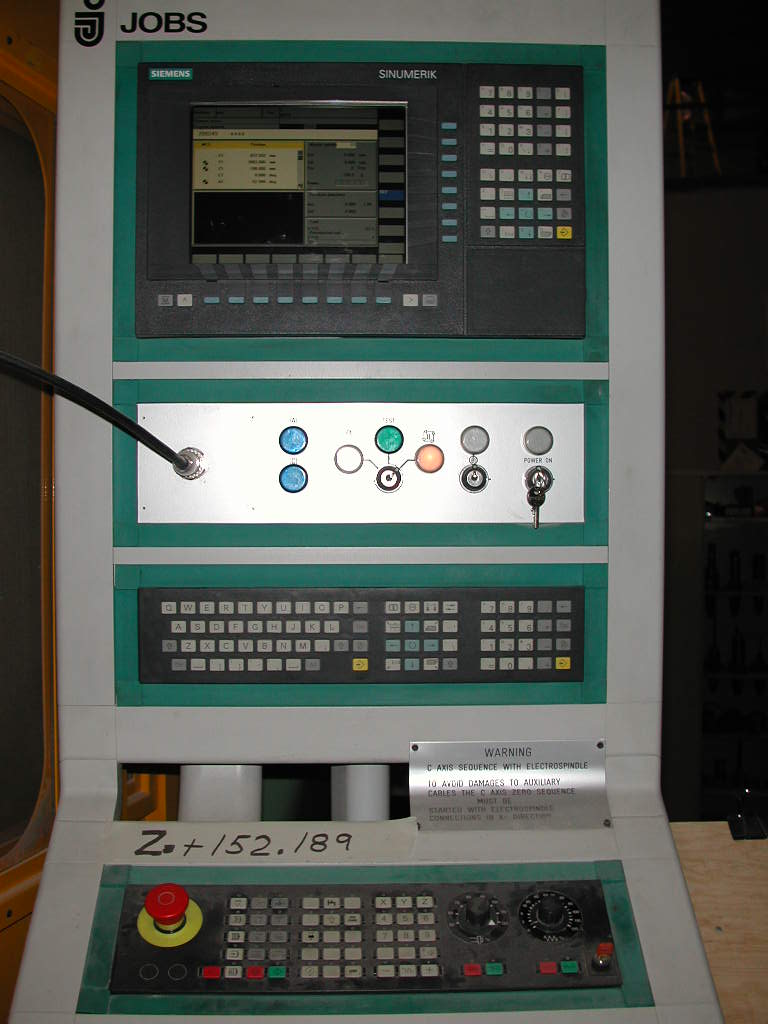

CNC CONTROL: SIEMENS 840D

Weight of Unit 60000 Kg

Power Supply 480 V - 60 Hz

SOFTWARES:

2D: Feature CAM

3D: Strategis

SCAN: Polyworks

HOURS: 5000 HOURS ONLY!
