Specifications

Categories > Machining Center, Vertical, Bridge Type
Ask for quotation
Stock ref. # 0674

Manufacturer SNK

Model RB-1N

Year 1982

Axis_Travels(X;Y;Z) 72" x 55" x 15"

Capacity 3 Ton

RPM 2000

HP 20

ATC 40

Control FANUC SYST. 9

Price SOLD!

Other specifications

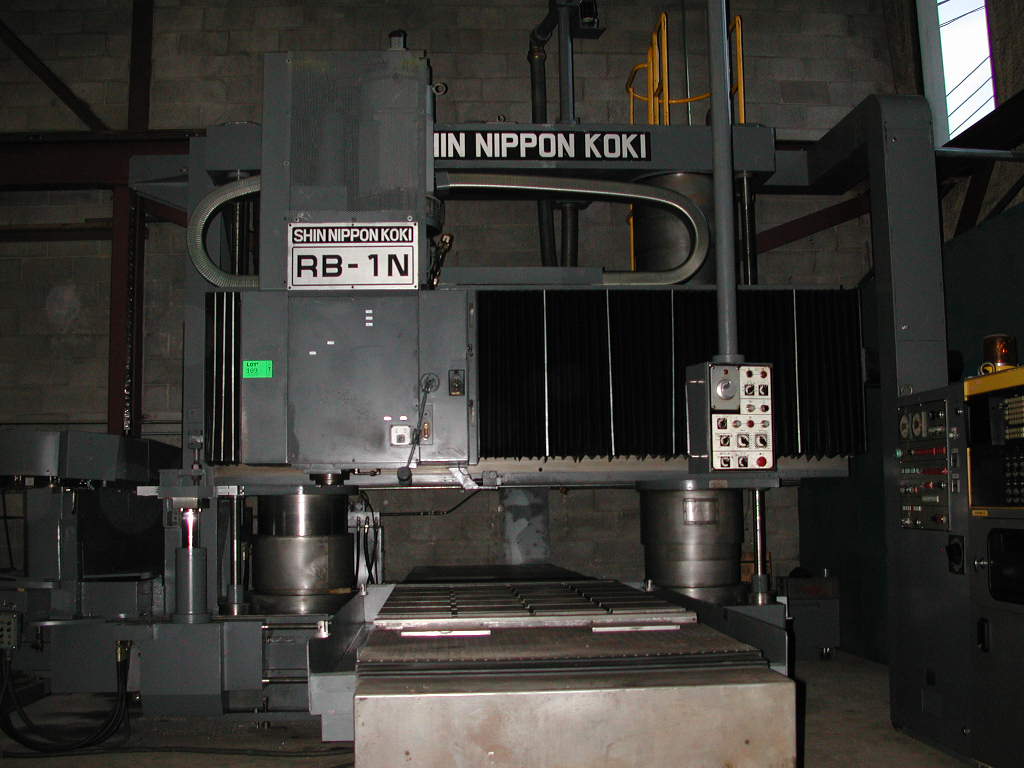

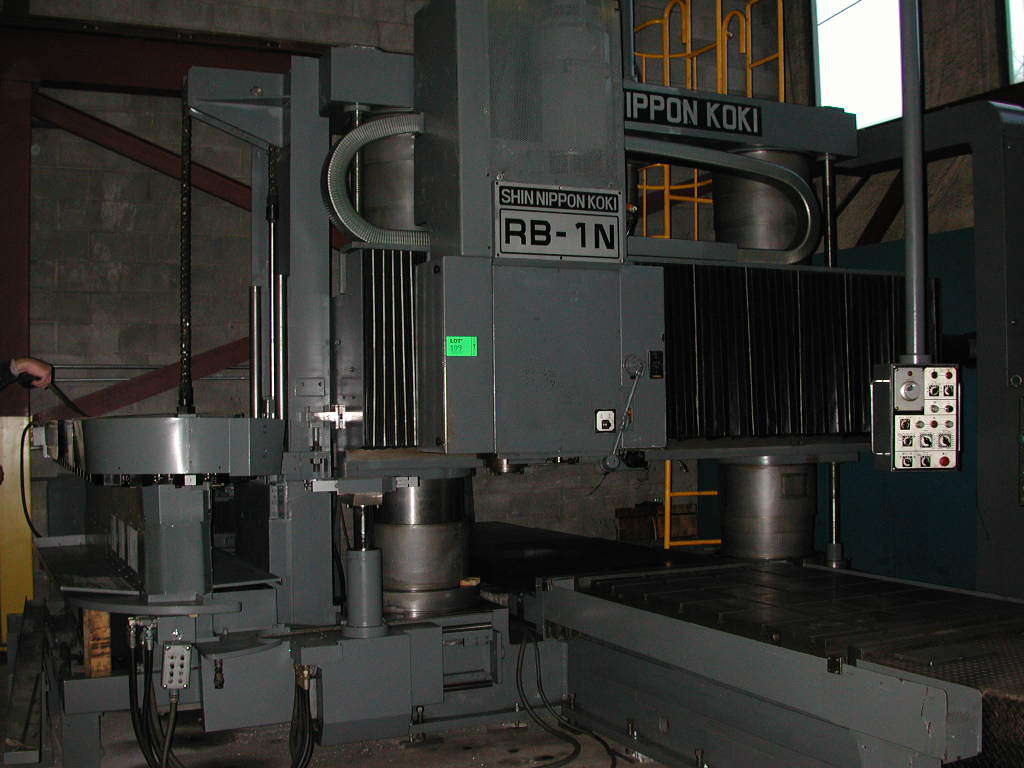

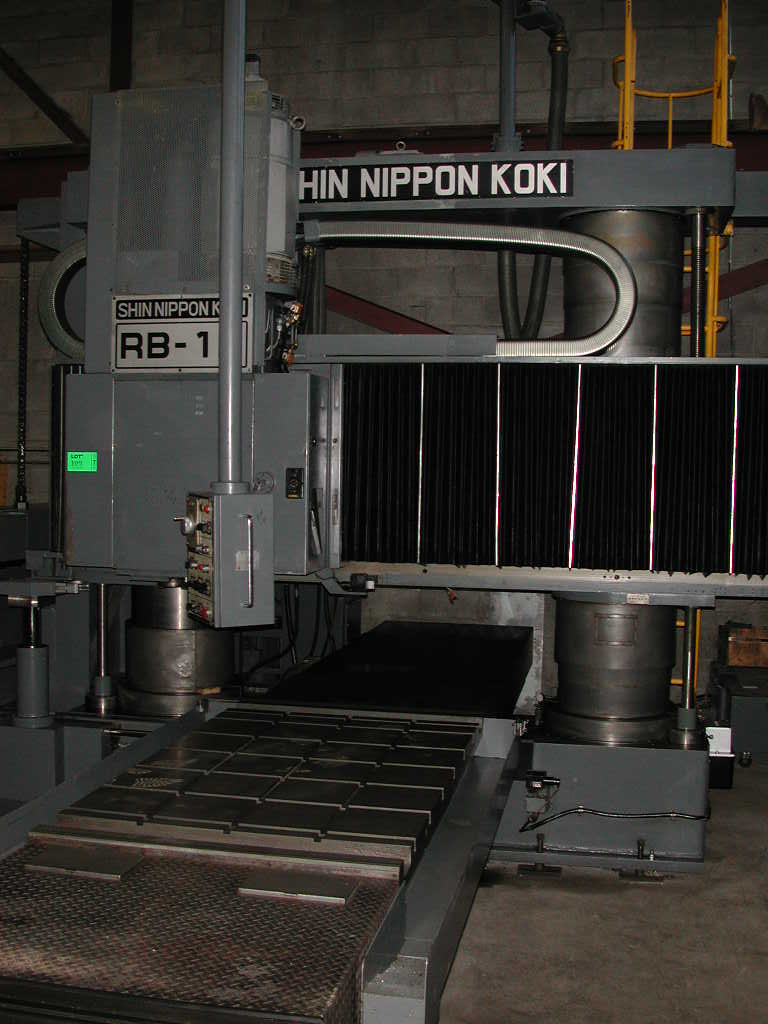

SHIN-NIPPON KOKI RB-1N BRIDGE TYPE CNC VERTICAL MACHINING CENTER, 40 ATC W/FANUC SYSTEM 9 CONTROL

S/N: 8201339

MANUFACTURED IN: 1982.7.26

SPECIFICATIONS:

X-Travel 72.8"

Y-Travel 55.1"

Z-Travel 15.7"

W-Travel 27.6"

Distance Under Spindle 39.4"

Width Between Columns-Covers On/Off 59"/57"

Table Size (Overall) 40" x 70"

(Working Surface) 39.4" x 59."1

Table Load Capacity 6,615lbs

Spindle Speeds (Variable) 30-2000 Rpm

Spindle Taper Bt-50

Spindle Drive Motor 20 Hp Ac

Rapids 400 Ipm

Feeds 0.04-190

Max. Tool Dia. Single/Adjacent 3.9"/7.3"

Dimensions 231.5" x 191.6" x 155.7"Ht. Incl. Crossrail

EQUIPPED WITH:

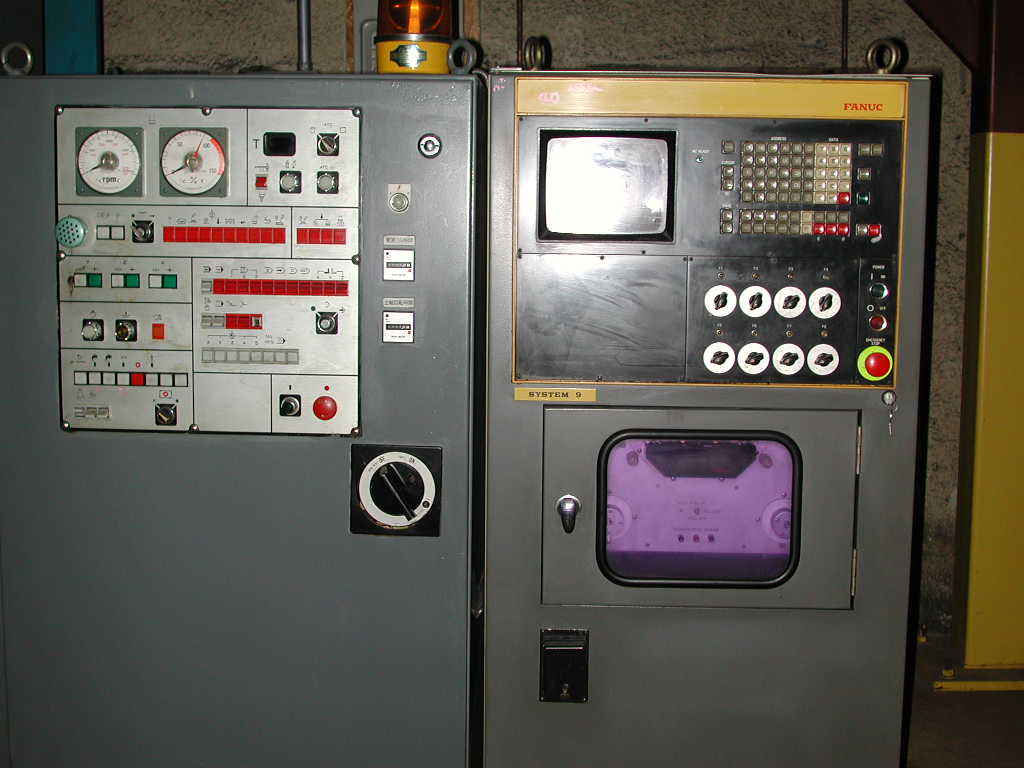

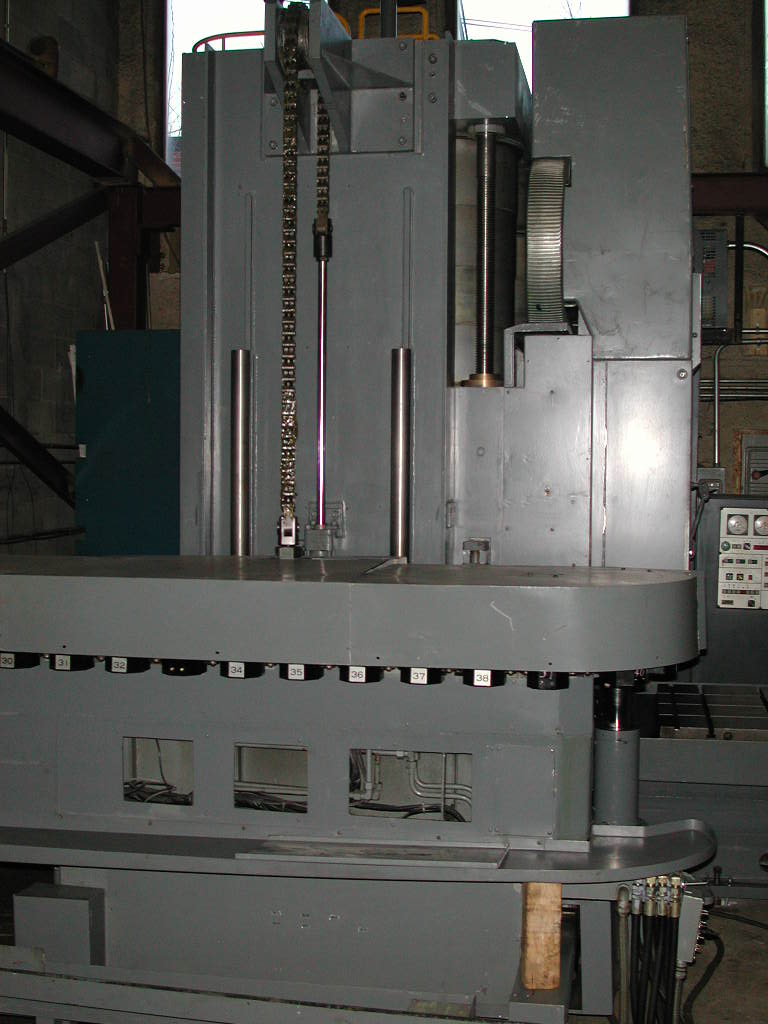

Fanuc 9M CNC w/CRT, Tape Reader, RS-232 Port, 40ATC,

Infinitely Positional Crossrail

*** VIDEO AVAILABLE ***

INSPECT IN MONTREAL WAREHOUSE!
