Specifications

Categories > Boring Mills, Vertical, CNC
Ask for quotation
Stock ref. # 0688

Manufacturer SCHIESS-FRORIEP

Model 50 DV 500/600-1050

Year 1974

Table Dia. 196"

Swing 413"

Under Rail 177"

Capacity 100 Ton

RPM 40

Motor 134 HP

Control NUM 760 T

Price SOLD!

Other specifications

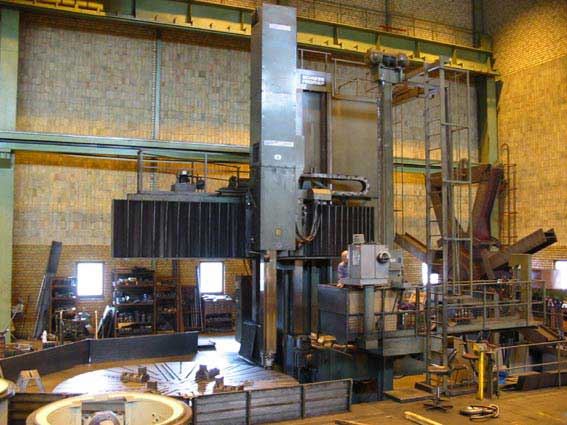

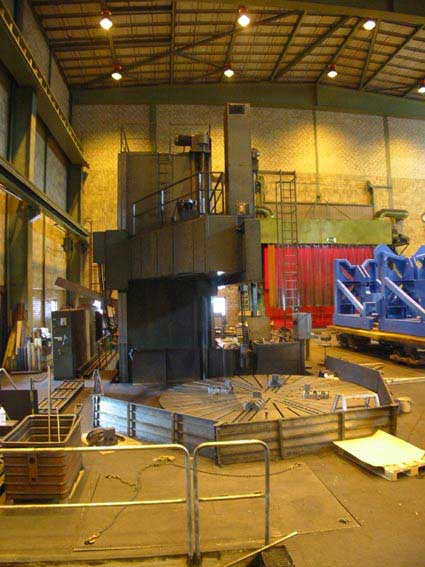

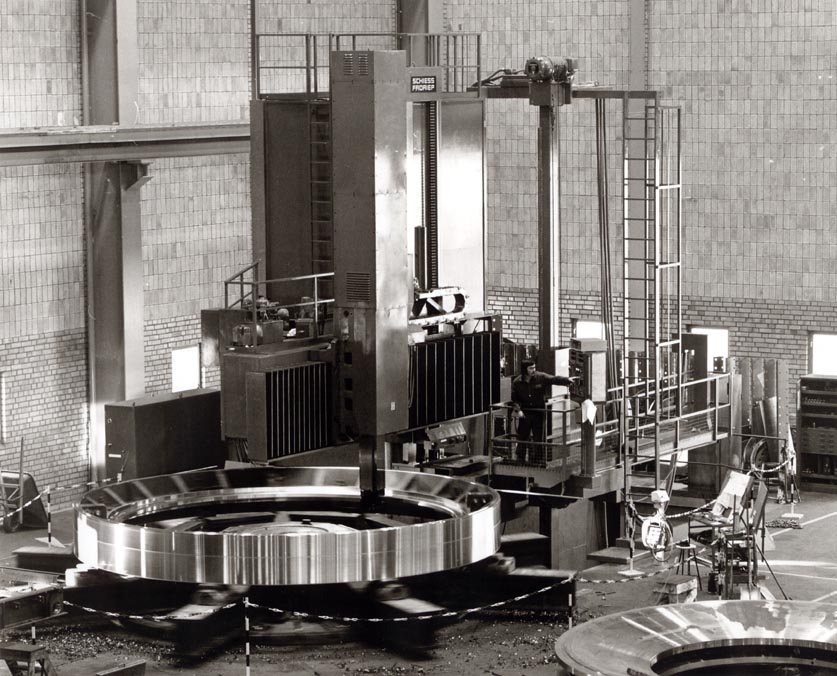

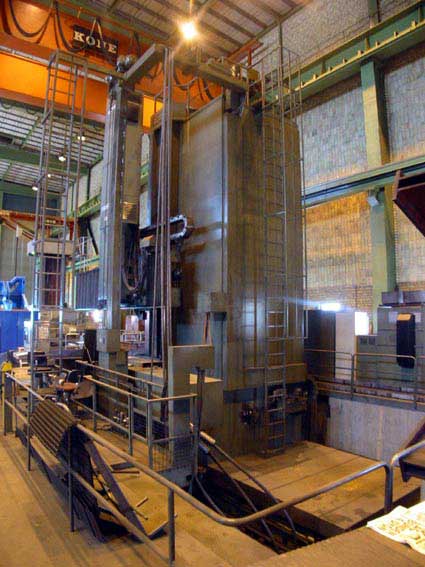

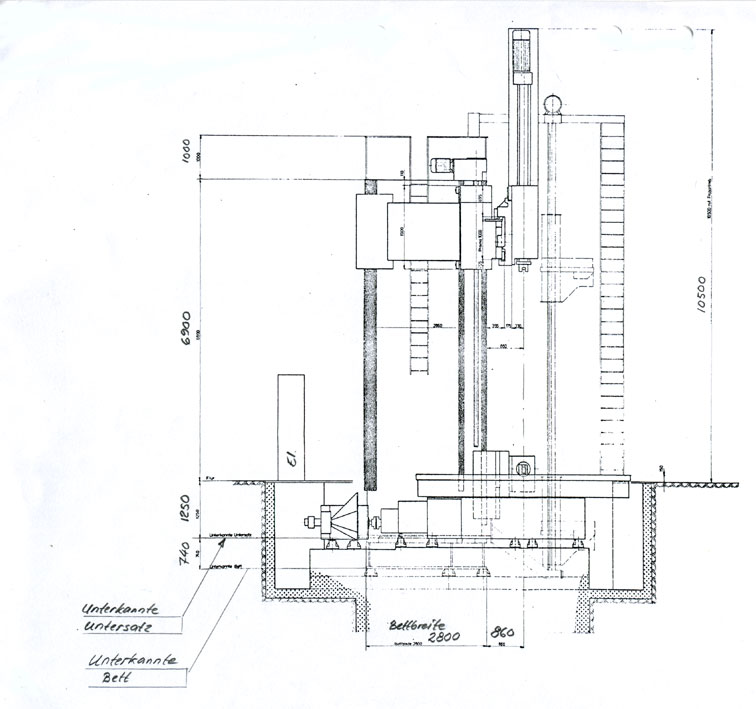

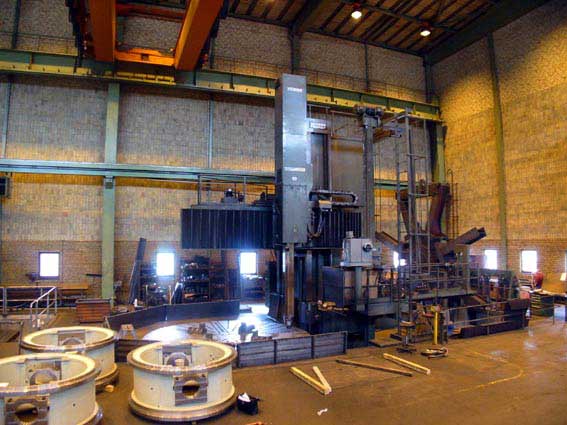

SCHIESS-FRORIEP 50 DV 500/600-1050 CNC VERTICAL BORER

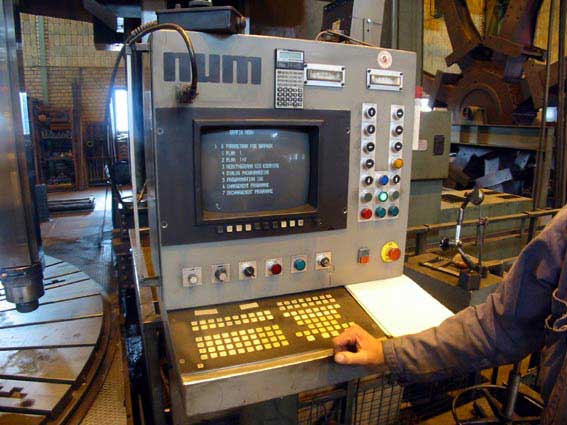

NUM 760 T. 5 axes control With Graphik, Dialog and ISO programming

Built 1974, new CNC & C-axes 1991 etc.

Live tools.

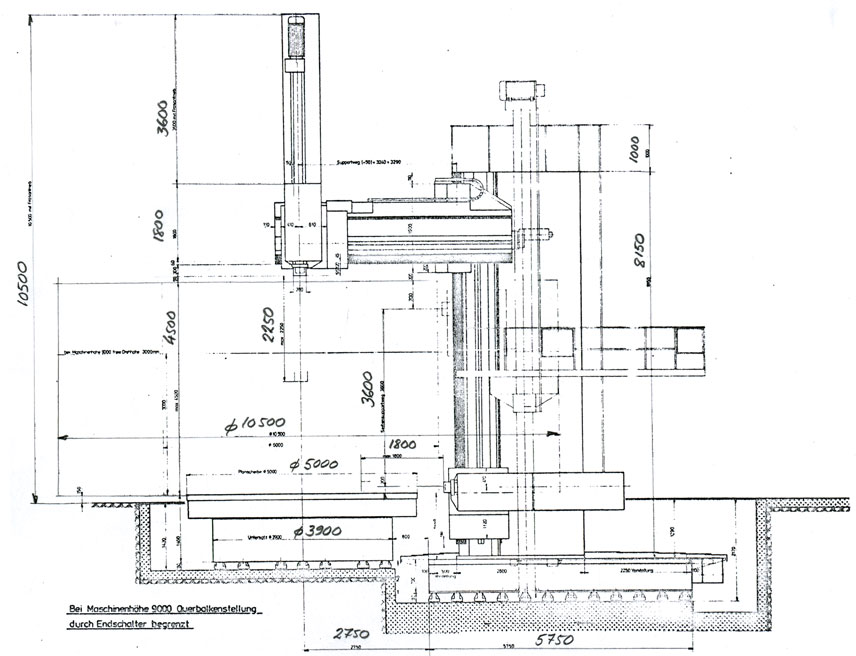

Table Diameter 5.000 mm

Max Swing 10.500 mm

Max Swing, to reach center 6.000 mm

Max Turning Height 4.500 mm.

Vertical support on crossrail, tilting ą 30°.

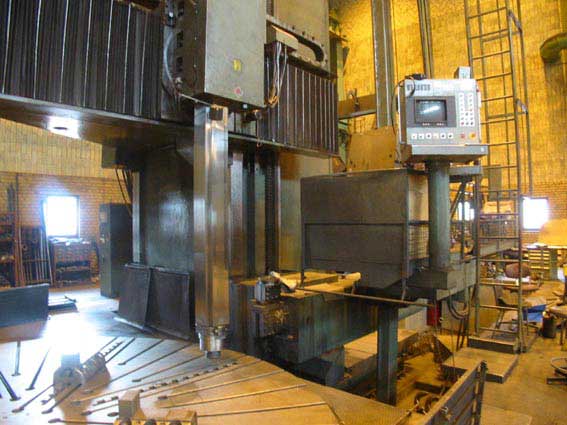

Vertical Ram stroke 2.250 mm

Square Ram size 300 x 300 mm

Horizontal travel 3.000 mm

Spindle speeds 25-250 rpm

Spindle motor 18 kW

Spindle taper 50 ISO

Horizontal Support

Square Ram size 300 x 300 mm

Vertical travel 3.600 mm

Horizontal stroke 1.800 mm

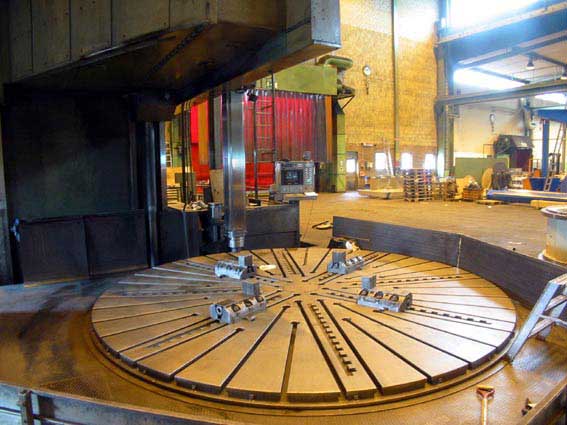

Table, 40 T-slots 42 mm, Separate servomotor for C-axes

Speeds, steepless 0,4-40 rpm.

Table Capacity, Hydrostatic bearing. 100.000 kg.

Table motor 100 kW

C-axes, steps 0,001° 360.000 °

Column travel 2.750 mm.

Feeds, horizontal and vertical, steepless 0,05-400 mm/min.

Quickfeeds, horizontal and vertical, steepless 3.150 mm/min.

Machine weight 125.000 kg.

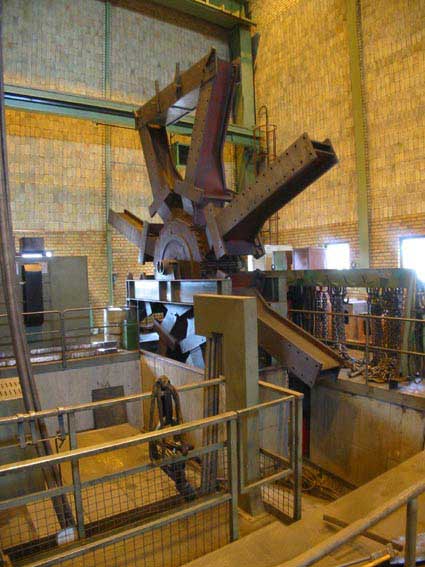

Accessories: extra Chucking device diameter 8.500 mm.

8 Jaws, etc, etc.

Photos
