Specifications

Categories > Machining Center, Vertical, Bridge Type
Ask for quotation
Stock ref. # 0744

Manufacturer INGERSOLL

Model MASTERHEAD

Year 1997

Axis_Travels(X;Y;Z) 196" x 157" x 39"

Capacity 40 Ton

RPM 4000

HP 50

ATC 120

Control FANUC 15M

Price SOLD!

Other specifications

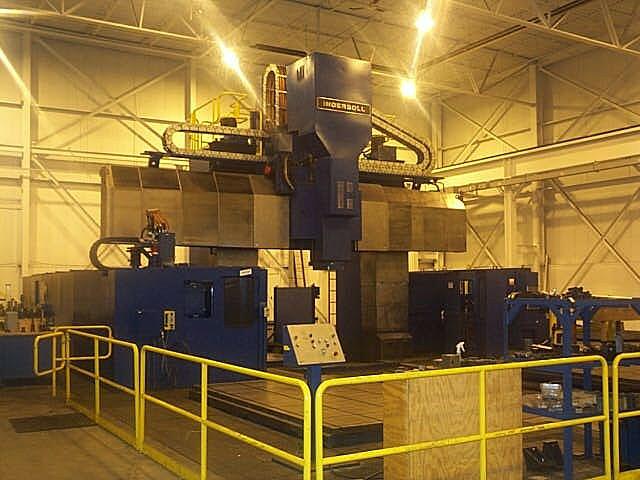

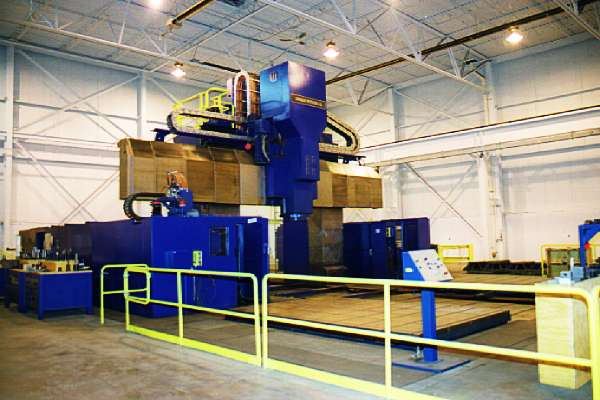

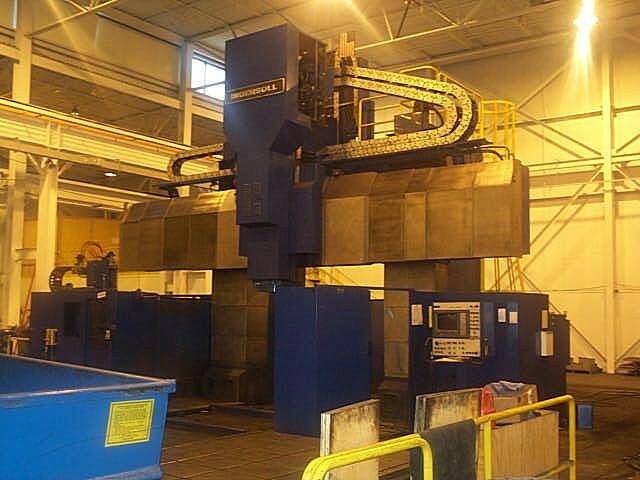

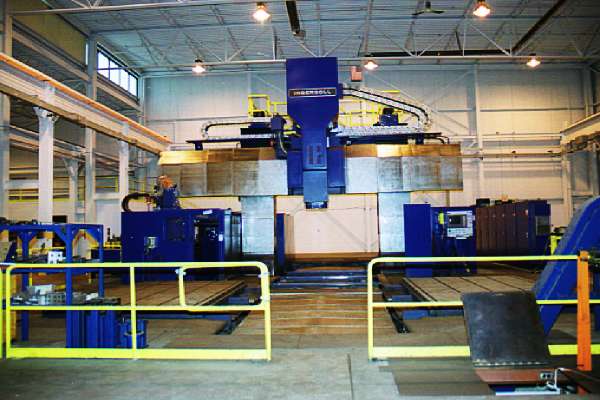

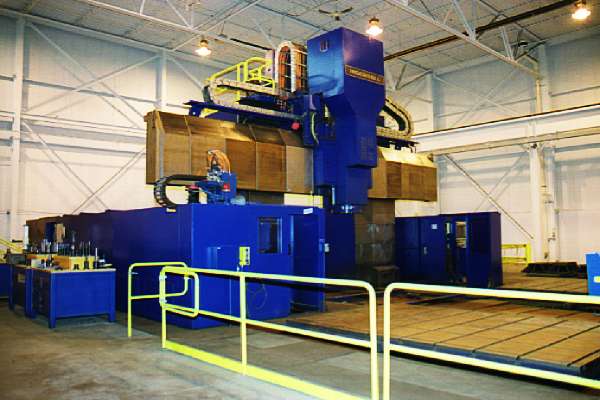

Ingersoll Mastermill Bridge Type CNC Machining Center

Age: 1997

Model: MasterCenter w/Pallet Shuttle

Travels:

X-Axis ........................ 196.6"

Y-Axis ........................ 157.5"

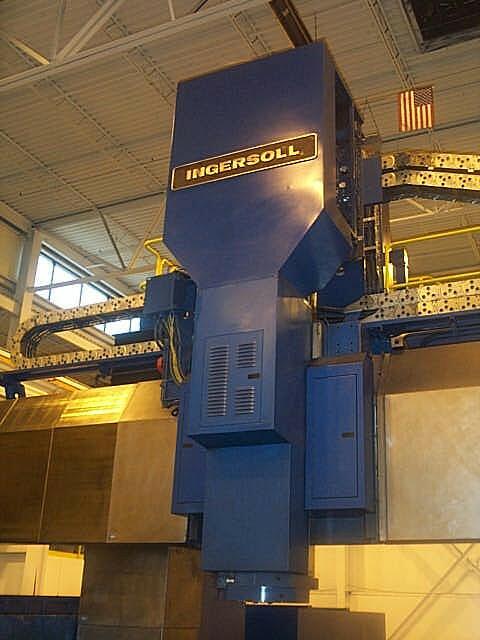

Z-Axis (Ram) .................. 39.43"

Height Under Ram (Max) ........ 108.3"

Distance Between Columns ...... 118.0"

Cross Rail Travel ............. 59.10"

Ram Size ...................... 23" x 24"

Pallet Size (2)................ 98.4" x 157.5"

Spindle Taper ................. #50

Speed ......................... 2-4000 RPM

Weight Capacity ............... 88,000 Lbs (40 Ton)

Equipped With:

Fanuc 15M CNC Control

2-Axis A & B Head

3-Heads with Head Changer: Spindle & (2) Right Angle Heads

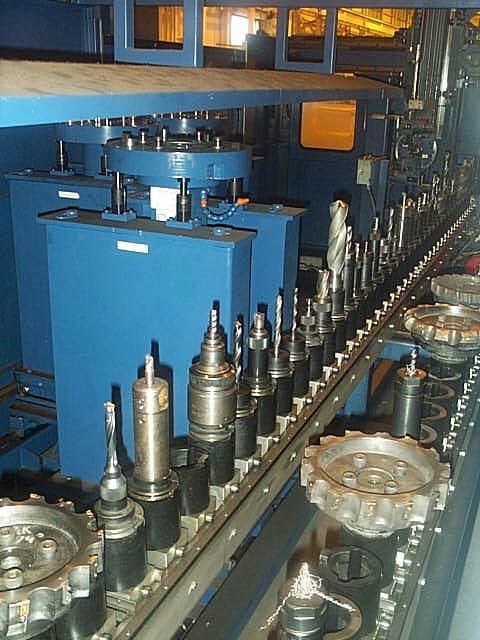

120 Station Automatic Tool Changer

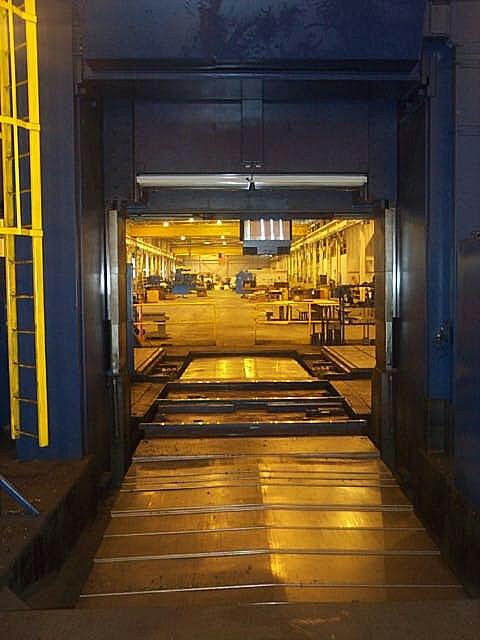

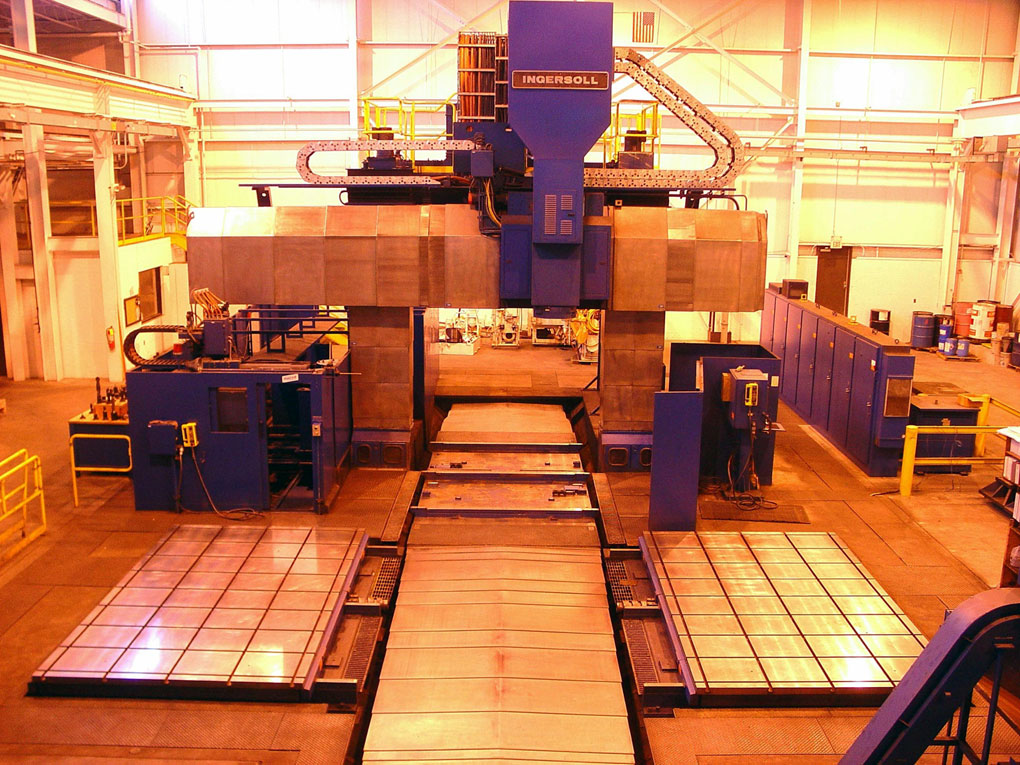

98.4" x 157.5" Pallet Shuttle System

Coolant Thru Spindle

50 HP Spindle Drive Motor

Drum C travel: 360 degrees, Auxiliary B depends on spindle unit.

RAM feed and traverse rates: Pallet X travel: 0-236 IPM, Continuous power: 50 HP, motor Type: AC Digital

Ram thrust: 6600 lbs., Ram counterbalance: hydraulic clamping "C" axis to ram

Photos
