Specifications
| Ask for quotation | |
| Stock ref. # 0078 |
|
|
Other specifications
STANKO Heavy engine lathe model 1683 Machine specification: Overall dimensions, mm length 27,600 width 7,270 height 4,590 Weight, kg 460,000 Main drive power, kW 160 Centers’ height, mm 2,040 Distance between centers, mm 16,500 Workpiece diameter over the bed, mm 4,000 Workpiece diameter over the carriage, mm 3,300 Turned length, mm 16,500 Max workpiece weight, kg 170,000 Diameter clamped in the faceplate, mm headstocks clamping with girth 340 to 2,060 clamping with arresting device 720 to 2,440 tailstocks clamping with girth 270 to 1,510 clamping with arresting device 650 to 1,890 Number of tools in tool holder 1 Sting dimensions, mm 70´ 100 Max distance between tools and centers’ 1,700 axis, mm Number of carriages anterior 2 posterior 1 Spindle cone 1:7 diameter 180 mm spindle hole diameter 105 mm Lunettes: 1 500 mm 1 1,250 to 1,500 mm 1 3,000 to 3,200 mm Diametrers fixed into the plates: Method of the fixation headstock Footstock minimal grasp 340 270 maximal grasp 2060 1510 in the thrust the 720 650 minimal in the thrust the maxi 2440 1890 Carriages: Carriage front back Number of the 1 1 single-point tools in the tool post Normal size of the tool post, mm weight 70 100 height 70 100 Height from the support 100 30 surface of the single-point tool till the line of the centers, mm The maxi distance from 1700 1700 the axes of the centres till the edge of the tool post, mm Number of the carriages 2 1

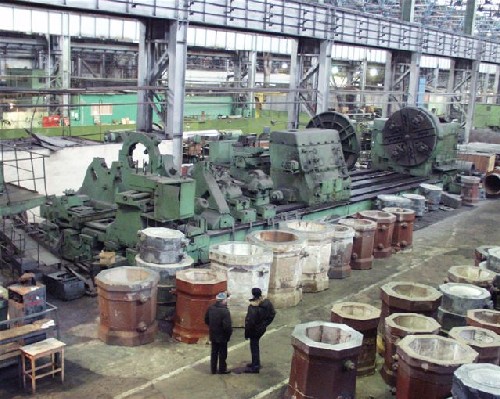

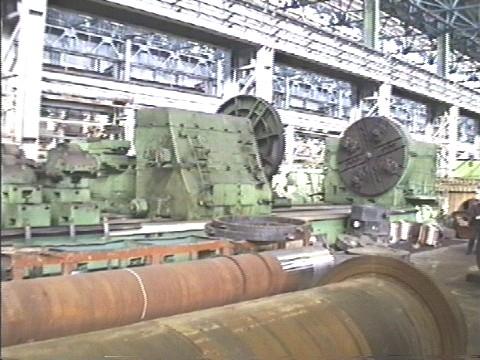

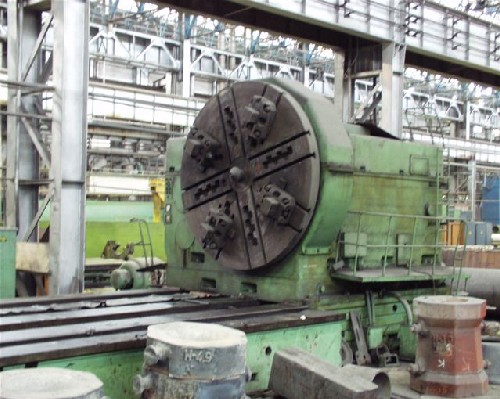

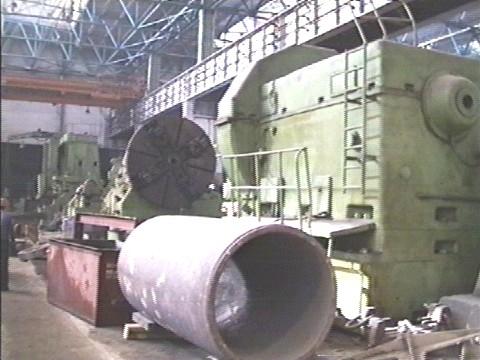

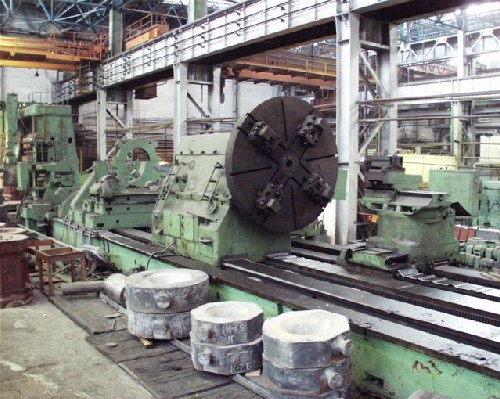

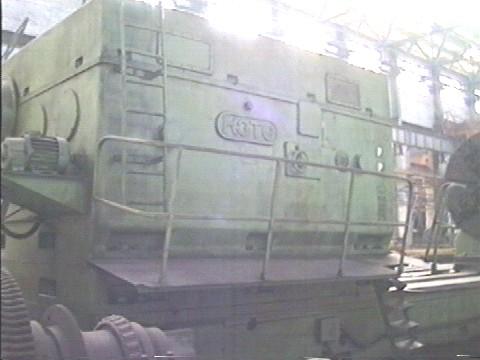

Photos
|
