Specifications

Categories > Boring Mills, Vertical, CNC
Ask for quotation
Stock ref. # 0782

Manufacturer MORANDO

Model VHN 36/42

Year 1992

Table Dia. 157.5"

Swing 173.3"

Under Rail 129.9"

Capacity 60 Ton

RPM 100

Motor 100 HP

Control FANUC 11TA

Price SOLD!

Other specifications

157.5" MONARCH MORANDO VHN 36/42 CNC VERTICAL BORING MILL – 2 AXIS RAM

Year: 1992

S/N: T-54008-NC

Manufacturer: Monarch Morando

Model # VHN 36/42

Table Diameter ................ 157.48" 4000 MM

Maximum Swing ................. 173.30" 4400 MM

Maximum Height Under Rail...... 129.90" 3300 MM

Ram Stroke .................... 70.80" 1800 MM

Ram Section Dimension 8" x 8"

X-Axis Home Position .......... 90.50" 2300 MM

Feeds ......................... 0.001-100 IPM

Table Speeds: 2-Ranges Inf.Var. 1-100 RPM

Rapid Traverse ................ 250 IPM

Motor: 100 HP

Table Capacity: 60 Ton Metric

Taper #50

Fanuc 11TA Controls

12 Combination Tool Changer

Chip Conveyor

Tooling

Table Guards

(4) Jaw Table

Coolant System

460V, 3 phase, 60Hz, 172 AMPS at Full load

VIDEO AVAILABLE!

EXCELLENT CONDITION!!!

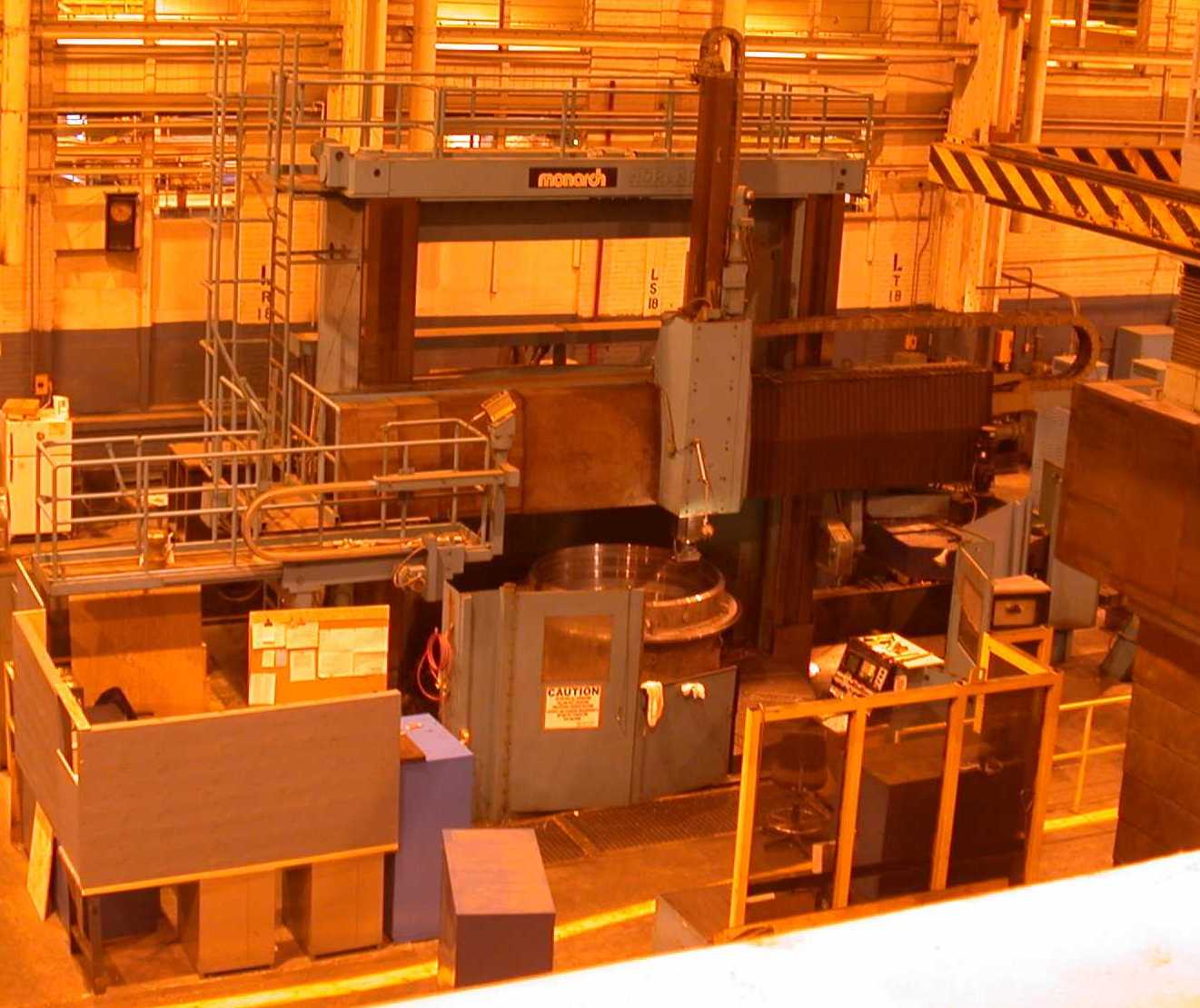

Photos
