Specifications

Categories > Lathes, CNC
Ask for quotation
Stock ref. # 0965

Manufacturer POREBA

Model TCF-200N/14M

Year 1989

Swing 78.7"

Between Centers 552"

Capacity 44 Ton

Motor 133 HP

RPM 250

Control SIEMENS 810T

Price SOLD!

Other specifications

78" X 46' Poreba CNC Heavy Duty Engine Lathe

Model: TCF-200N/14M

Age:1989

Siemens 810T Sinumerik CNC Controls

Maximum Swing Over Bedways ..... 78.7"

Maximum Swing Over Carriage .... 60.63"

Distance Between Centers ....... 46'

Spindle Bore Dia ............... 4.13"

Spindle Speeds ................. .5-250 RPM

Longitudinal Feed Inf. Variable .004-15.7 IPR

Weight Capacity Unsupported .... 66,000 lbs

Weight Capacity (1) Steady ..... 77,000 Lbs

Weight Capacity (2) Steadies ... 88,000 Lbs

Machine Weight ................. 119,050 Lbs

Equipped With:

Siemens 810T CNC Control

63" 4-Jaw Chuck

Inch/Metric Threading

Power Feed To Compound For Taper Turning

(5) Steady Rests: 43 1/2" & 32" 4-Roller Type

(7) Open Top Roller Rest: 62" Diameter

6-Way Power Rapid Traverse

Hardened Steel Replaceable Bedways

Heavy Duty Meehanite Castings

Hydraulic Tailstock

Coolant System

133 HP Main Drive

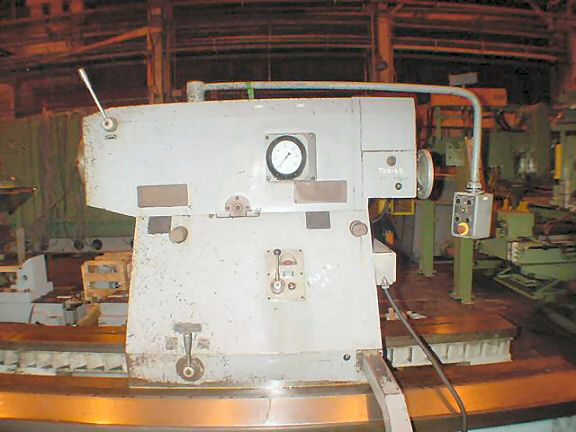

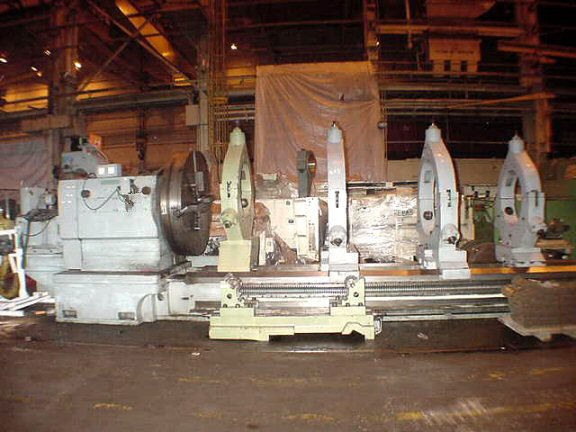

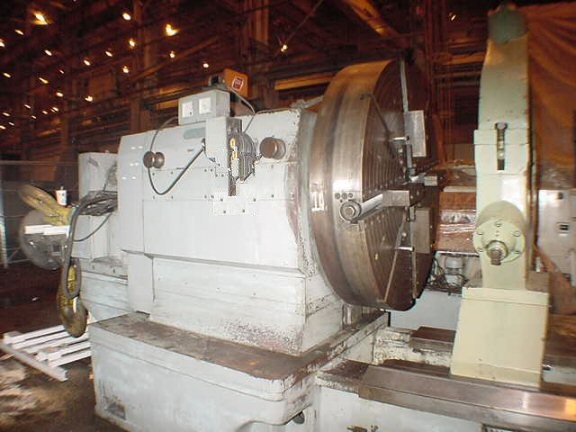

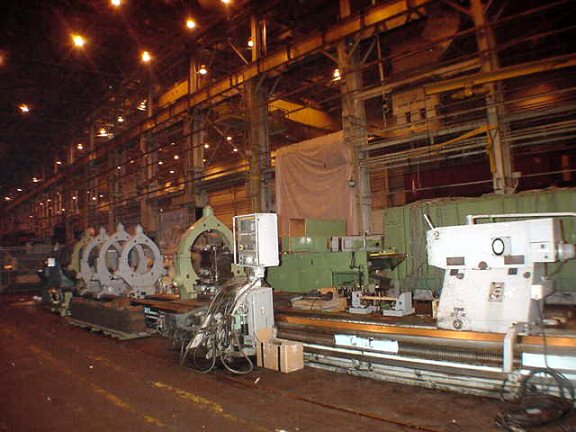

Photos
