Spécifications
|
Catégorie : Fraiseuses Verticales - Conventionnelles / CNC |
Demande de soumission |
| Référence # 1470 |
|
|
Autres spécifications

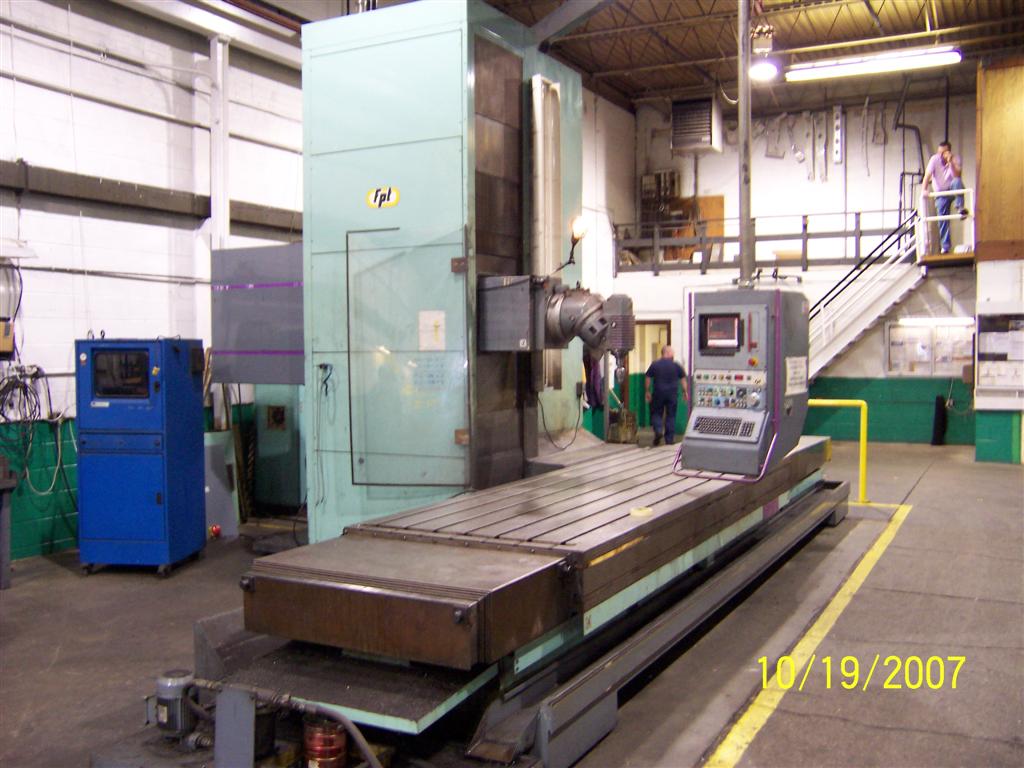

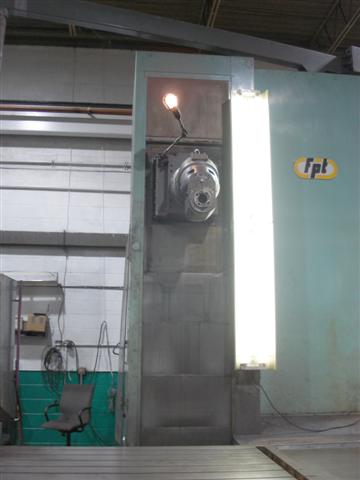

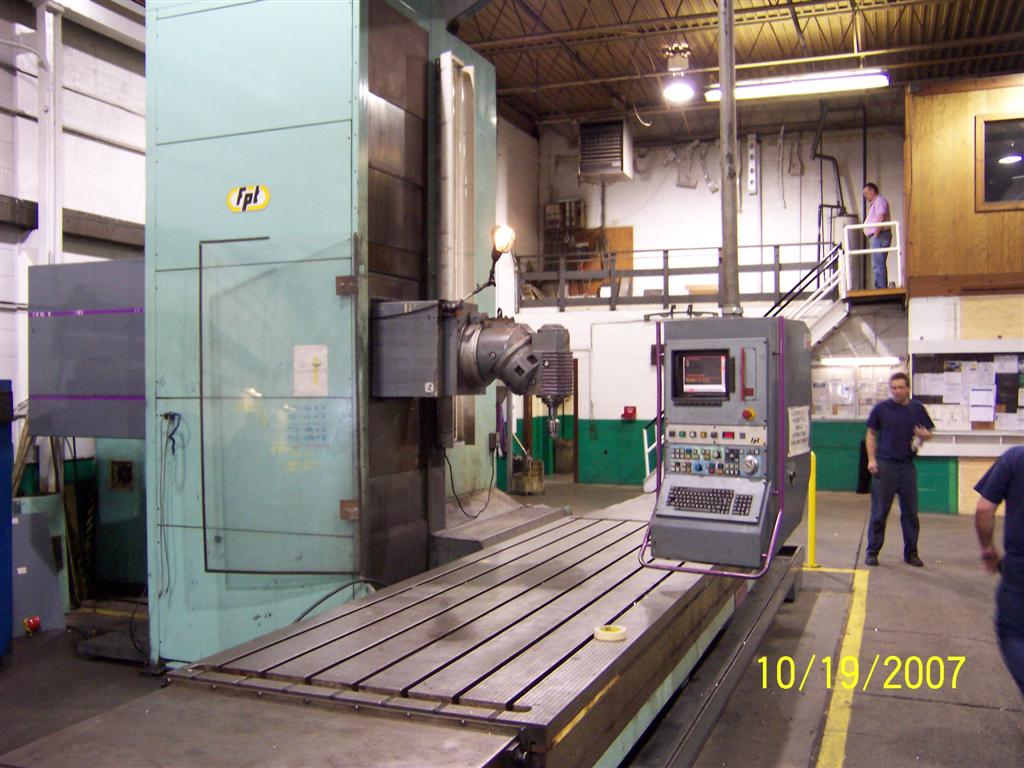

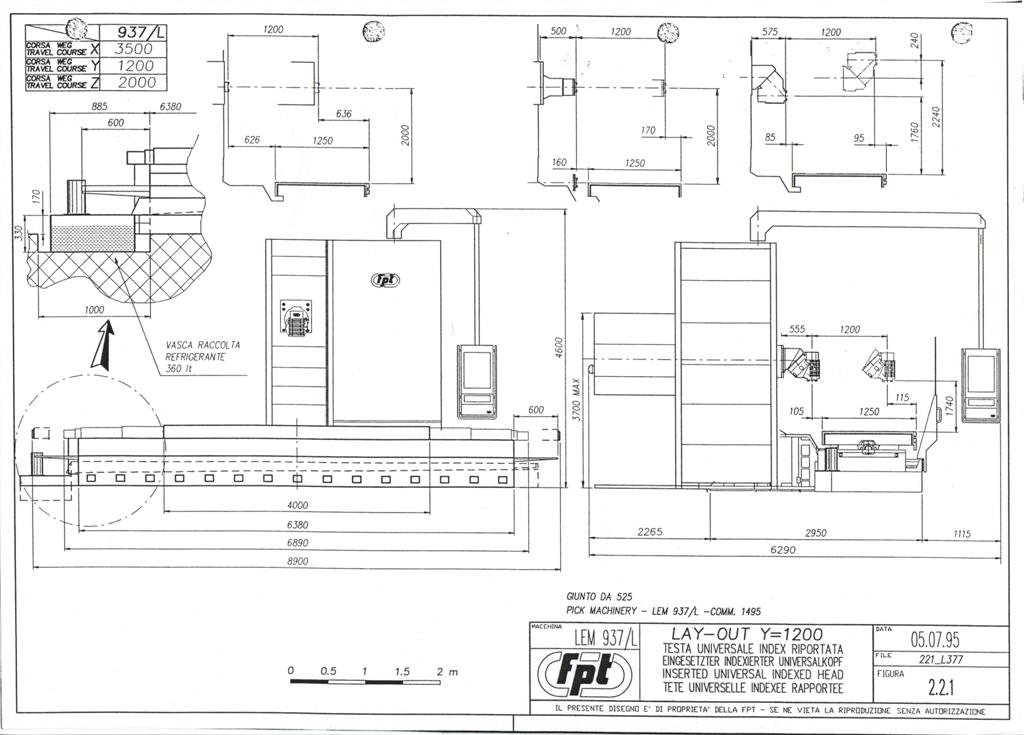

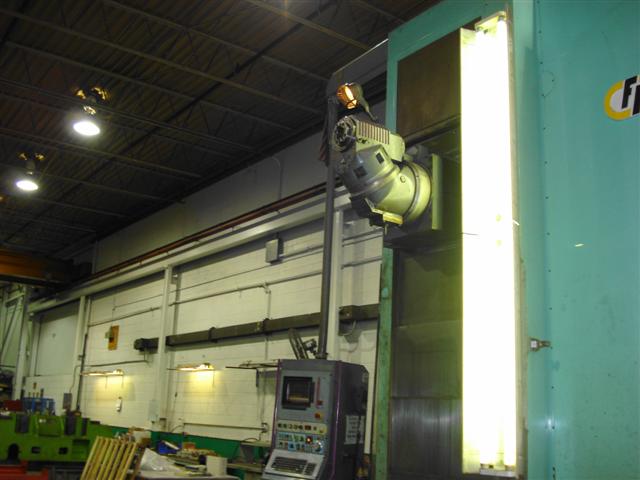

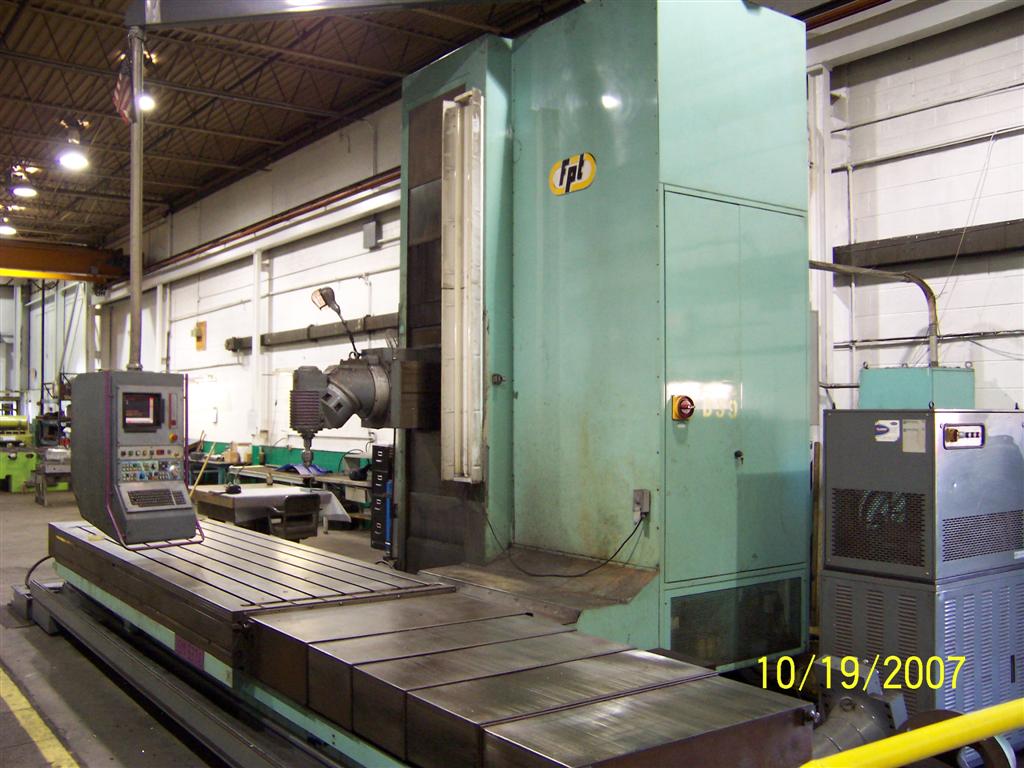

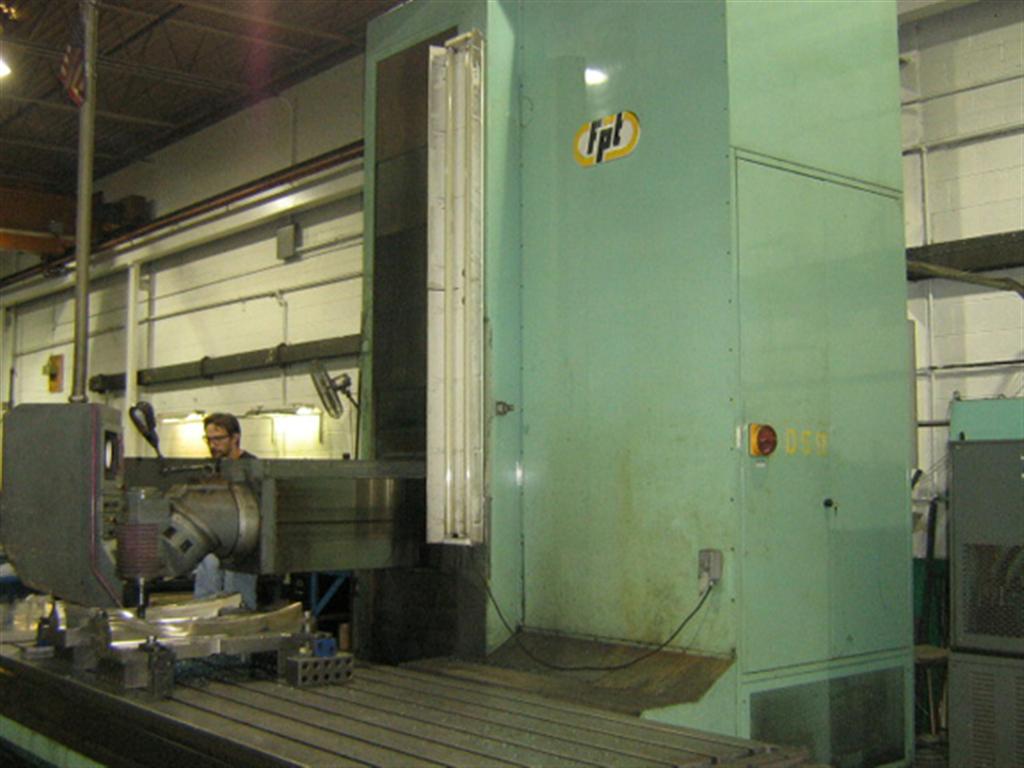

FPT CNC "Bed Type" Universal Boring & Milling Machine Model: LEM 937/L Serial Number: 93795050 Age: 1995 TRAVELS: Vertical Head Travel, Y ............... 78.74" Table Travel, X ....................... 137.79" Ram Travel, Z ......................... 47.24" A-Axis Rotation of Universal Head ..... +/- 180 Degrees B-Axis Rotation of Universal Head ..... +/- 92 Degrees Universal Head, CNC Auto Index ........ 2.5 x 2.5 Degrees Straight Head ......................... Horizontal Milling SPECIFICATIONS: Spindle Taper ......................... ISO 50 (Cat 50) Ram Cross Section ..................... 17.71" x 19.68" Distance Under Univ Head, Downward .... 68.75" Distance Under Univ Head, Upward ...... 88.19" Distance Univ Head on Ram to Table .... 71" at 90 Degrees Y-Axis Travel Max B-Axis Rotation ..... 88.19" Table Size ............................ 49.21" x 157.48" Table Weight Capacity ................. 41,990 Lbs Working Feed Rate ..................... 0-137.79 IPM Rapid Traverse, x,y,z axes ............ 472 IPM Spindle Speeds ........................ 0-4000 RPM Machine Weight ........................ 63,869 Lbs Power Requirements .................... 49 KW EQUIPPED WITH: Fidia F1 CNC Control with Statoc RTCP Software Swivel Mounted Pendant Arm Automatic CNC Indexing Universal Head. 2-Axis CNC Straight Head, 4000 RPM, #50 ASA Taper Heidenhain Scales On All Axes 12 Station Automatic Tool Changer with Chip Cover Power Draw Bar Flood Coolant 36.2 HP Spindle Drive Motor Floor Space: 363" L-R x 256" F-B x 187.7" High
Photos de la machine
|
