Spécifications

 Catégorie : Plieuses Hydrauliques

Demande de soumission
  Référence # 1714

  Manufacturier CINCINNATI
  Modèle 1500H
  Année 1974
  Tonnage 1500 Tonnes
  Longueur Totale 36'
  Entre les montants 22'5"
  Inclus *
  Prix CONTACTEZ-NOUS!



Autres spécifications



                  1500 TON X 36' CINCINNATI HYDRAULIC PRESS BRAKE, 1974

                  MANUFACTURER: CINCINNATI

                  YEAR: 1974

                  1500 TON RATING

                  36' LENGTH BED AND RAM

                  18" STROKE

                  24" OPEN HEIGHT

                  22'5" DISTANCE BETWEEN HOUSINGS

                  SPEEDS: 46 IPM RAPID ADVANCE

                  25 IPM FAST PRESS

                  10 IPM FULL TONNAGE PRESS

                  19 IPM RETURN SPEED

                  ORIGINALLY A 30' BED/RAM, EXTENDED TO 36'

                  WEIGHT: 300,000 LBS., EST.

                  COMPLETE WITH 60 HP 220/440/3/60 HYDRAULIC PUMP MOTOR,

                  ELECTRICAL CONTROLS



                  *** CYLINDERS DONE IN 1999 ***



                  OVERALL HEIGHT: 17'

                  DEPTH OF RAM BELOW FLOOR: 98"



                  ORIGINAL MANUALS & FOUNDATION DWG.

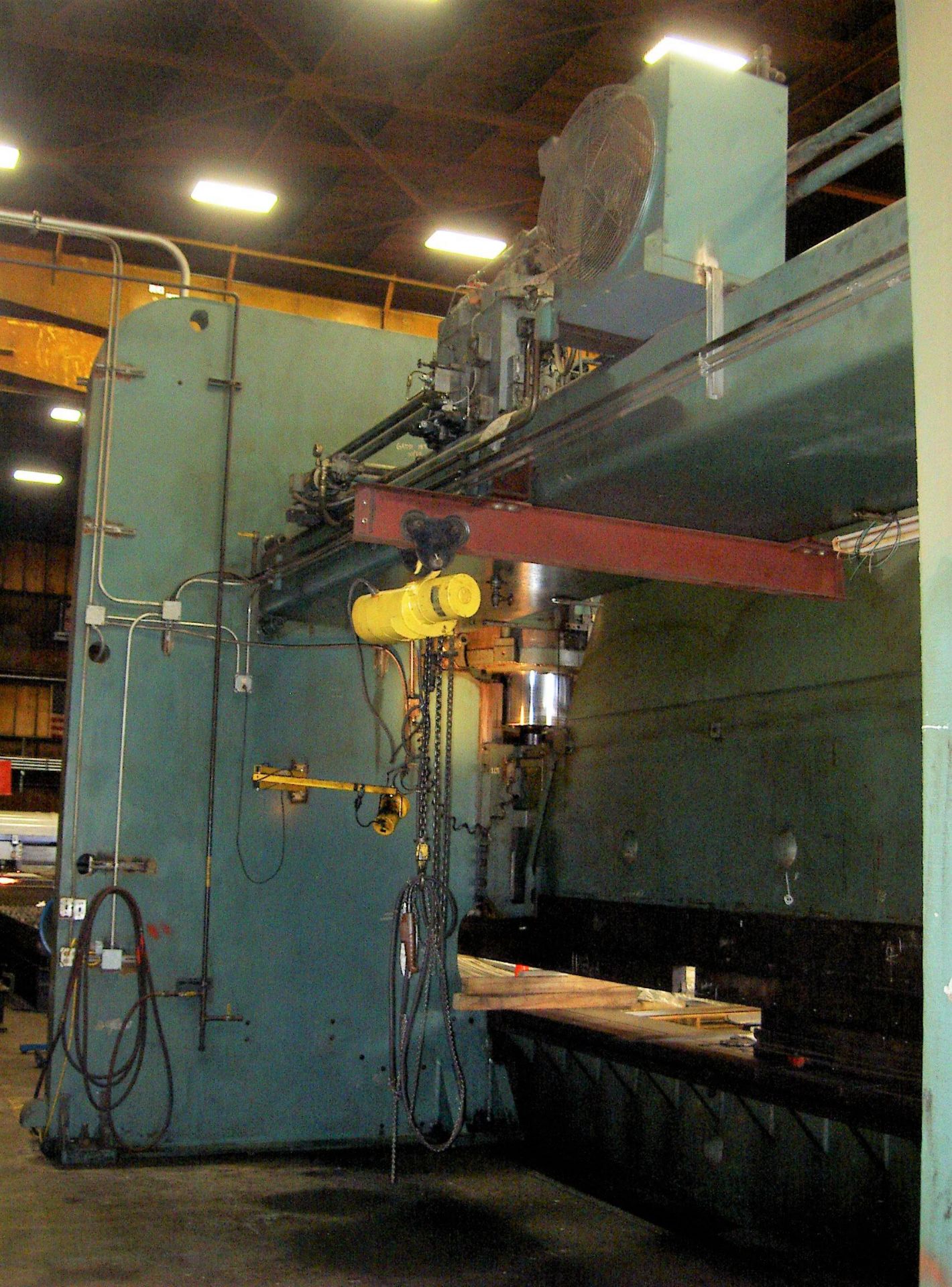

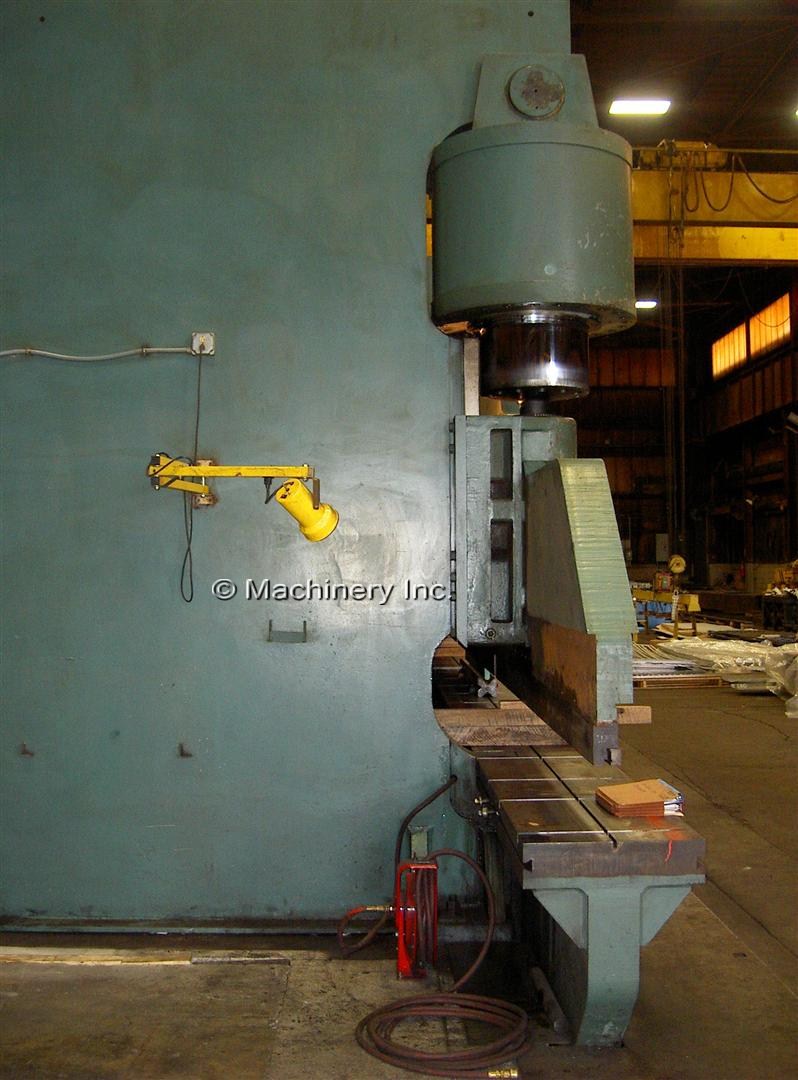

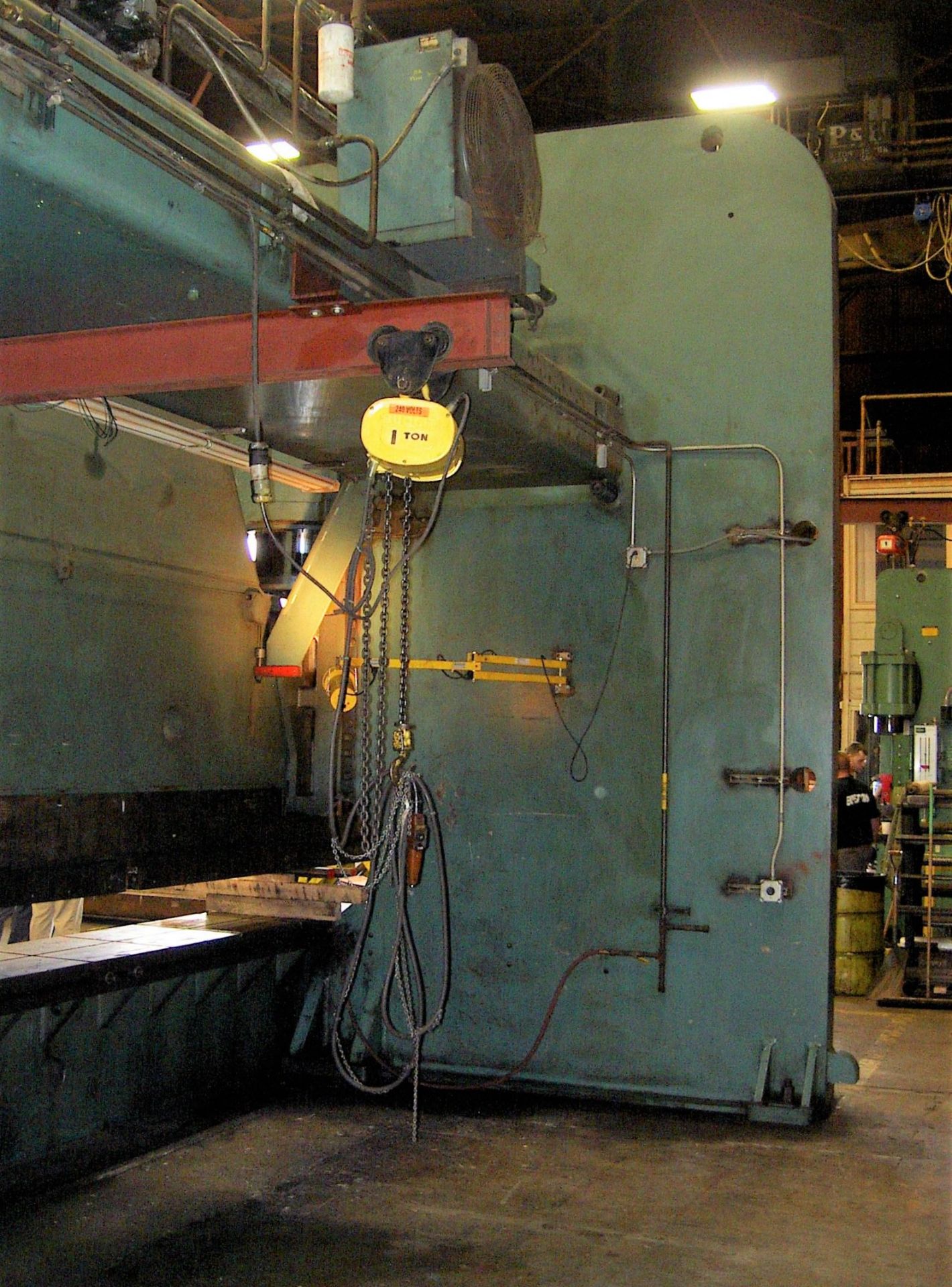

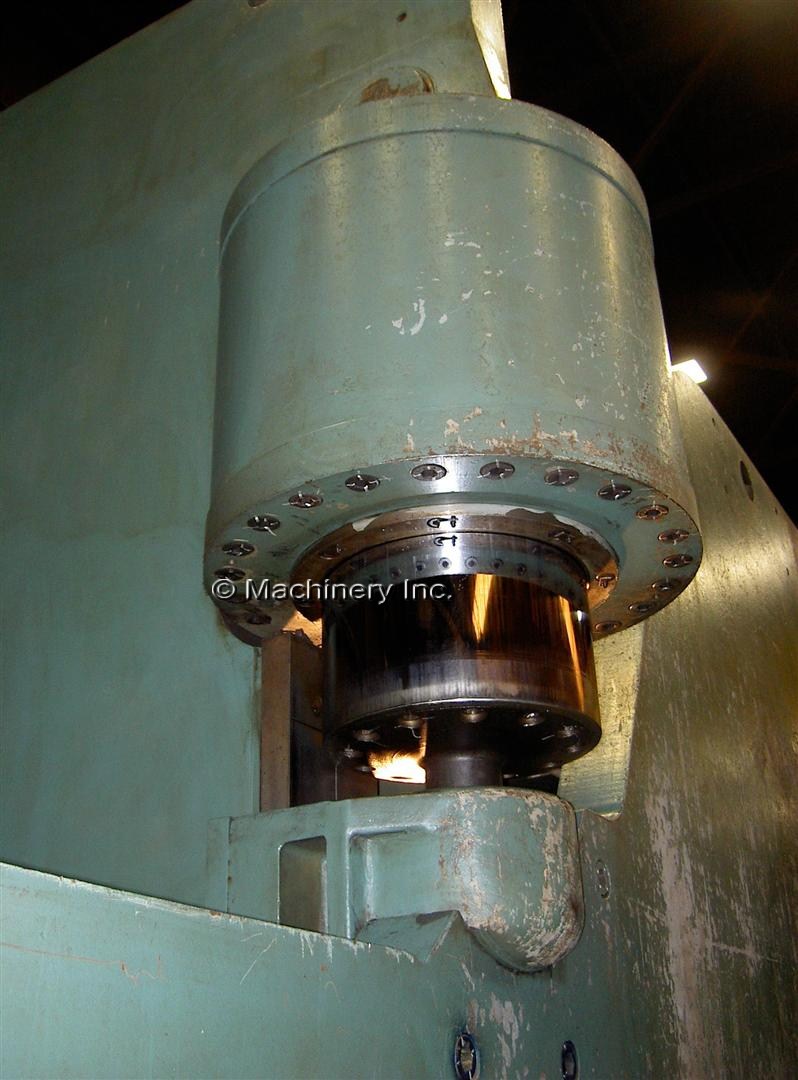

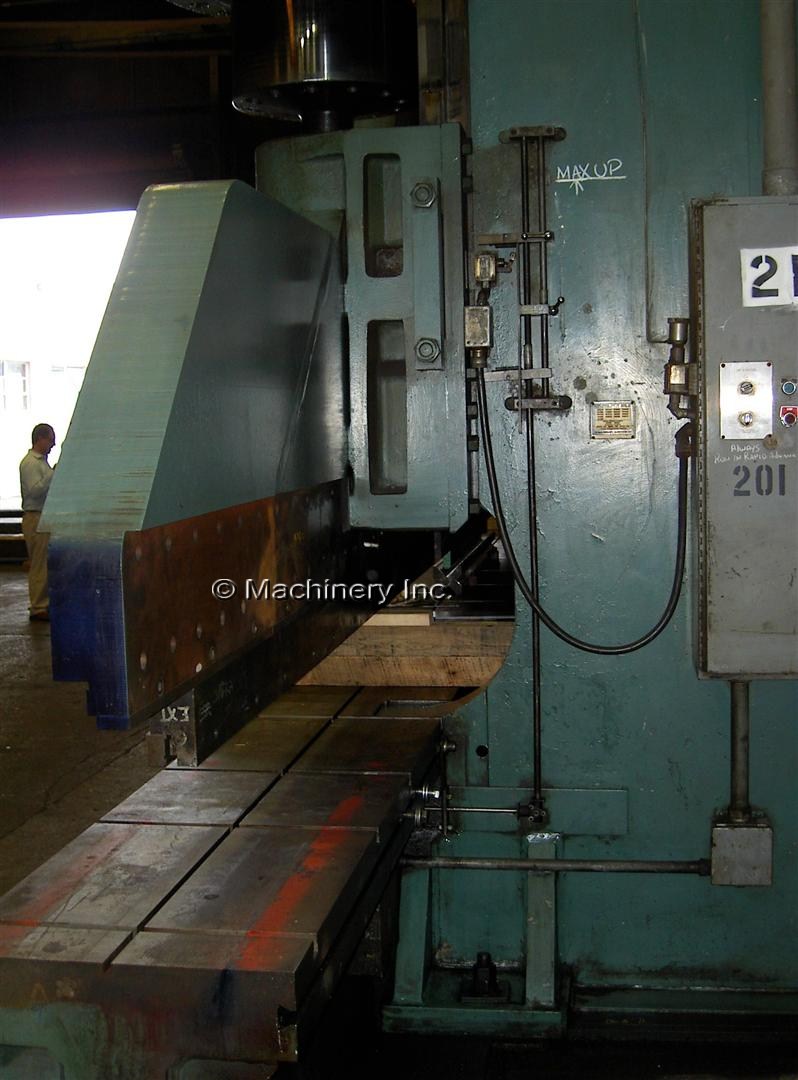

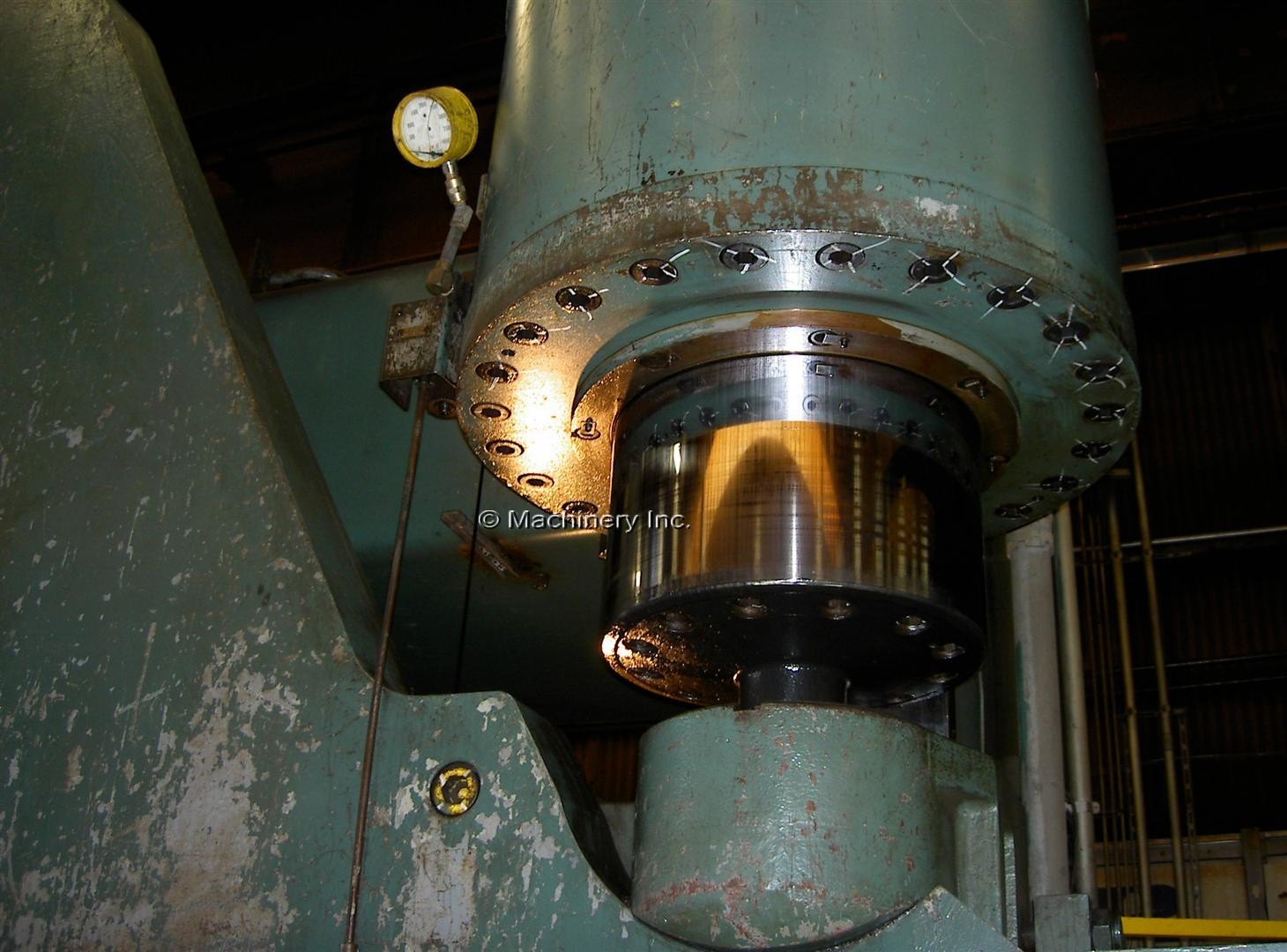

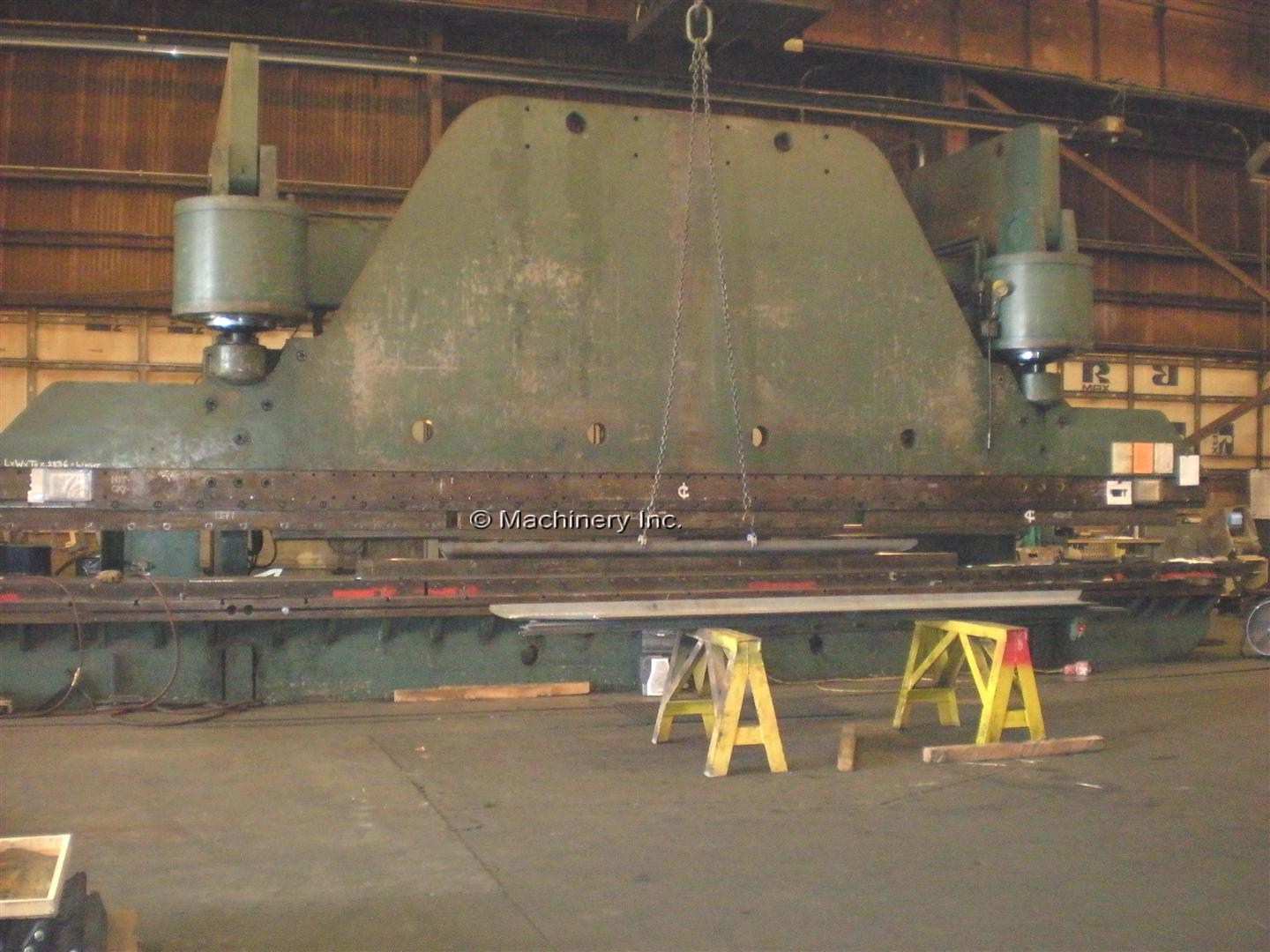

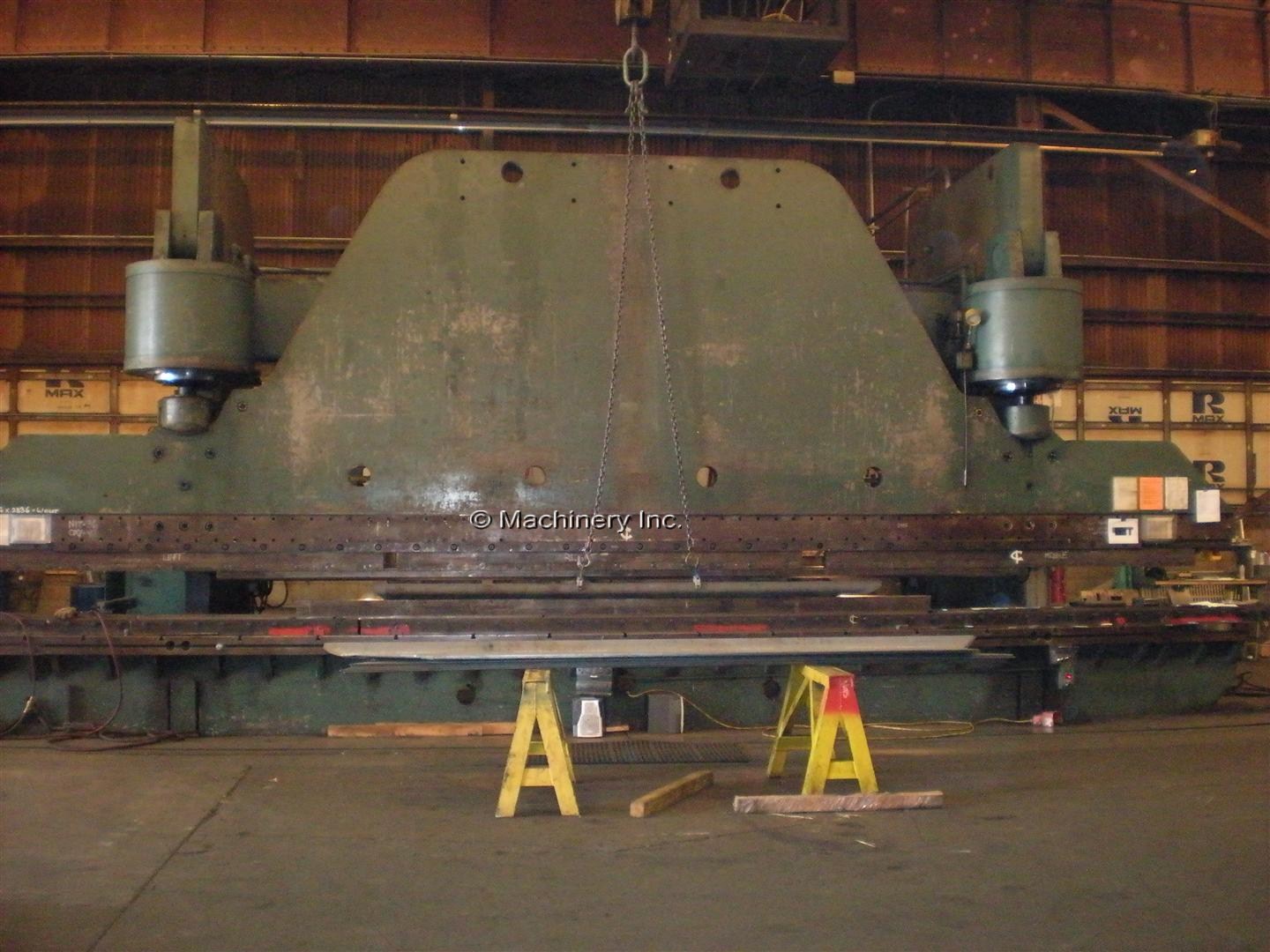

Photos de la machine
