Spécifications
|
Catégorie : Machine de Finition à la Pierre Abrasive - Horiz. |
Demande de soumission |
| Référence # 1747 |
|
|
Autres spécifications

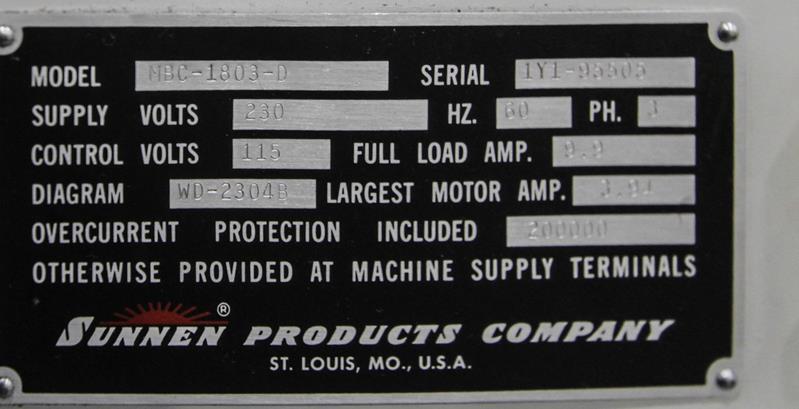

SUNNEN HONE MBC-1803-D WITH POWER STROKING, 2001 MANUFACTURER: SUNNEN YEAR: 2001 SERIAL NUMBER: 1Y1-95505 MODEL: MBC-1803-D SPECIFICATIONS I.D. RANGE ------------------------ .030"-3.75" POWER STROKING ------------------------ .060"-6.5" MANUAL STROKING LENGTH RANGE ---------------------- 0-10" POWER OR MANUAL STROKE ------------ 0-16" SPINDLE SPEEDS -------------------- 20-2500 RPM STROKING RATES -------------------- 80-110-160-220-310/SPM SET UP TIME ----------------------- 10-20 MINUTES SPINDLE MOTOR --------------------- 1 HP STROKER MOTOR --------------------- 1/2 HP HONING OIL CAPACITY --------------- 25 GAL. DIMENSIONS ------------------------ 72" x 49" x 67" WEIGHT APPROX. -------------------- 1,100 LBS. EQUIPPED WITH POWER OR MANUAL STROKING AUTOMATIC CYCLE START AUTOMATIC SHUTOFF SELF-ENERGIZING SPINDLE BRAKE COOLANT SYSTEM WORK LIGHT

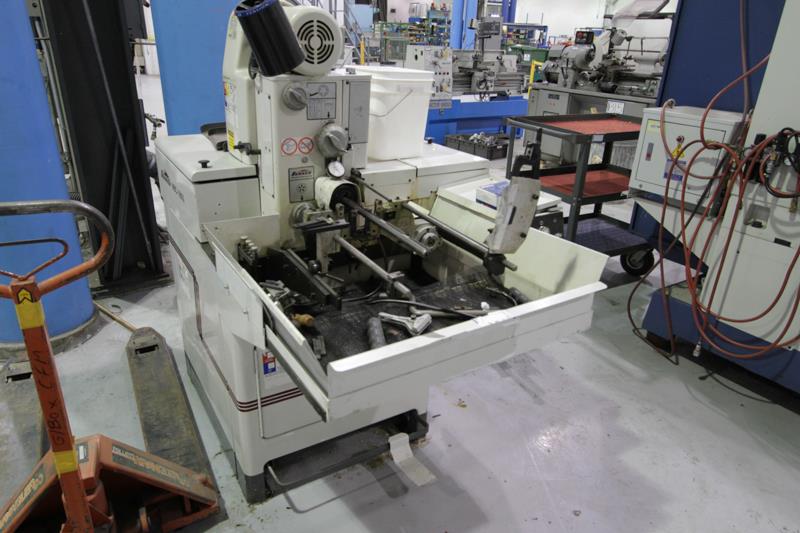

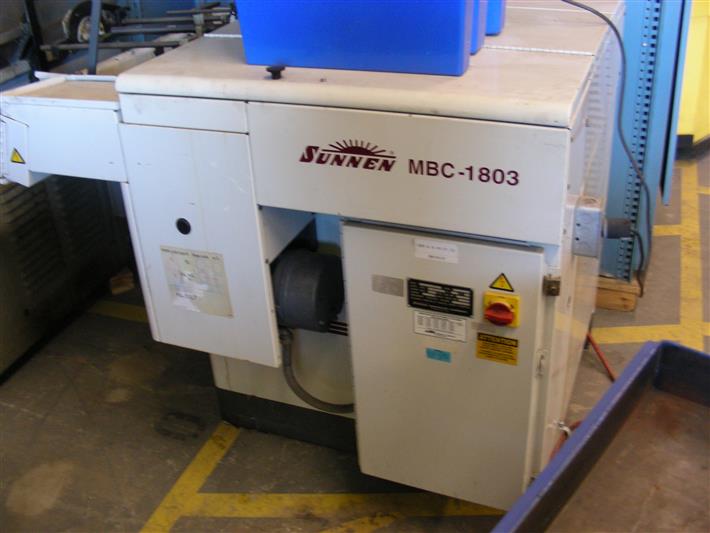

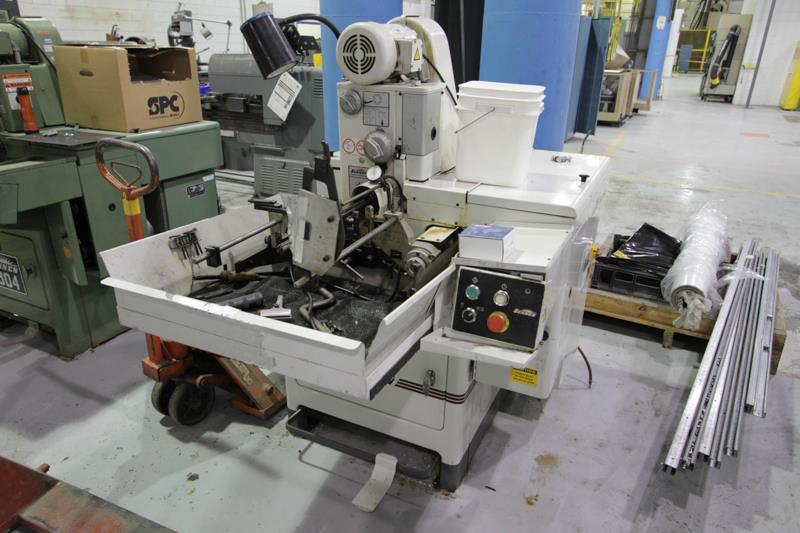

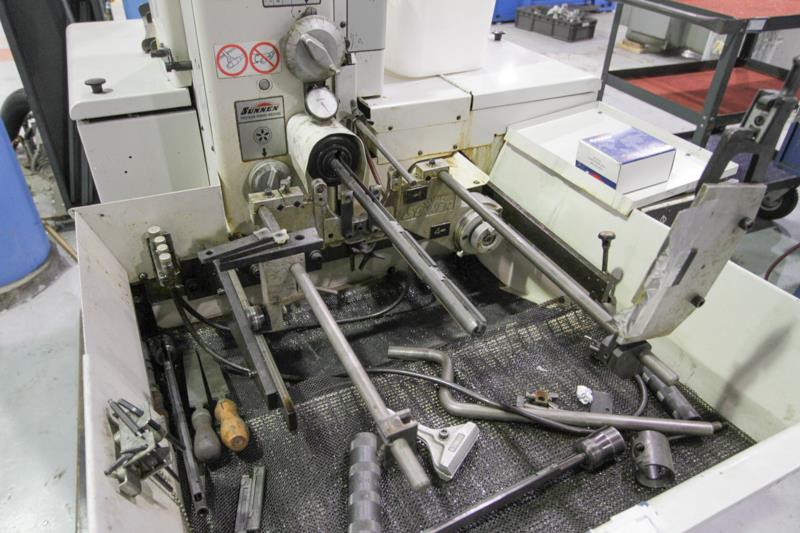

Photos de la machine
|
