Spécifications

 Catégorie : Centres D'usinage Horizontals

Demande de soumission
  Référence # 1810

  Manufacturier NIIGATA
  Modèle HN80C
  Année 1998
  Déplacement - Courses (X;Y;Z) 60" x 40" x 36"
  RPM 6000
  HP 30
  Tables 2
  Changeur d'outils 126
  Contrôle FANUC 160i-MA
  Prix VENDU!



Autres spécifications

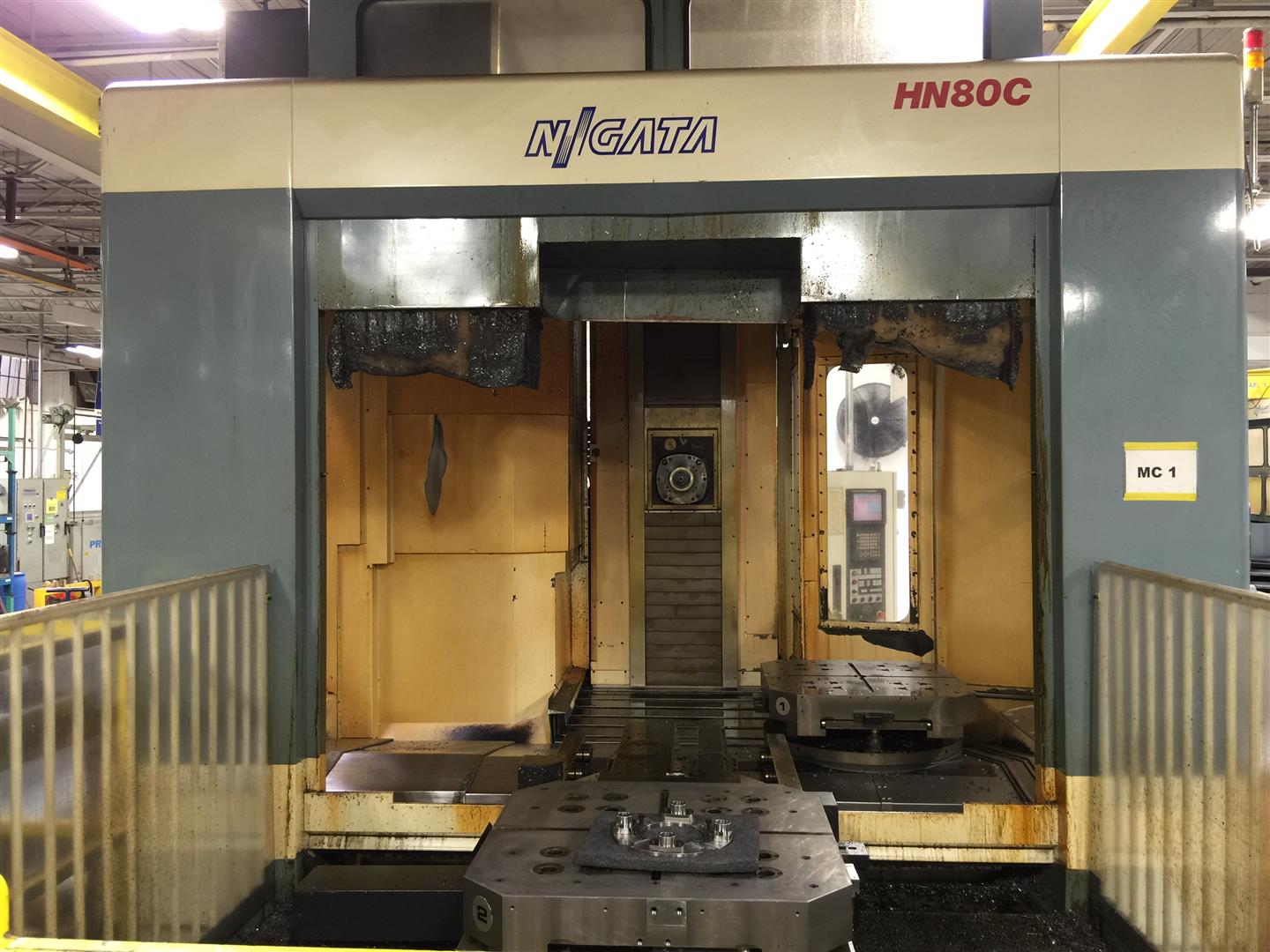

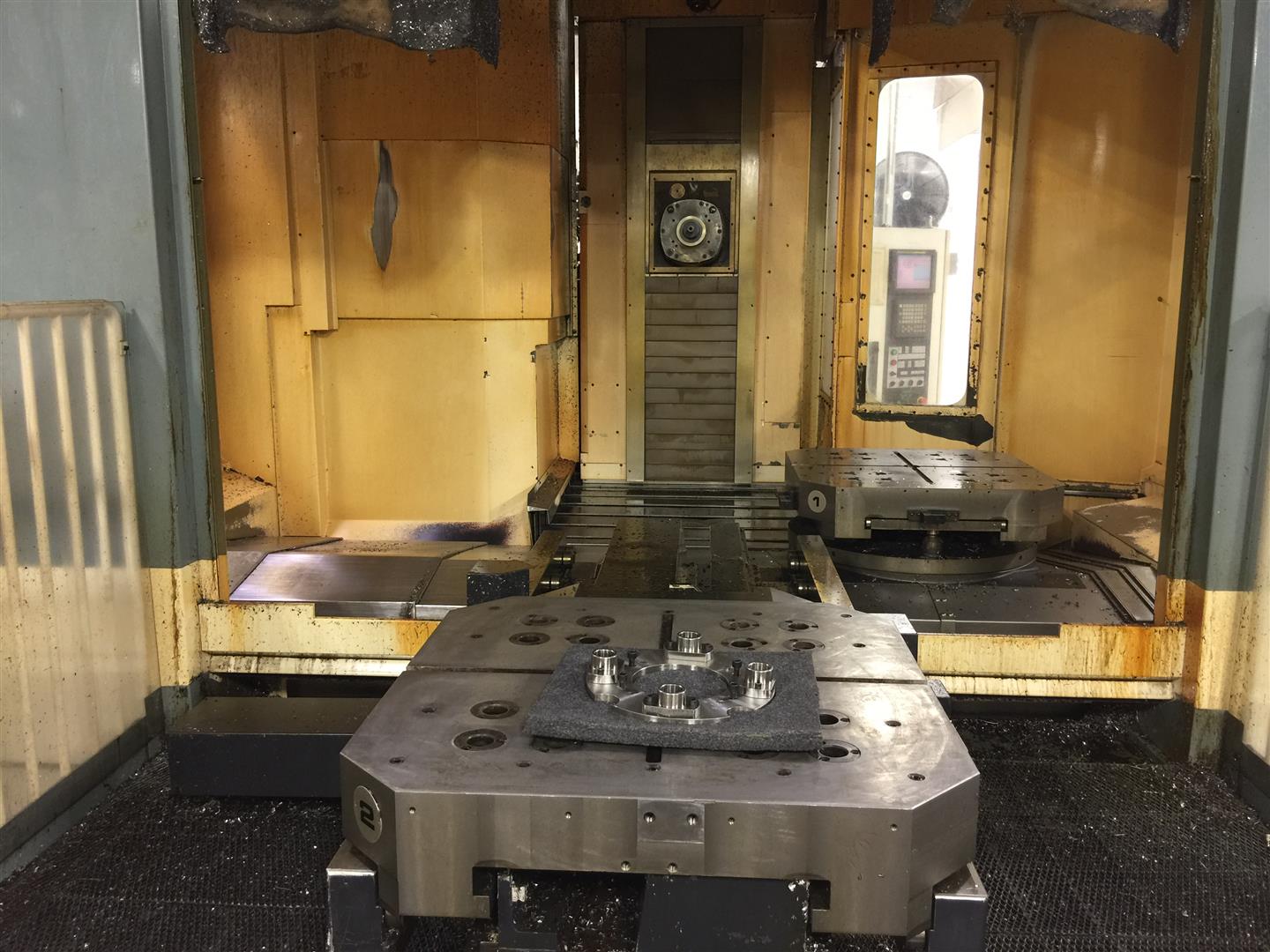

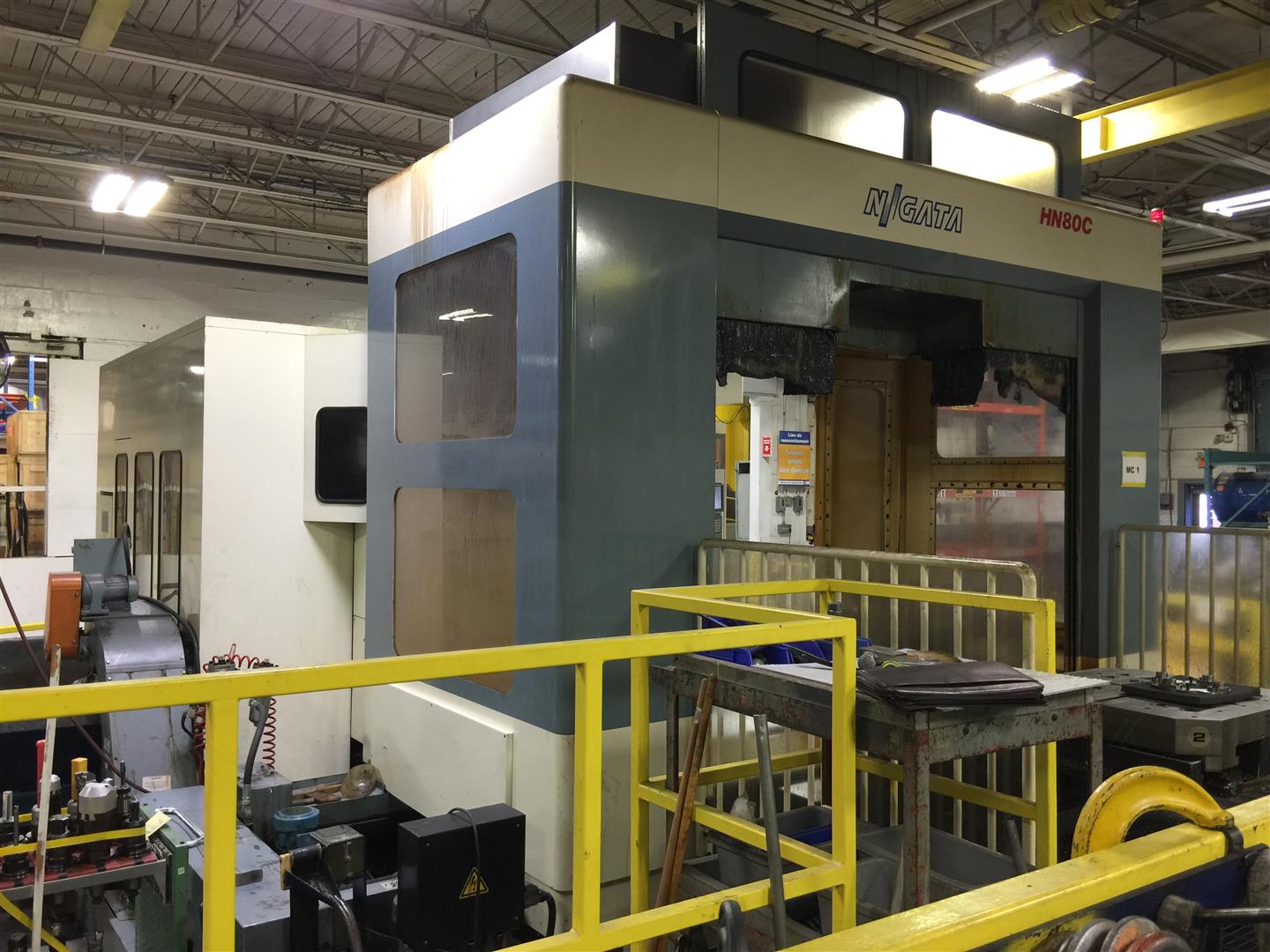

                  NIIGATA HN80C CNC HORIZONTAL MACHINING CENTER, 1998

                  MANUFACTURER : NIIGATA

                  YEAR : 1998

                  MODEL: HN80CW(X)-P2-NCCT126-F160i-MA

                  AXIS TRAVELS:

                  X- 60.2" (1530 MM)

                  Y- 40.15" (1020 MM)

                  Z- 36.22" (920 MM)

                  SPINDLE TAPER: CAT#50

                  SPINDLE RPM : 6000

                  HP : 30

                  PALLET : 2

                  PALLET LOADING CAPACITY: 2000 KG

                  ATC : 126



                  EQUIPPED WITH:

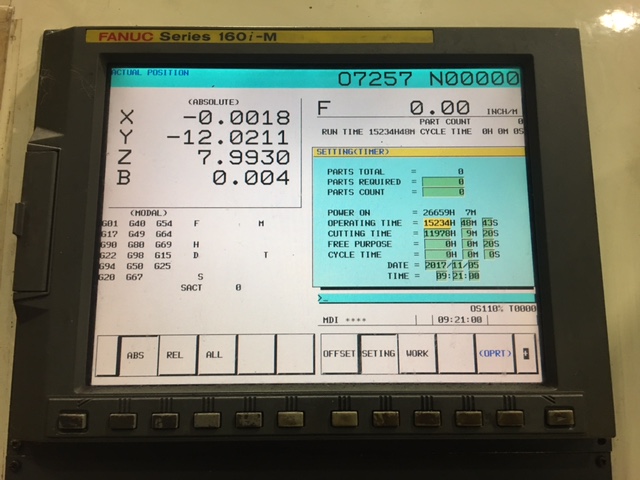

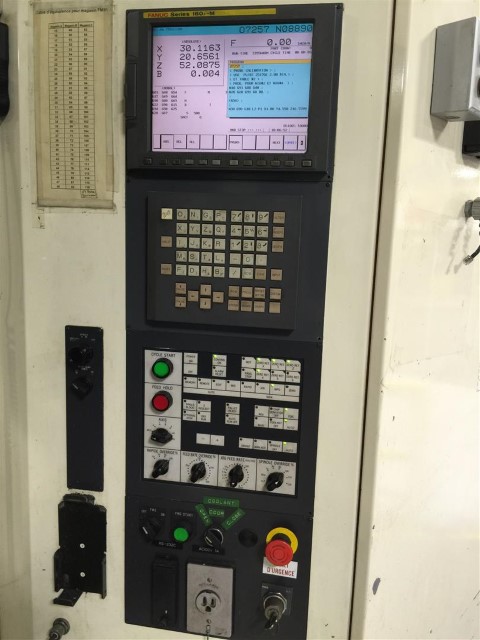

                  - FANUC 160i-MA

                  - CTS (COOLANT THROUGH SPINDLE)

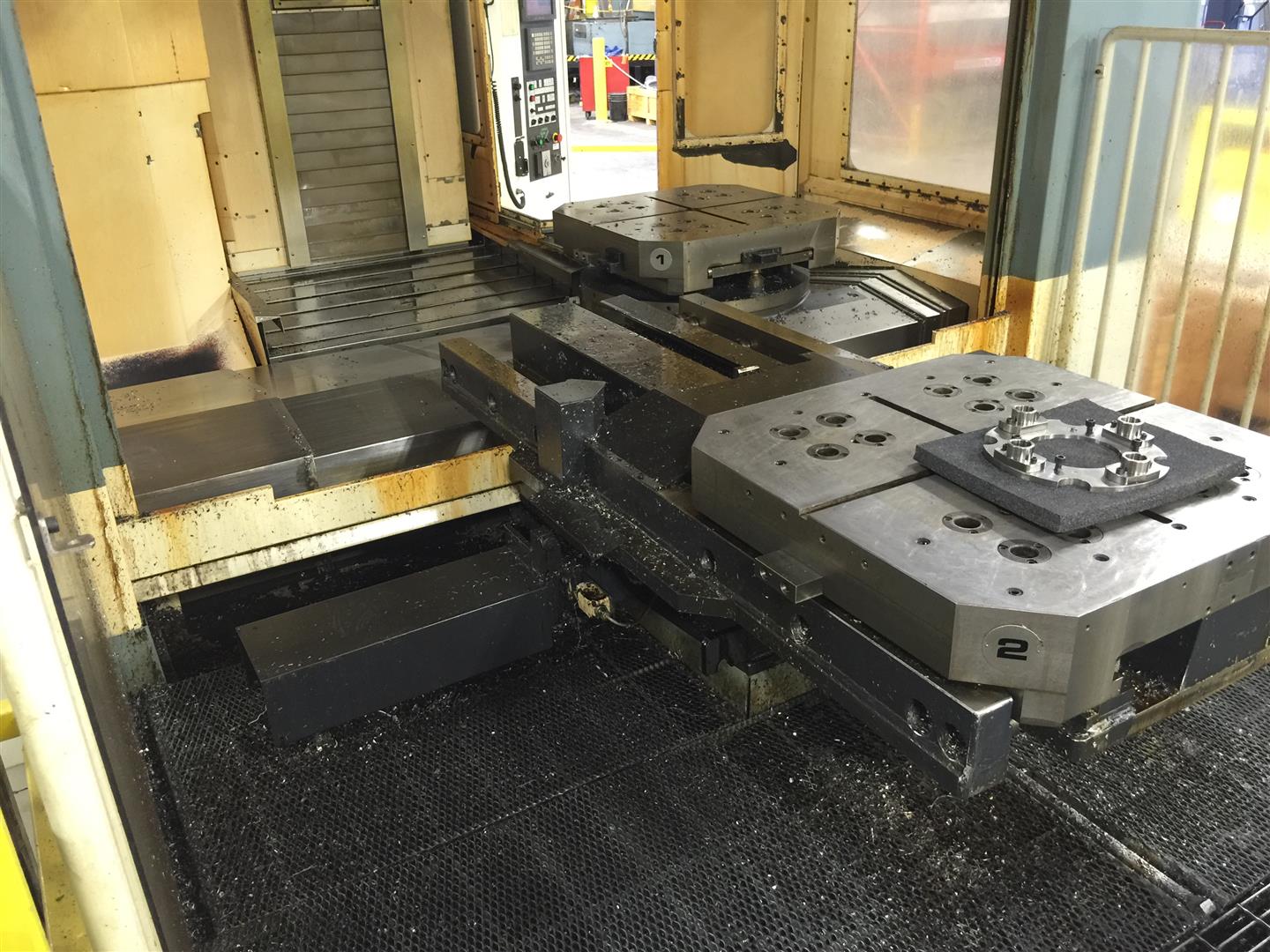

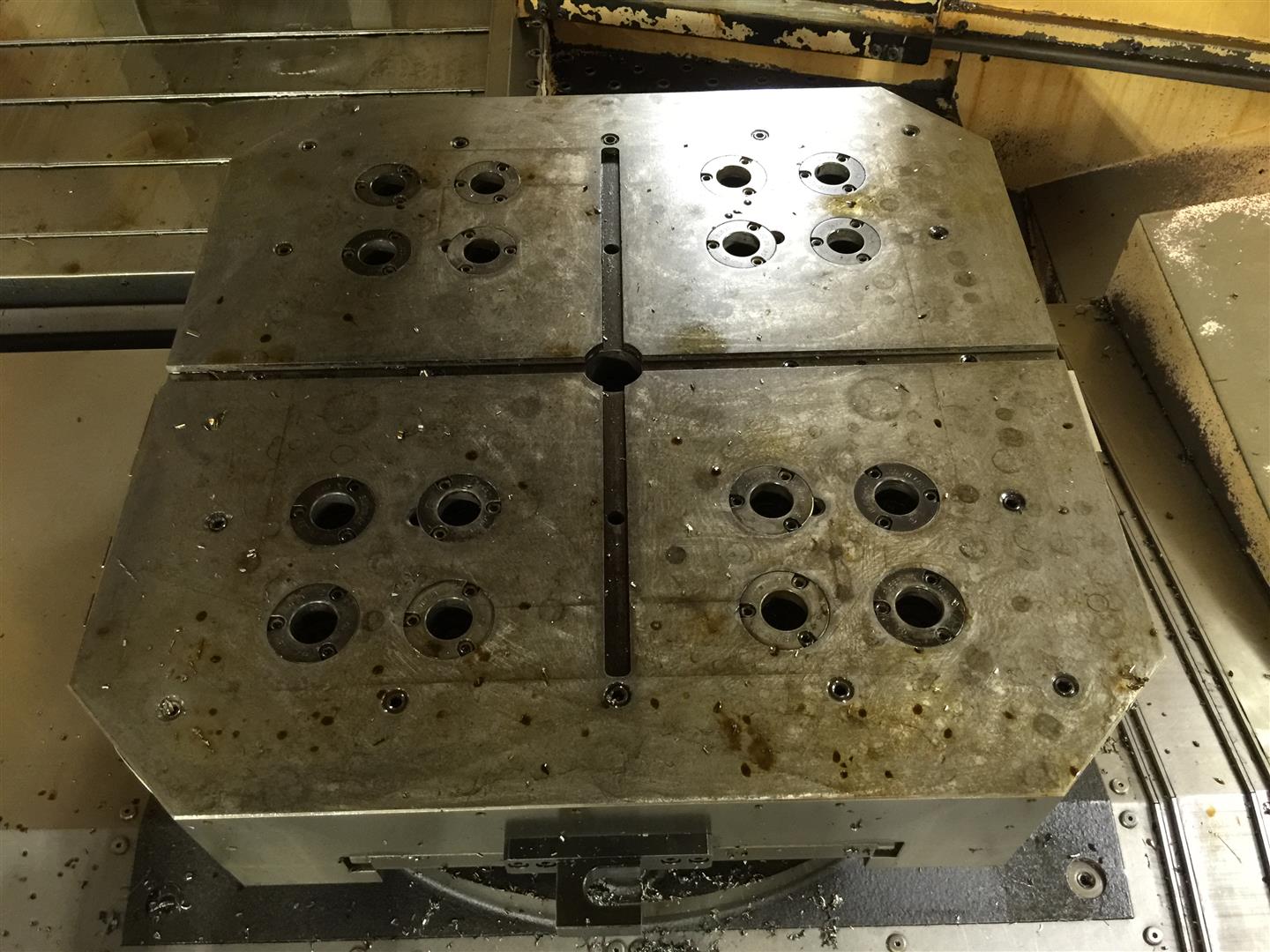

                  - (2) PALLETS OF 31.5" (800 MM)

                  - FULL 4TH AXIS - INDEXATION: 0.001 DEGREE

                  - MARPOSS PROBE INTERFACE

                  - FPM INTERFACE

                  - MONITORING SYSTEM NM24 MONITOR ACE

                  - 4 FACE CONTROL

                  - OVER GUIDE FOR 10 FPM

                  - RIGID TAP

                  - HSSB INTERFACE



                  ELECTRIC: 220V/3PH/60CY

                  AMP: 175



                  MACHINE HEIGHT: 147.6"

                  FLOOR SPACE: 198.8" X 297"

                  Approx. Weight: 22000 KG

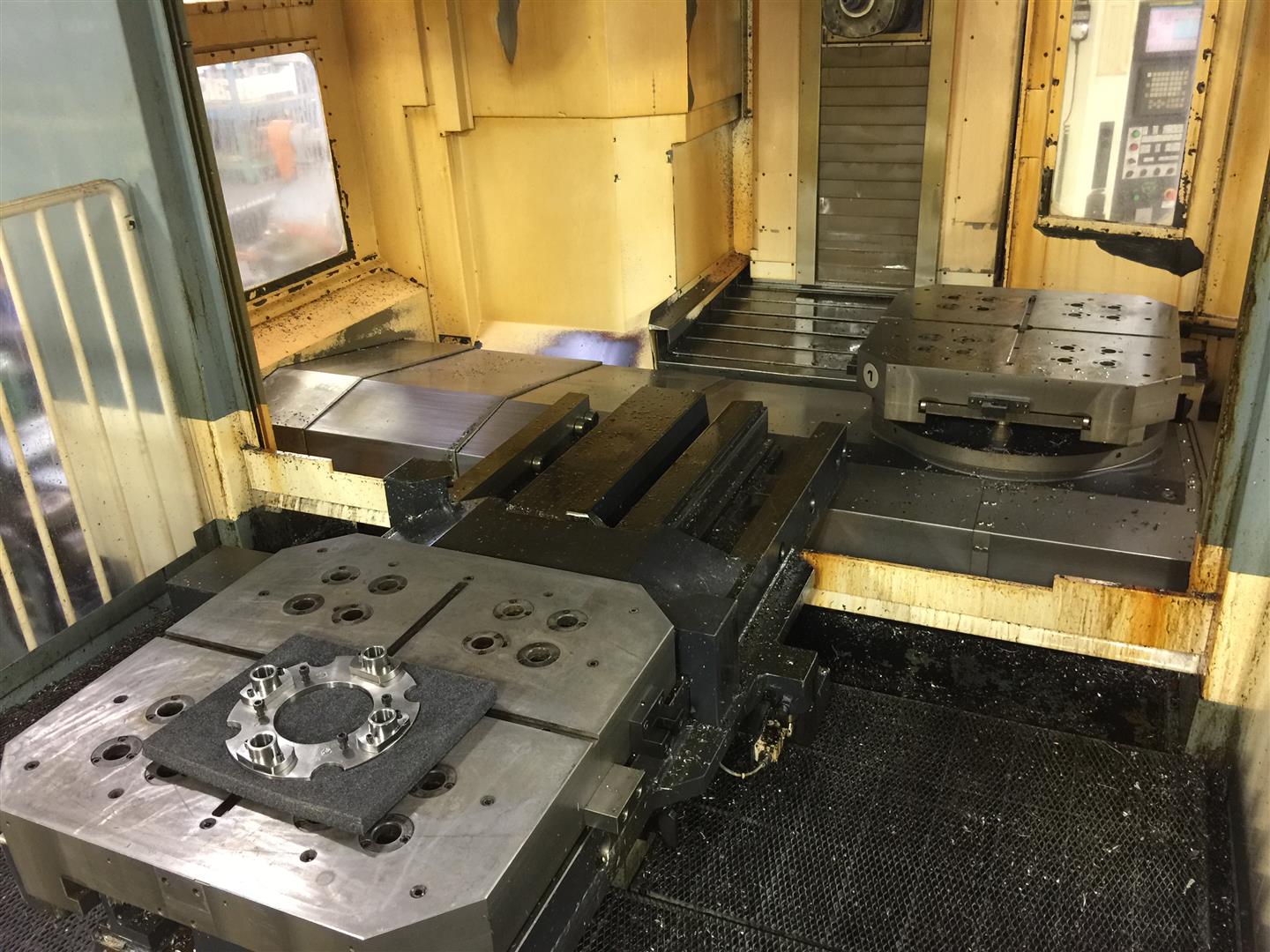

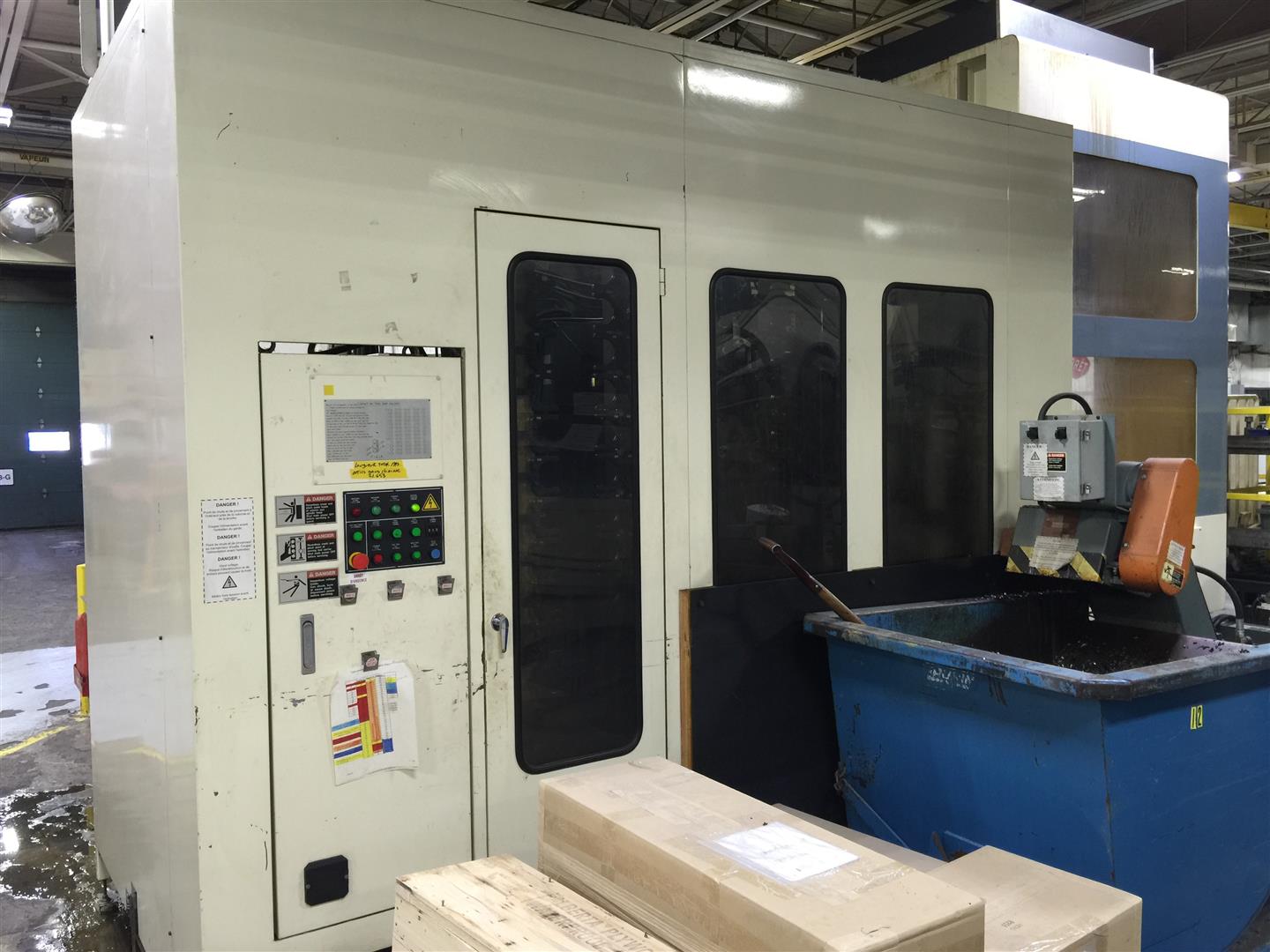

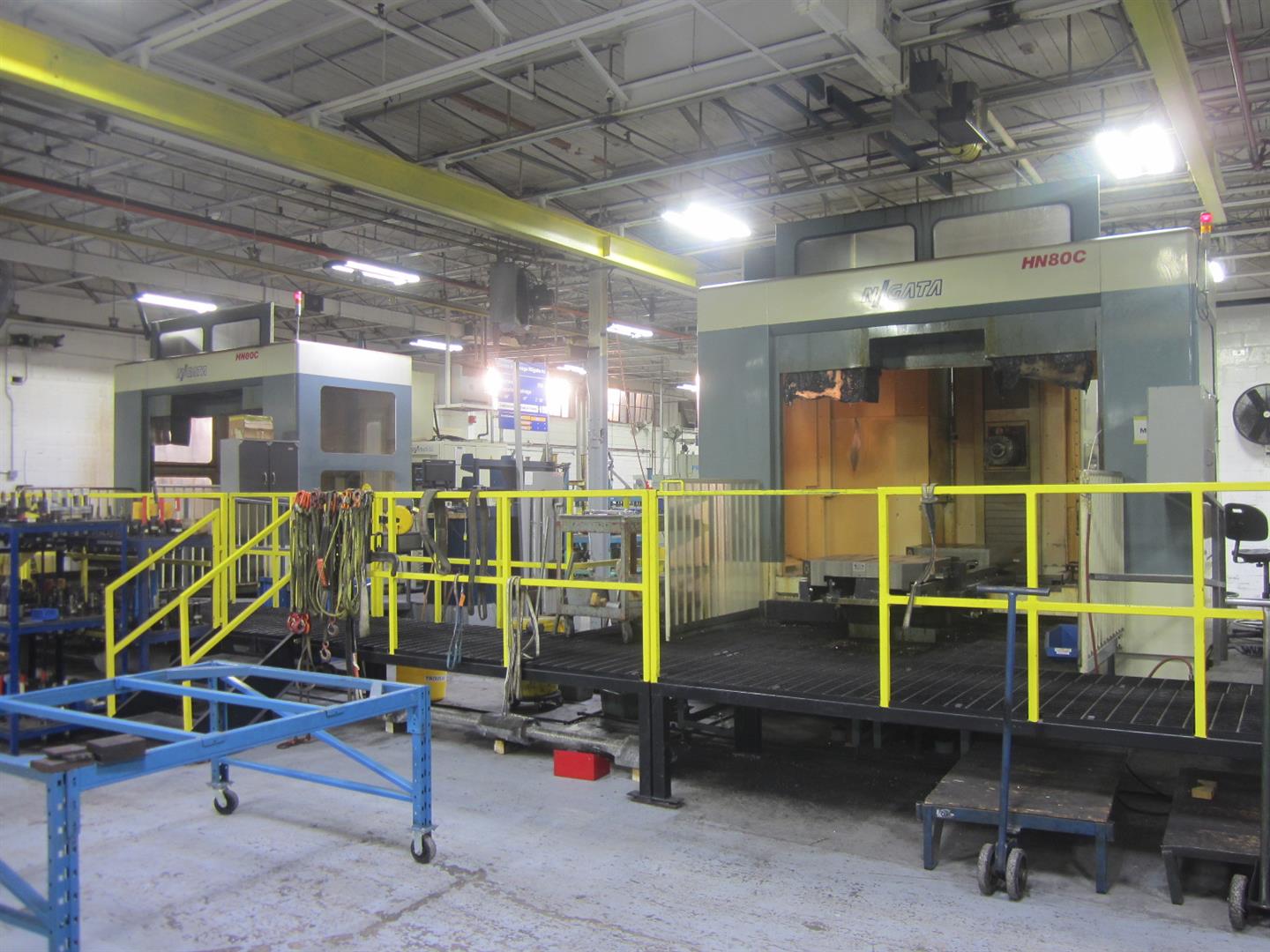

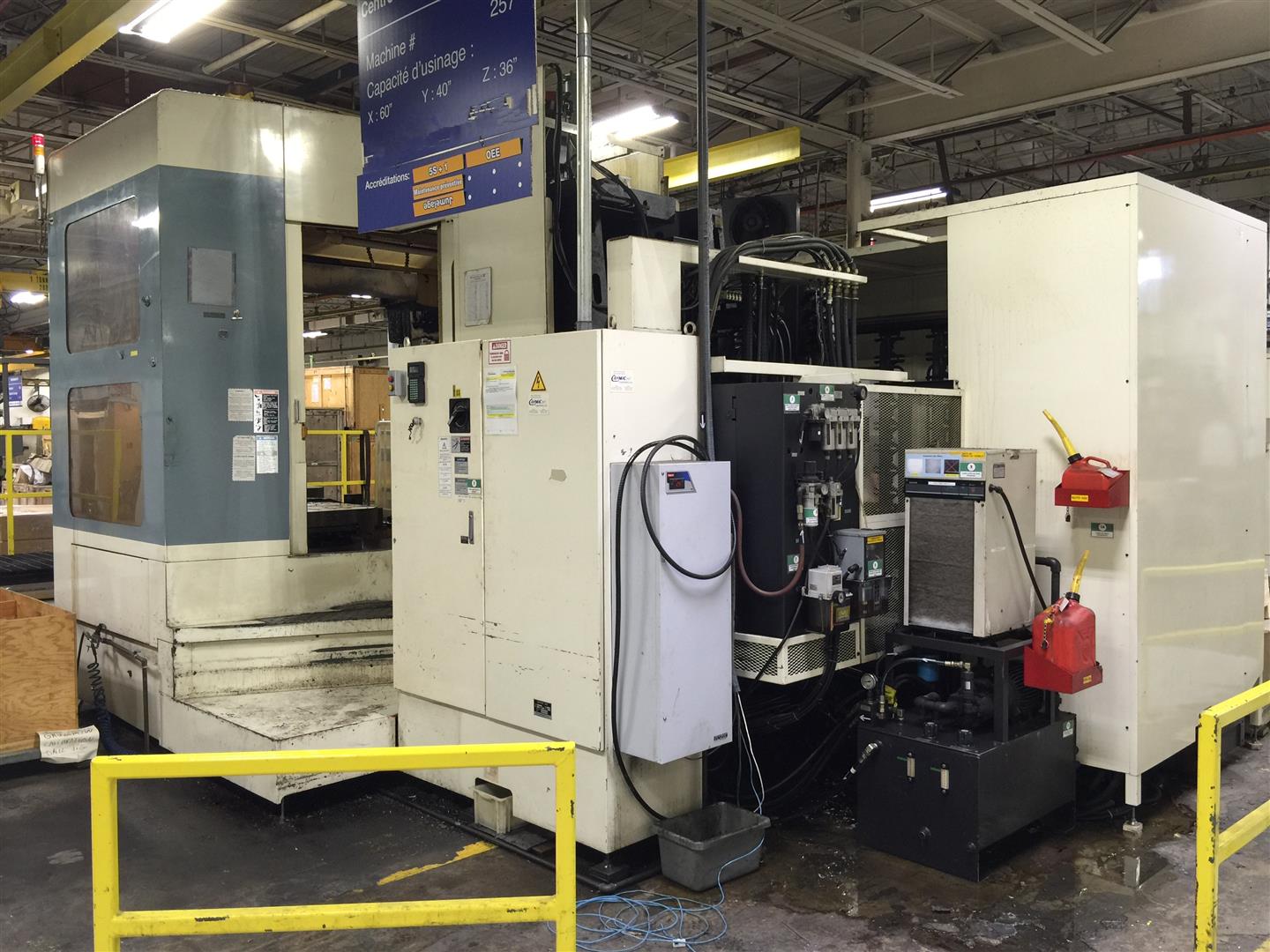

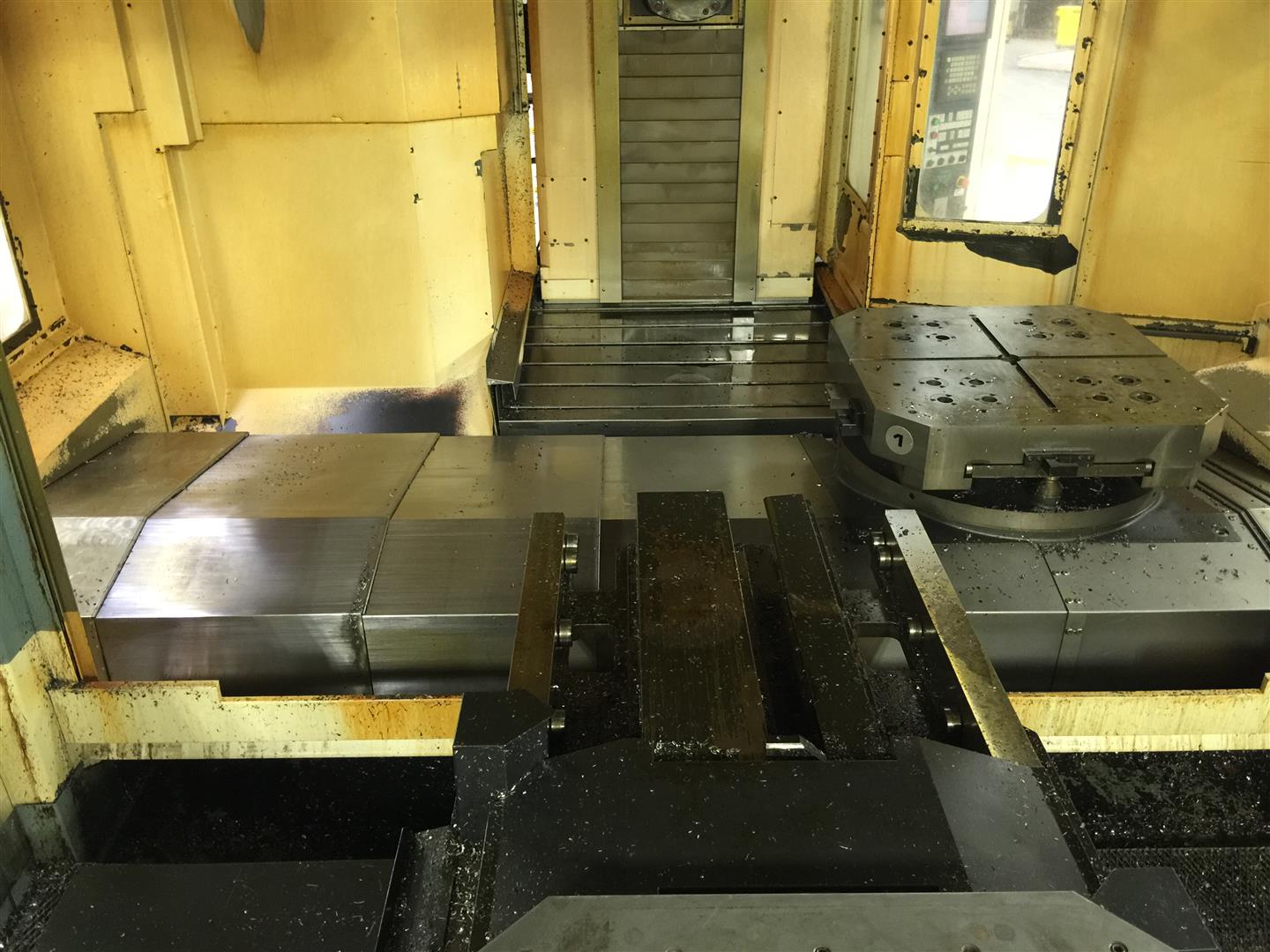

Photos de la machine
