Spécifications

 Catégorie : Tours CNC - Centre d'usinage pour tourner

Demande de soumission
  Référence # 1952

  Manufacturier MAZAK
  Modèle INTEGREX 400Y
  Année 2000
  Dia. Max. 24"
  Longueur de Tournage 60.2"
  Dimension Mandrin 12"
  Dia. Broche 3.64"
  HP 40
  RPM 3000
  Contrôle FUSION 640MT
  Prix VENDU!



Autres spécifications



                  MAZAK INTEGREX 400Y/1500 CNC LATHE, 2000

                  MANUFACTURER: MAZAK

                  MODEL:INTEGREX 400Y/1500

                  YEAR: 2000

                  MAXIMUM SWING/OVER CARRIAGE 24.01"

                  MAXIMUM CUTTING DIAMETER-CHUCKING 24.01"

                  MAXIMUM CUTTING LENGTH 60.2"

                  X AXIS TRAVEL 22.83"

                  Y AXIS TRAVEL +/- 4.13"

                  Z AXIS TRAVEL 63.11"

                  B AXIS MOVEMENT 225 DEGREES - 1 DEGREE INCREM.

                  C AXIS SPINDLE INDEX .001 DEGREE

                  SPINDLE NOSE / SPINDLE BORE / BAR CAP. A2-8" / 3.46" / 3.46"

                  SPINDLE SPEED 35 - 3,000 RPM

                  SPINDLE HP CONT / 30 MIN 40 HP / 30 HP

                  ROTARY TOOL SPINDLE NOSE 63MM SHORT TAPER

                  ROTARY TOOL SPINDLE SPEED 15 - 6,000 RPM

                  ROTARY TOOL SPINDLE HP 20 HP

                  MAGAZINE CAPACITY 40 TOOL MAGAZINE

                  RAPID TRAVERSE RATES X, Z / Y 1181 / 591 IPM

                  MACHINE DIMENSIONS APPROX. 198"X89"X107"

                  MACHINE WEIGHT 21,900 LBS.



                  EQUIPPED WITH:



                  MAZATROL FUSION 640MT

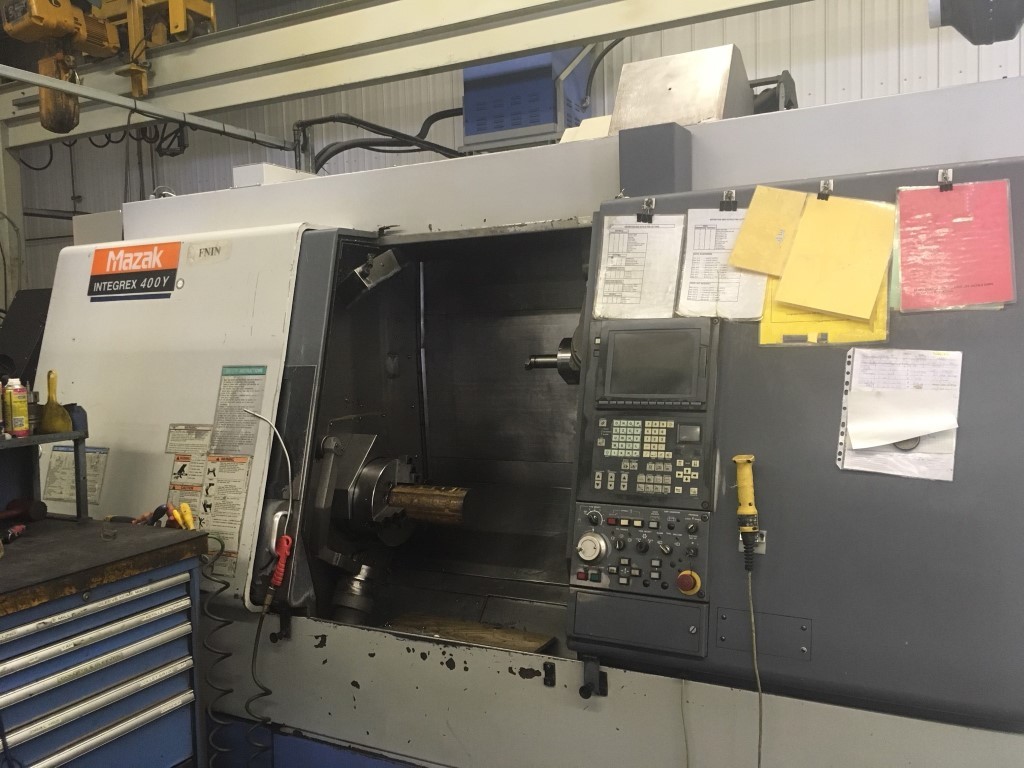

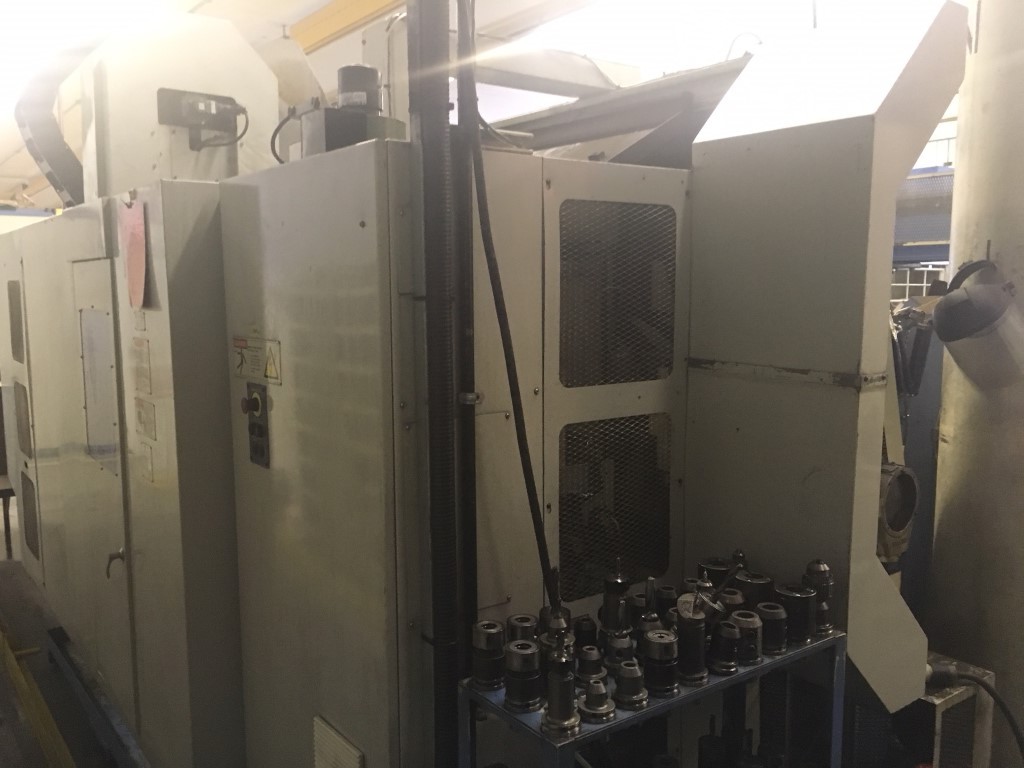

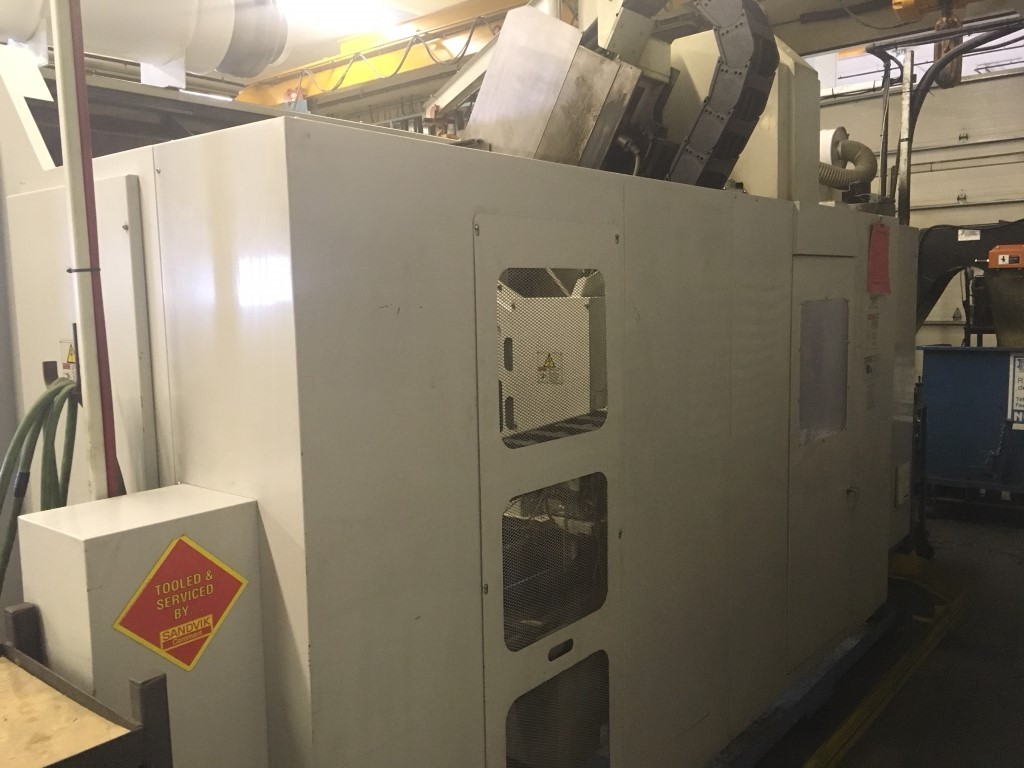

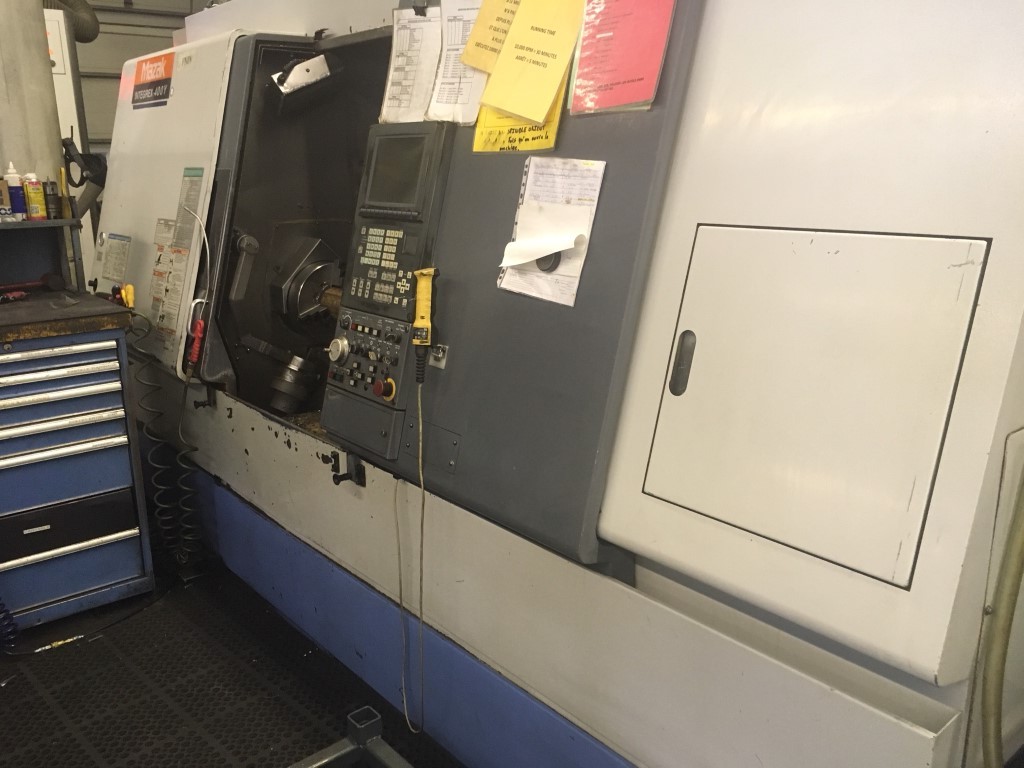

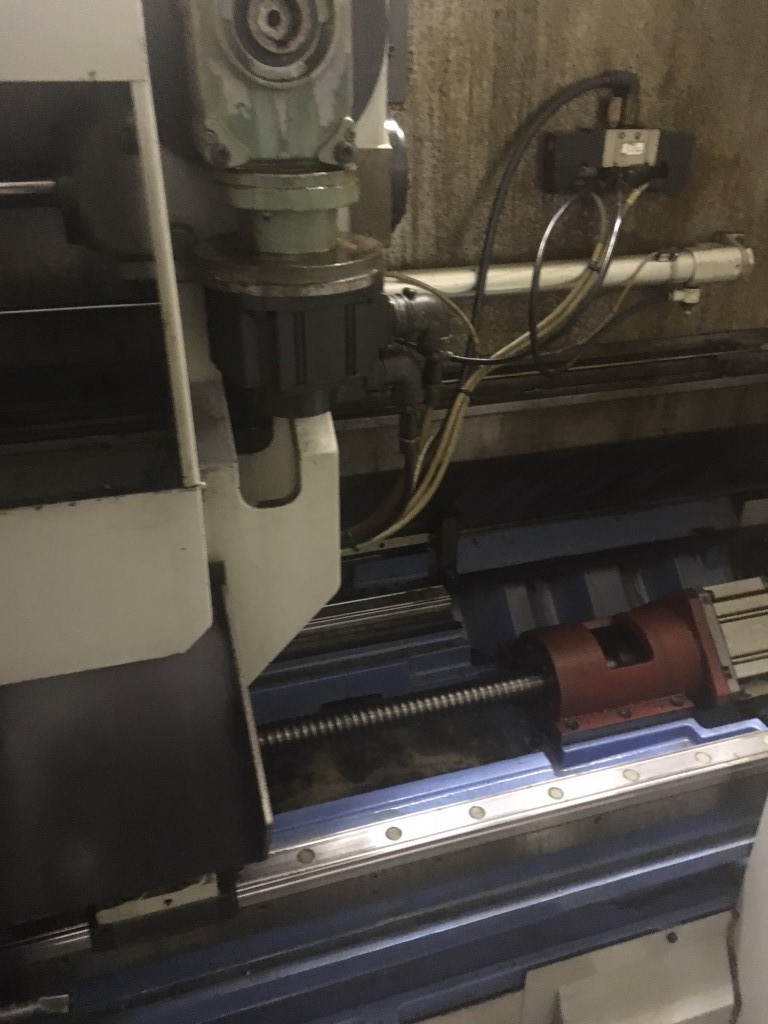

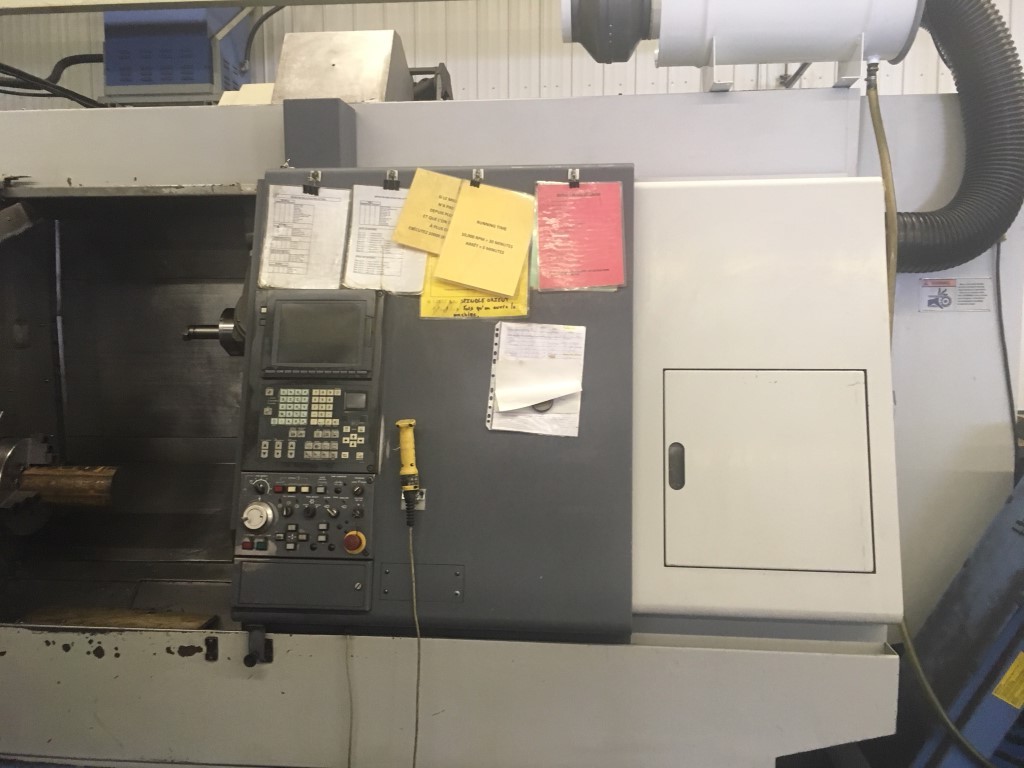

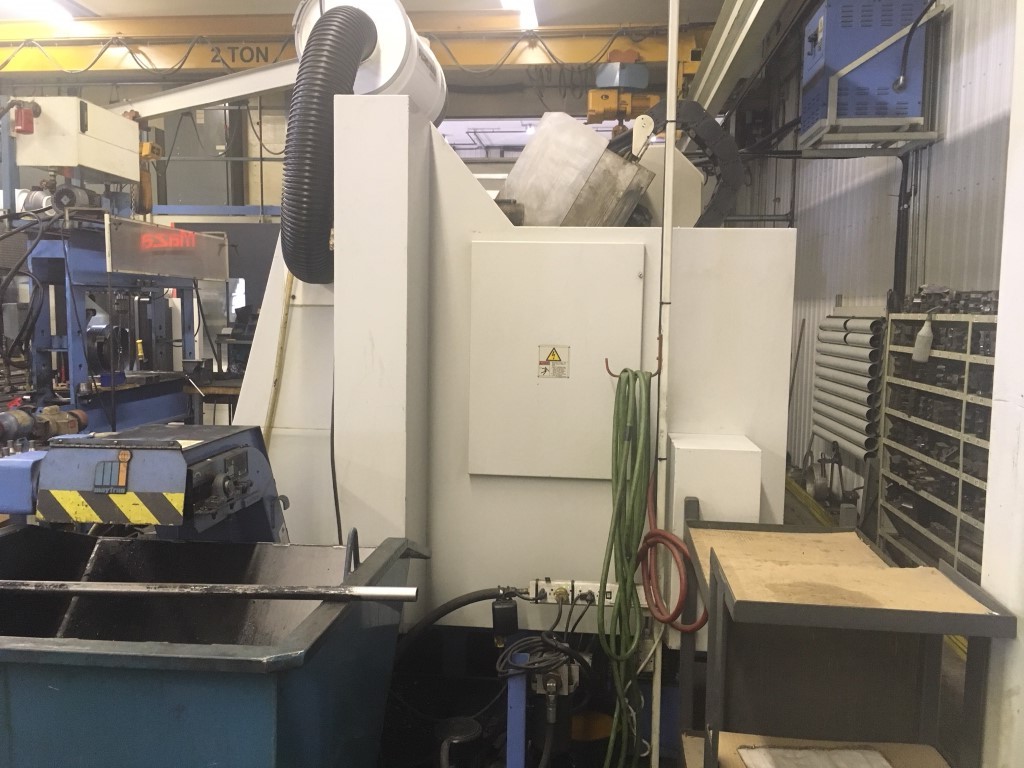

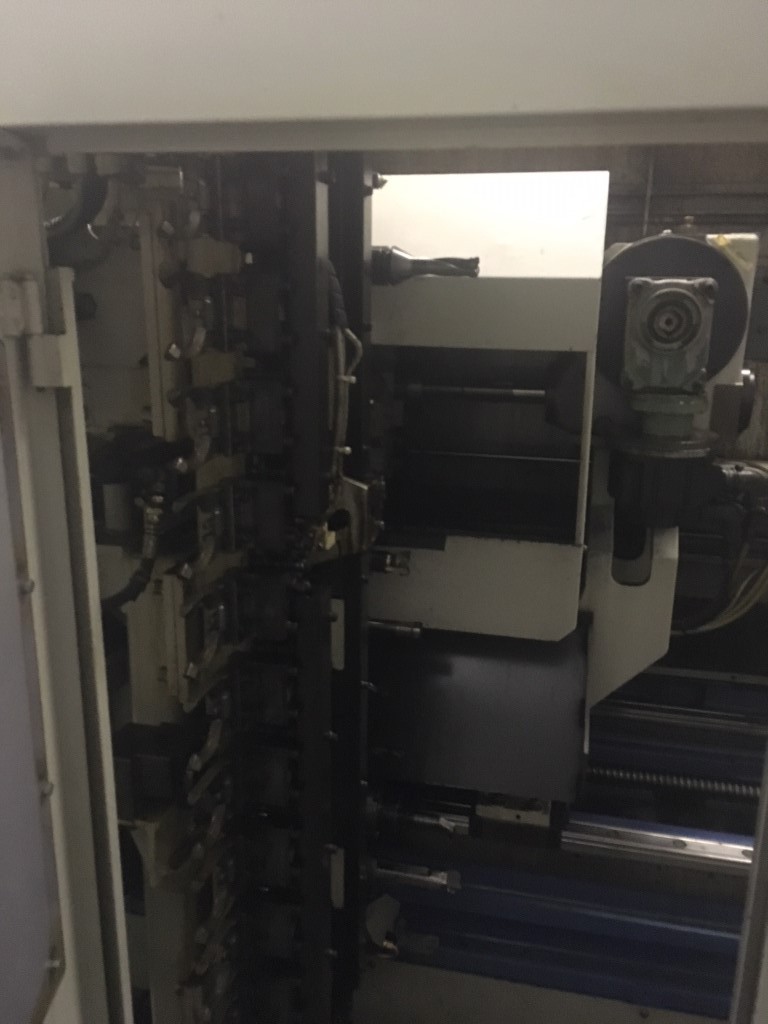

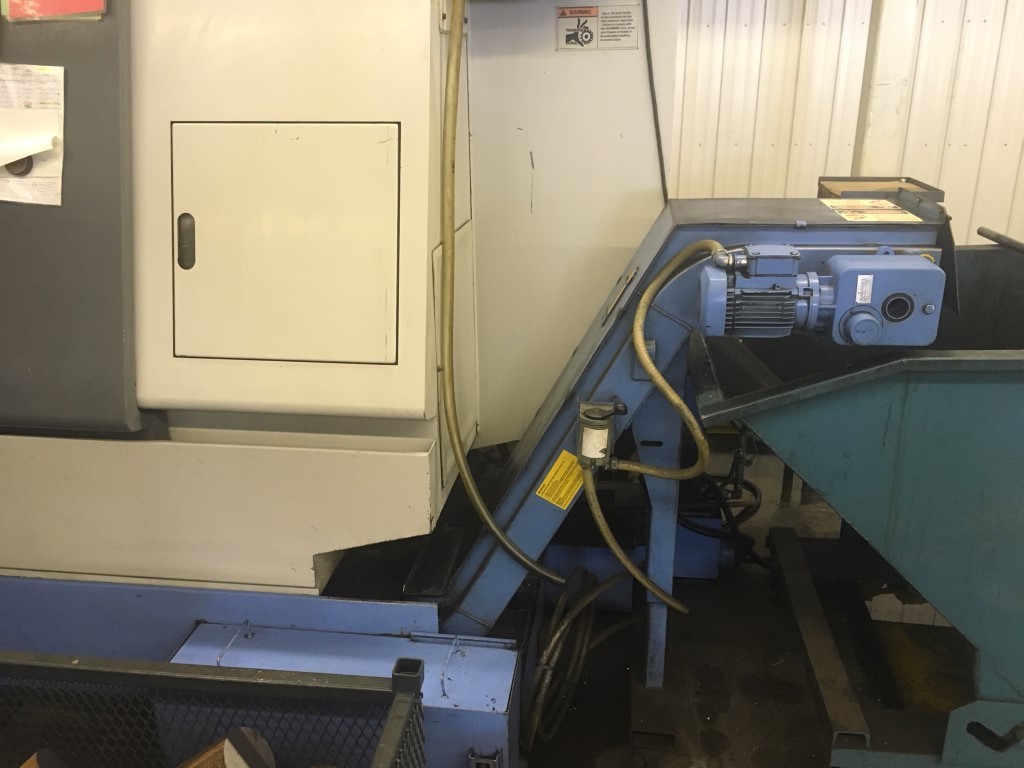

Photos de la machine
